Plan 64529SC
Modern Ranch with Second-Story Gym for the Rear-View Lot
Heated S.F.
3,654
Beds
3-5
Baths
3.5 - 5.5
Stories
1
Cars
4
Flyer
What's Included
Floor Plan
PRINT PLANS

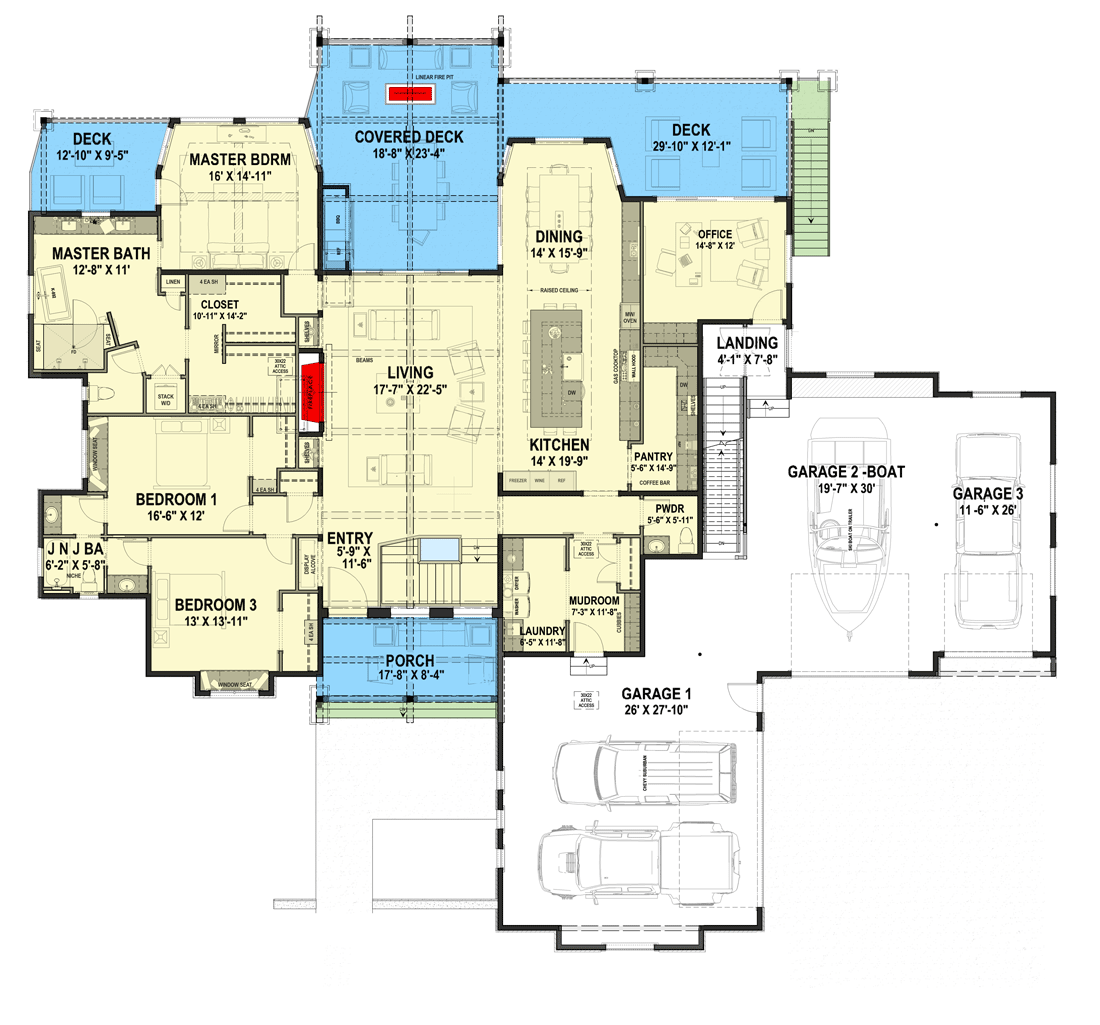

Main Level
Reverse Floor Plan
Modern Ranch with Second-Story Gym for the Rear-View Lot - 64529SC floor plan - Main Level

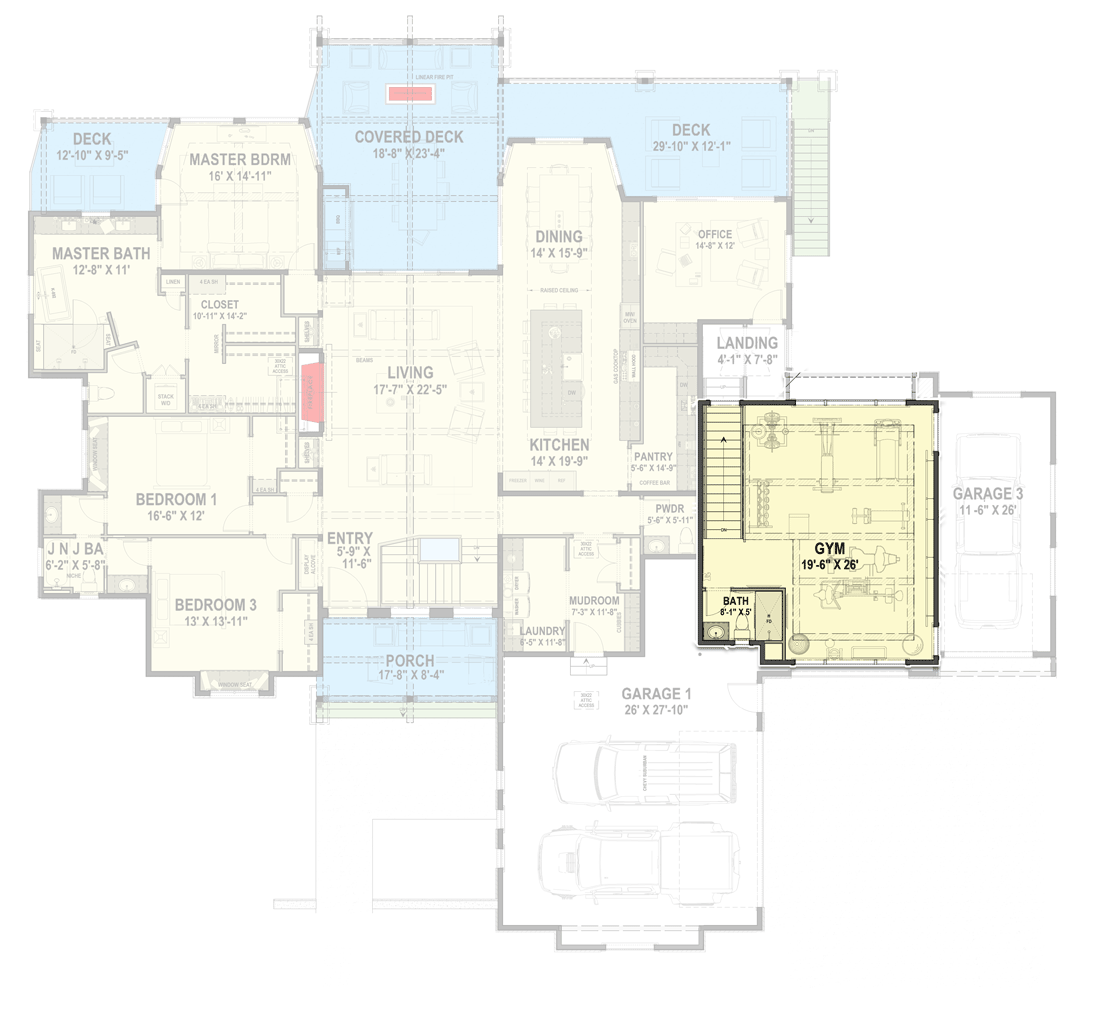

2nd Floor
Reverse Floor Plan
Modern Ranch with Second-Story Gym for the Rear-View Lot - 64529SC floor plan - 2nd Floor
Optionally Finished Lower Level
Reverse Floor Plan
Modern Ranch with Second-Story Gym for the Rear-View Lot - 64529SC floor plan - Optionally Finished Lower Level
Plan Details

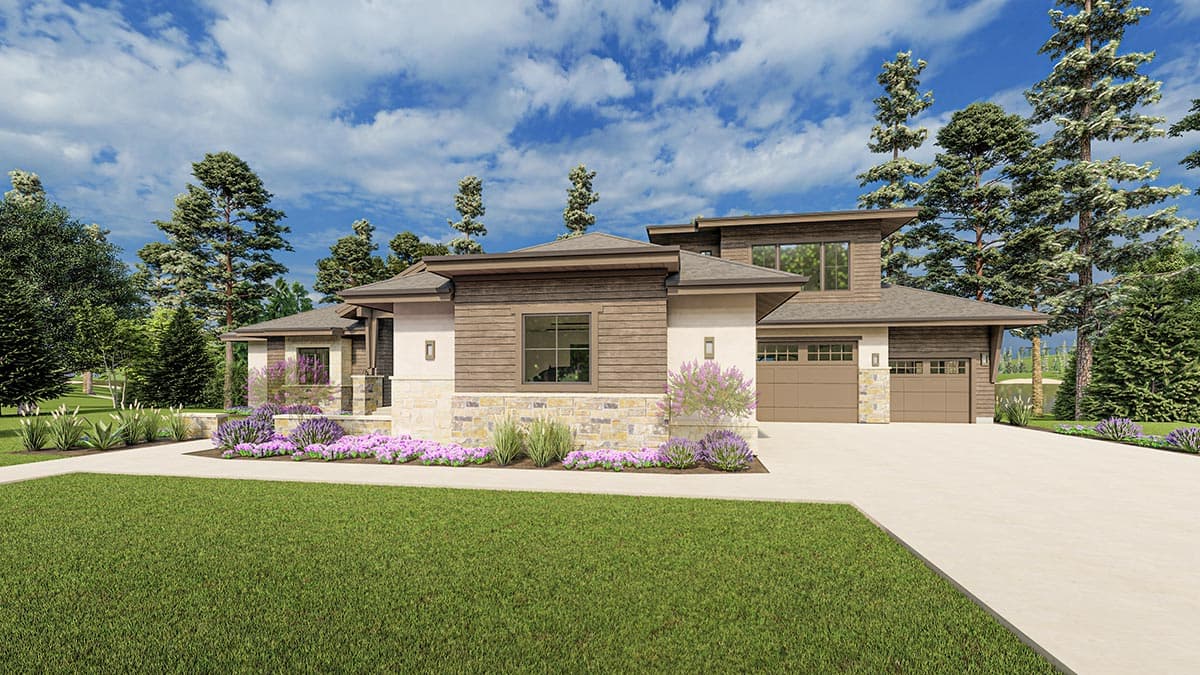

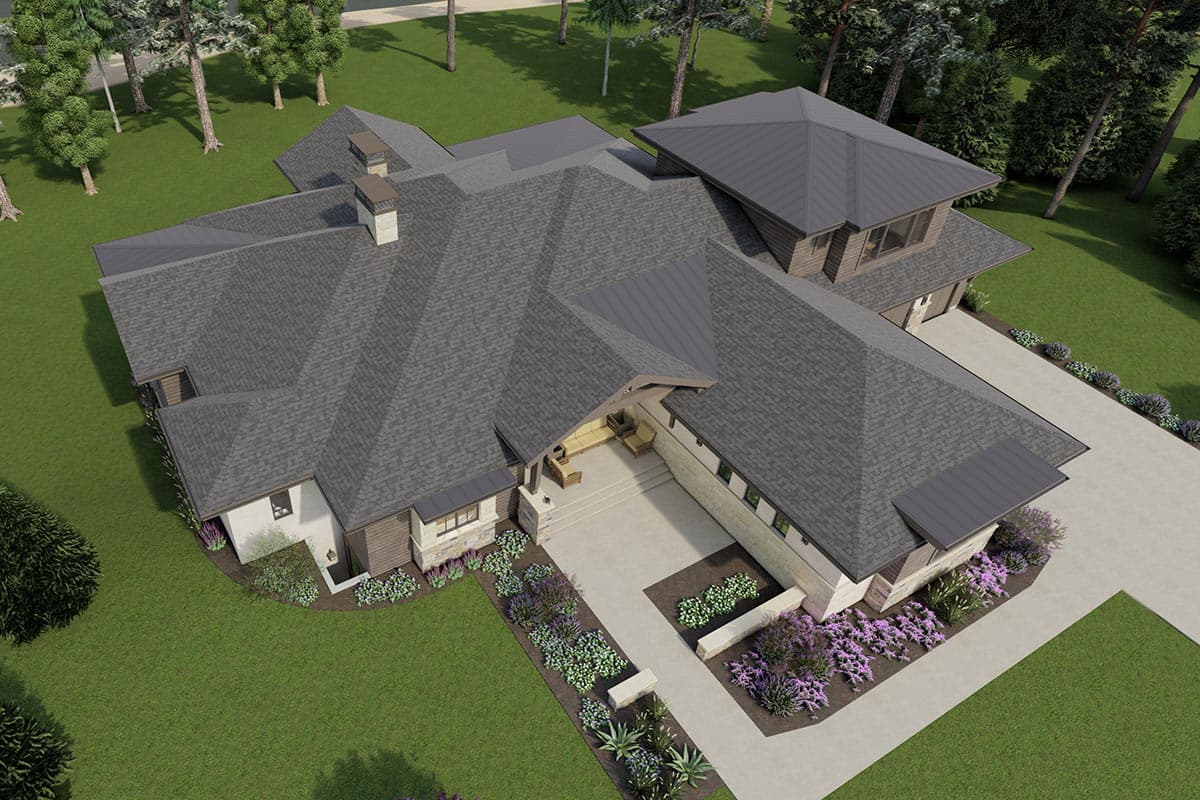

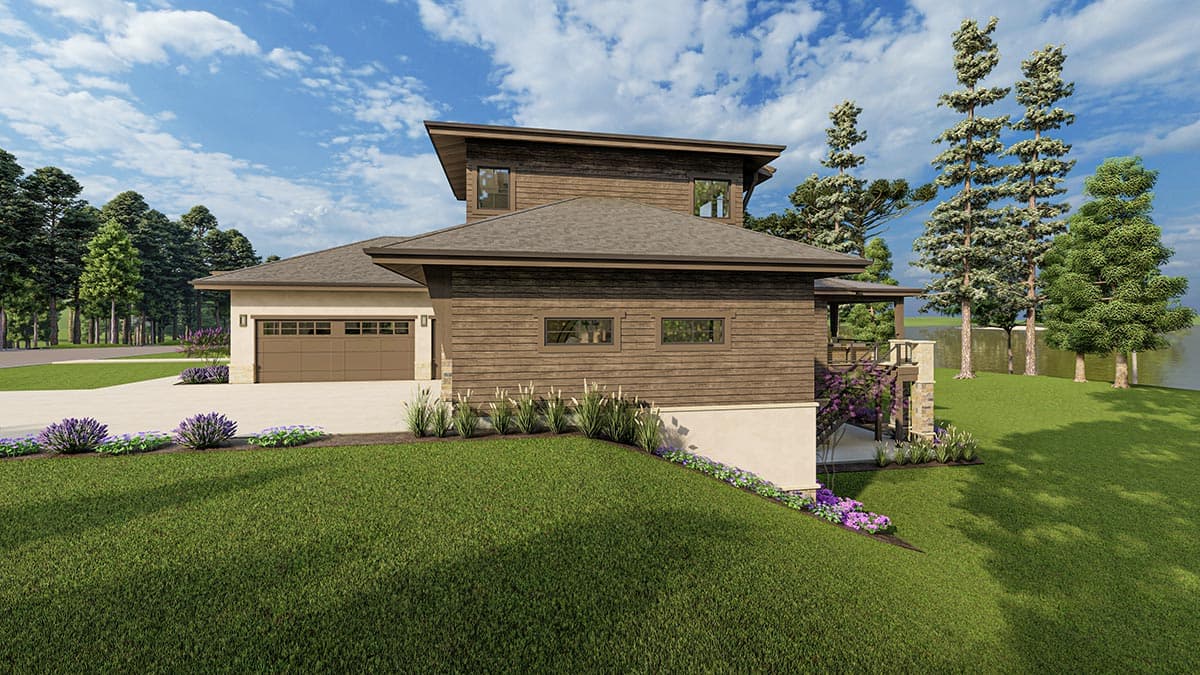

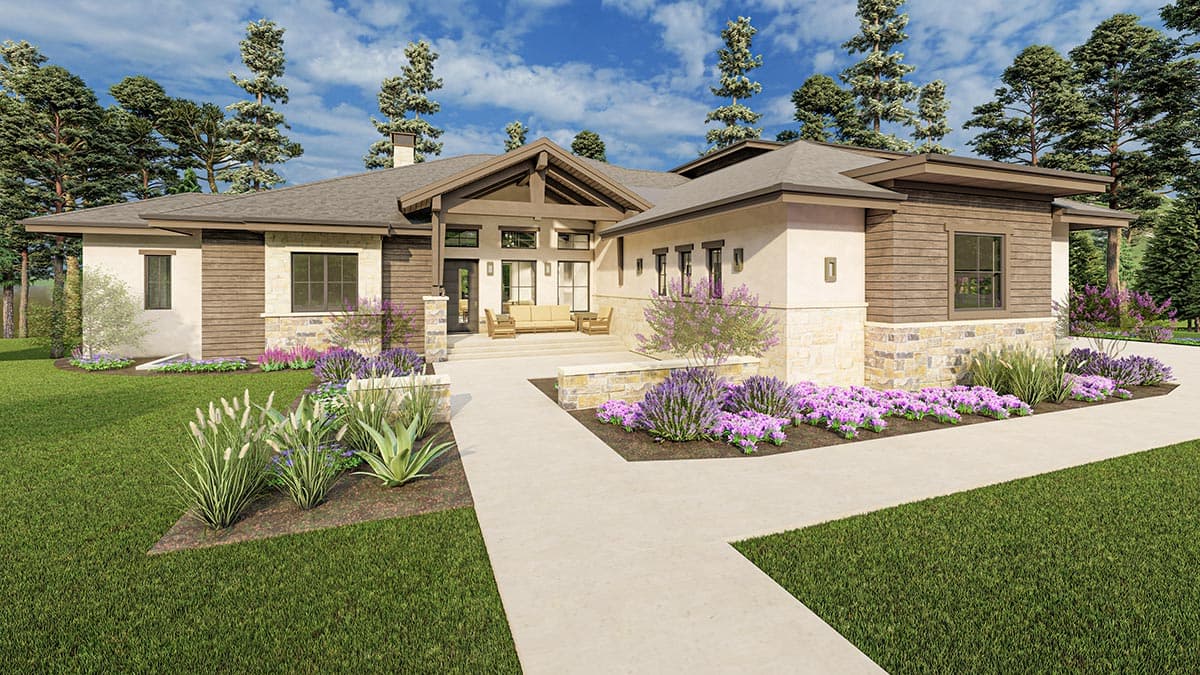

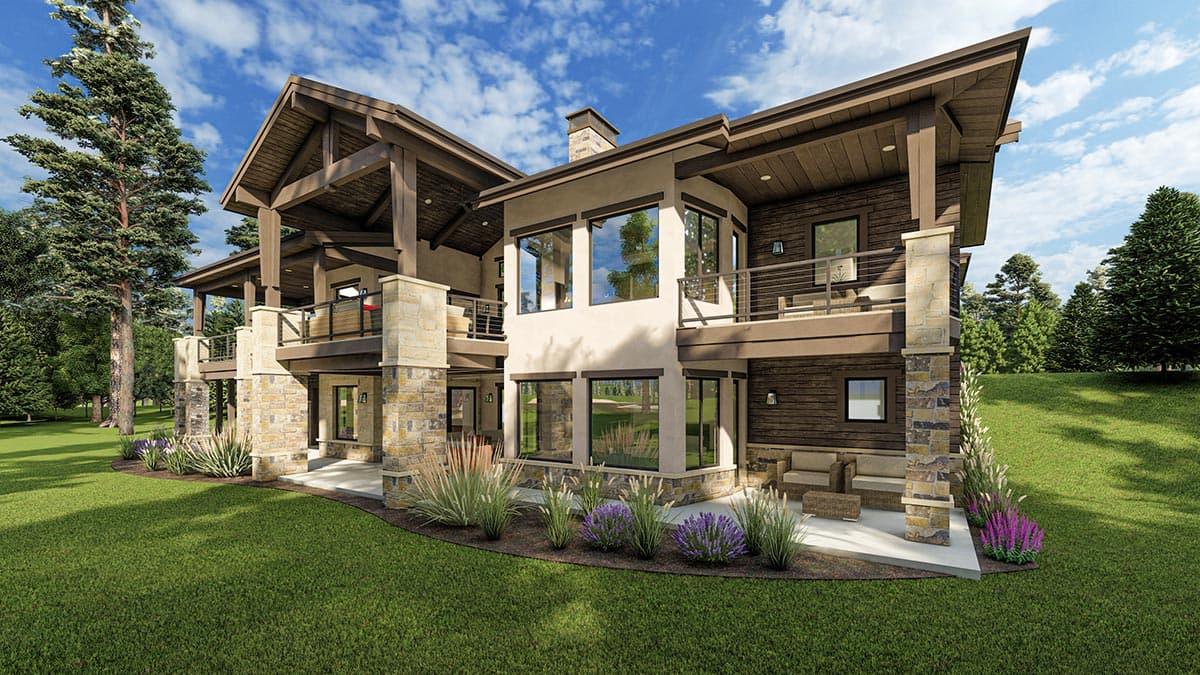

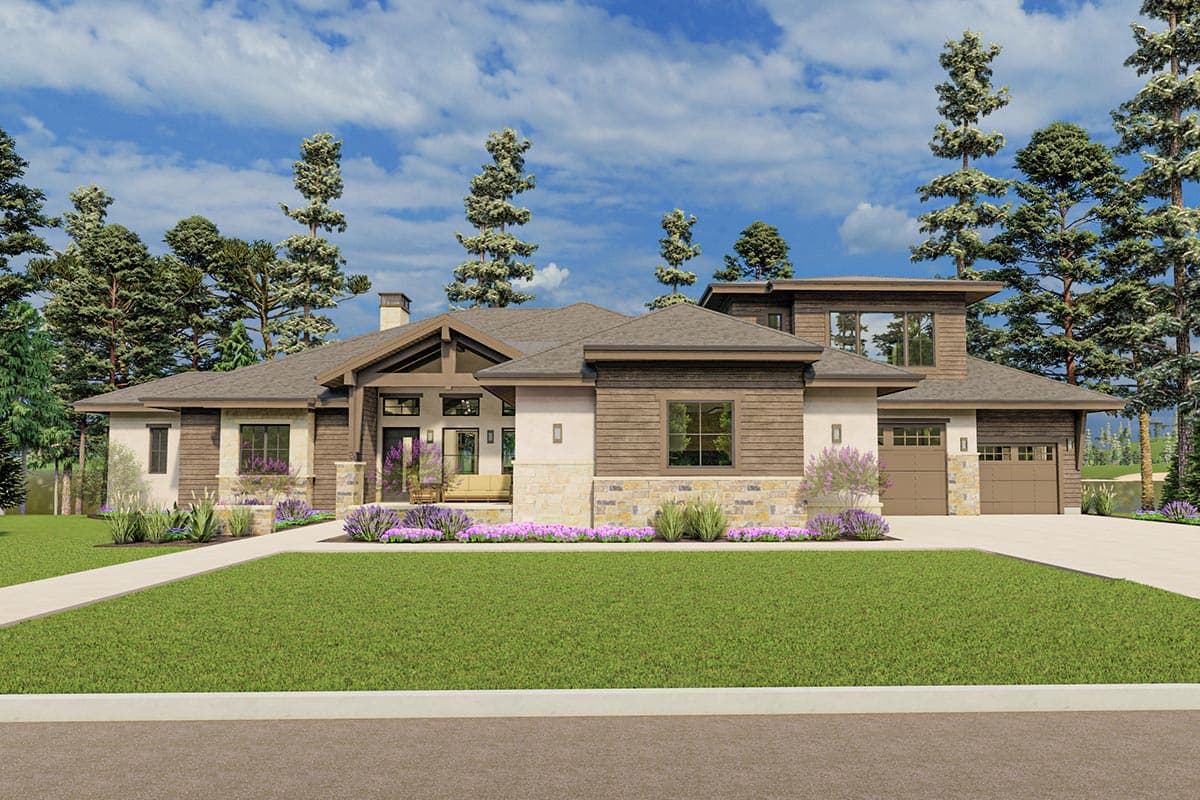

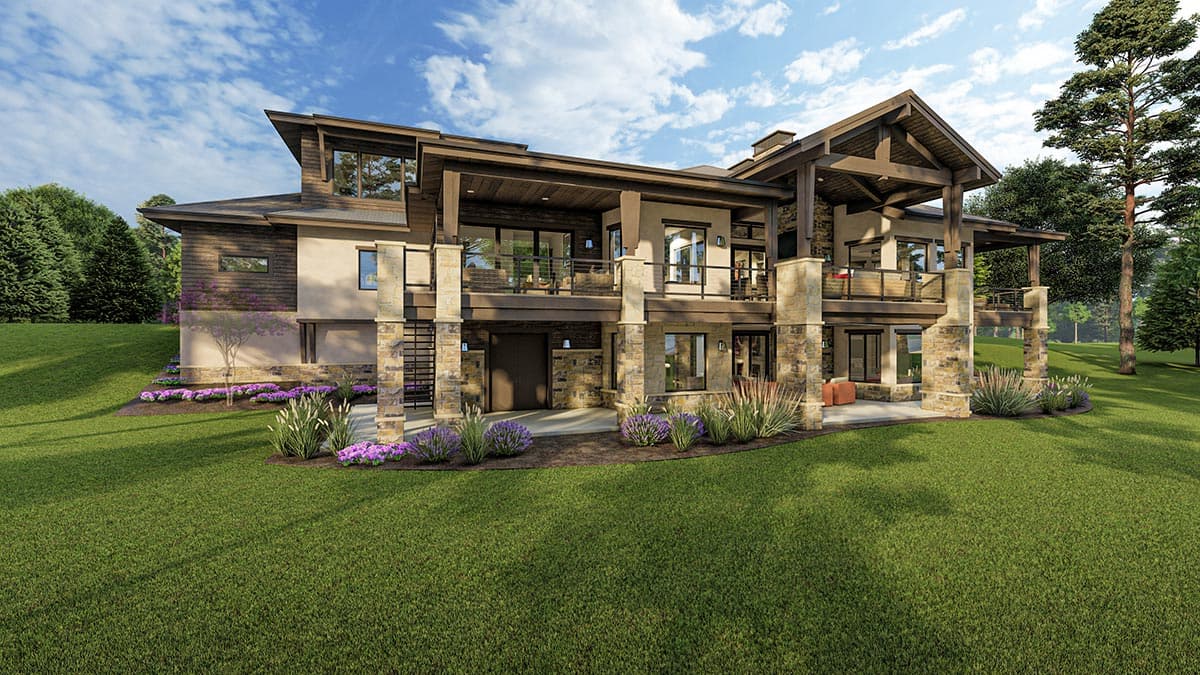

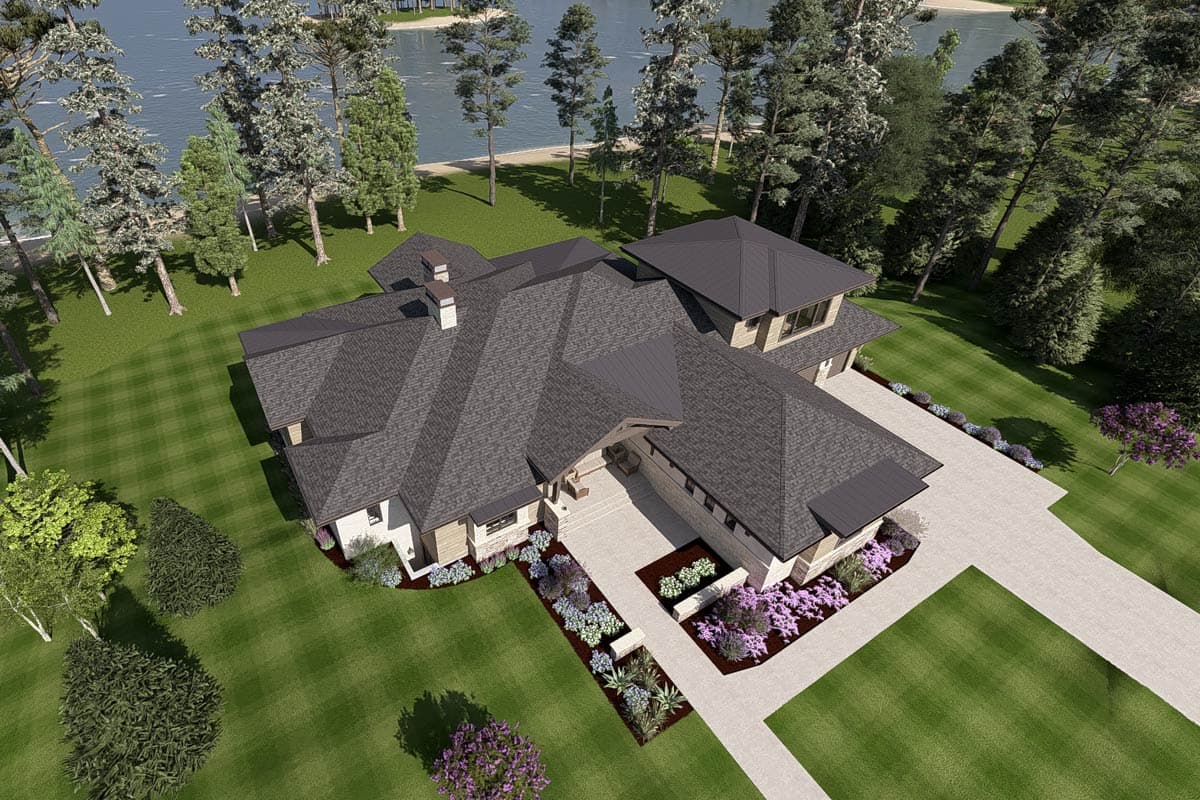

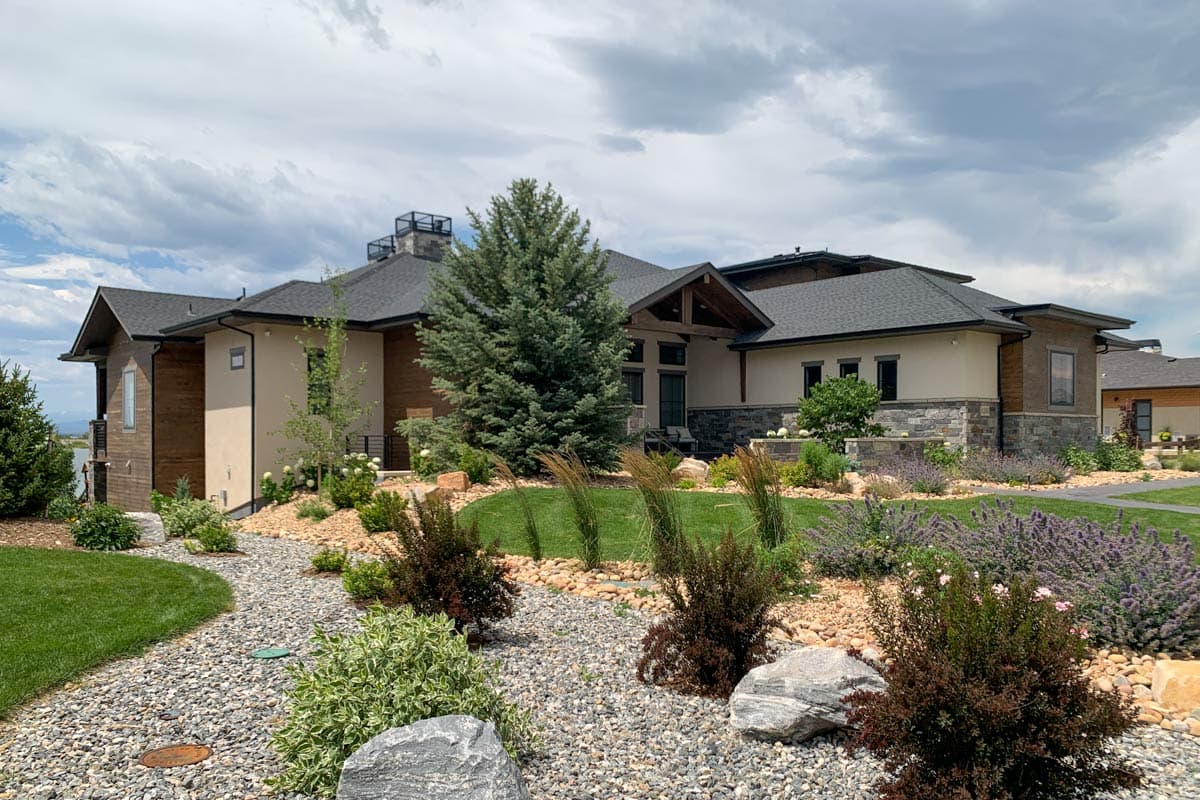

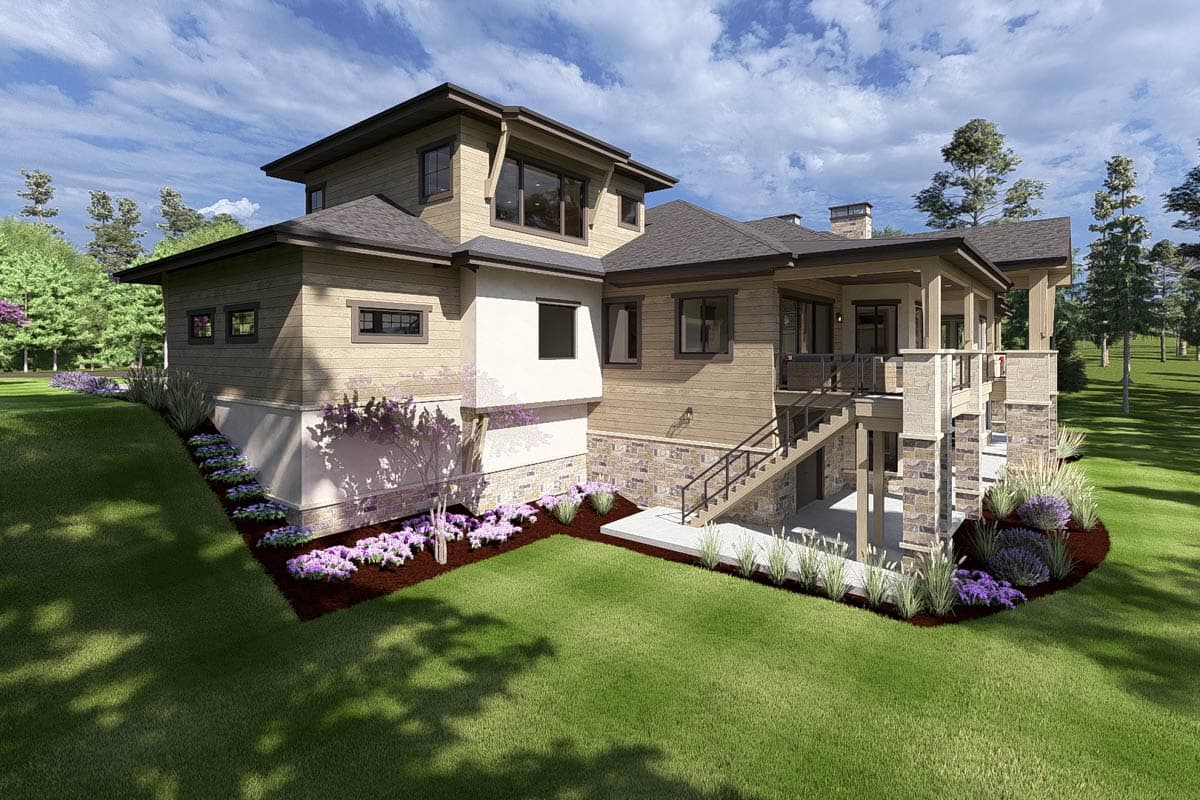

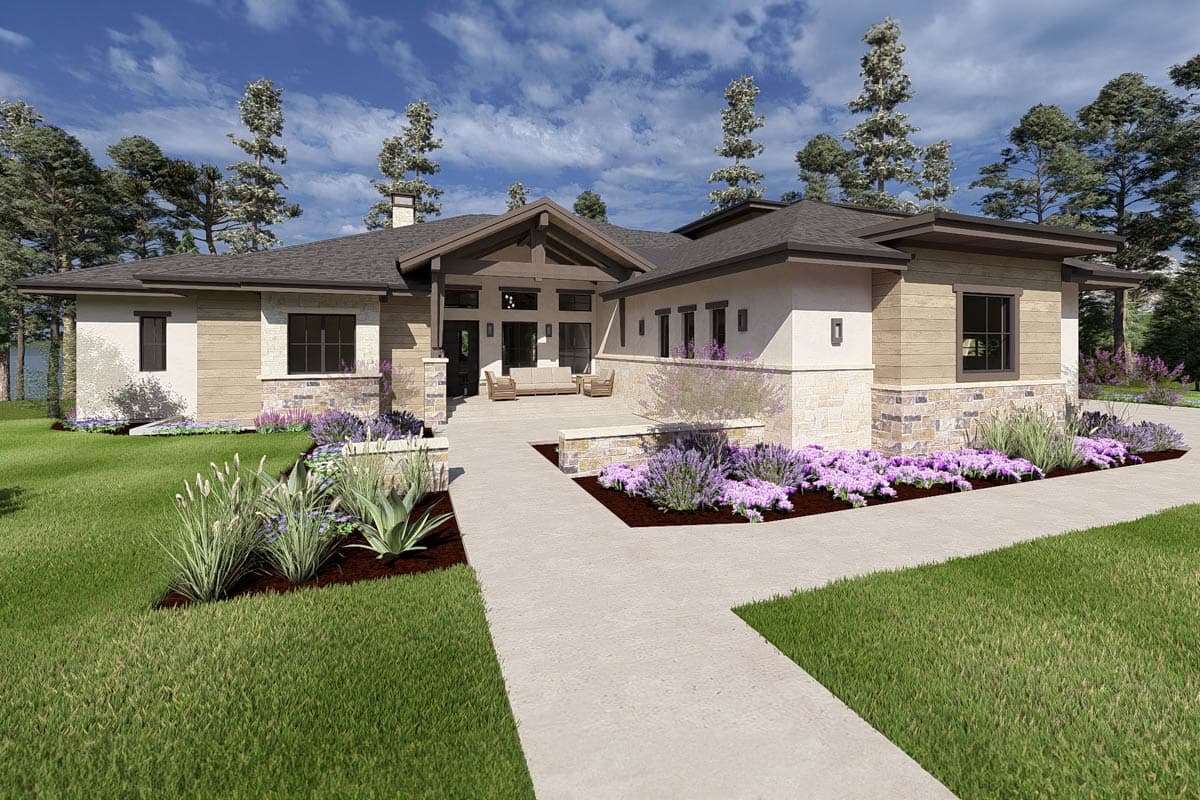

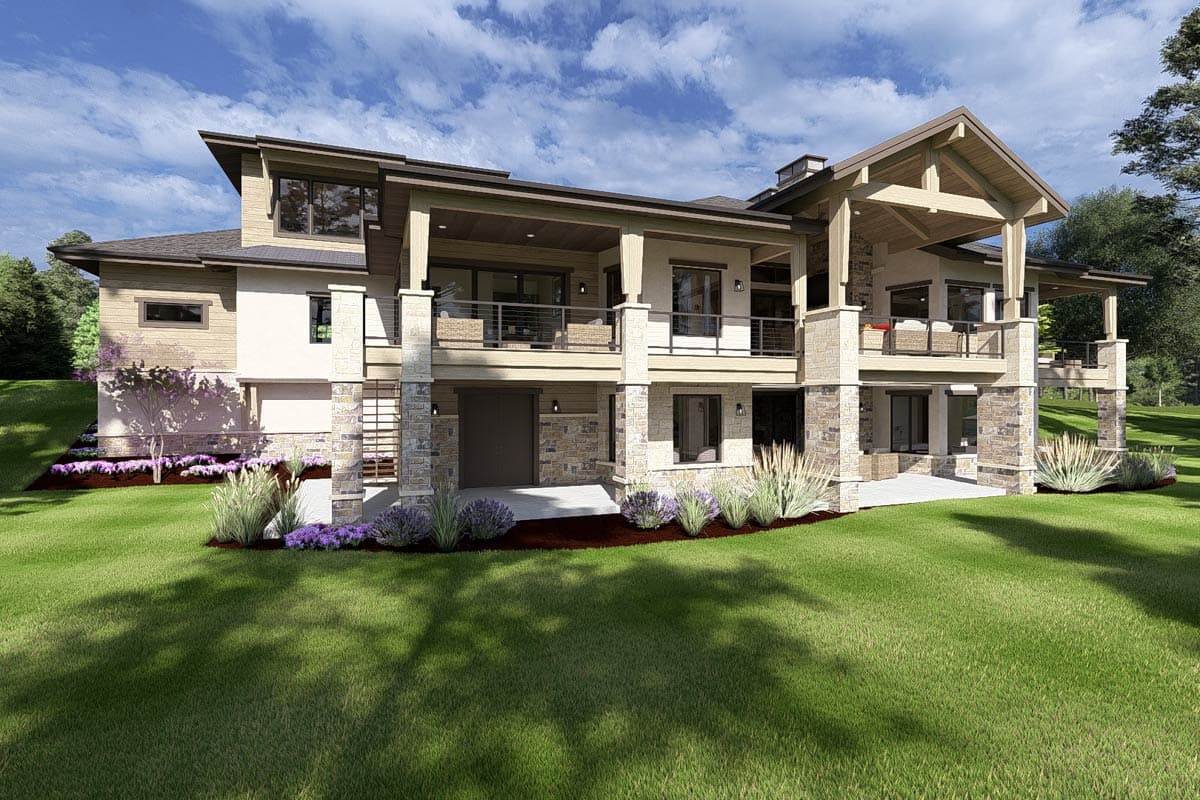

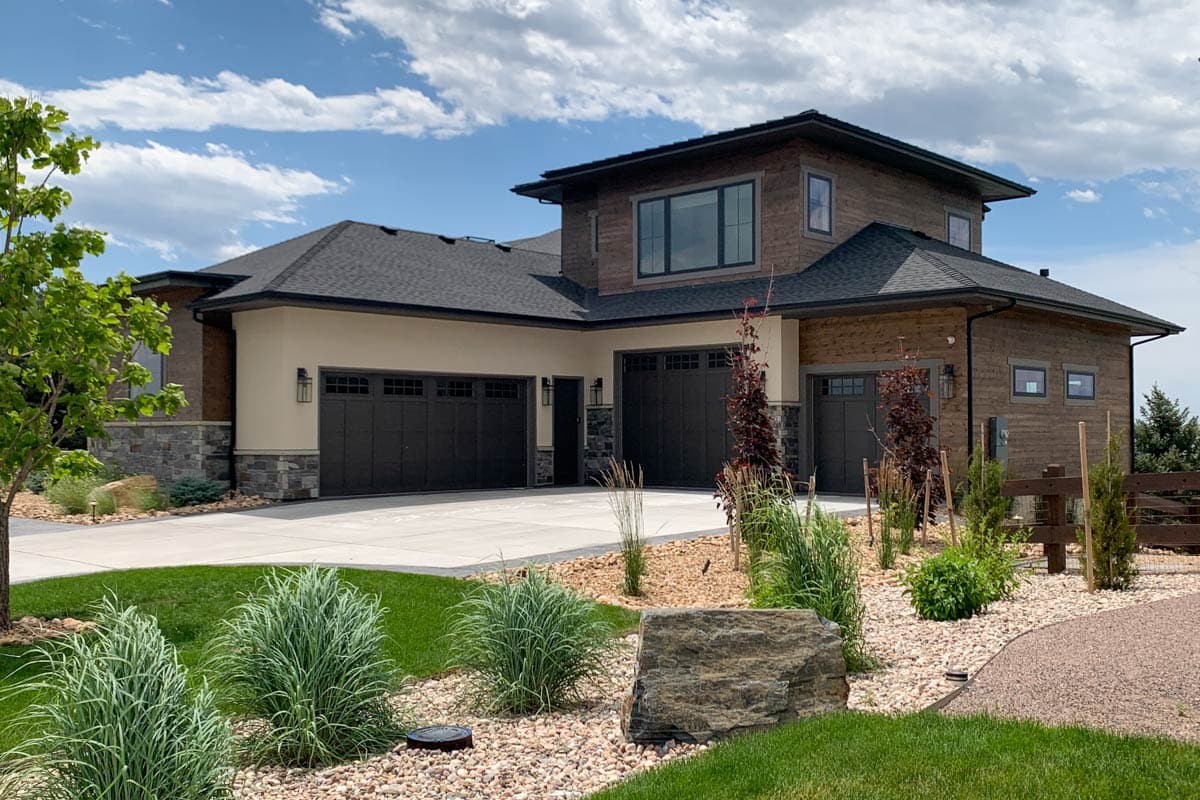

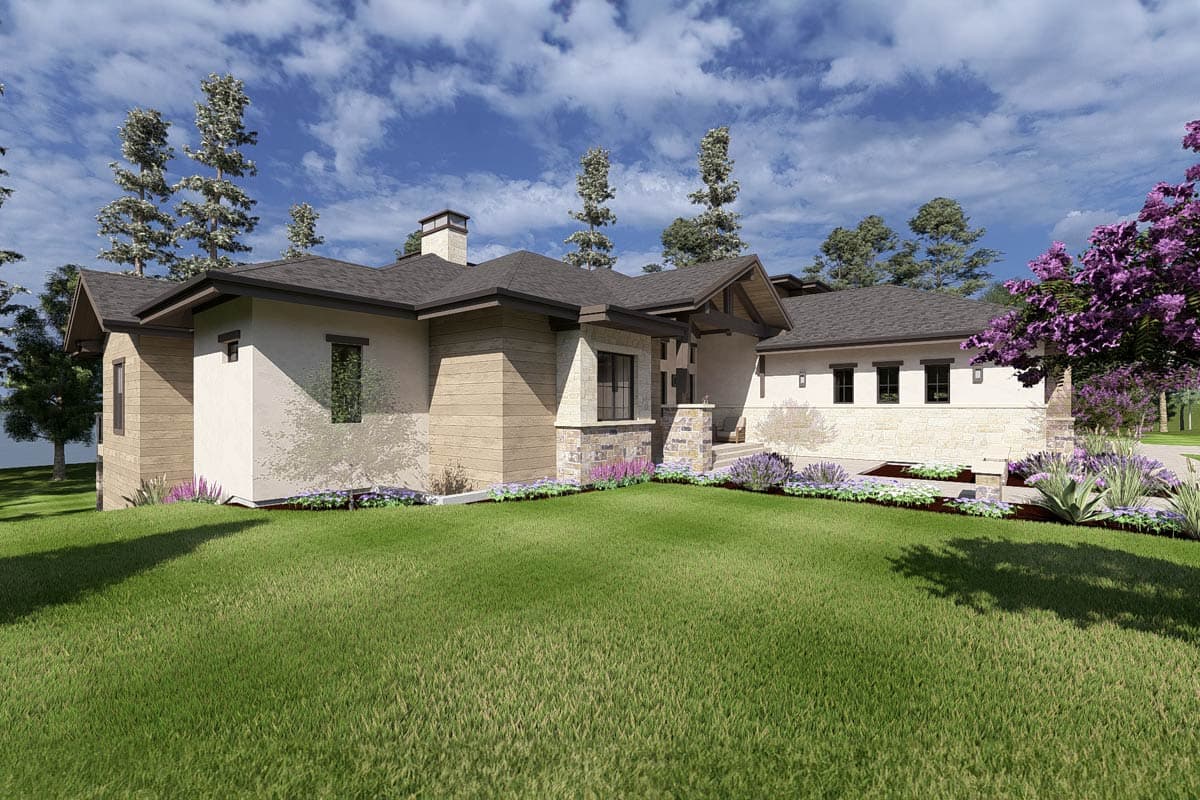

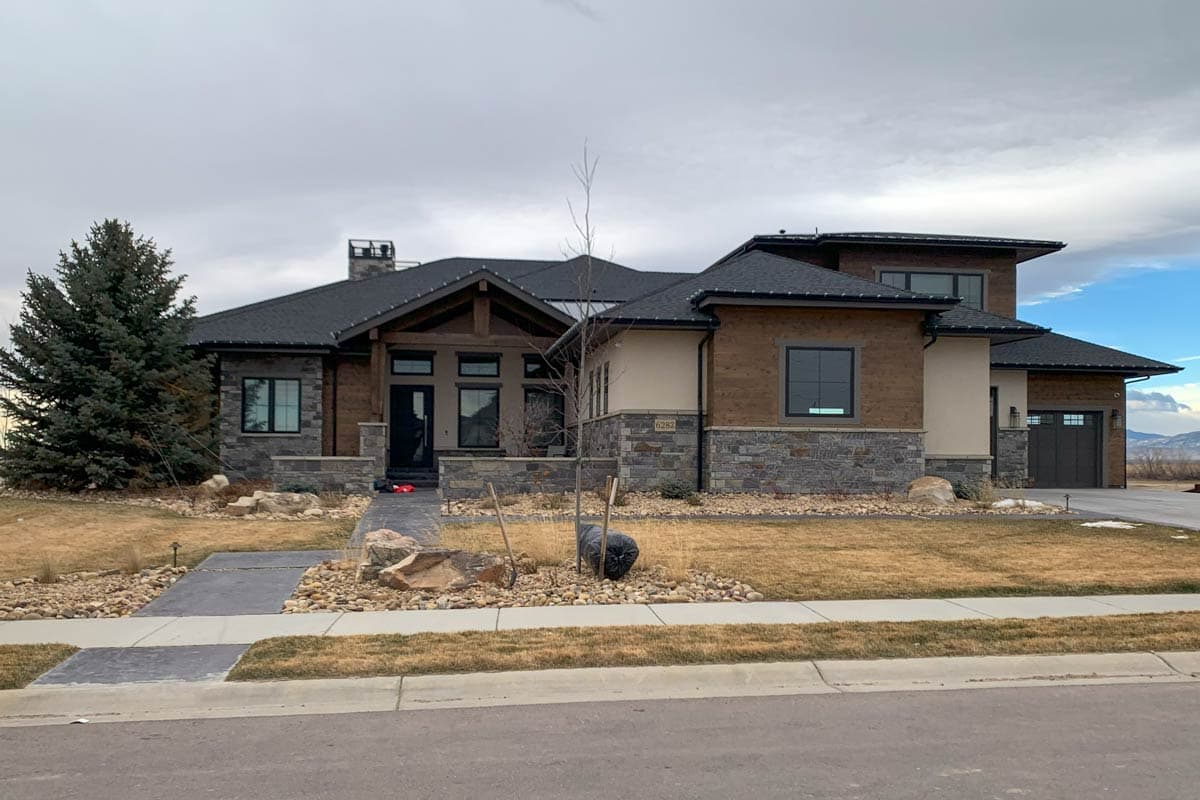

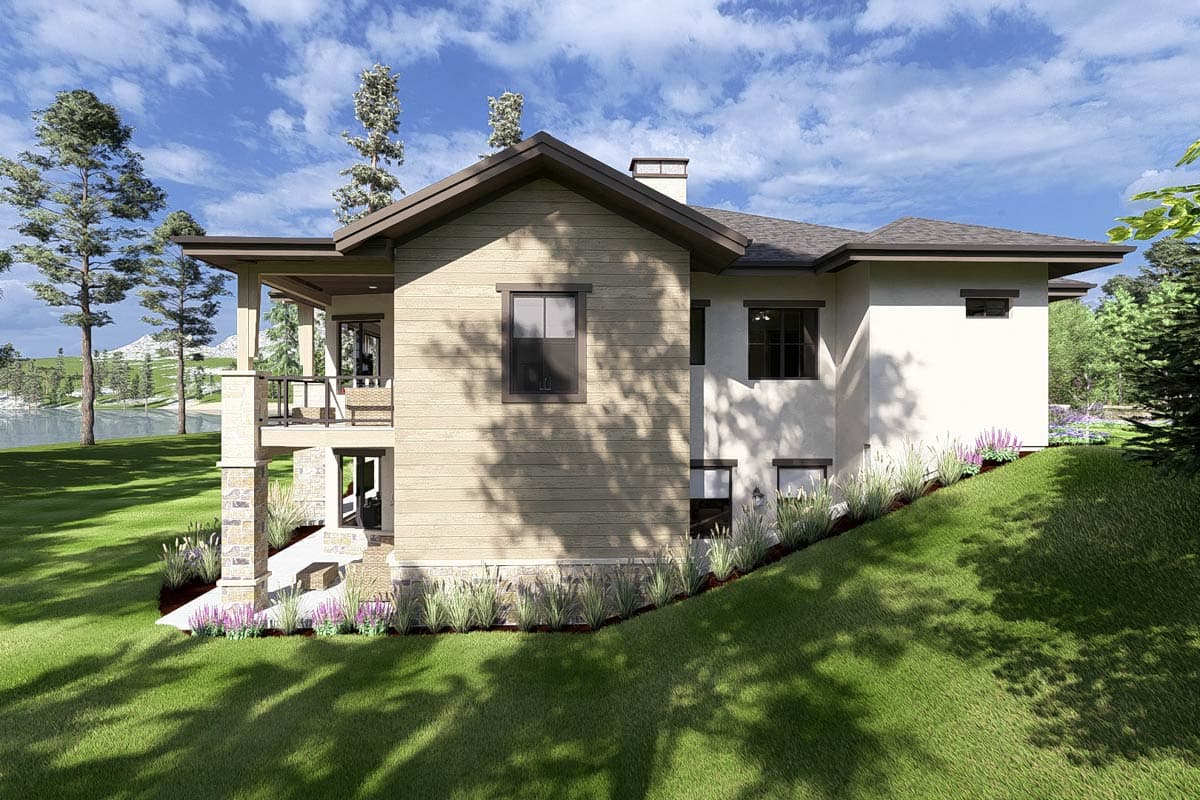

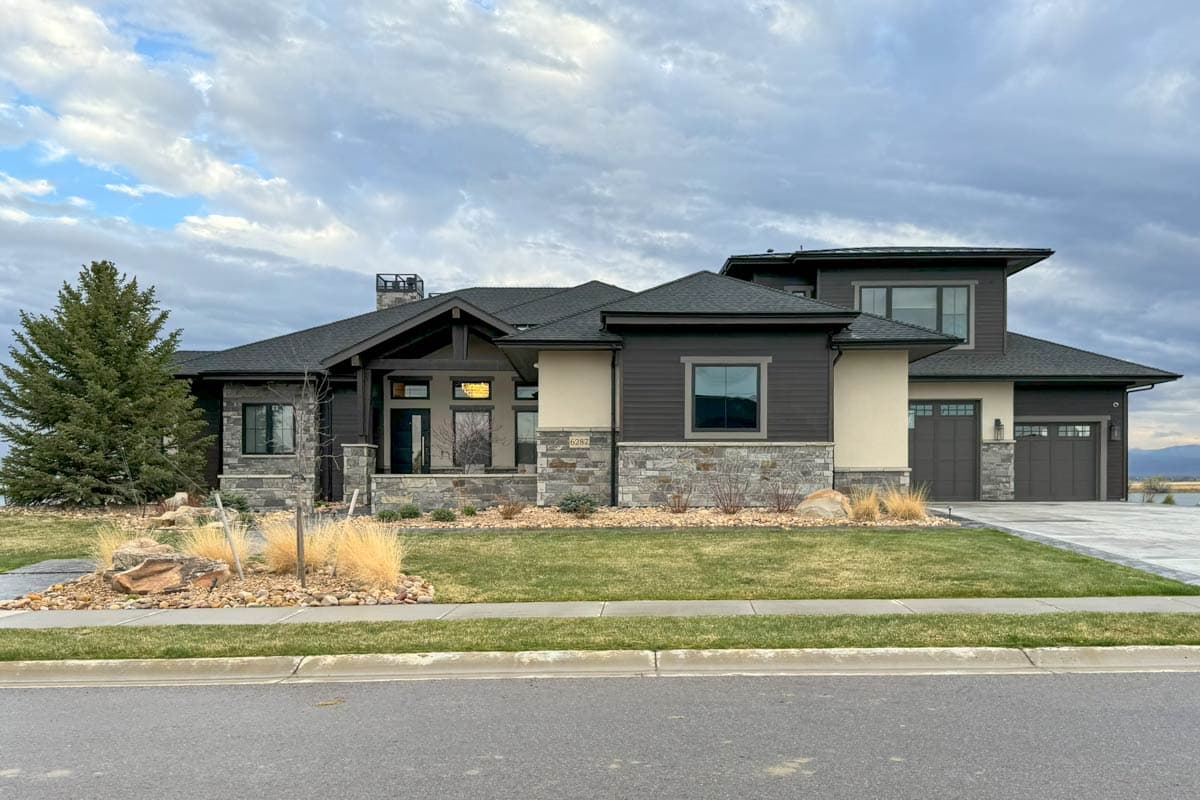

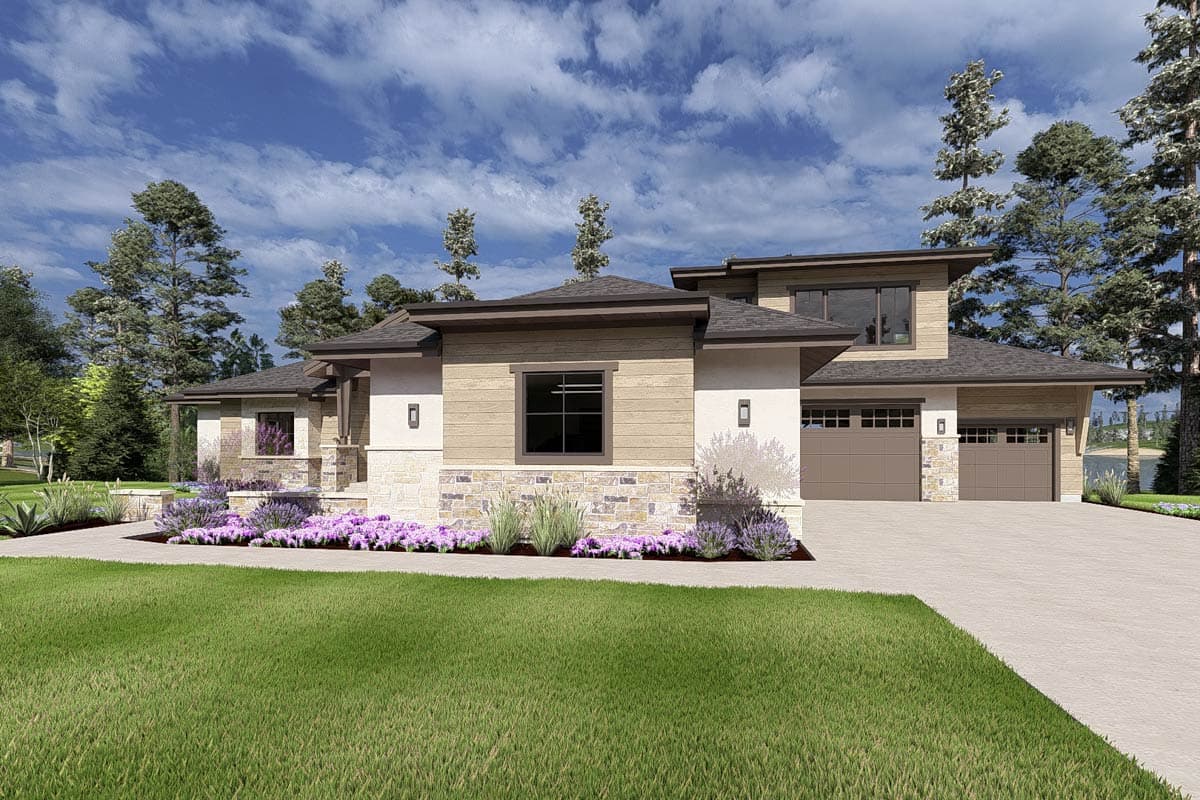

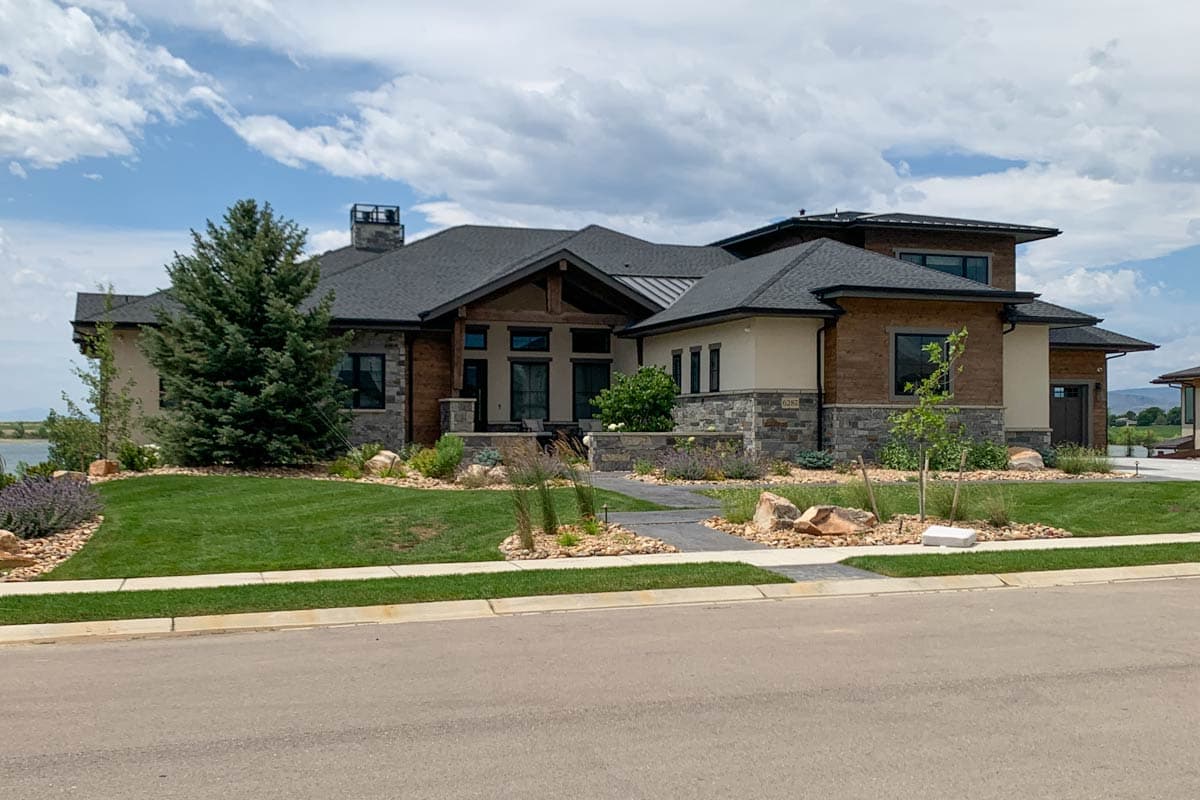

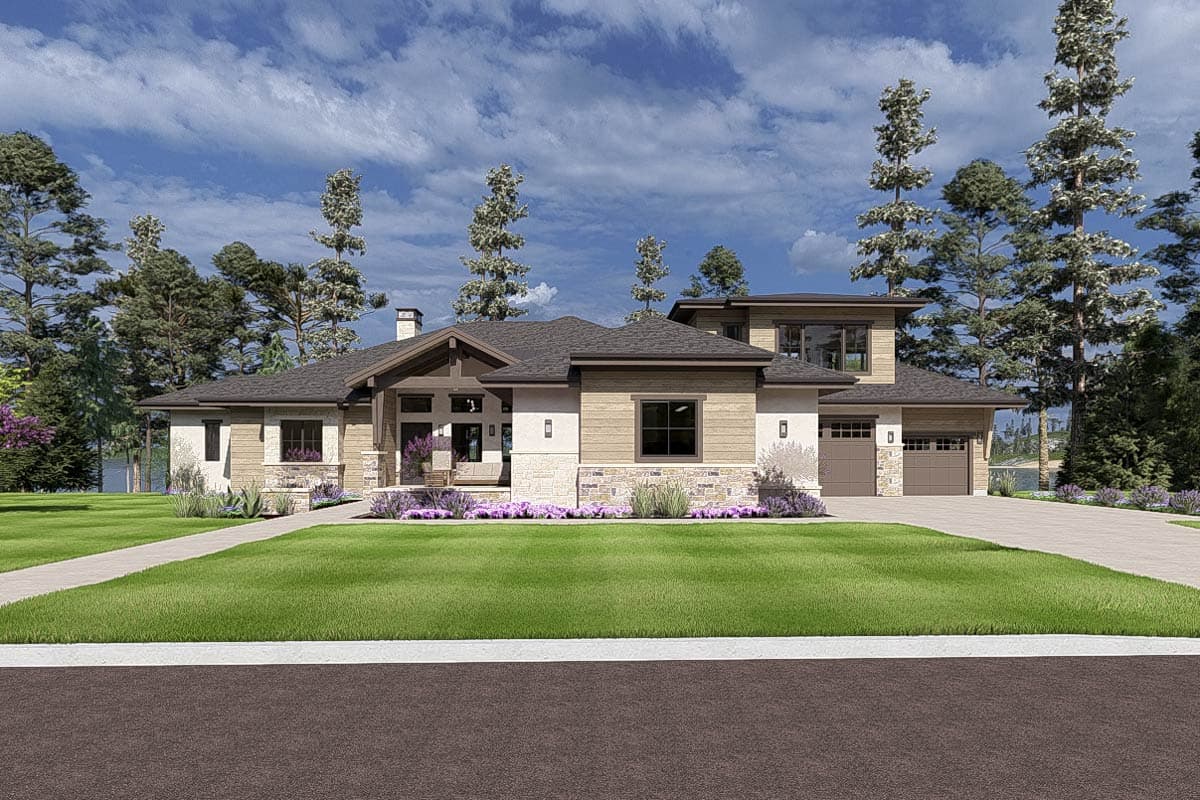

  • This modern ranch home plan, designed for the rear-view lot, has an attractive exterior with a blend of wood and stone. Deep eaves give it Prairie-mountain vibes.

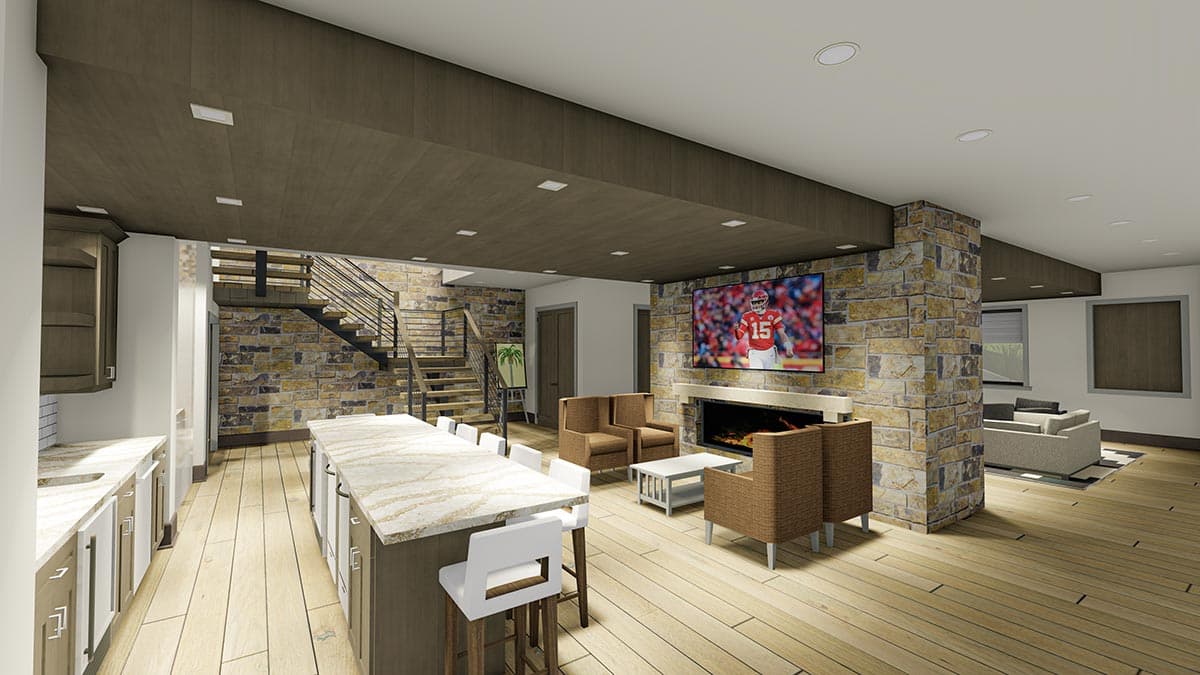

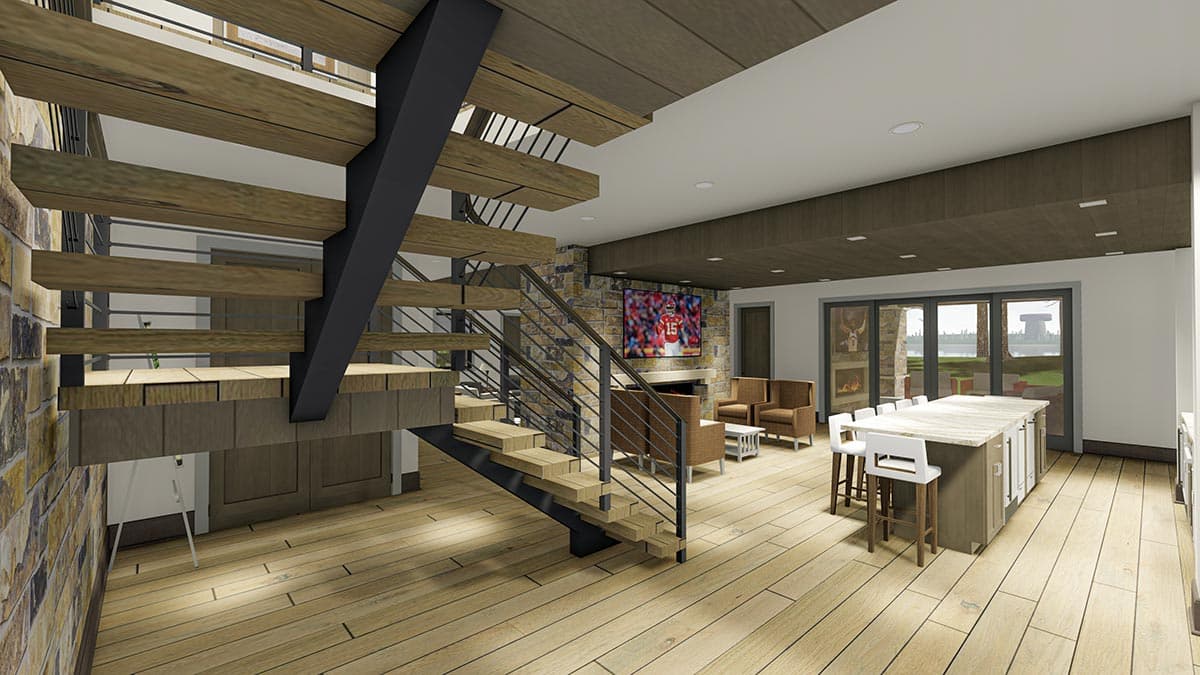

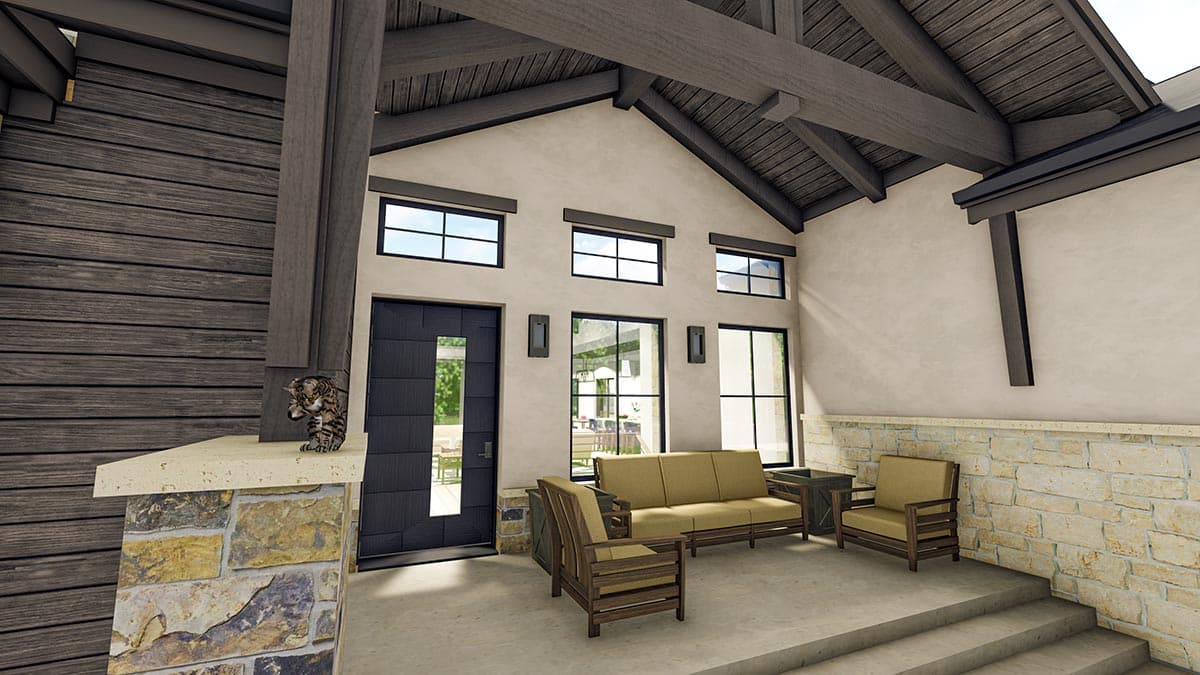

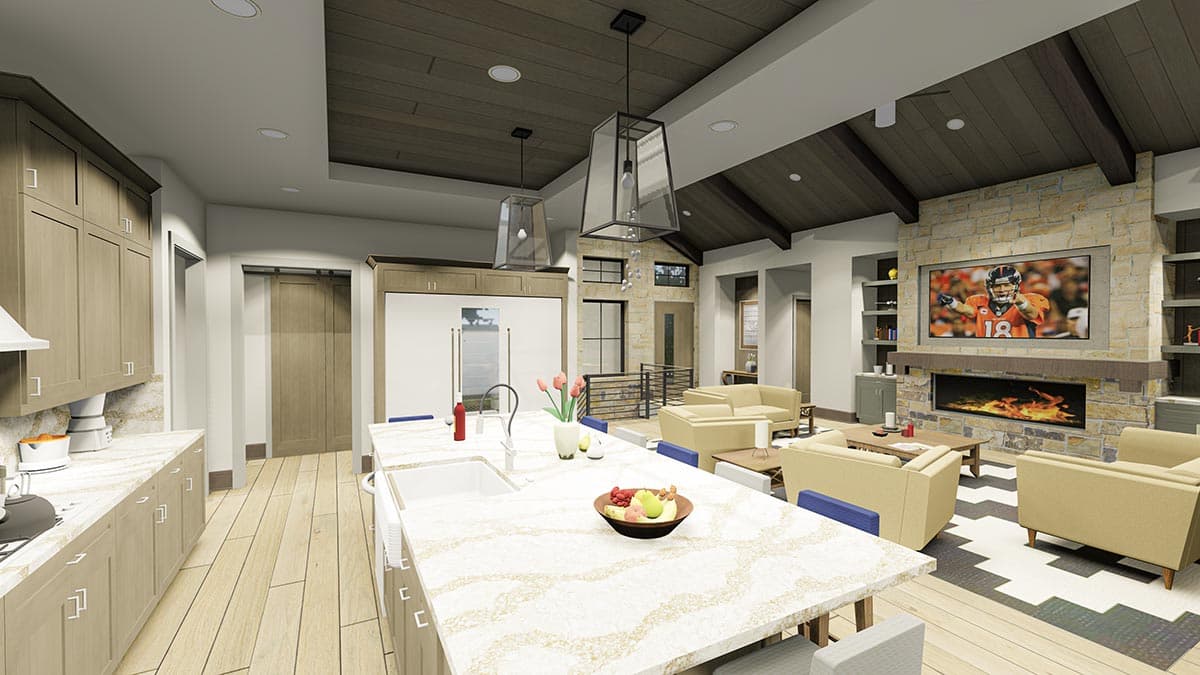

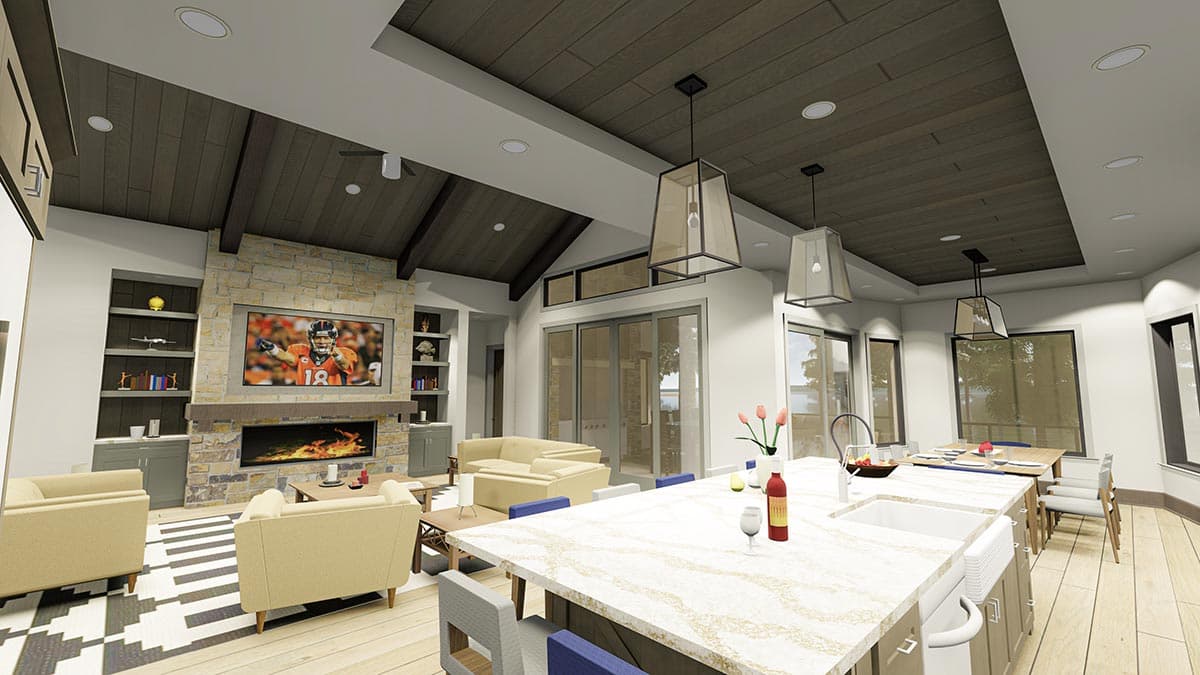

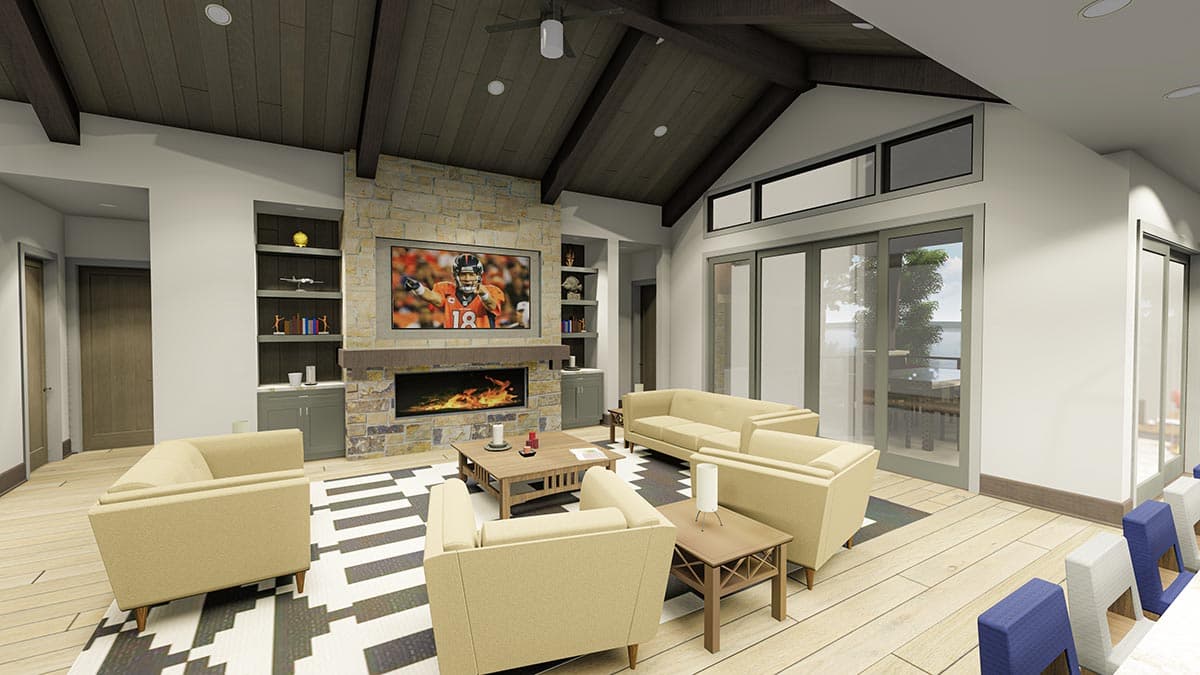

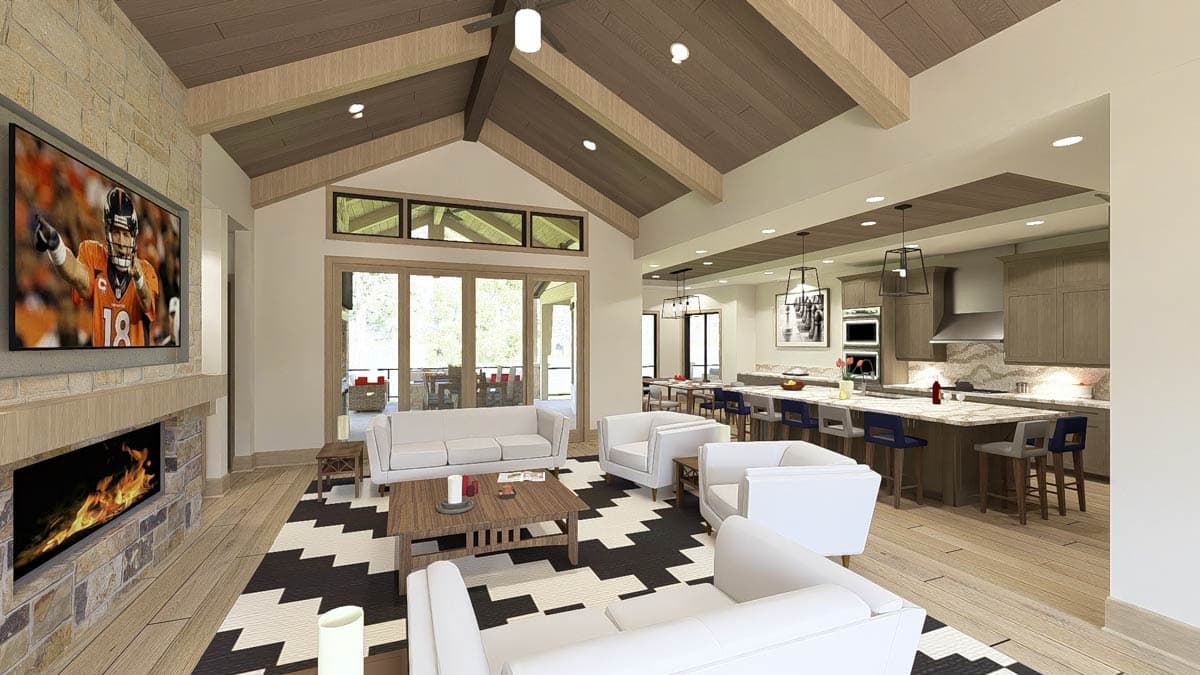

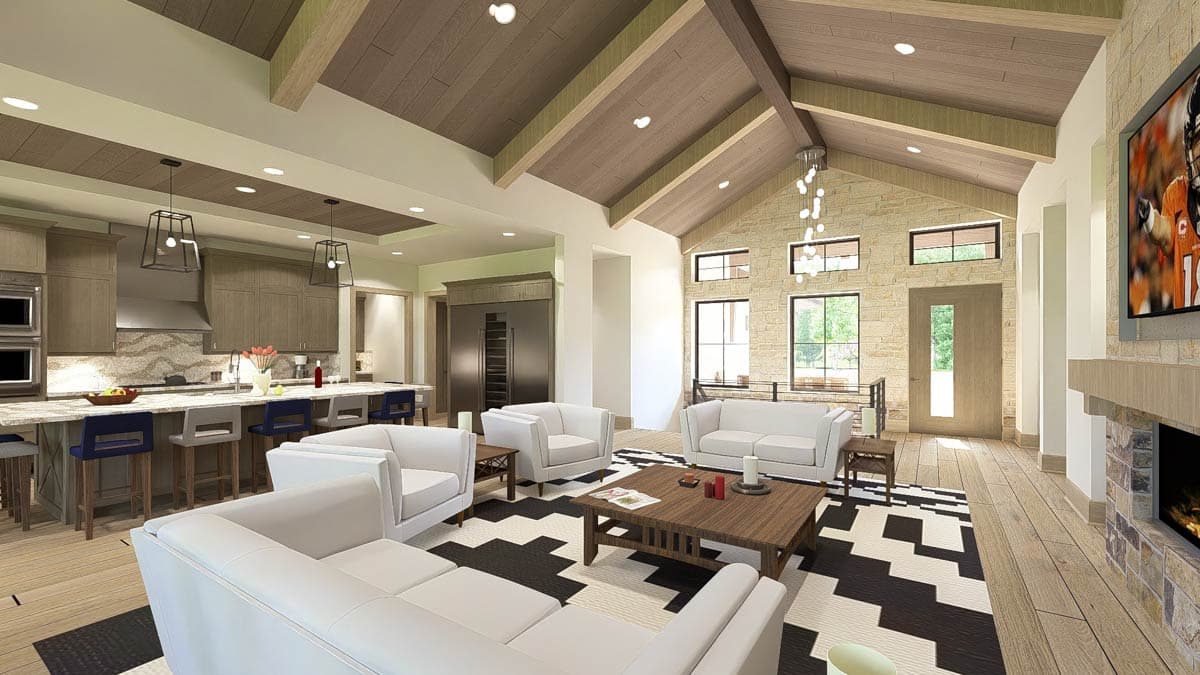

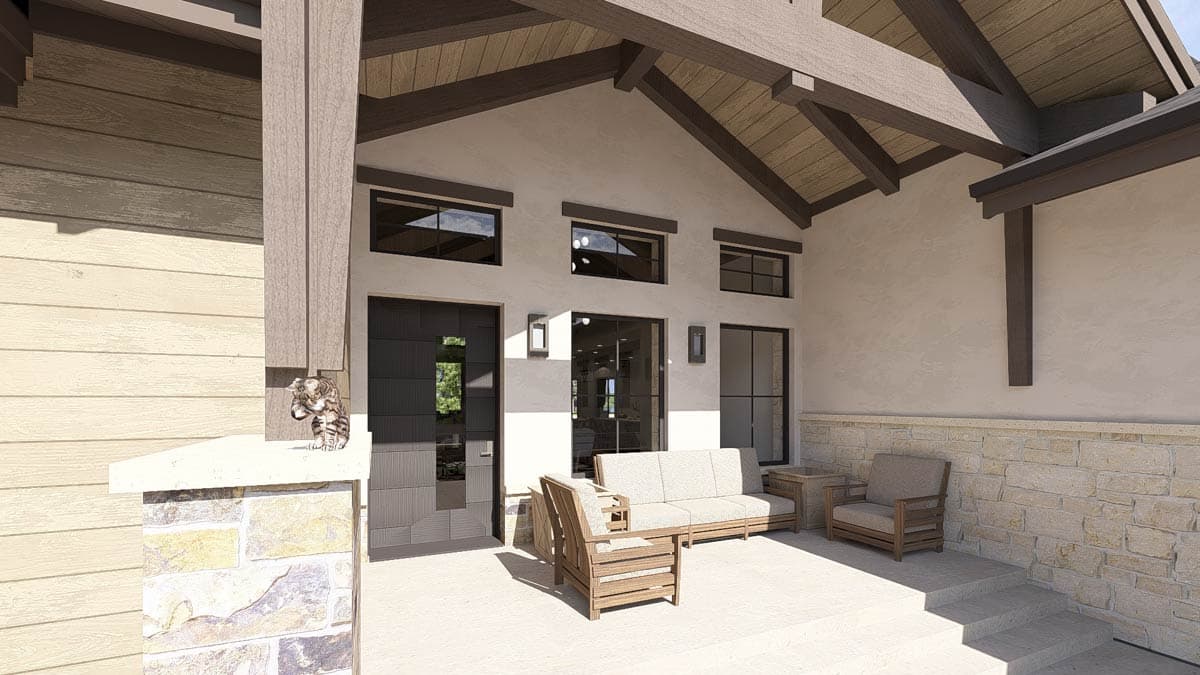

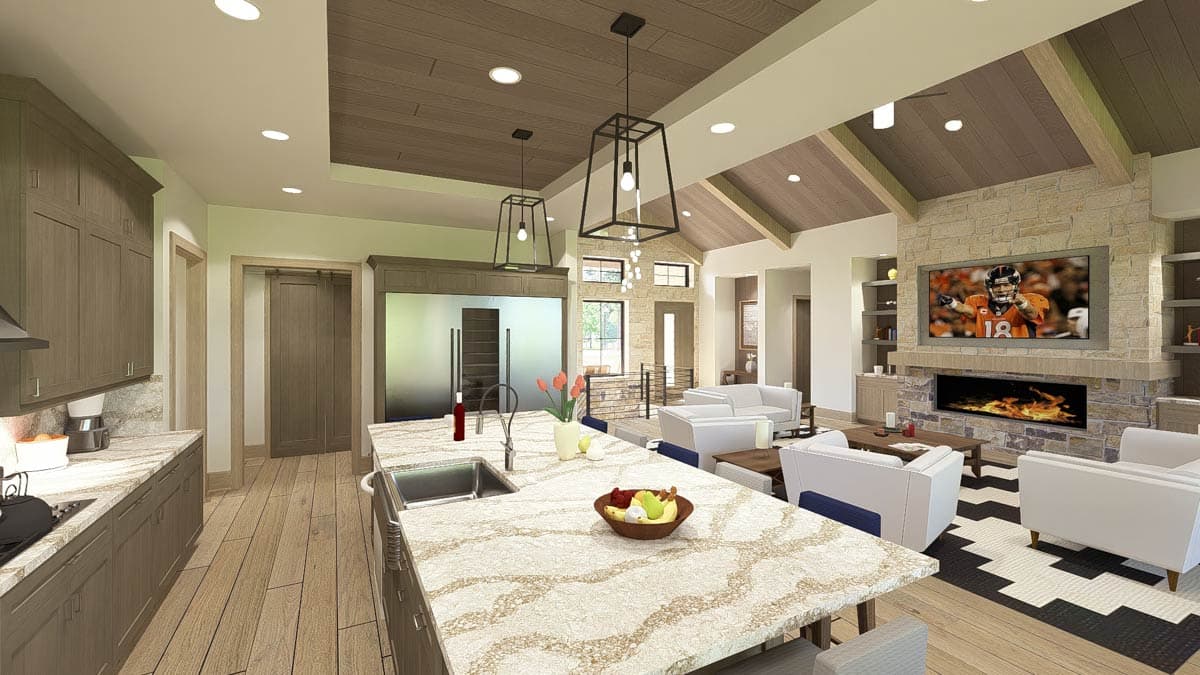

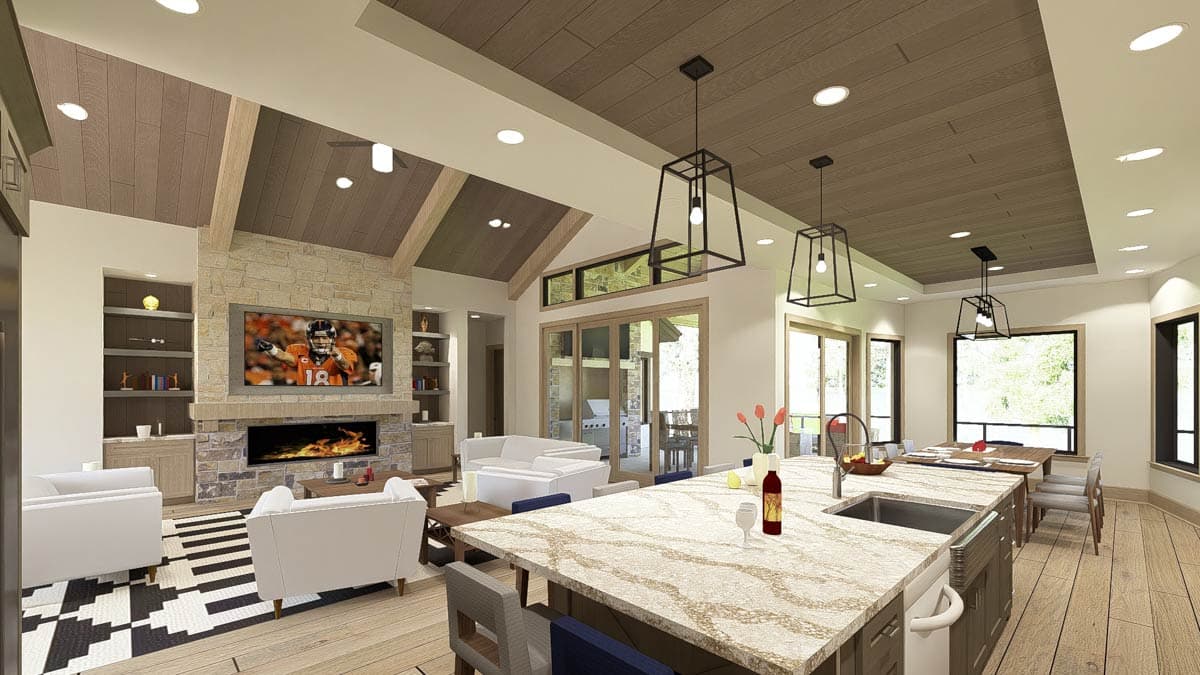

  • The kitchen, dining and vaulted living room is a entertainers dream. The vault continues to the covered deck with fireplace in back.

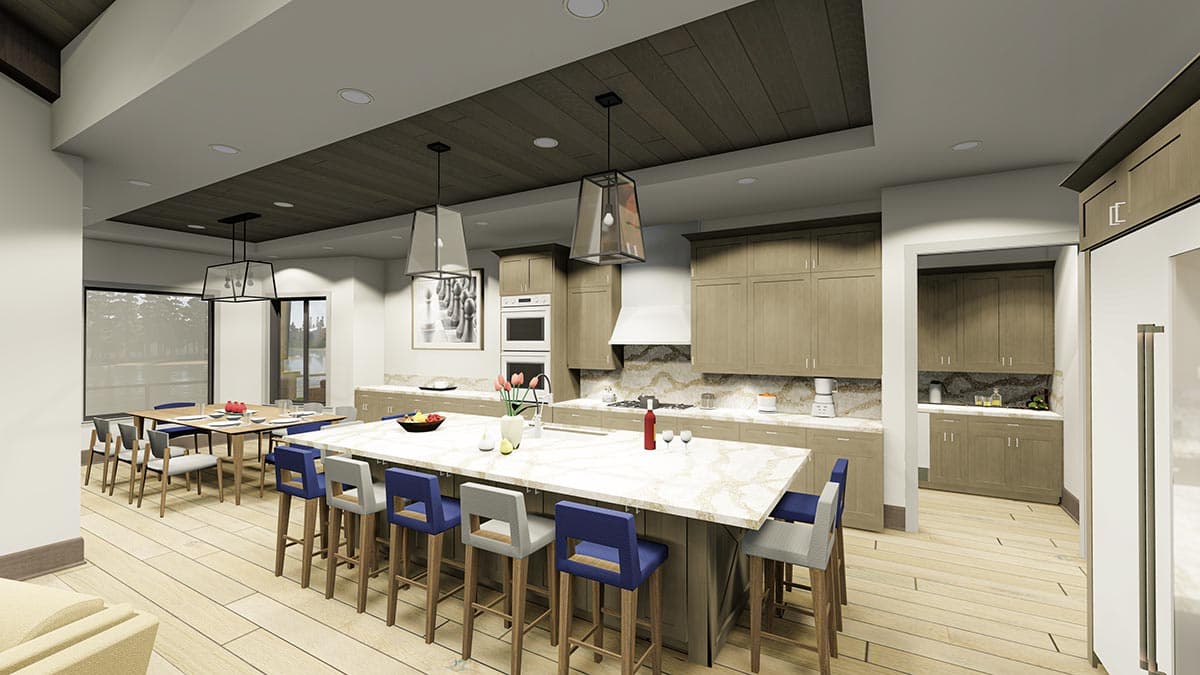

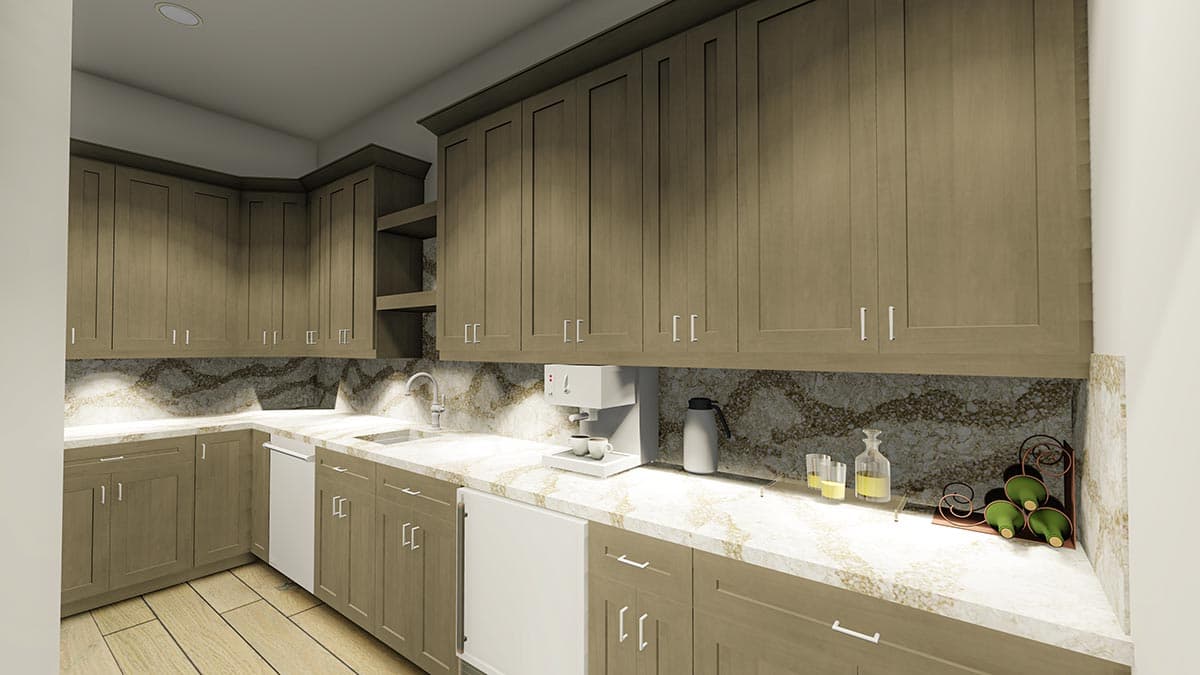

  • A large prep pantry directly behind the kitchen is perfectly located for the behind the scenes support of the kitchen.

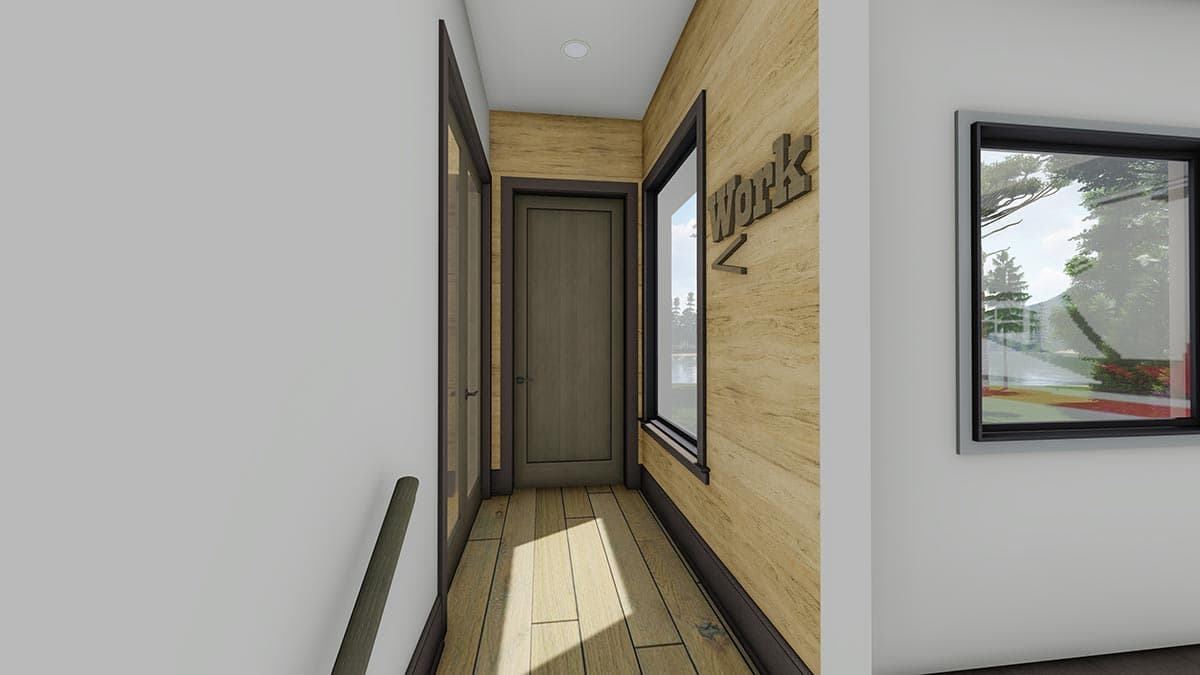

  • A home office is accessible from the main house and separated just enough from everyone's activities to provide a private workspace with a view.

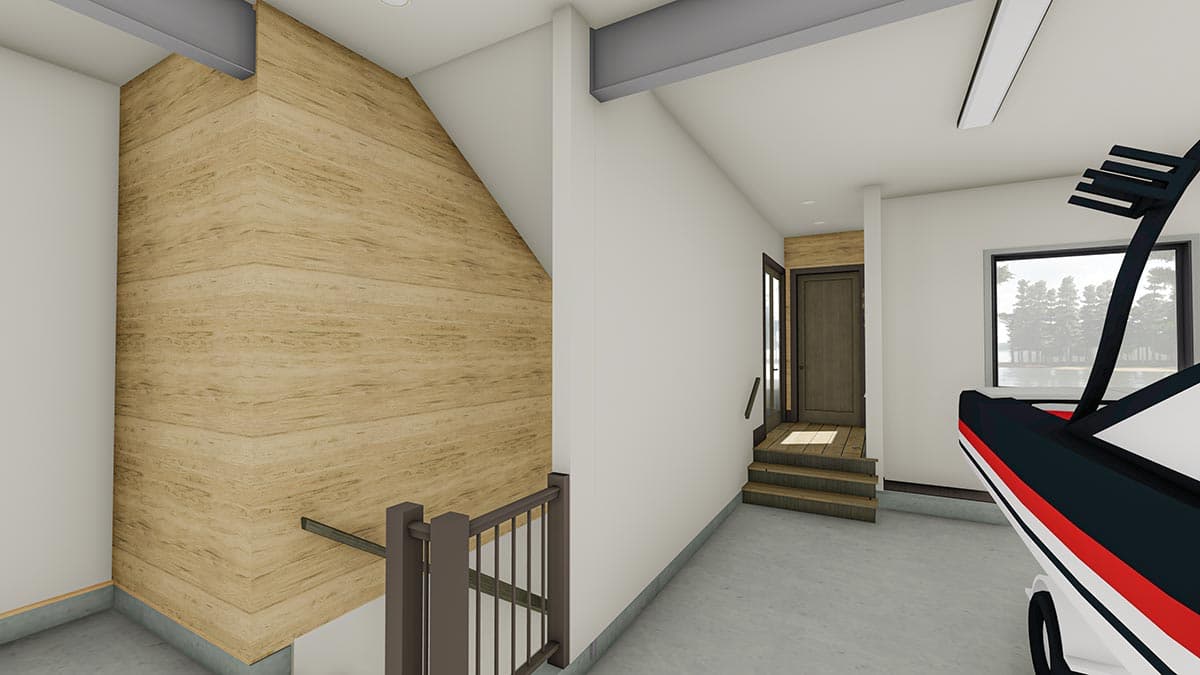

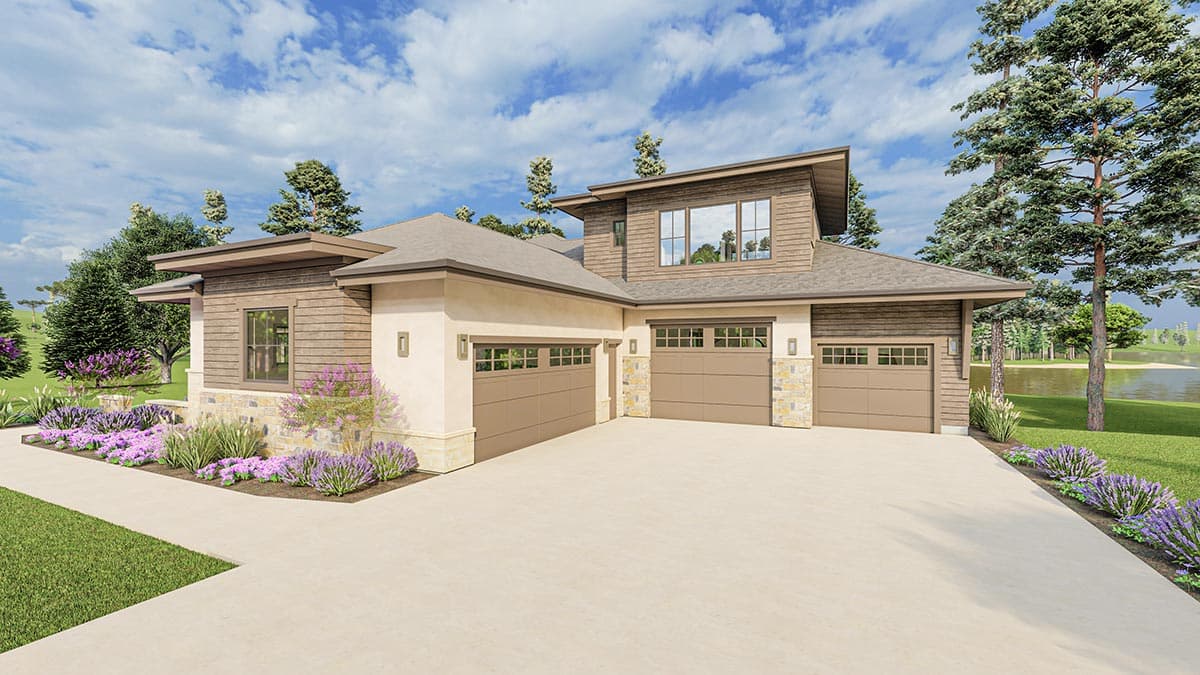

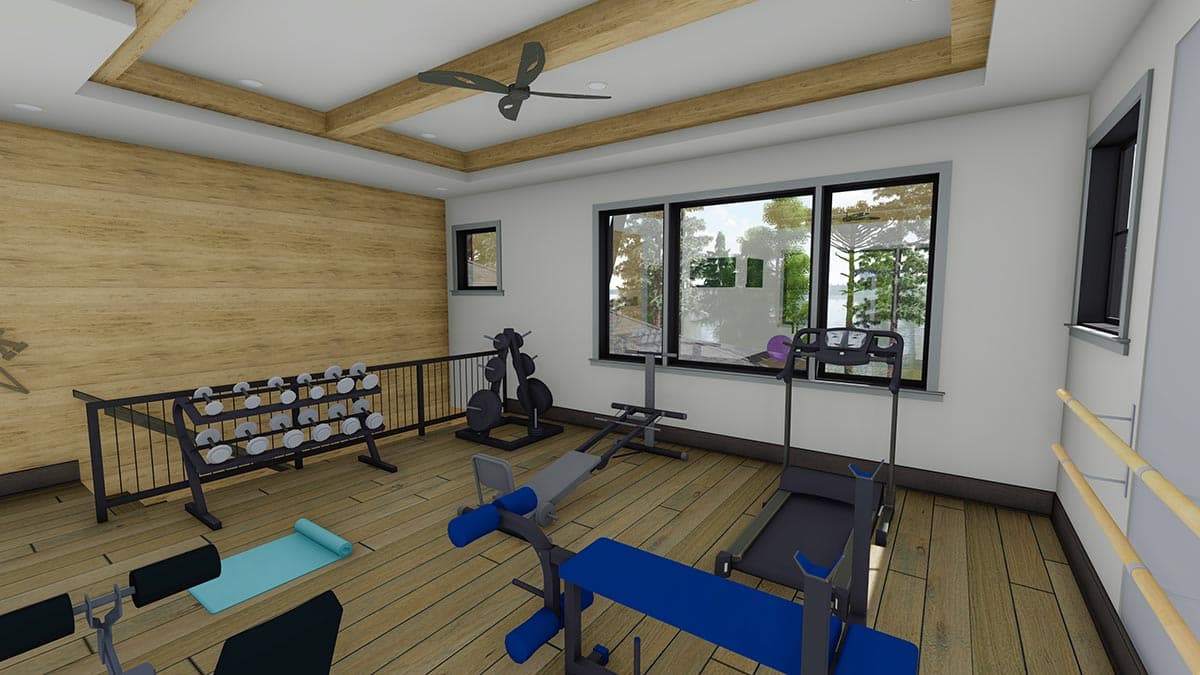

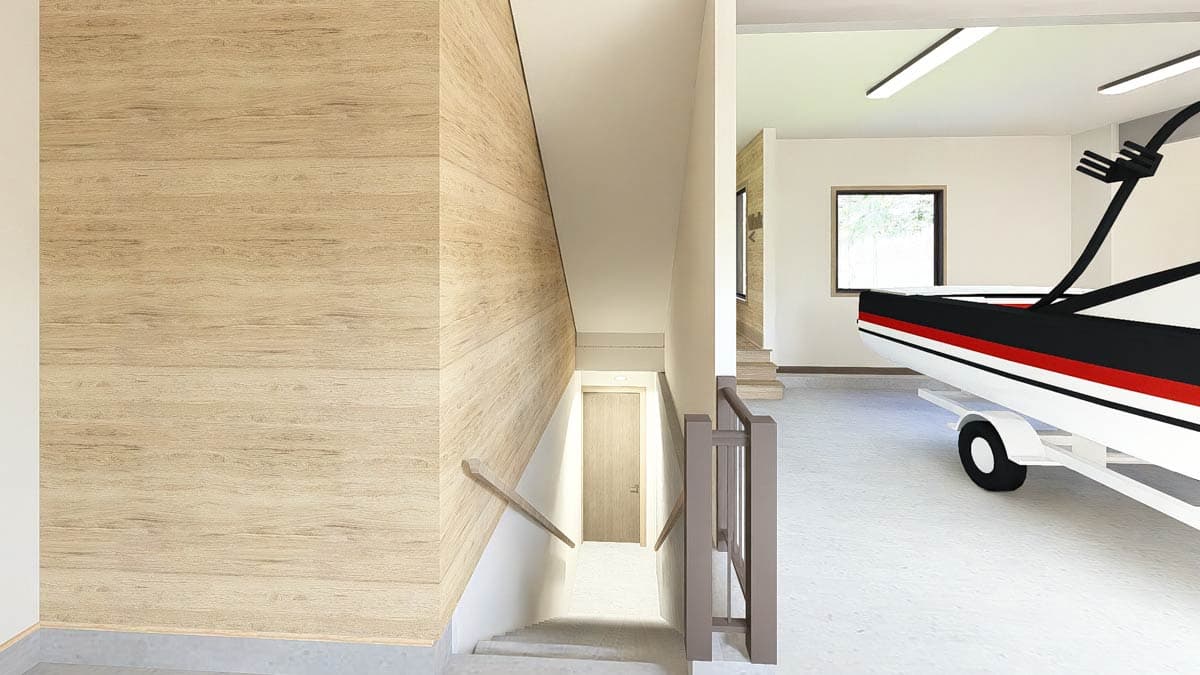

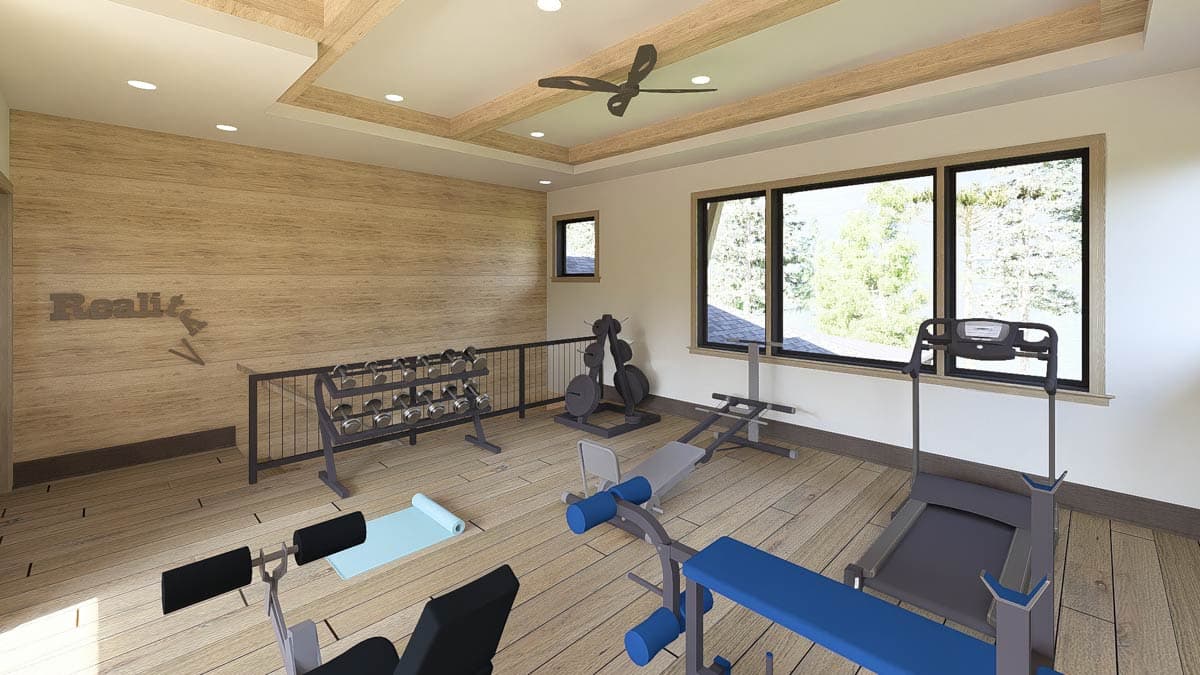

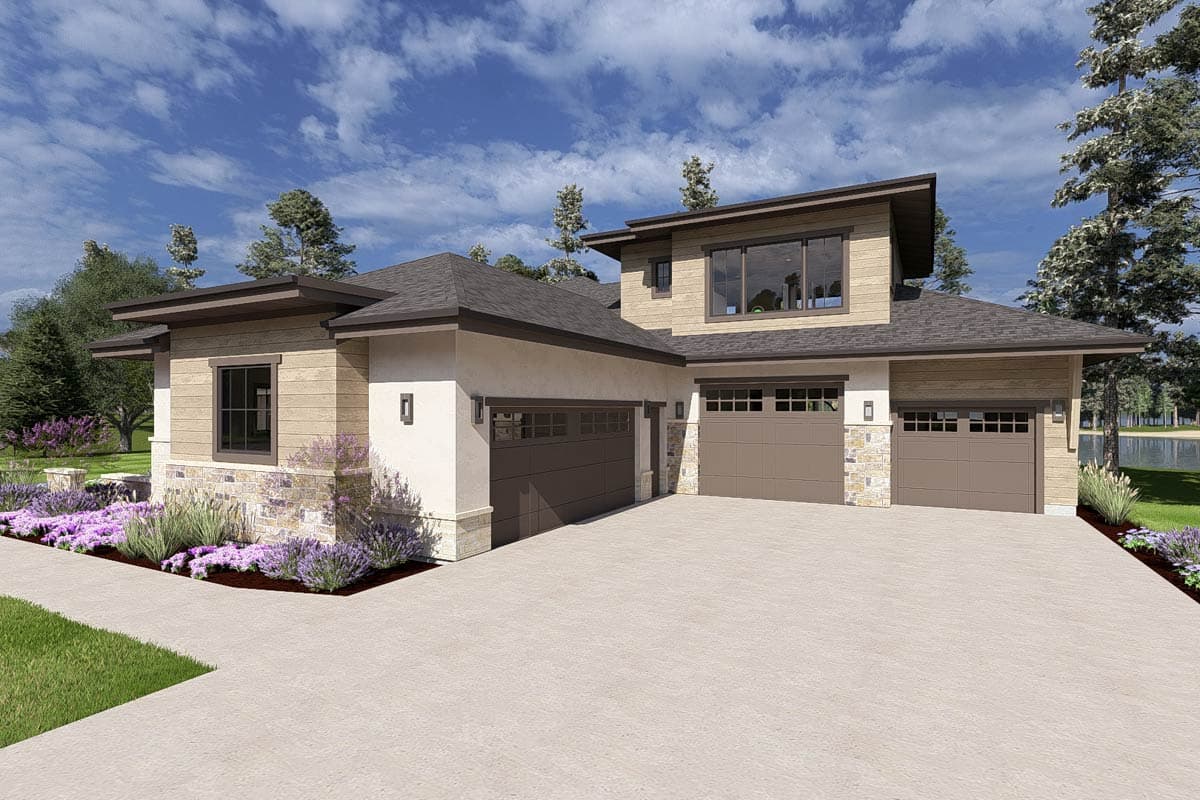

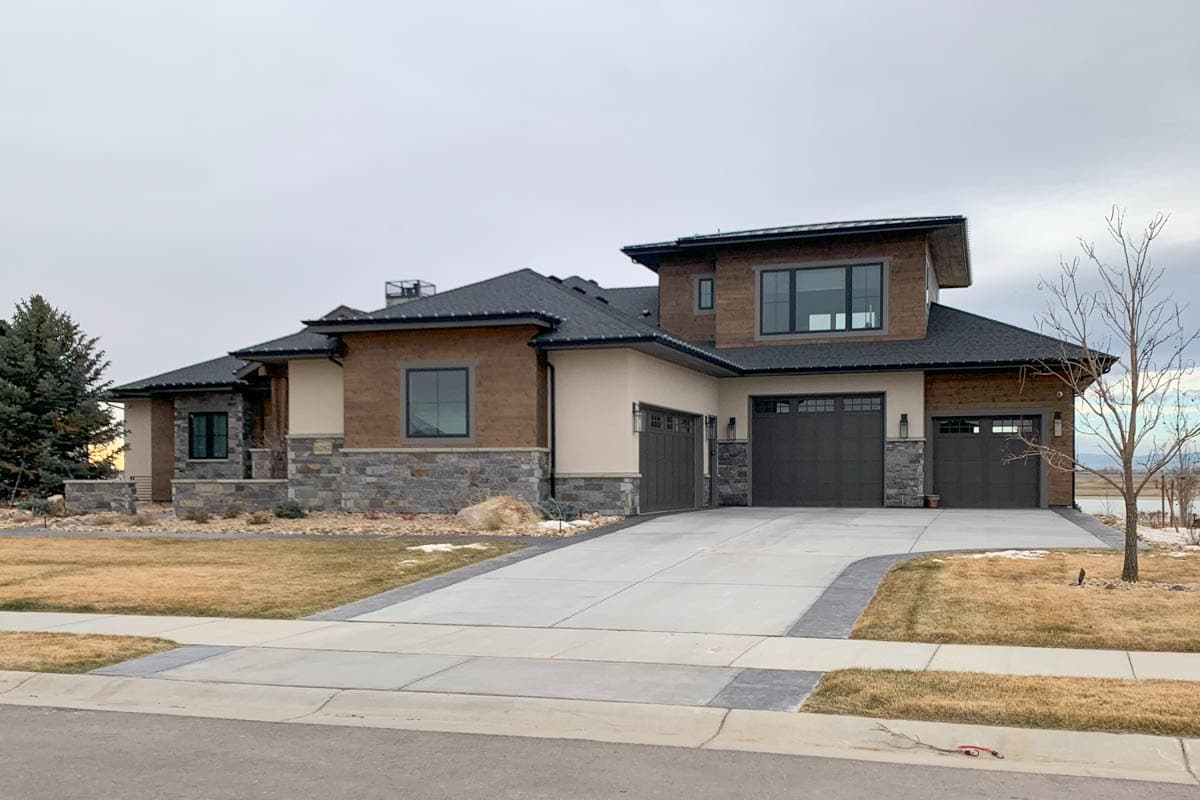

  • Upstairs gives you a home gym which could easily be converted into a bedroom or play room or many other possibilities. Below the home gym, the oversized garage is large enough for 4 vehicles and roomy enough for a boat.

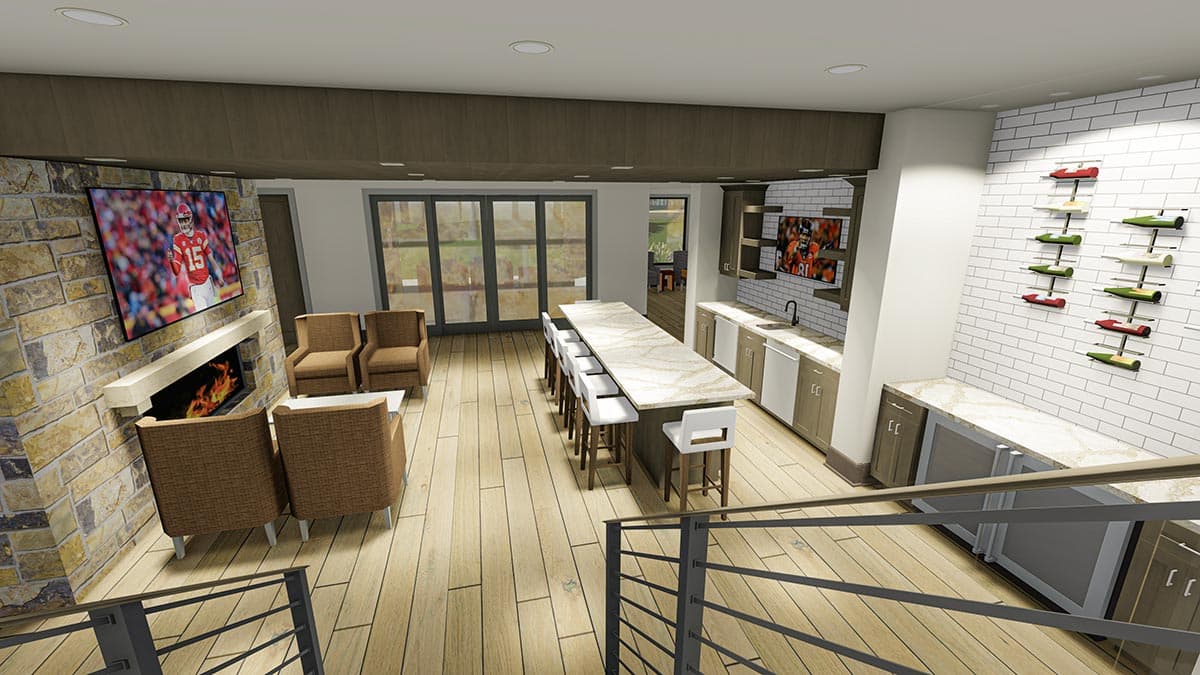

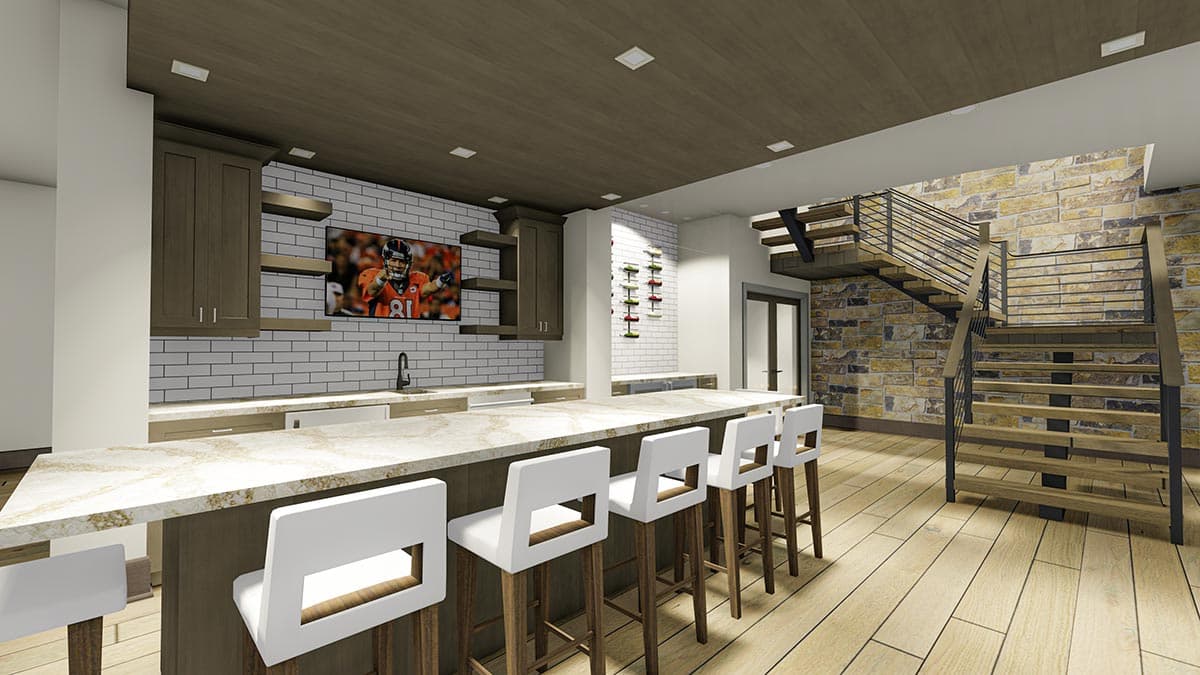

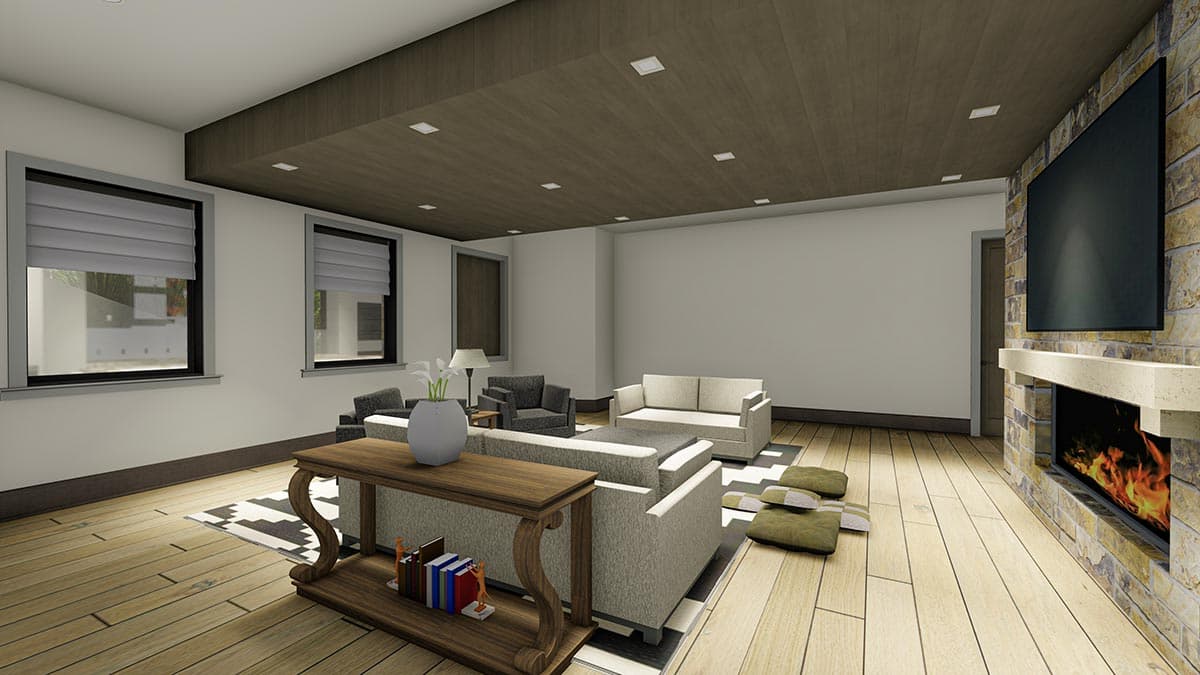

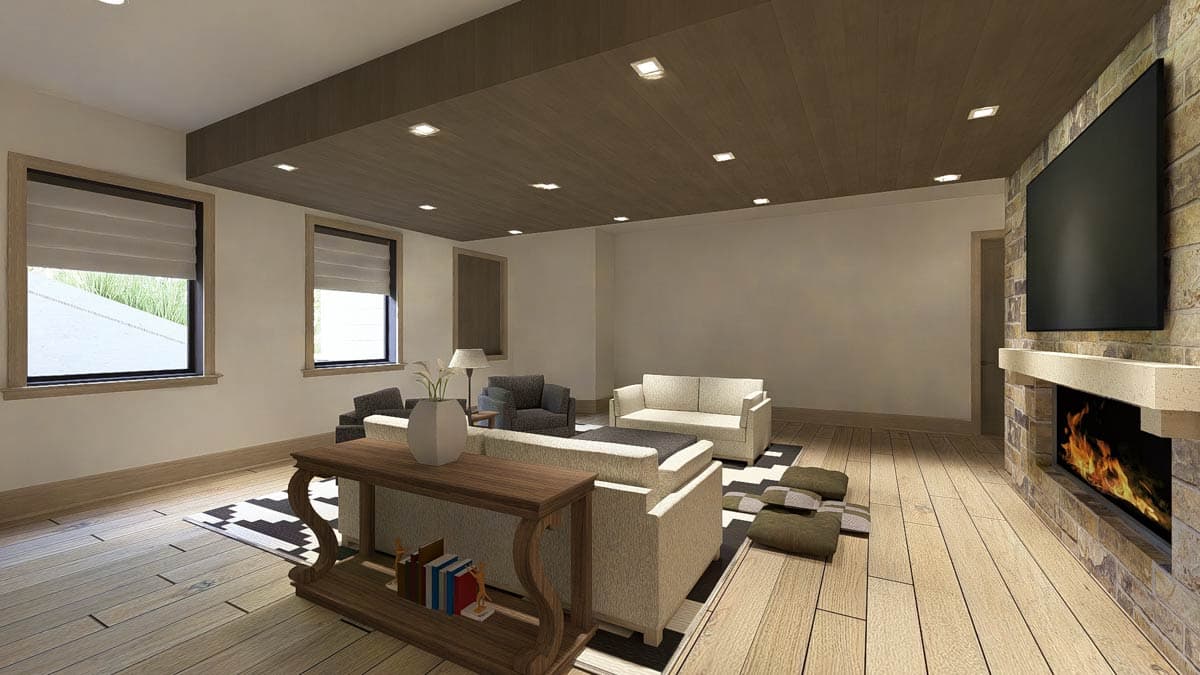

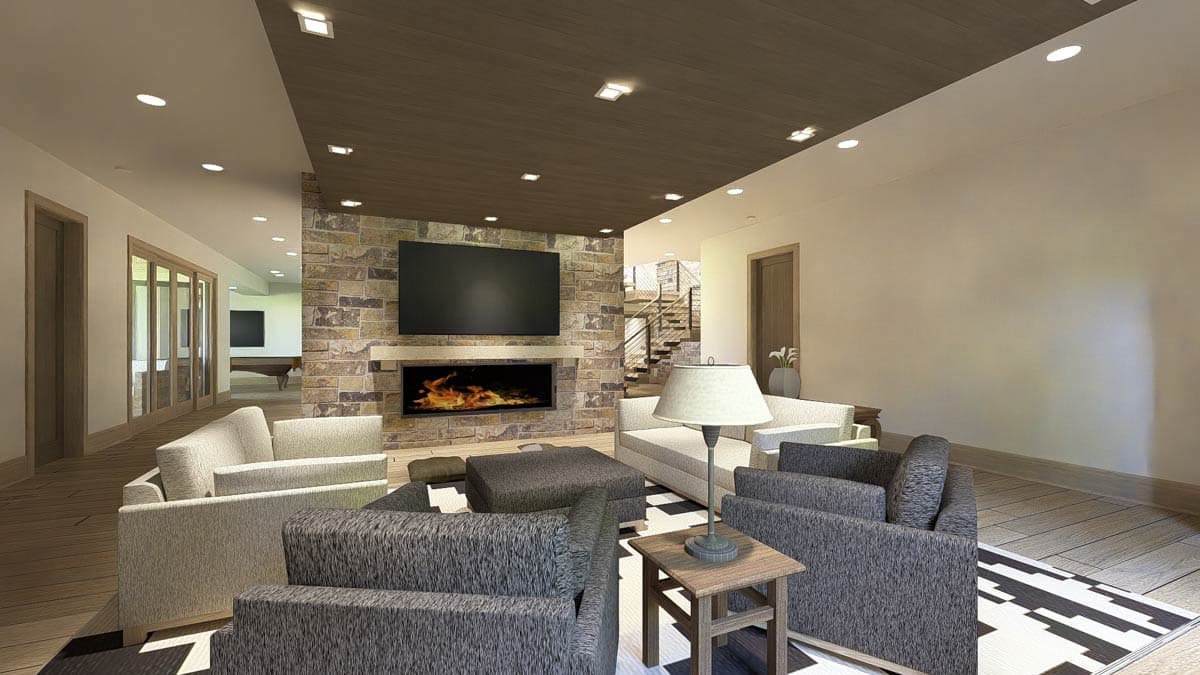

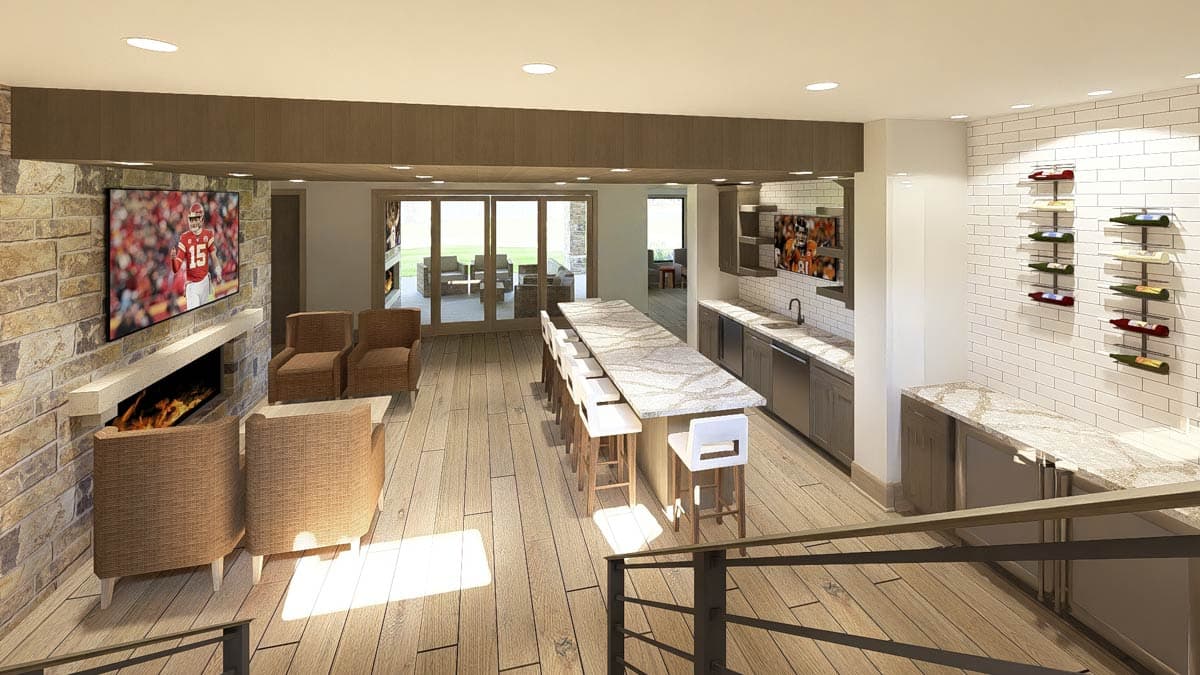

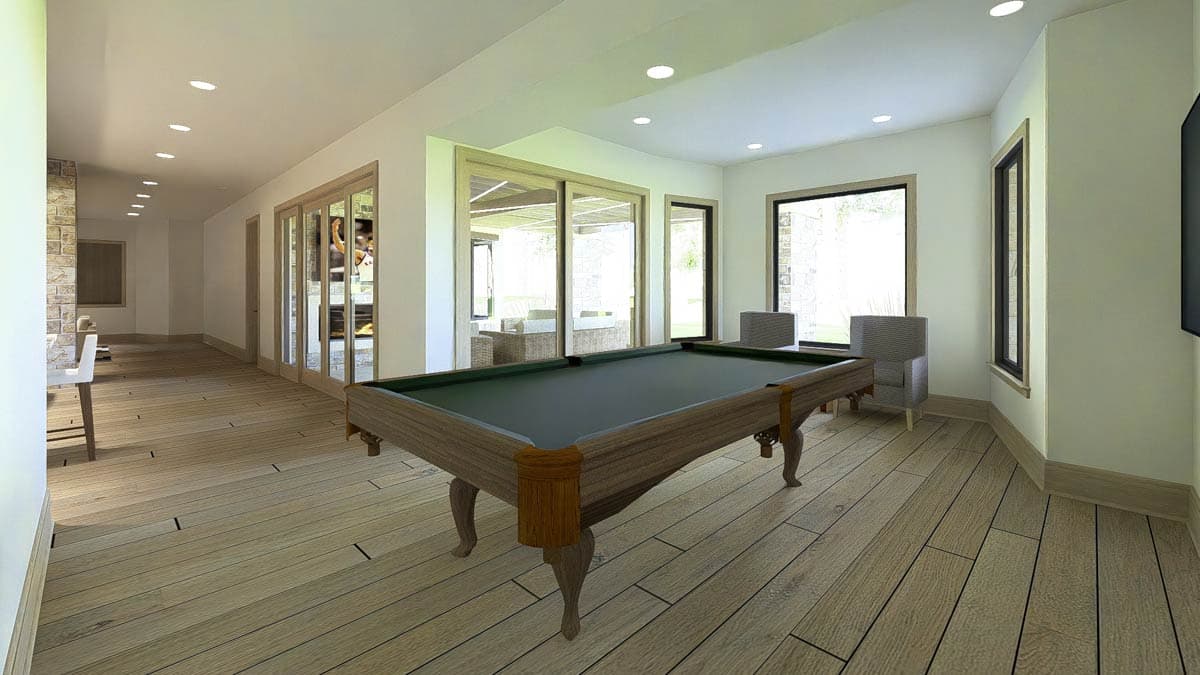

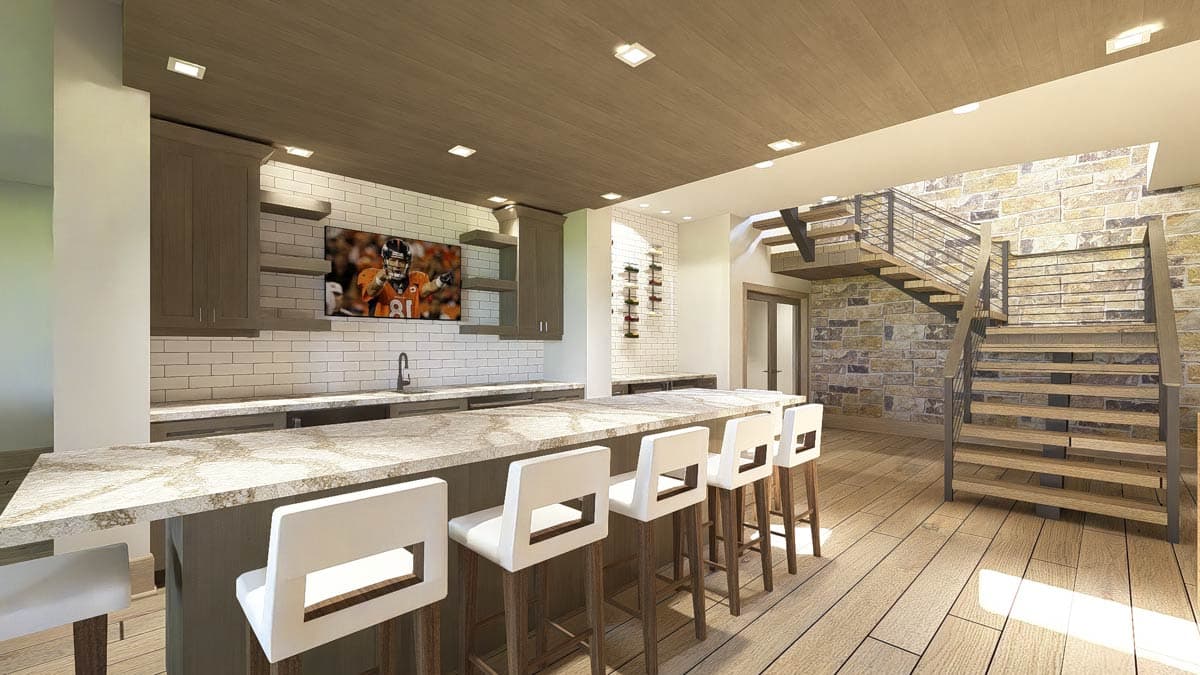

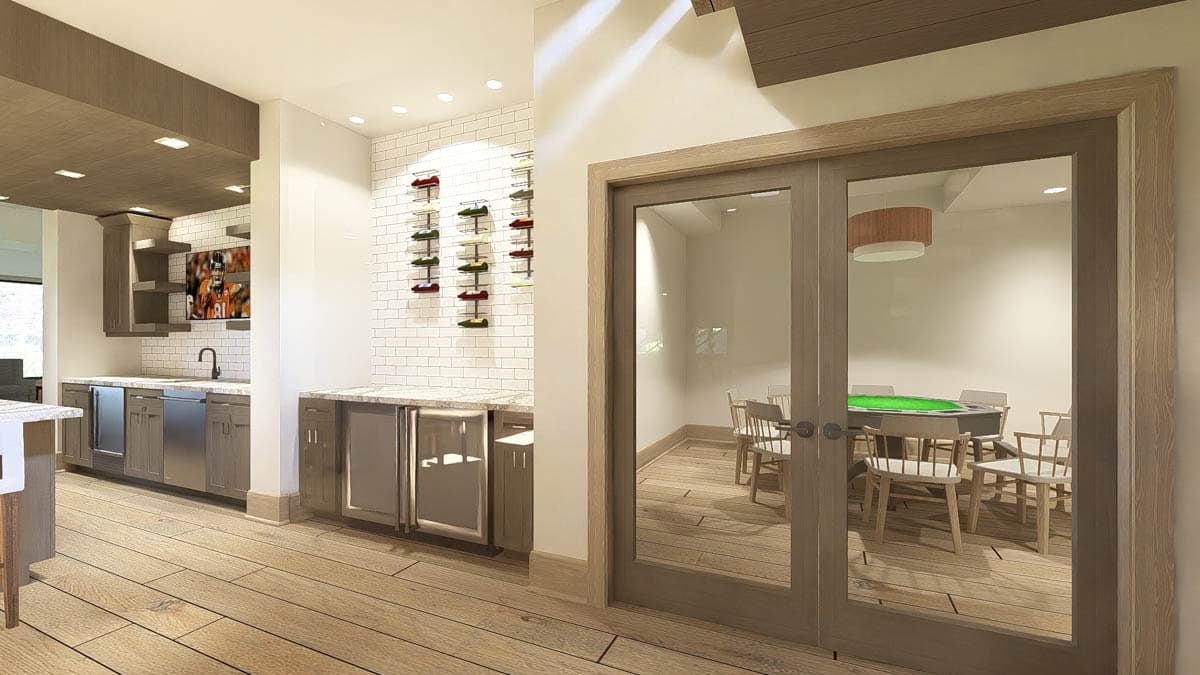

  • The optional finished basement is both party central and has secluded enclaves like video room, card room and a billiards area.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

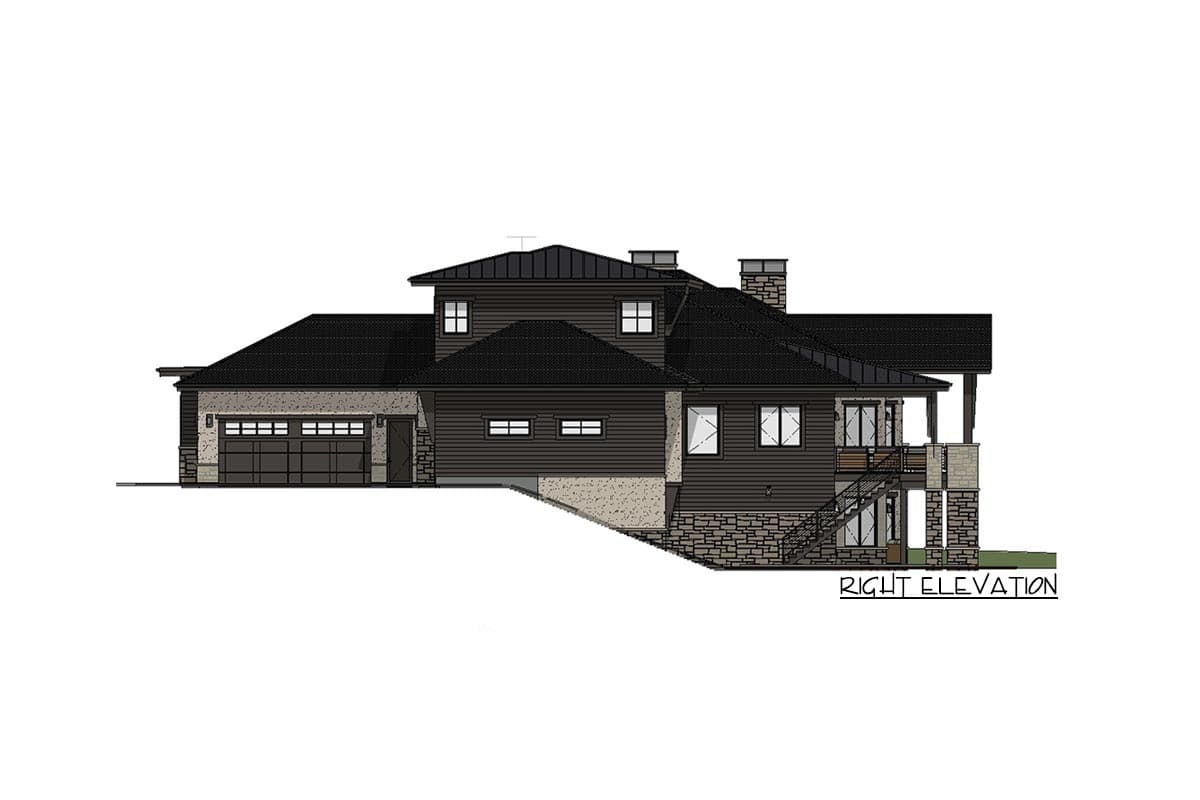

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

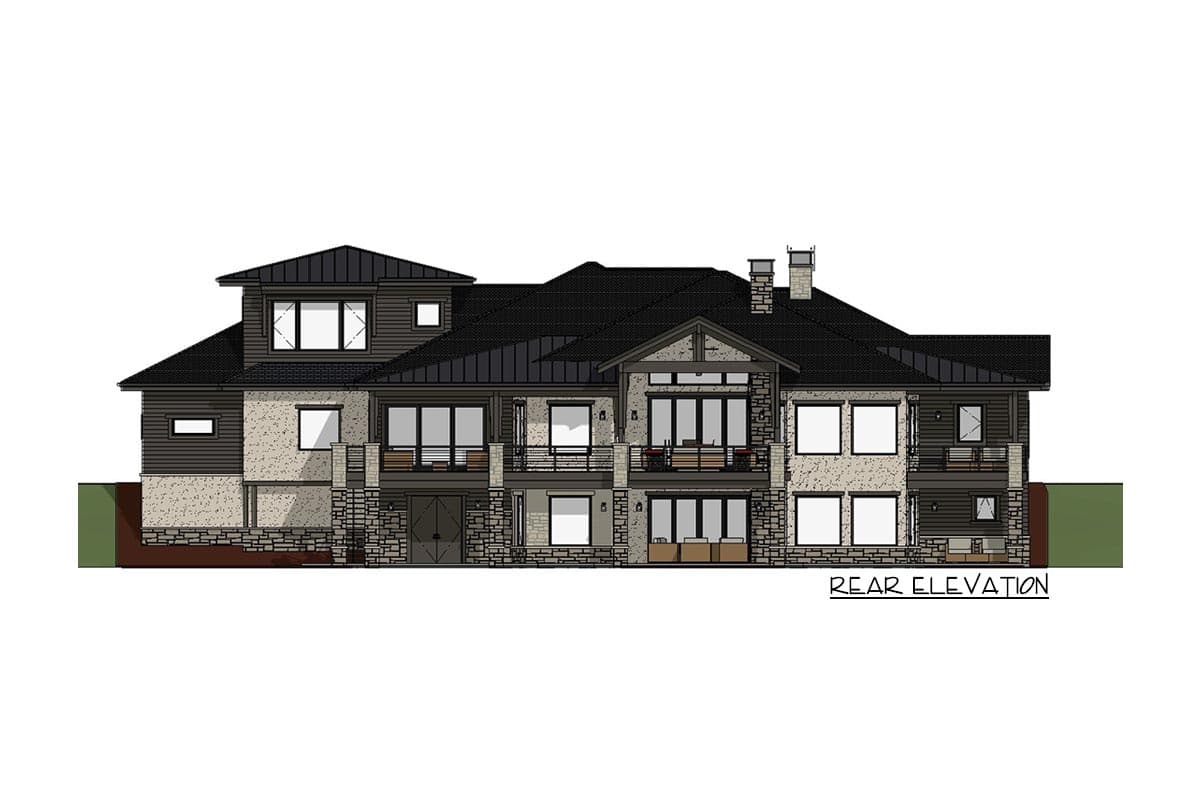

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Ranch with Second-Story Gym for the Rear-View Lot

  • 3,654

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,654 sq. ft.
  • 1st Floor: 3,074 sq. ft.
  • 2nd Floor: 580 sq. ft.

Dimensions

  • Width: 105' 0"
  • Depth: 94' 1"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1951 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Daylight, Crawl, Basement, Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 9" First Floor / 10' 1" Second Floor / 10' 1"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
