Plan 302014PSK

Modern Southwest Adobe House Plan with Split Bedrooms and Formal Dining

Heated S.F.
2,292
Beds
3
Baths
2.5
Stories
1
Tour

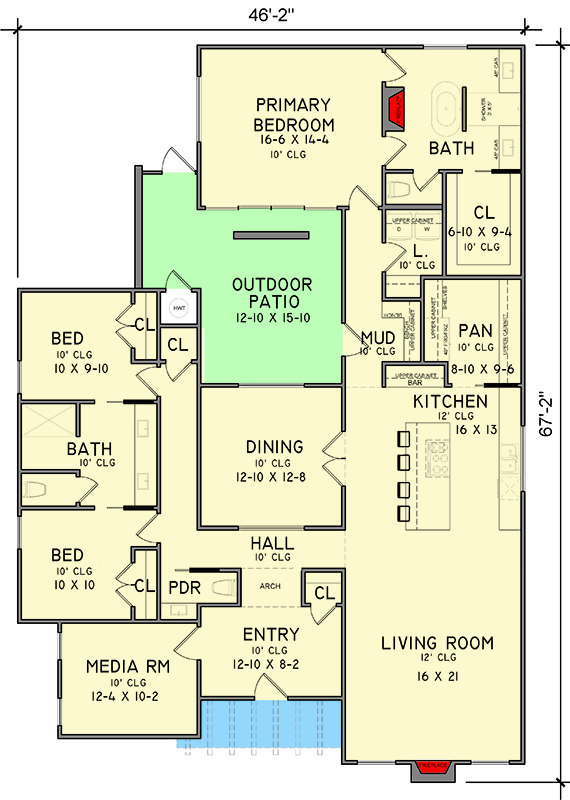

Floor Plan

Plan 302014PSK

Main Level
Main Level

Plan 302014PSK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 302014PSK: Modern Southwest Adobe House Plan with Split Bedrooms and Formal Dining - Floor Plan - Main Level - Adobe , Southwest, Spanish

Plan Details

  • This striking 2,292 sq. ft. Southwest Adobe House Plan offers 3 bedrooms, 2 full baths, and 1 half bath, showcasing a captivating blend of modern design and traditional regional charm.

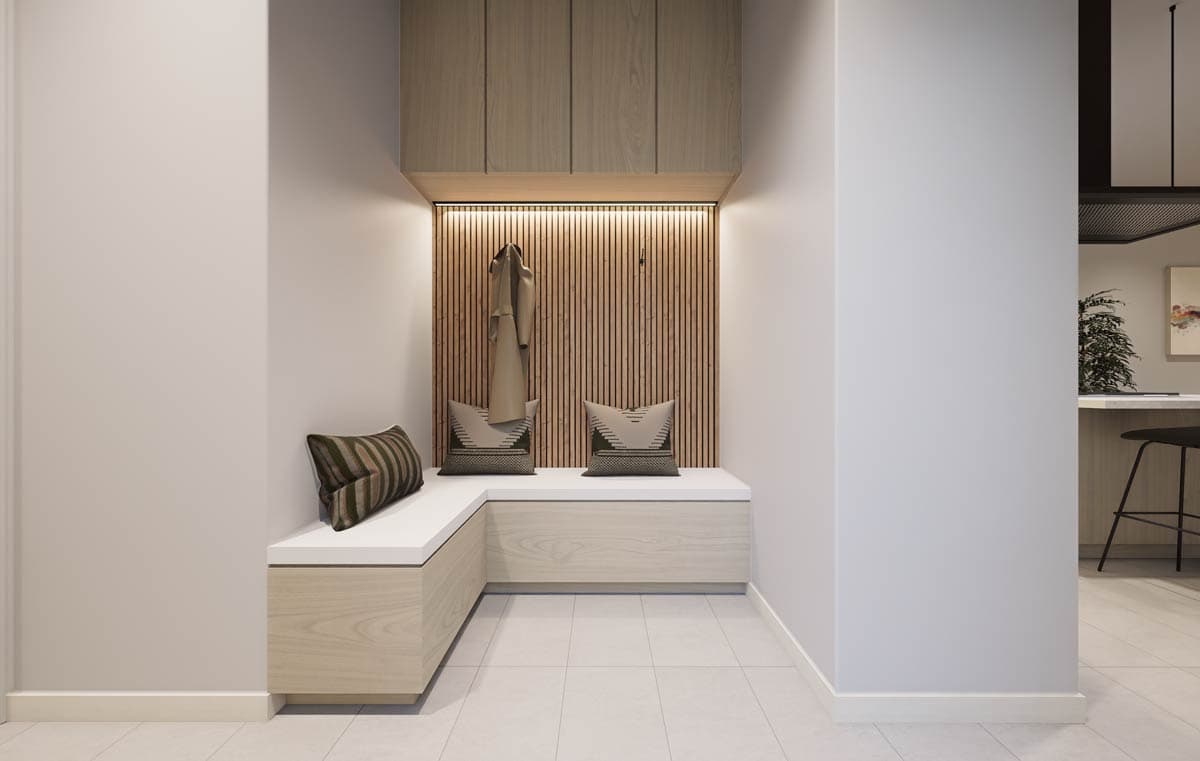

  • Step through the elegant arched entry into a thoughtfully designed interior, where a convenient mudroom provides a practical transition space before the home unfolds into its inviting living areas.

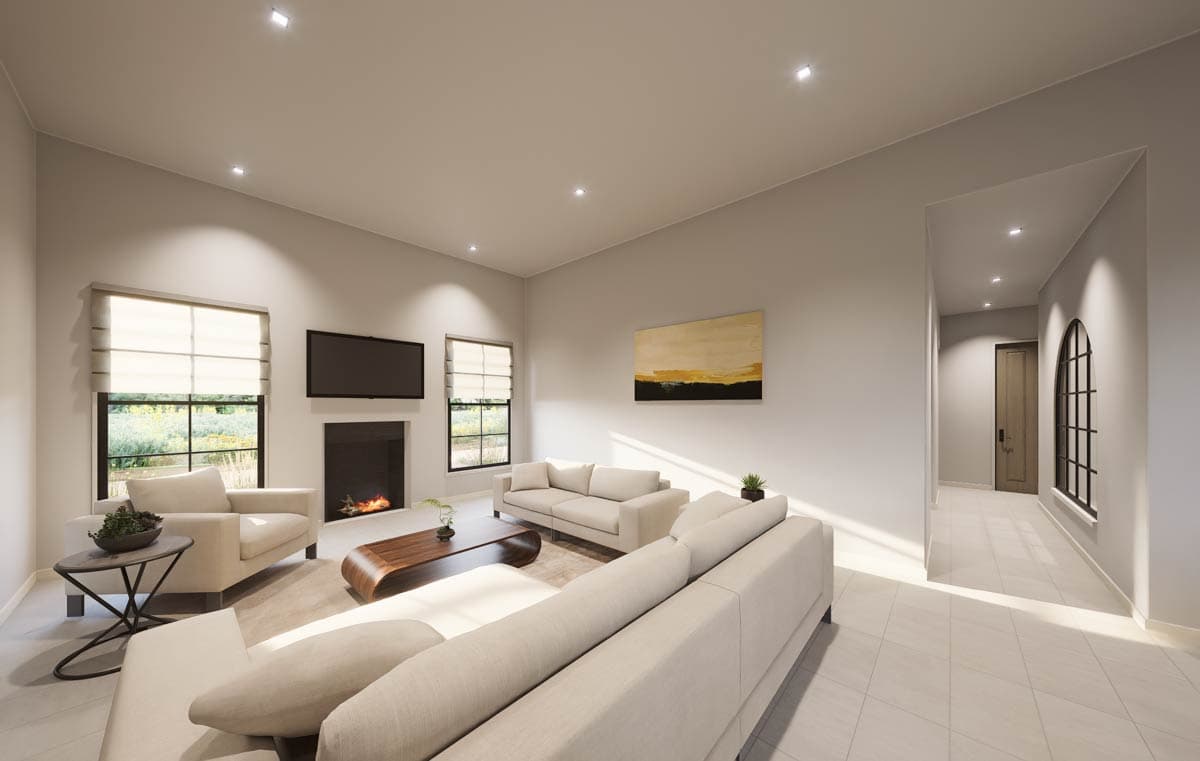

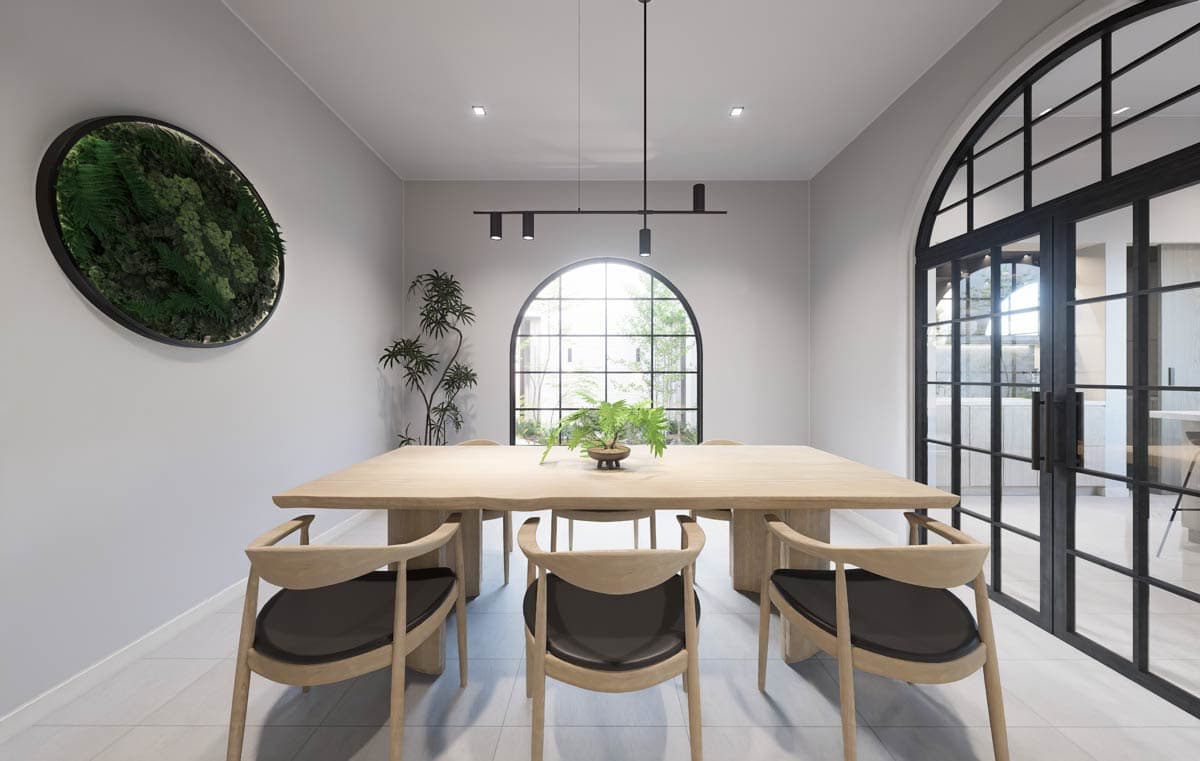

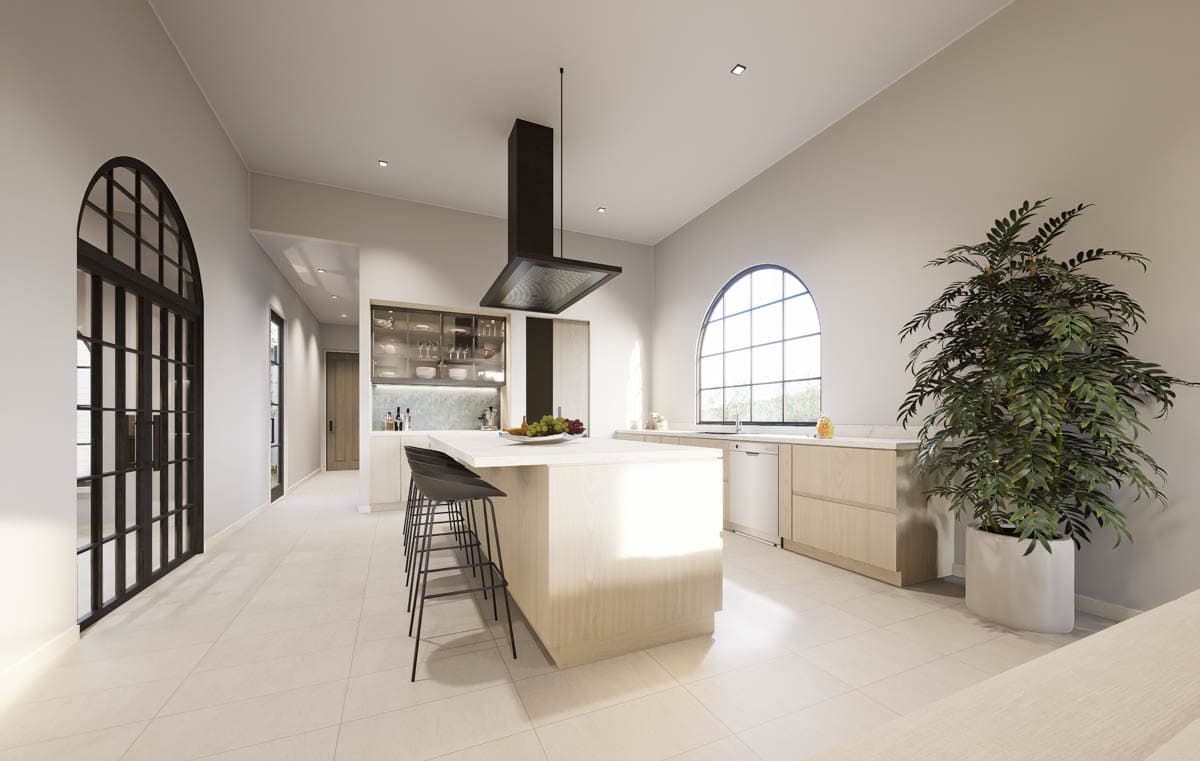

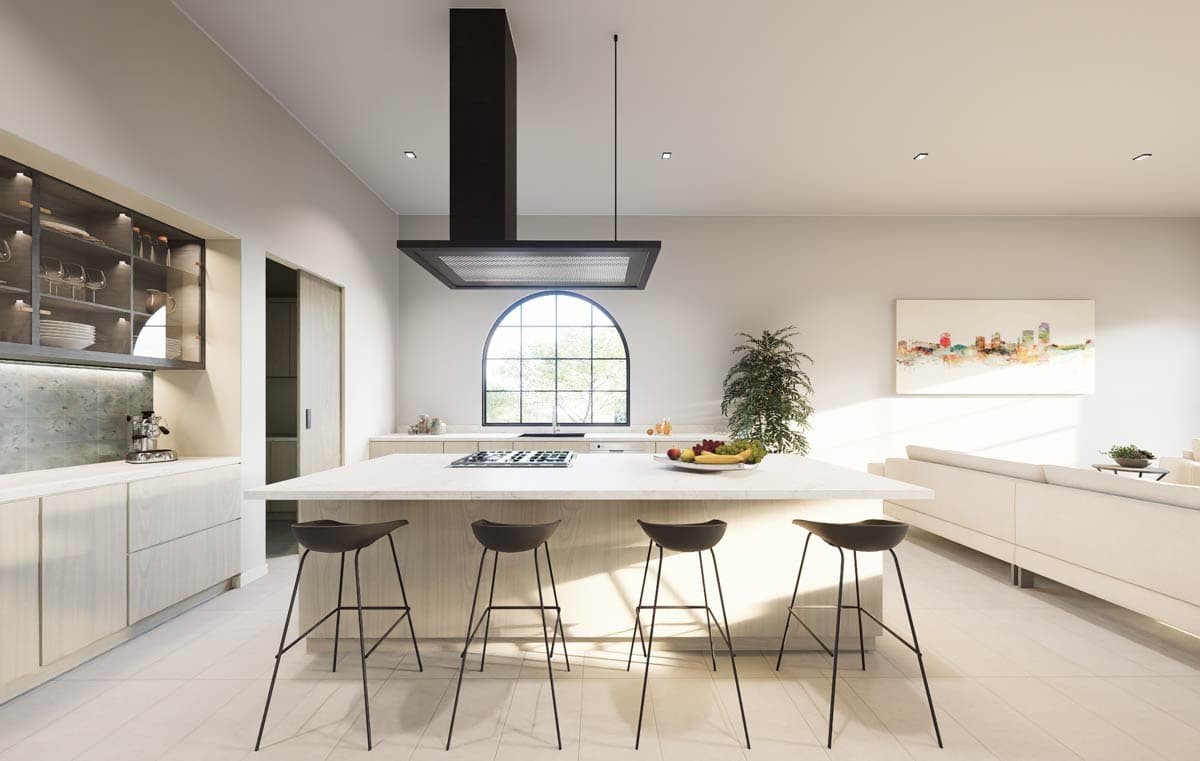

  • The heart of the home features a grand great room and kitchen, both boasting impressive 12-foot flat ceilings, creating an expansive and airy atmosphere perfect for daily living and special gatherings, complemented by a dedicated formal dining area.
  • Experience ultimate privacy with a split bedroom layout, placing the luxurious first-floor master suite in its own serene wing, while secondary bedrooms share a functional Jack & Jill bath, ideal for family or guests.
  • An integrated media room offers a dedicated space for entertainment or quiet relaxation, providing a versatile area for movie nights or a cozy retreat.

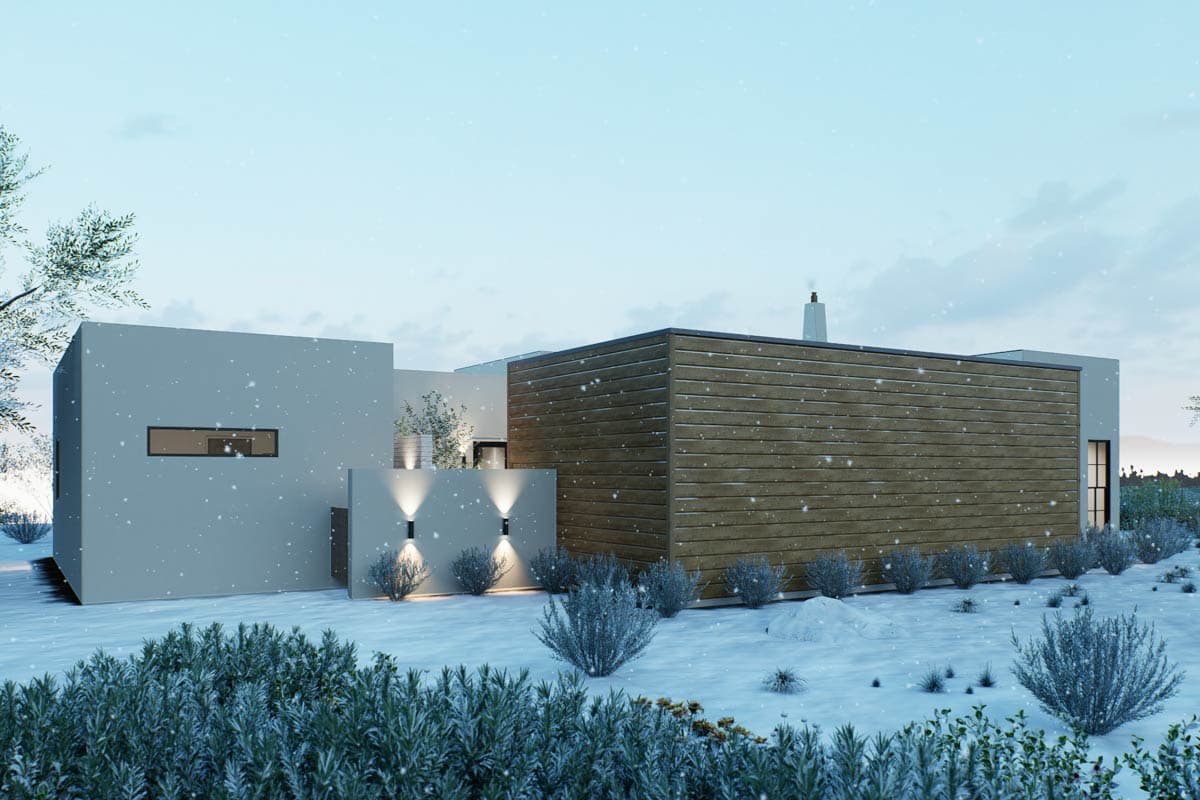

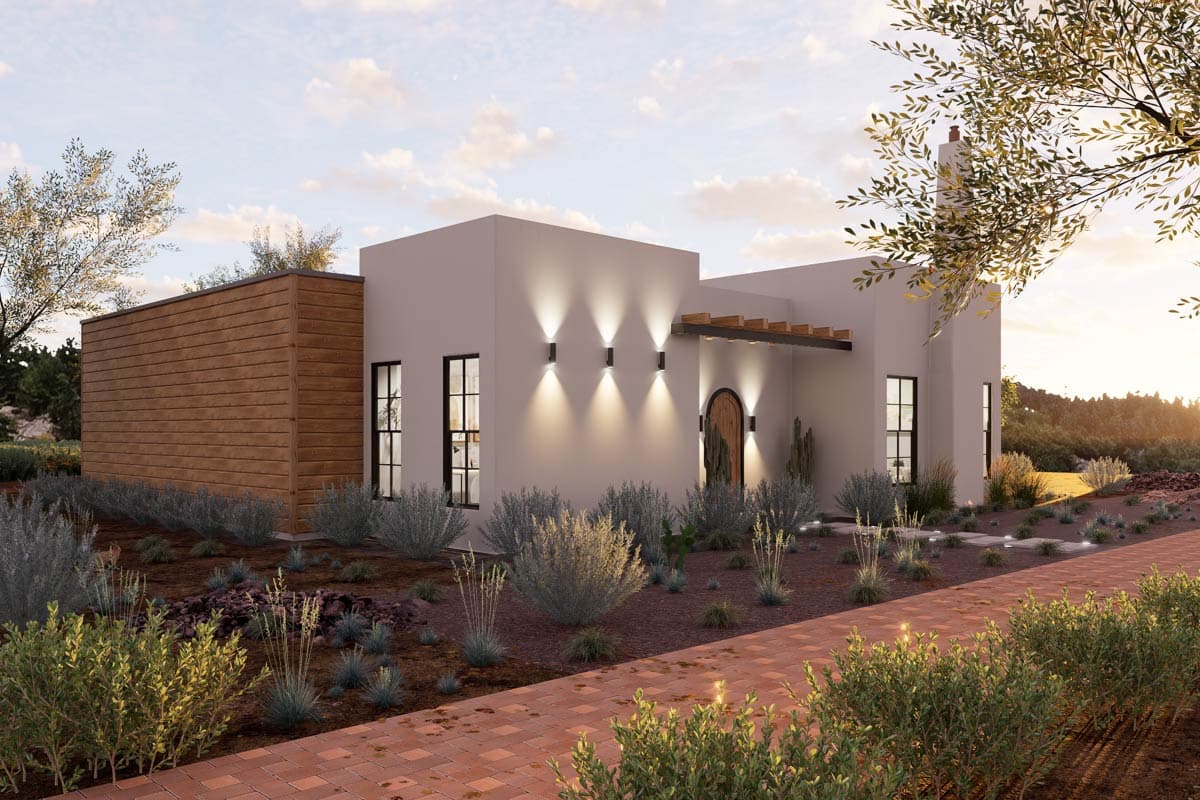

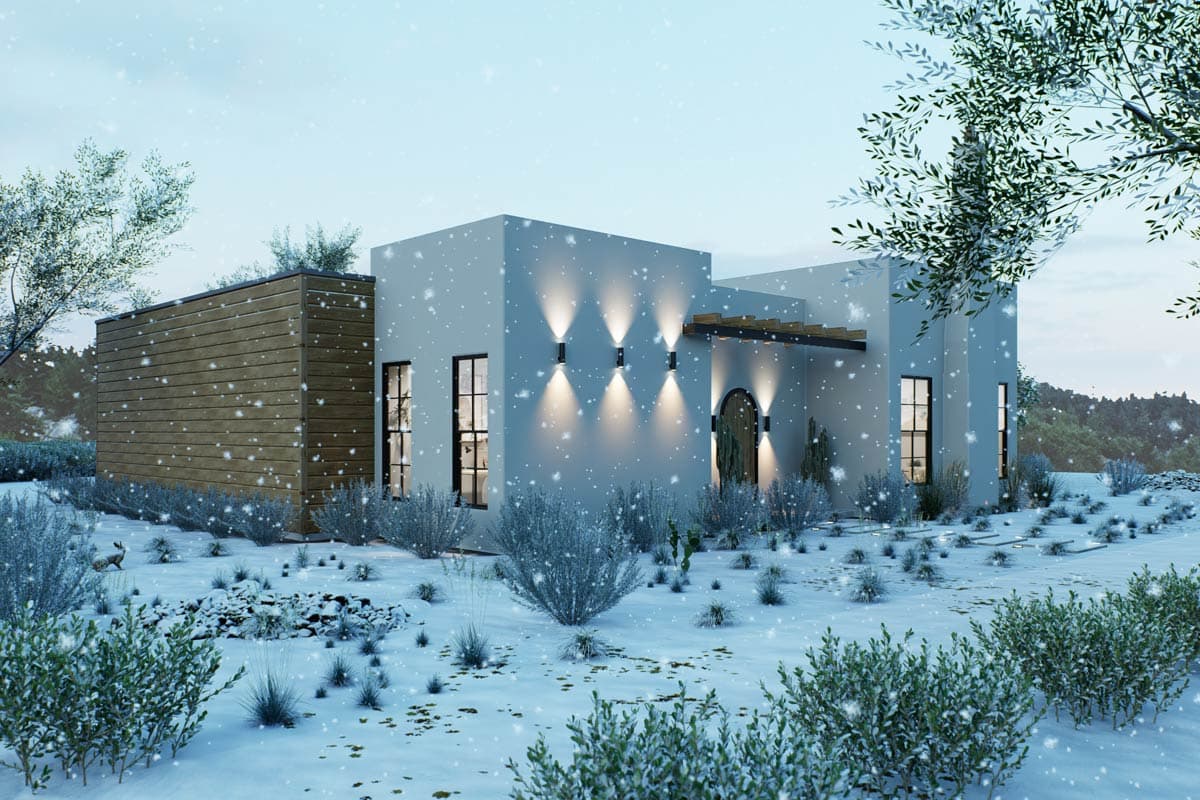

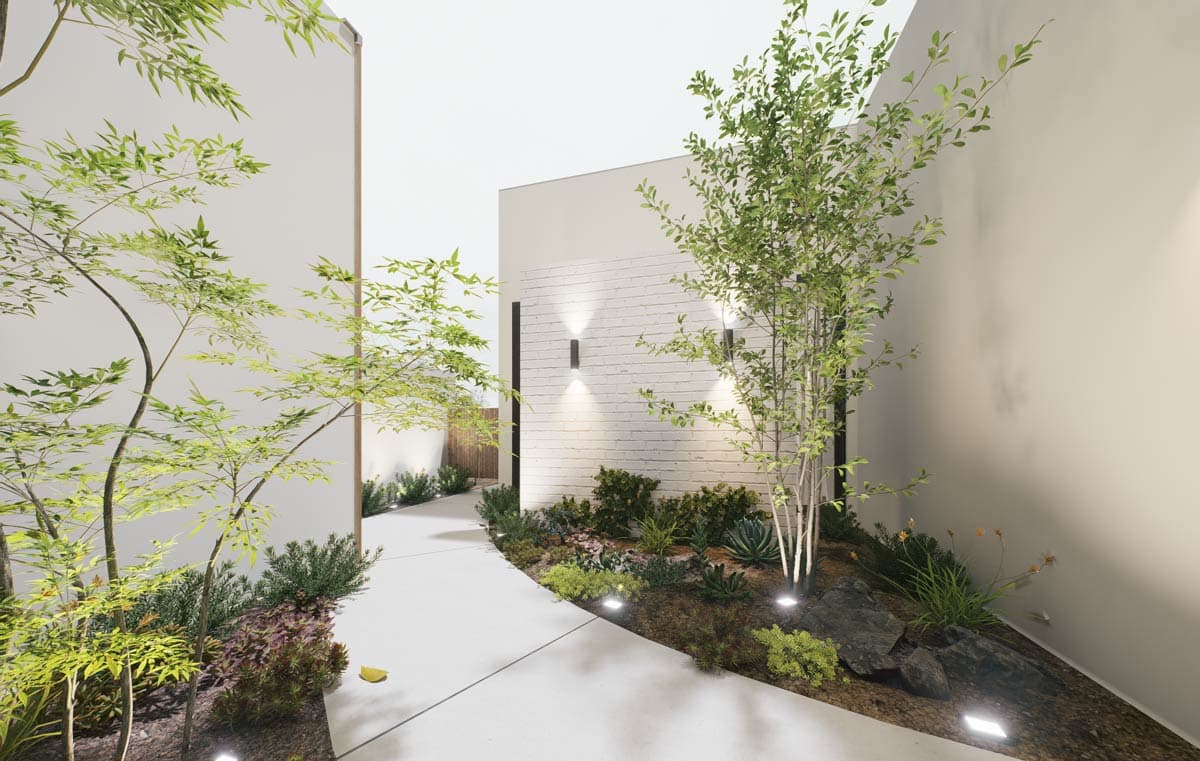

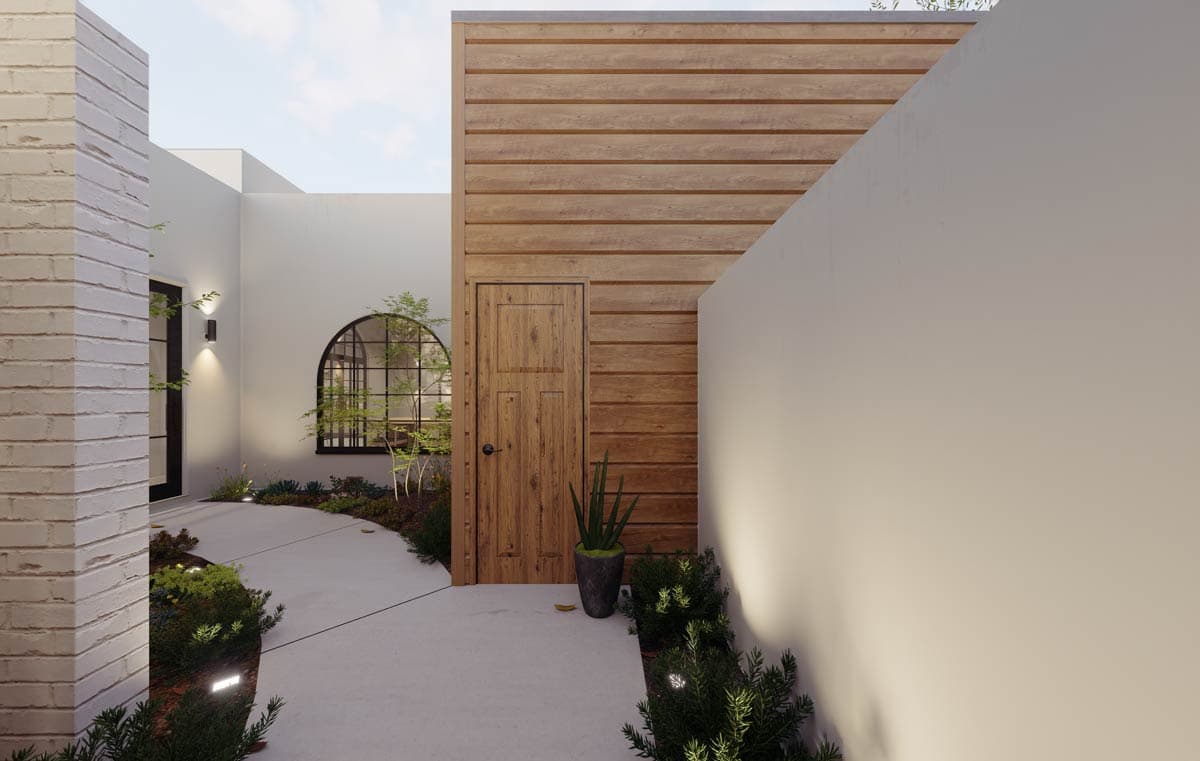

  • The exterior presents a captivating facade, featuring clean lines, a dramatic chimney, and a welcoming courtyard, inviting you to enjoy the distinctive desert landscape.
  • NOTE: Please allow 5 to 10 business days for delivery.

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Sizes
  • Building cross-section
  • Typical Wall Section(s)
  • Exterior Elevations
  • Roof Plan
  • Electrical Plan(s) and Legend – Location of Fixtures
  • Typical Footing Details
  • General Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,292 sq. ft.

1st Floor

2,292 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 2"

Depth

67' 2"

Max Ridge Height

22' 7"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Flat

12' 0''

Kitchen

Flat

12' 0''

Roof Details

Primary Pitch

.25 on 12

Framing Type

Stick And Truss

Architectural Style

Adobe

Southwest

Spanish

Special Features

Bedrooms - Split

Courtyard

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom
