Plan 72756DA

Modern Townhouse-Style House Plan with Main Floor Master Suite - 1533 Sq Ft

Heated S.F.
1,533
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 72756DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72756DA

M-F 9am-5pm EST |

1-203-761-8500

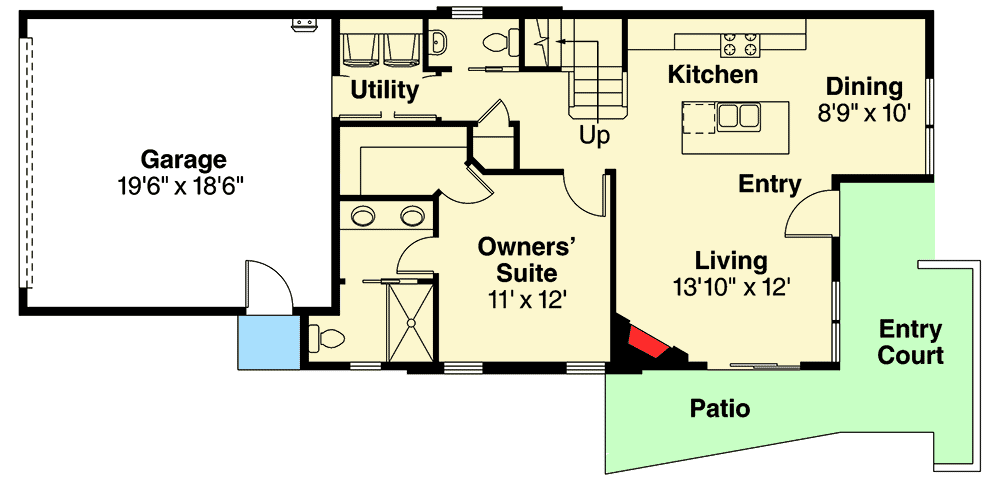

Main Level

Plan 72756DA: Modern Townhouse-Style House Plan with Main Floor Master Suite - 1533 Sq Ft - Floor Plan - Main Level

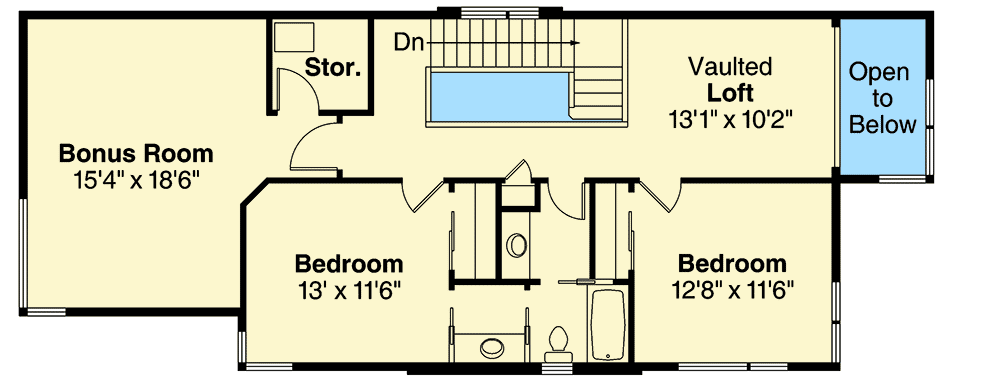

2nd Floor

Plan 72756DA: Modern Townhouse-Style House Plan with Main Floor Master Suite - 1533 Sq Ft - Floor Plan - 2nd Floor

Plan Details

  • This 3 bed, 2 bath house plan gives you 1,533 square feet of heated living and has a modern exterior with metal roofing and lap siding. The entry court - seen in the front of this townhome design - is inviting to all.
  • Enter through the two-story home’s covered porch into an open-style great room. The spacious living room is to the left, complete with a fireplace.
  • The dining room opens to the kitchen and has an island rimmed by a raised eating bar and abundant counter space.
  • The master suite is on the main floor and boasts a generously sized walk-in closet and a bathroom with a shower and a dual vanity. The first floor also holds a laundry room and a garage large enough for multiple vehicles.
  • Upstairs, you'll find two bedrooms, 1.5 baths, a bonus room, and storage space. One of the bathrooms has a tub and shower.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

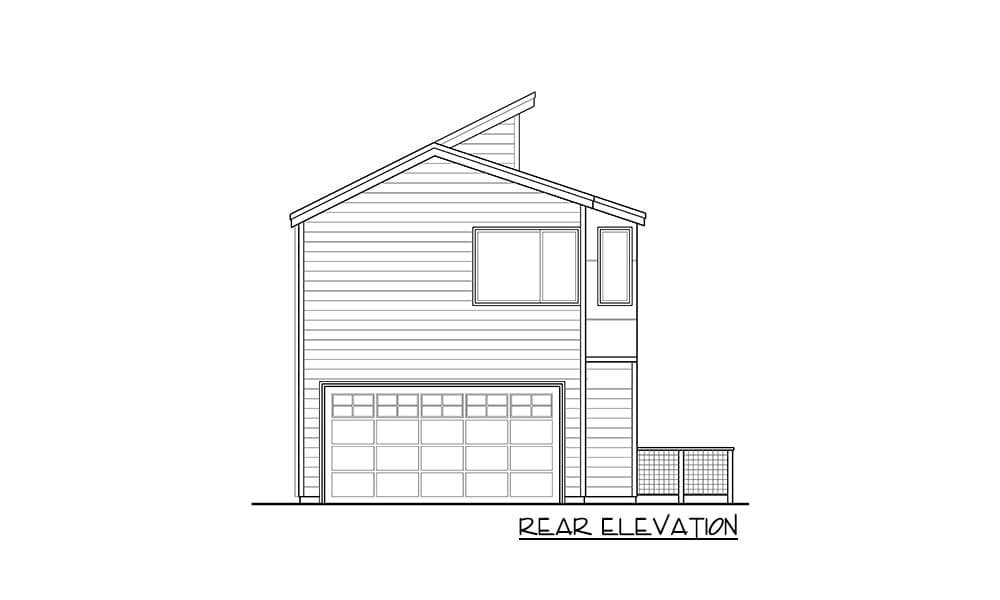

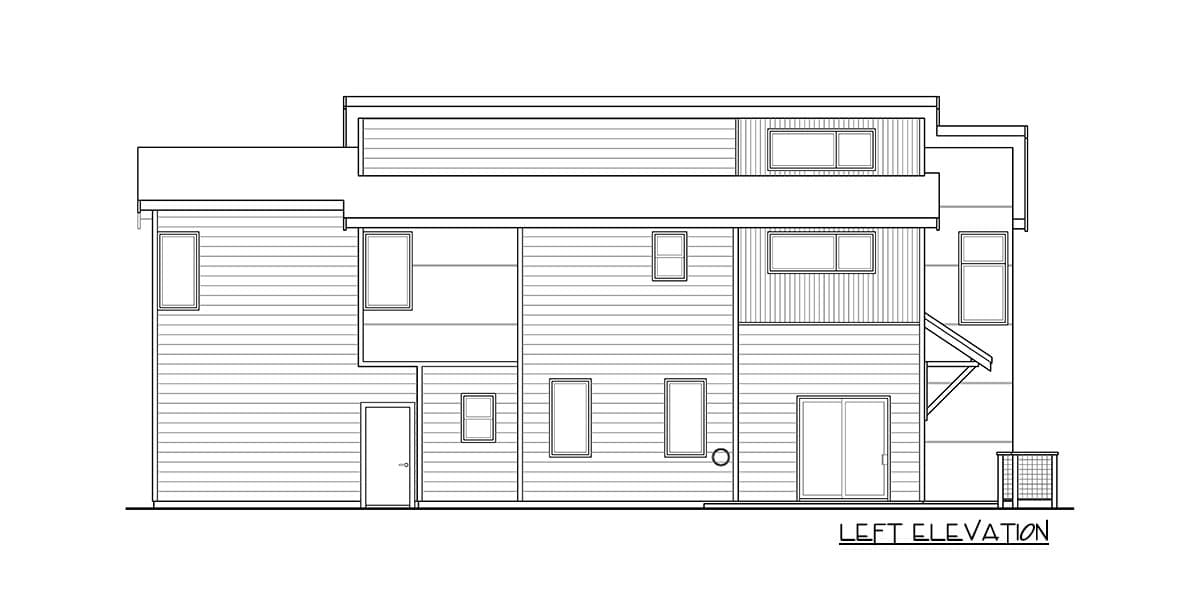

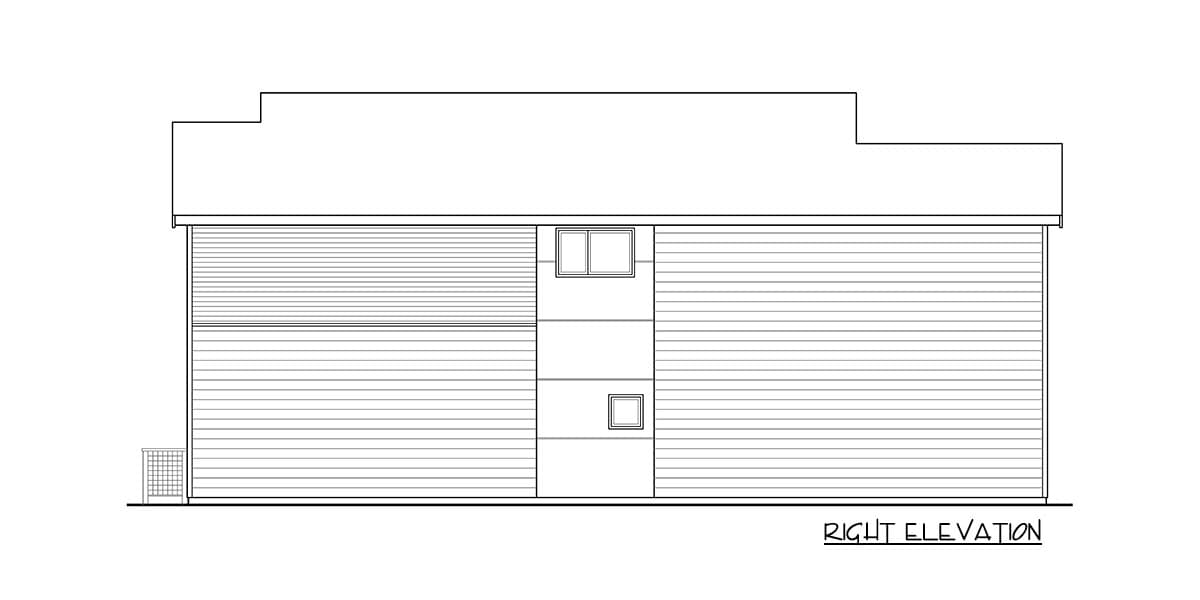

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,533 sq. ft.

1st Floor

821 sq. ft.

2nd Floor

712 sq. ft.

Bonus

360 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

23' 0"

Depth

58' 6"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

389 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Special Features

Courtyard

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room
