Modern Transitional House Plan with 3 Bedrooms and Attached 3-Car Garage

Name: Plan 623672DJ: Modern Transitional House Plan with 3 Bedrooms and Attached 3-Car Garage
Brand: Architectural Designs
SKU: 623672DJ
Price: 1699.0 USD
Availability: InStock

Heated S.F.

2,537

Beds

Baths

3.5

Stories

Cars

Tour

Floor Plan

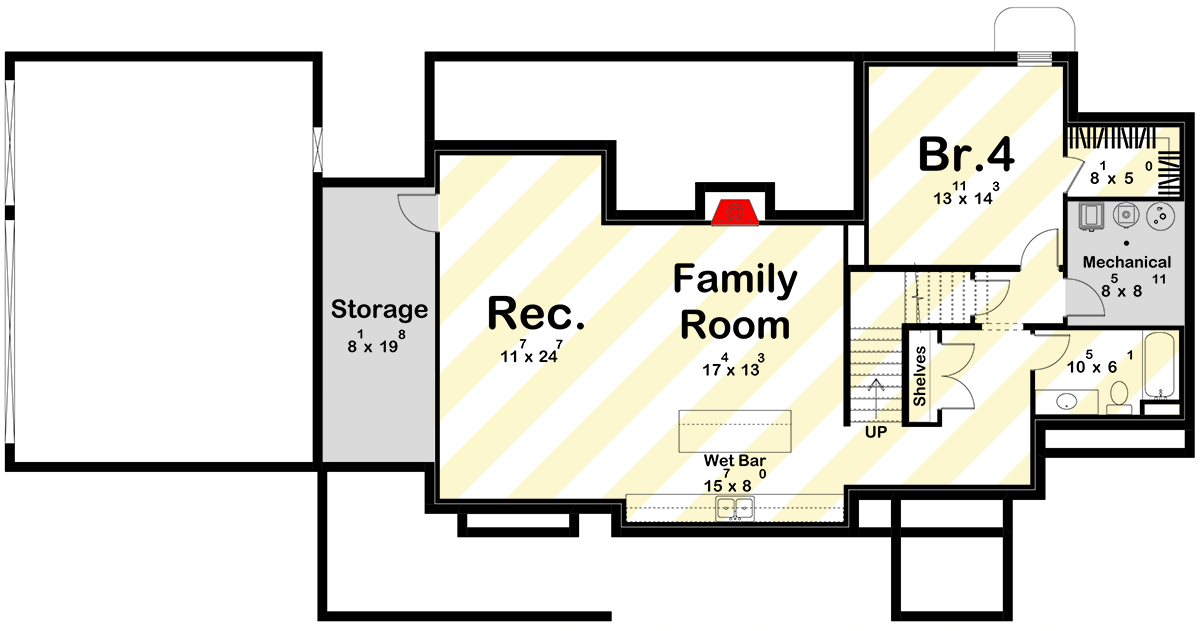

Optional Lower Level Layout ($$$ Paid Option)

Plan Details

This 2,537 square foot modern transitional home features 3 bedrooms, 3.5 baths, and a spacious 976 square foot attached 3-car garage.
The arrival experience is defined by a striking two-story entry that opens into a grand space, creating an immediate sense of scale and light.
The main living area centers around a breathtaking two-story great room that flows seamlessly into the kitchen and dining area, fostering an atmosphere of effortless connectivity.

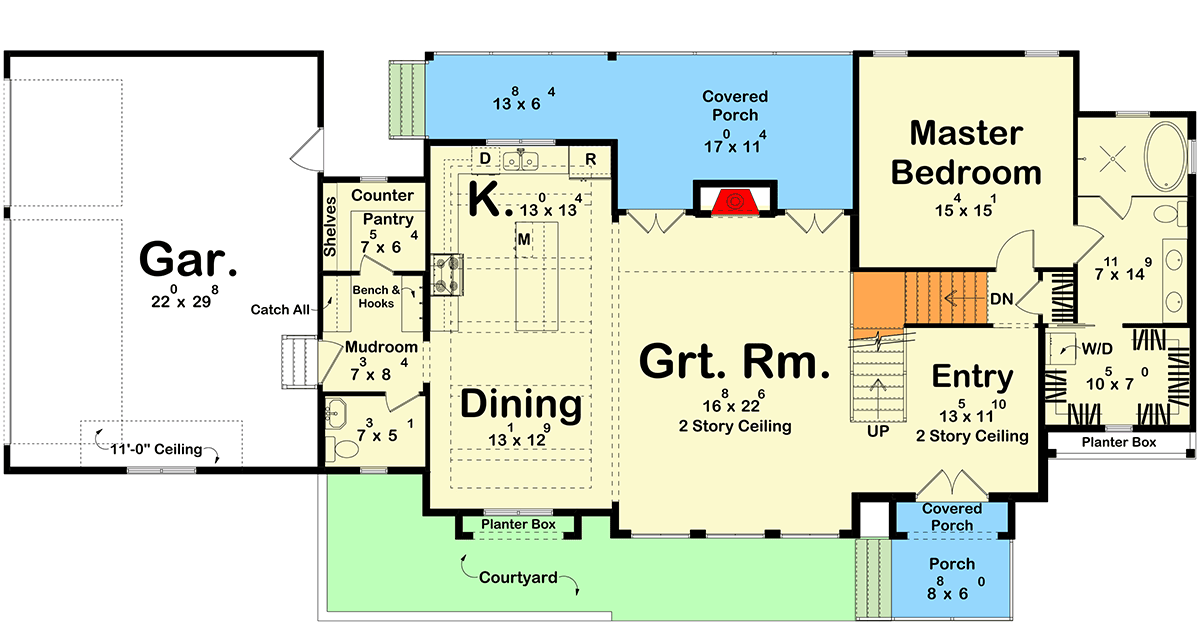

A private primary suite occupies the main level, offering a serene escape, while the remaining bedrooms are thoughtfully positioned to provide comfort and seclusion for family or guests.
The floor plan includes a highly functional mudroom with built-in bench and hooks, as well as a large walk-in pantry to keep the kitchen organized and clutter-free.
Expansive covered porch spaces at the rear of the home invite residents to enjoy the outdoors, providing a perfect transition between the interior living areas and the landscape.
An optional basement foundation layout significantly expands the home, adding a recreation room, a family room with a wet bar, a fourth bedroom, and generous storage space.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
