Plan 52039HZ

Modern Transitional House Plan with Split Bedrooms and Outdoor Kitchen

Heated S.F.
2,383
Beds
3
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 52039HZ

Main Level
Main Level
Main Level - Basement Stairs Location
Main Level - Basement Stairs Location

Plan 52039HZ

M-F 9am-5pm EST |

1-203-761-8500

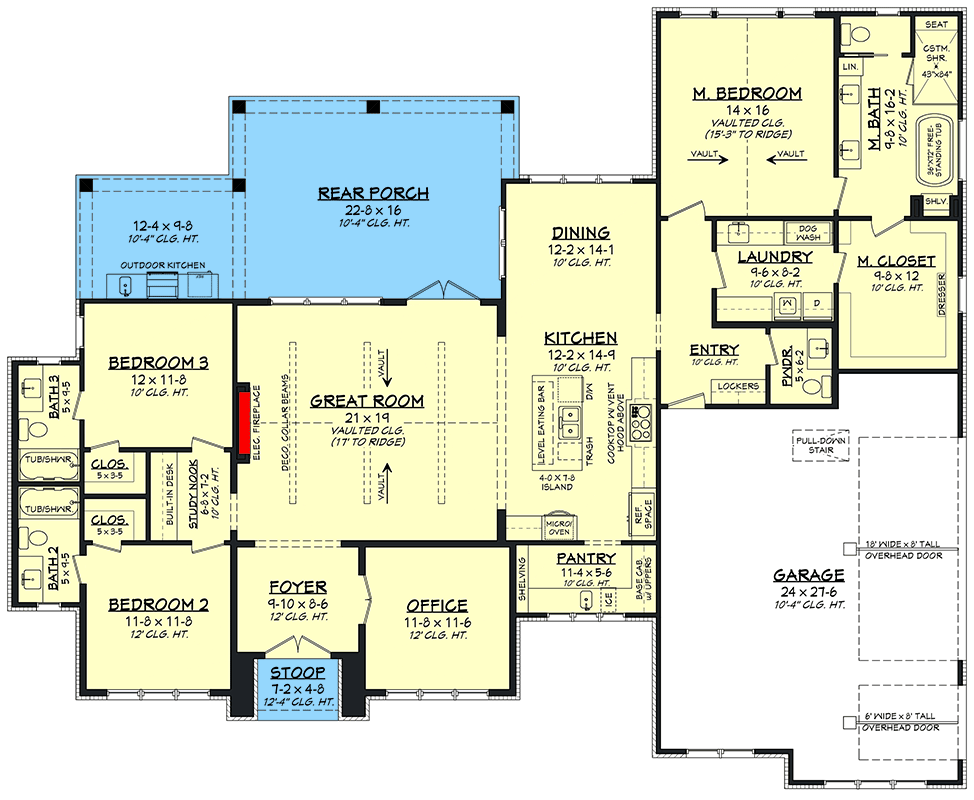

Main Level

Plan 52039HZ: Modern Transitional House Plan with Split Bedrooms and Outdoor Kitchen - Floor Plan - Main Level - Modern, Southern, Transitional

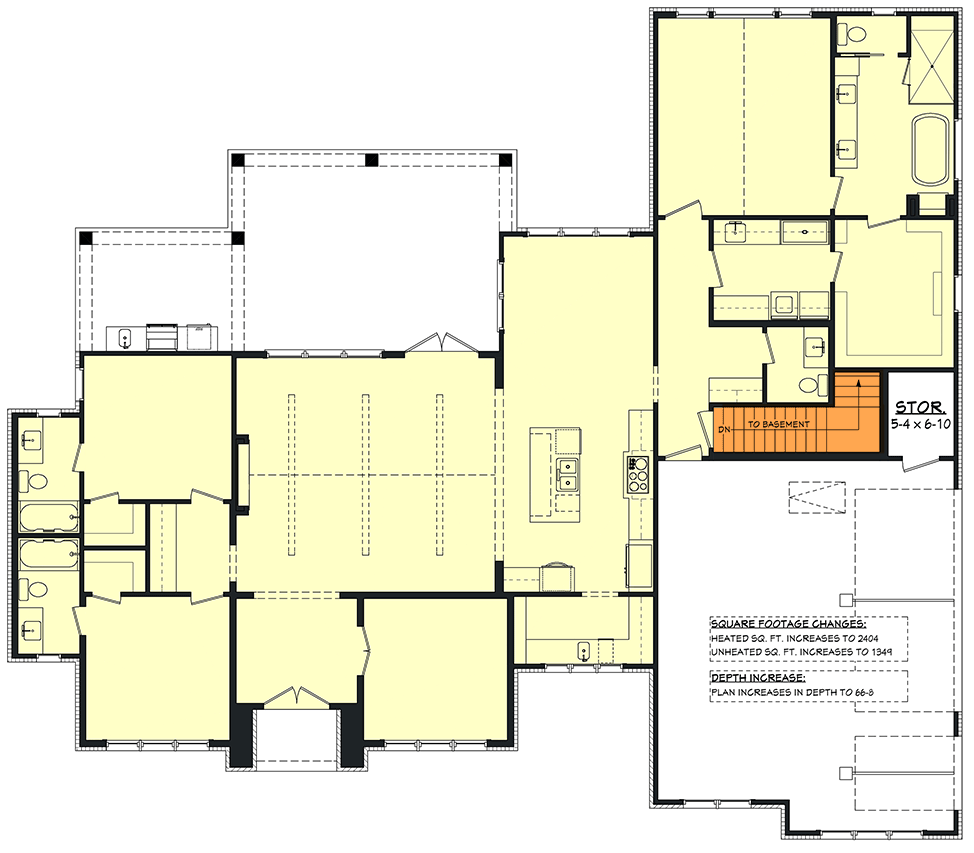

Main Level - Basement Stairs Location

Plan 52039HZ: Modern Transitional House Plan with Split Bedrooms and Outdoor Kitchen - Floor Plan - Main Level - Basement Stairs Location - Modern, Southern, Transitional

Plan Details

  • This 2,383 sq ft Modern Transitional House Plan features 3 bedrooms, 3.5 baths, and an attached 743 sq ft 2-car side-entry garage.
  • The welcoming foyer with 10-foot ceilings introduces a functional layout, featuring a dedicated home office and a convenient mudroom area with lockers near the garage.
  • The impressive great room, with its vaulted 17-foot ceiling and electric fireplace, opens effortlessly to the dining area and a well-appointed kitchen featuring an island with eating bar and a walk-in pantry.
  • The private primary bedroom suite, with its vaulted ceiling and spa-like bath, offers convenient laundry access and is strategically split from the two secondary bedrooms, each featuring their own full bathroom.
  • Enjoy outdoor living with a charming front stoop and an expansive 472 sq ft rear porch featuring a full outdoor kitchen, perfect for entertaining and relaxation.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

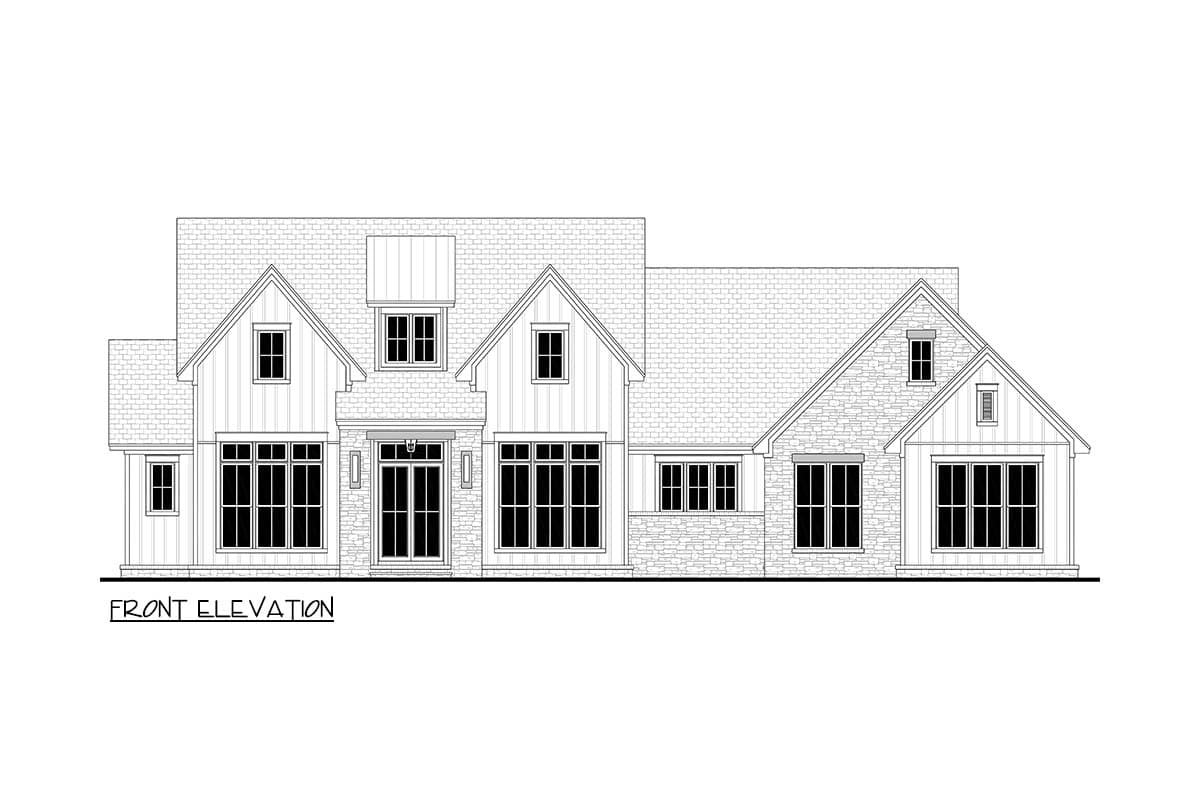

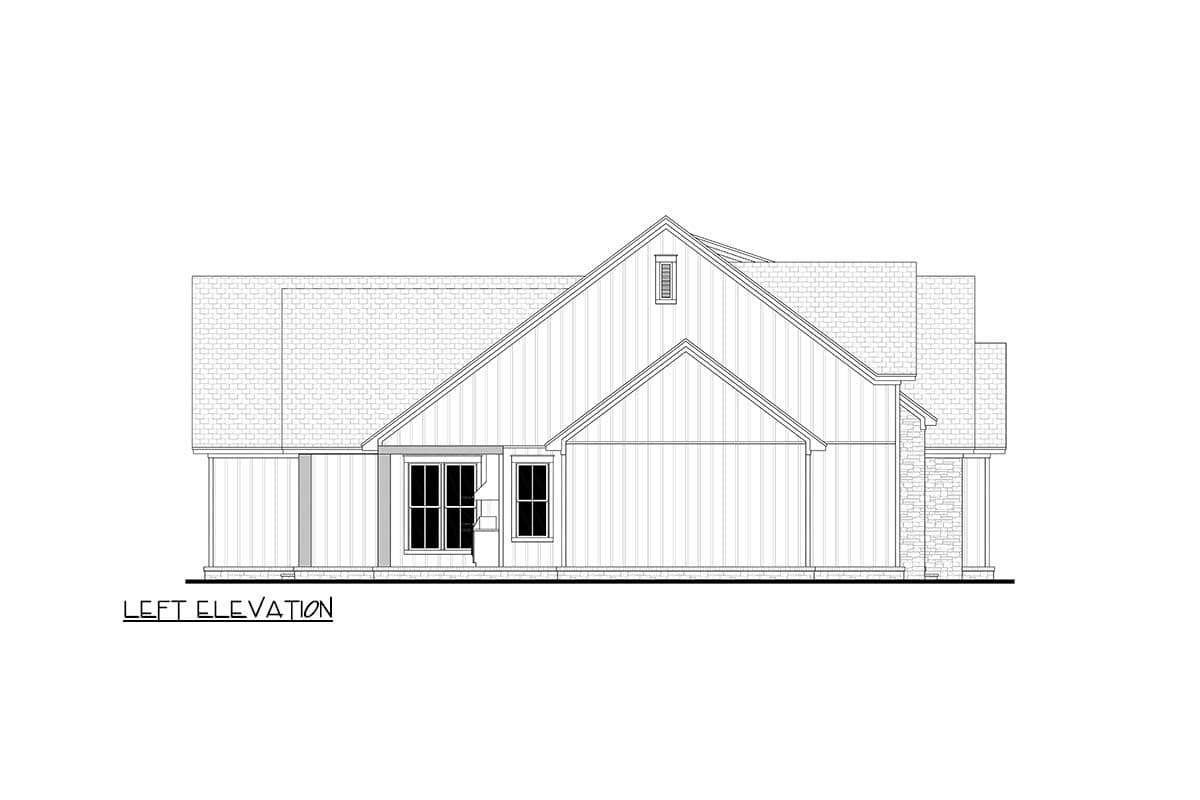

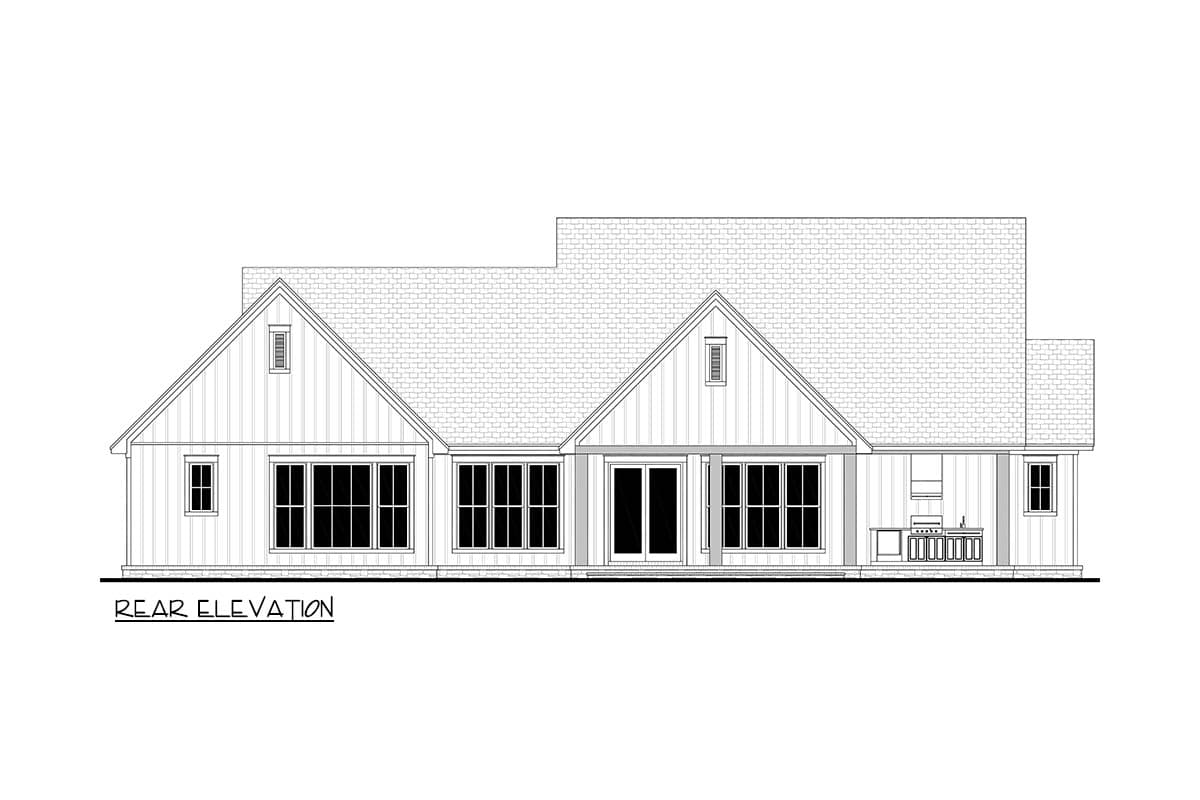

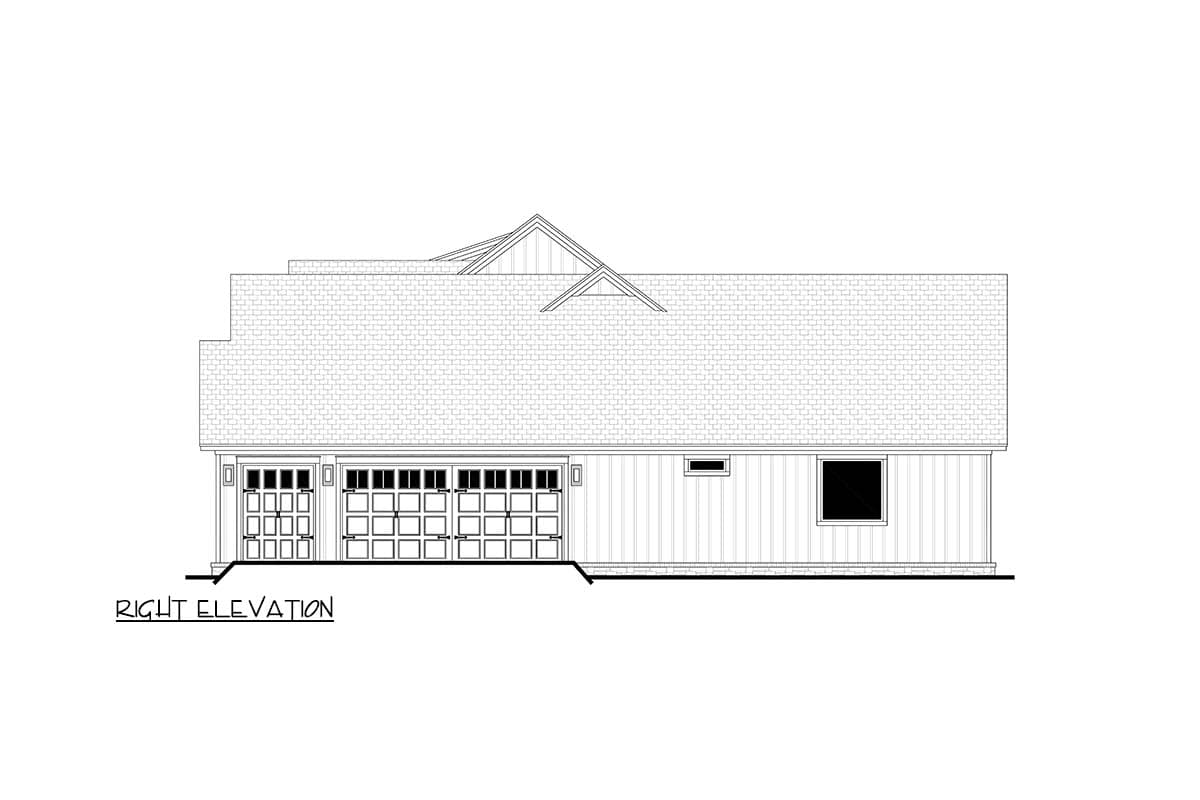

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,383 sq. ft.

1st Floor

2,383 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

472 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 8"

Depth

62' 4"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

743 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Modern

Southern

Transitional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,383 sq. ft.

1st Floor

2,383 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

472 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 8"

Depth

62' 4"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

743 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Modern

Southern

Transitional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Walk-in Pantry
