Modern Transitional House Plan with Vaulted Great Room and 3-Car Garage

Name: Plan 490136NAH: Modern Transitional House Plan with Vaulted Great Room and 3-Car Garage
Brand: Architectural Designs
SKU: 490136NAH
Price: 2100.0 USD
Availability: InStock

Heated S.F.

3,207

Beds

Baths

3.5

Stories

Cars

Floor Plan

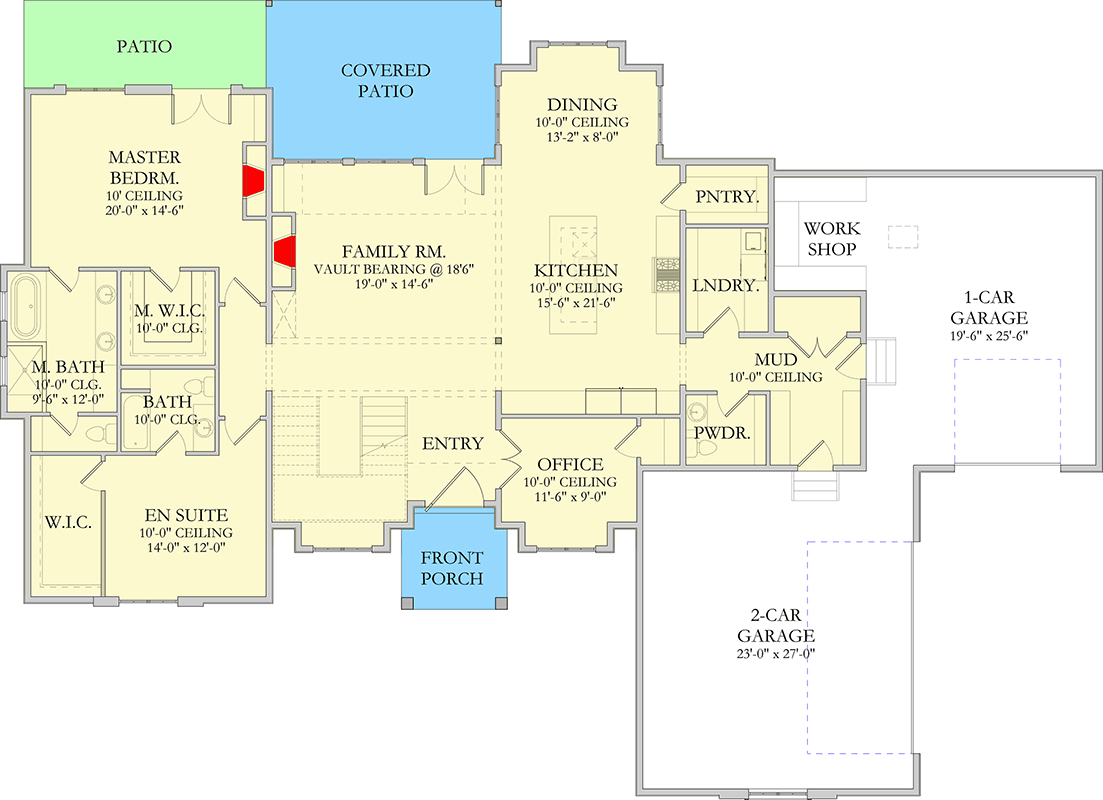

Main Level

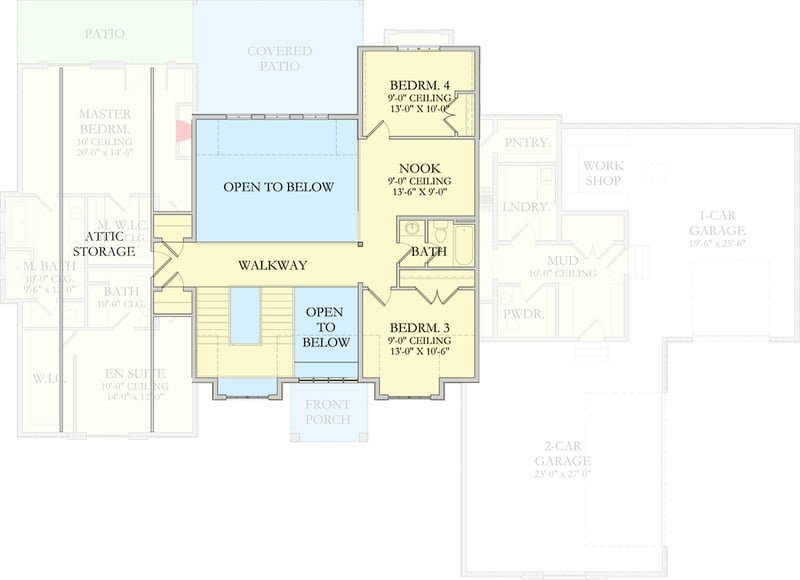

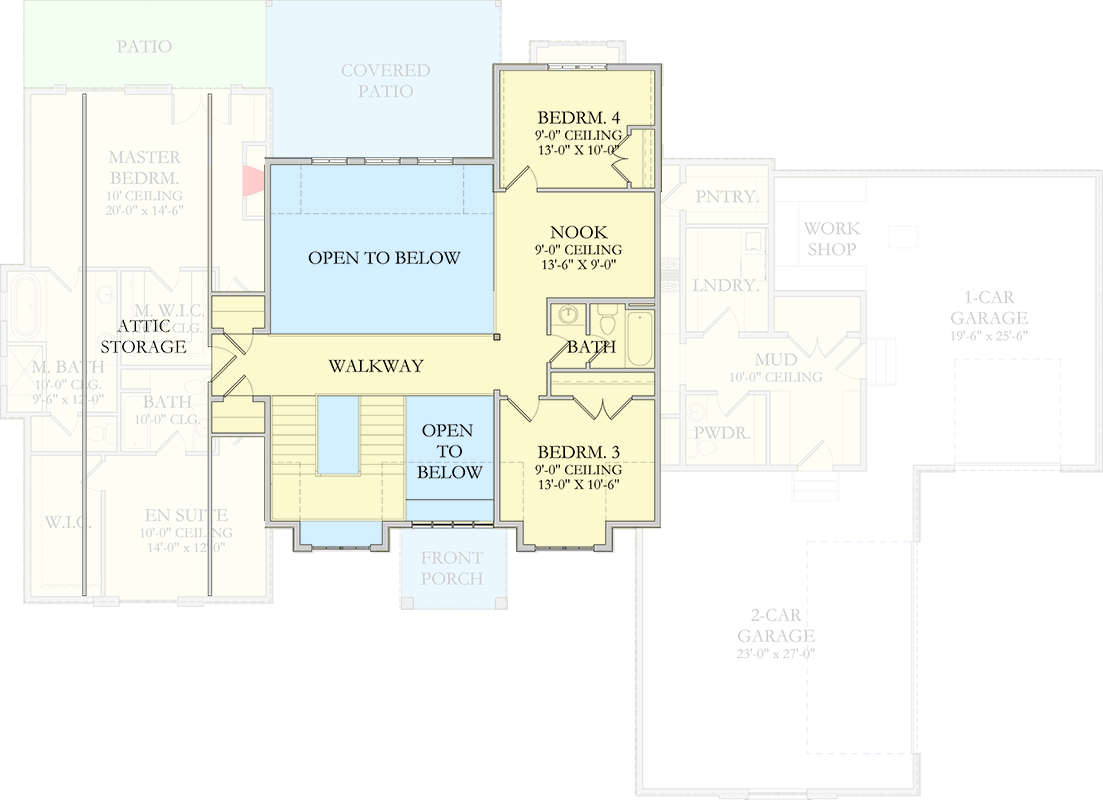

2nd Floor

Plan Details

This 3,207 square foot modern farmhouse includes 4 bedrooms, 3 full bathrooms, 1 half bath, and a 1,177 square foot 3-car garage.
Through the covered front porch, you're welcomed into a foyer that opens up to a vaulted great room with dramatic beams and a stone fireplace as its centerpiece.
The adjacent dining area flows seamlessly into the kitchen, which features an oversized island and a discreet walk-in pantry.
Main living spaces are thoughtfully open yet defined, with large windows and rear glass doors inviting natural light and effortless movement to the outdoor covered porch.
A dedicated front-facing office near the entrance is perfect for working from home or managing household tasks in a quiet environment.
The primary suite occupies one wing of the home, complete with a spa-style bath, dual vanities, soaking tub, separate shower, and a spacious walk-in closet.
Two additional bedrooms are positioned upstairs on the opposite side, with sharing access to a centrally located full bath, while the third on the main floor enjoys its own dedicated bathroom.
Outdoor spaces include a broad front porch and an expansive rear covered patio, perfect for dining al fresco or relaxing in the shade.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Building Section(s)
Typical Wall Details and Section(s)
Typical Stair Detail and Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
