Plan 93007EL Modern Tudor Home Plan with 3-Car Side-Entry Garage

2,877 4 3 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Tudor Home Plan with 3-Car Side-Entry Garage

Plan 93007EL

  • 2,877

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Welcome to the home that has it all. This modern Tudor house plan has great curb appeal and plenty of special features.
  • The open floor layout on the main floor includes an island kitchen and walk-through pantry, a large great room, formal dining room with fireplace, a pocket office and flex space for either a study or extra suite.
  • Upstairs you'll find a large owner's suite, laundry room and optional playroom as well as two bedrooms.
  • The spacious garage has room for 3-cars and is perfect for adding a workshop.
  • Related Plans: Get an alternate exterior with house plans 9337EL and 93006EL. Get more room with house plan 9302EL (3,134 sq. ft.).

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

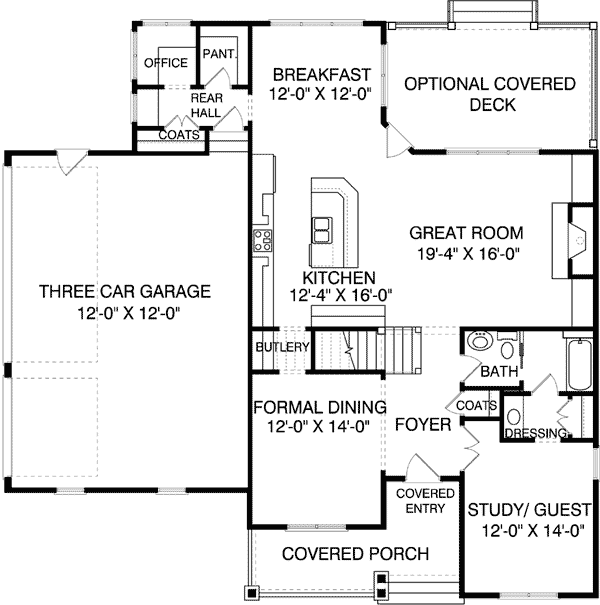

Modern Tudor Home Plan with 3-Car Side-Entry Garage - 93007EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

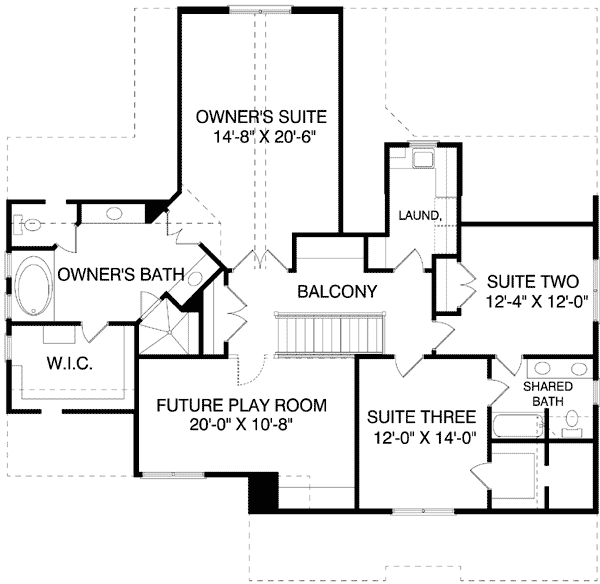

Modern Tudor Home Plan with 3-Car Side-Entry Garage - 93007EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,877 sq. ft.
  • 1st Floor: 1,472 sq. ft.
  • 2nd Floor: 1,405 sq. ft.
  • Porch, Rear: 228 sq. ft.
  • Porch, Front: 126 sq. ft.
  • Bonus: 257 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 53' 4"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 719 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Modern Tudor Home Plan with 3-Car Side-Entry Garage

  • 2,877

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD+PDF - Single-Build $2,395
  • PDF - Unlimited Build $2,745
  • CAD - Unlimited Build $3,245
  • View all purchase option online

About This Plan

  • Welcome to the home that has it all. This modern Tudor house plan has great curb appeal and plenty of special features.
  • The open floor layout on the main floor includes an island kitchen and walk-through pantry, a large great room, formal dining room with fireplace, a pocket office and flex space for either a study or extra suite.
  • Upstairs you'll find a large owner's suite, laundry room and optional playroom as well as two bedrooms.
  • The spacious garage has room for 3-cars and is perfect for adding a workshop.
  • Related Plans: Get an alternate exterior with house plans 9337EL and 93006EL. Get more room with house plan 9302EL (3,134 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,877 sq. ft.
  • 1st Floor: 1,472 sq. ft.
  • 2nd Floor: 1,405 sq. ft.
  • Porch, Rear: 228 sq. ft.
  • Porch, Front: 126 sq. ft.
  • Bonus: 257 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 53' 4"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 719 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 93007EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93007EL
|
