Modern Two-Story House Plan with Vaulted Great Room

Heated S.F.
1,801
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 69905AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69905AM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

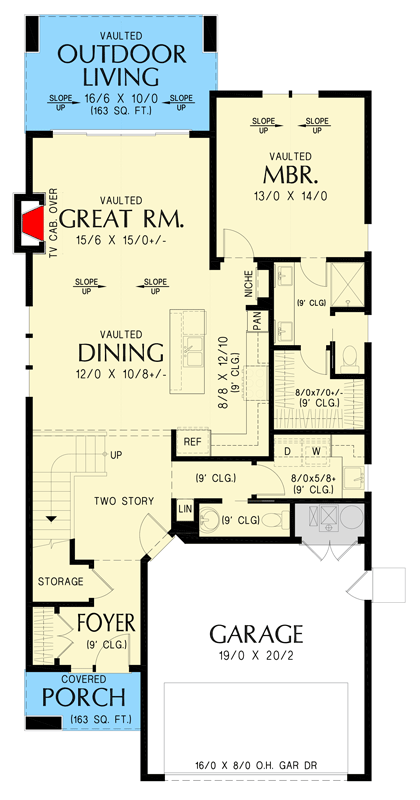

Plan 69905AM: Modern Two-Story House Plan with Vaulted Great Room - Floor Plan - Main Level - Contemporary, Modern, Scandinavian

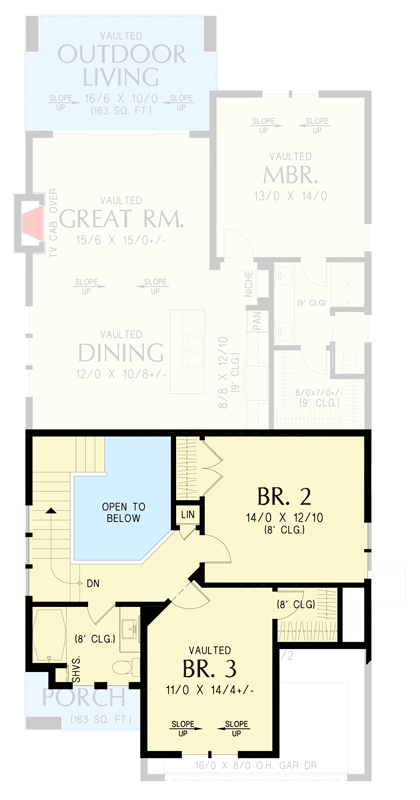

2nd Floor

Plan 69905AM: Modern Two-Story House Plan with Vaulted Great Room - Floor Plan - 2nd Floor - Contemporary, Modern, Scandinavian

Plan Details

  • Enjoy 1,801 sq. ft. of modern living space with 3 bedrooms, 2.5 bathrooms, and an attached 2-car garage covering 407 sq. ft.
  • Enter through a covered porch into a spacious foyer with easy access to a vaulted great room and formal dining area.
  • The main level features a dining space connecting seamlessly to the open-concept kitchen, perfect for family gatherings.
  • The master suite is conveniently located on the first floor, offering privacy with a well-appointed bathroom and a separate laundry area.
  • Two additional bedrooms upstairs provide ample space, with a shared bathroom and a unique overlook into the great room.

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,242 sq. ft.

2nd Floor

559 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

66' 6"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

407 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Scandinavian

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,242 sq. ft.

2nd Floor

559 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

66' 6"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

407 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Scandinavian

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
