Plan 720064DA

Modern U-shaped House Plan with Den and Open-Concept Living Space

Heated S.F.
2,577
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 720064DA

Main Level
Main Level

Plan 720064DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 720064DA: Modern U-shaped House Plan with Den and Open-Concept Living Space - Floor Plan - Main Level - Contemporary, Modern, Northwest

Plan Details

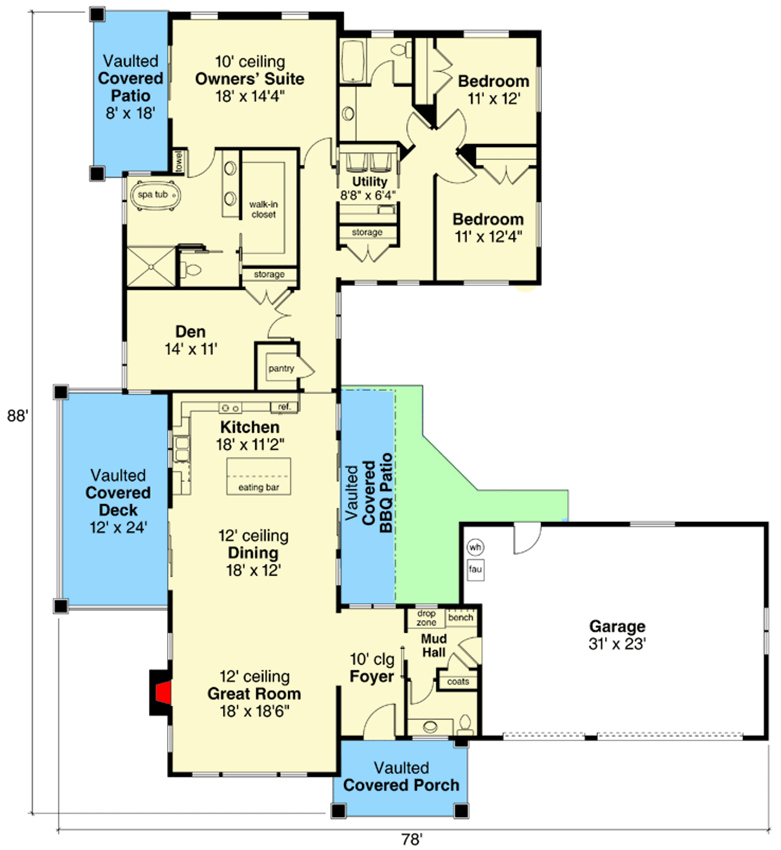

  • In over 2,500 square feet of living space, this Modern house plan delivers a U-shaped design with a central living space flanked by covered decks.
  • Enter from the 3-car garage to find a powder bath just off the mudroom. A barn door leads to the formal foyer where you can access the great room.
  • Clean views from the great room, through the dining area, and into the kitchen provide the open-concept layout many homeowners desire, while an eating bar at the prep island naturally serves as the hub of everyday living.
  • The bedrooms are located towards the rear of the home, just past a quiet den. The owner's suite features a 10' ceiling, 5-fixture bathroom with a spa tube, walk-in closet, and a private covered patio.
  • The pass-thru laundry room sits between the owner's suite and two family bedrooms.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,577 sq. ft.

1st Floor

2,577 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 0"

Depth

88' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

778 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Butler Walk-in Pantry

Den

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,577 sq. ft.

1st Floor

2,577 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 0"

Depth

88' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

778 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Butler Walk-in Pantry

Den

Master Suite - 1st Floor

Mudroom
