Plan 680634VR

Modern Urban House Plan with Rooftop Deck and Tandem Garage

Heated S.F.
2,080
Beds
3
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 680634VR

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 680634VR

M-F 9am-5pm EST |

1-203-761-8500

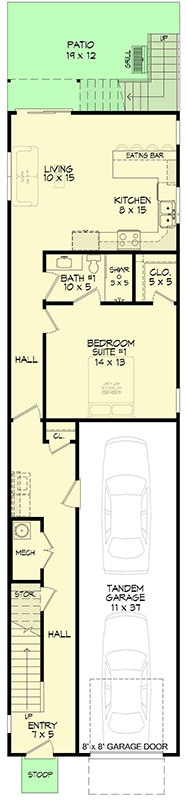

Main Level

Plan 680634VR: Modern Urban House Plan with Rooftop Deck and Tandem Garage - Floor Plan - Main Level - Modern

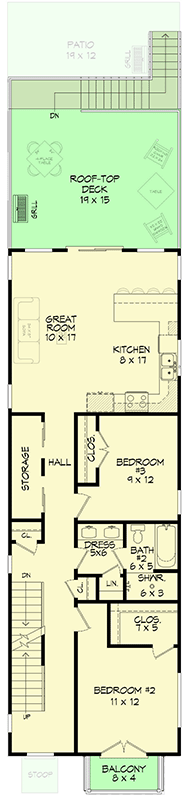

2nd Floor

Plan 680634VR: Modern Urban House Plan with Rooftop Deck and Tandem Garage - Floor Plan - 2nd Floor - Modern

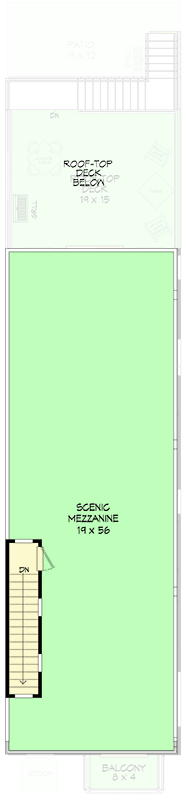

3rd Floor

Plan 680634VR: Modern Urban House Plan with Rooftop Deck and Tandem Garage - Floor Plan - 3rd Floor - Modern

Plan Details

  • This striking 2,080 sq. ft. modern house plan offers three bedrooms, two bathrooms, and a generous 410 sq. ft. two-car tandem garage, all wrapped in a sleek, contemporary exterior.
  • Upon entry, a welcoming hall leads directly to the private master suite on the first floor, while also providing convenient access to the tandem garage, setting the stage for a thoughtfully designed multi-level home.
  • The first level features an inviting open-concept living room and kitchen, complete with an eats bar, flowing seamlessly to an outdoor patio perfect for morning coffee. Ascend to the second floor to discover a spacious great room and a second well-appointed kitchen, ideal for entertaining, which opens directly onto an expansive rooftop deck.
  • The serene master bedroom suite, located privately on the first floor, offers a tranquil retreat, while two additional bedrooms on the second level provide comfortable accommodations, thoughtfully separated for privacy.
  • A unique scenic mezzanine on the third floor provides an elevated vantage point, perfect for a quiet reading nook or a creative workspace, offering panoramic views.
  • Enjoy abundant outdoor living with a ground-level patio, a charming balcony accessible from a second-floor bedroom, and an impressive rooftop deck featuring an outdoor kitchen.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,080 sq. ft.

1st Floor

941 sq. ft.

2nd Floor

1,066 sq. ft.

3rd Floor

73 sq. ft.

Deck

993 sq. ft.

Balcony / Veranda

32 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

19' 0"

Depth

71' 2"

Max Ridge Height

32' 10"

Garage

Type

Standard, Attached

Area

410 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Upstairs

Outdoor Kitchen
