Modest New American House Plan with Bonus Room

Plan 710210BTZ

  • 1,934

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

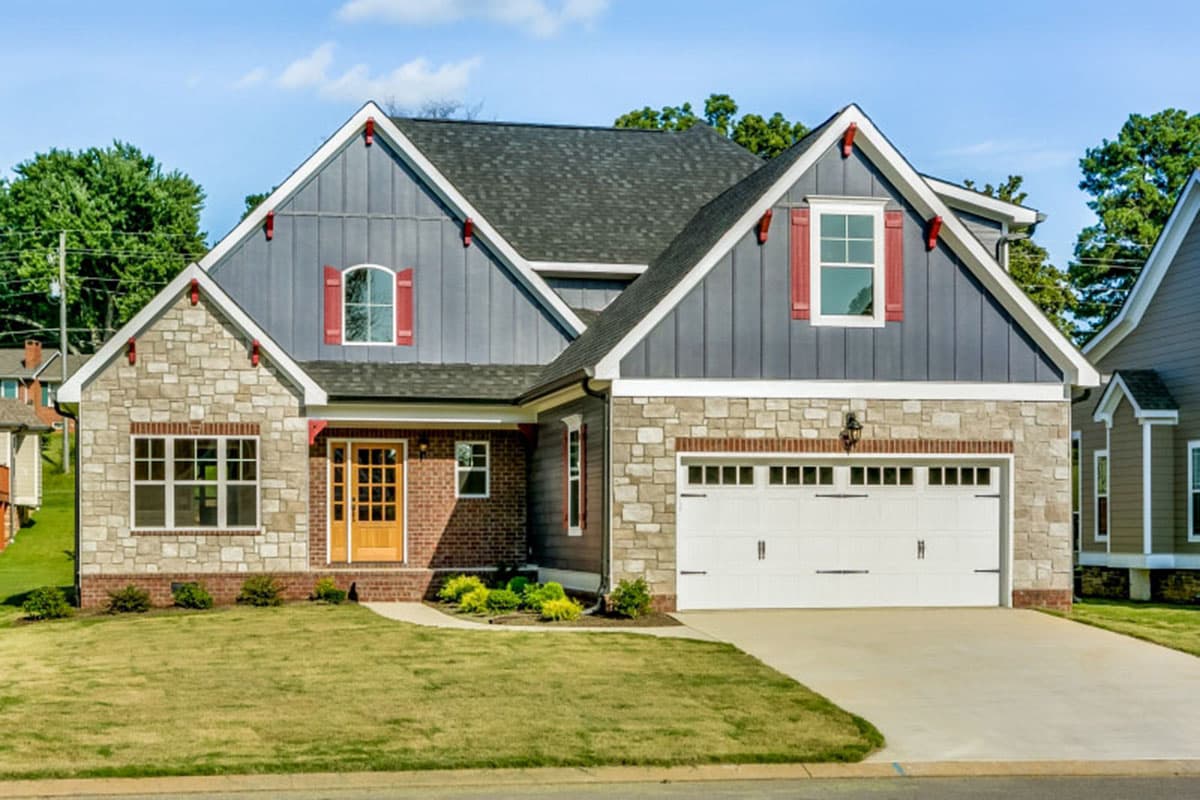

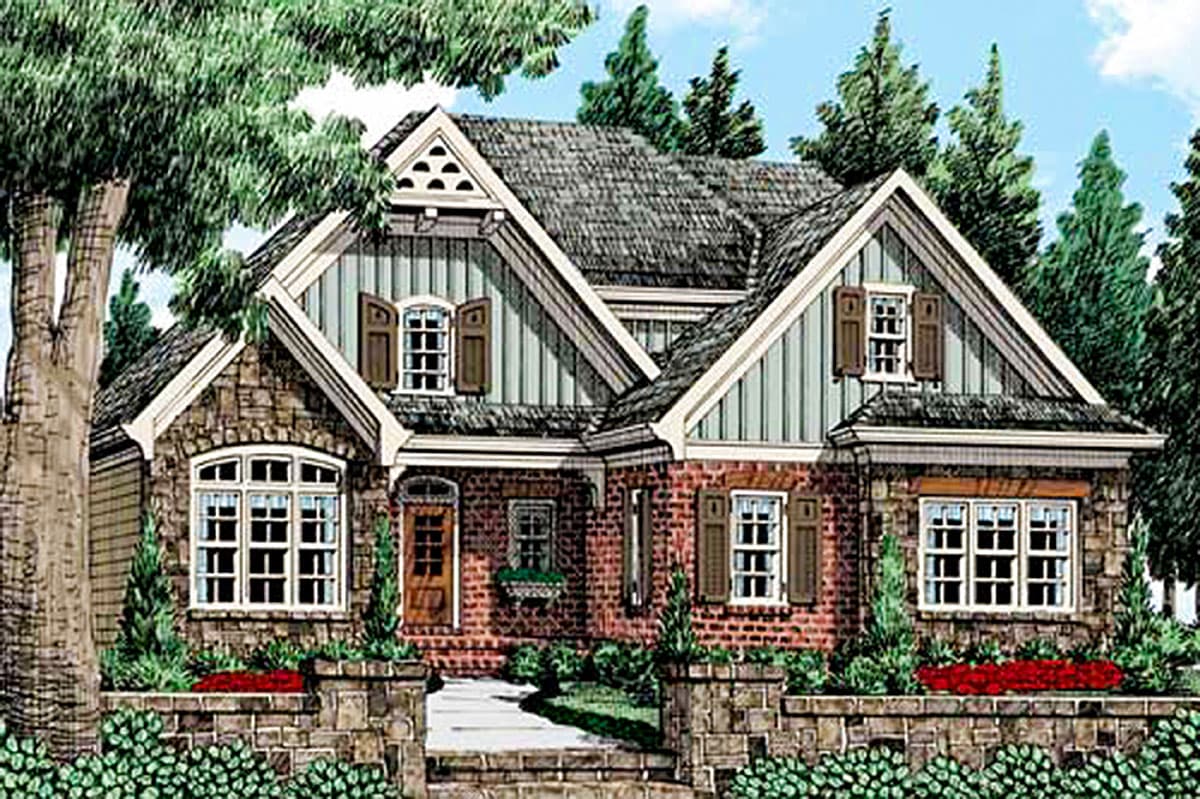

  • The classic combination of brick, stonework and vertical siding creates the perfect façade for just about any location. Steep gables, multi-paned windows with paneled shutters complete the exterior design.
  • The first floor is full of exciting features for a modest home. Volume ceilings make this house plan live larger than the actual square footage.
  • The first level is anchored by the family room and open kitchen. The master suite is also on the first floor for convenience and privacy.
  • There are two secondary bedrooms and a large bonus room (this could be used as a fourth bedroom if needed) each with their own walk-in-closet rounding out the second floor.

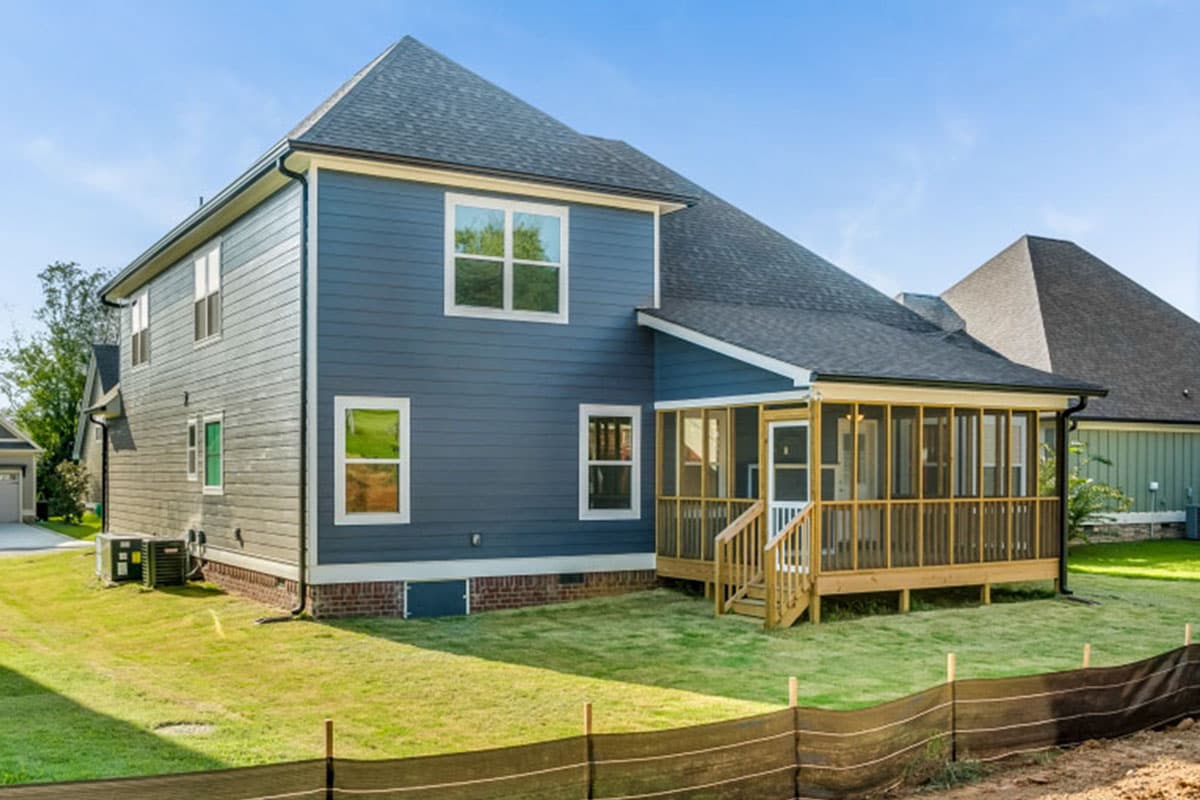

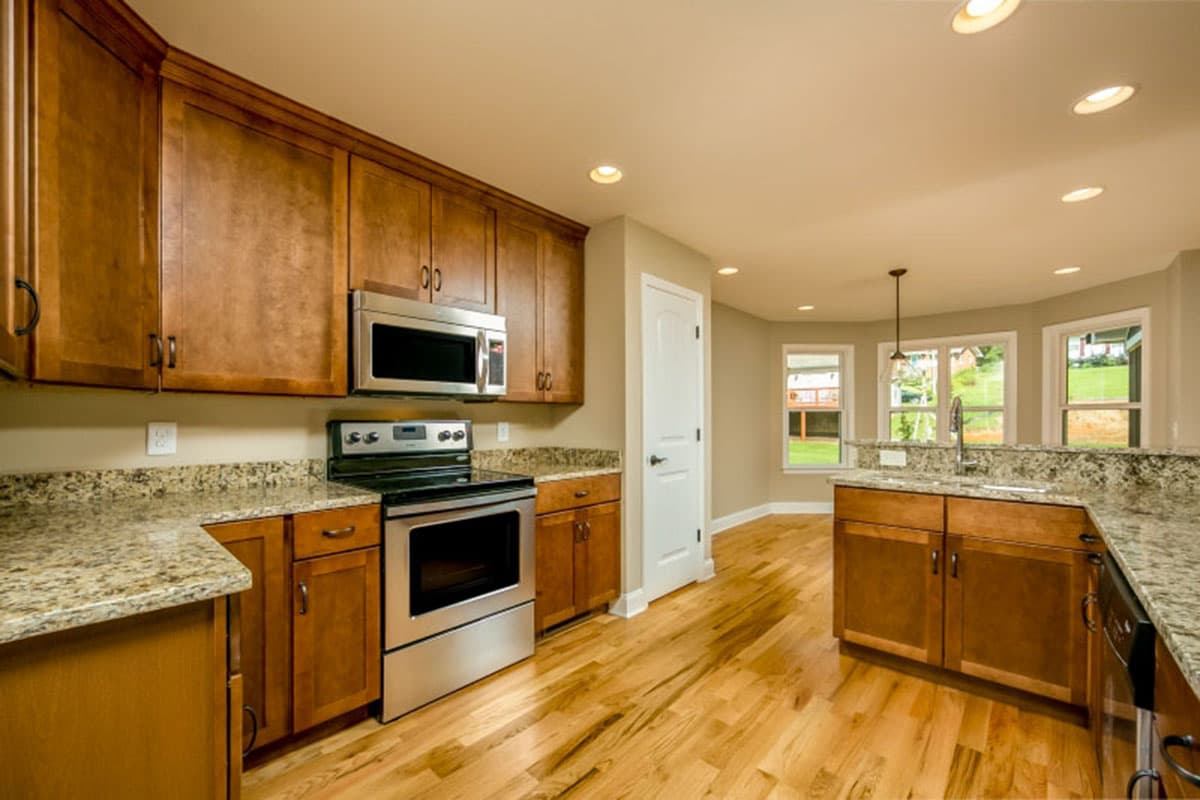

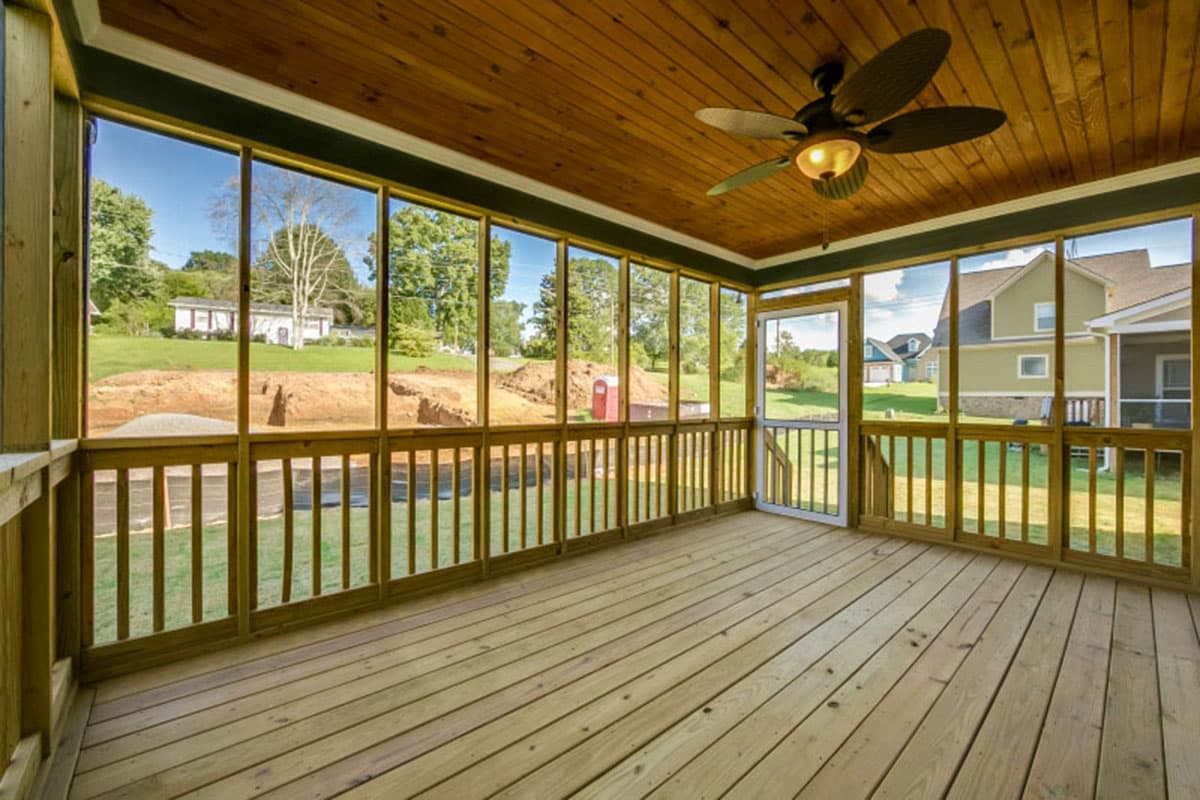

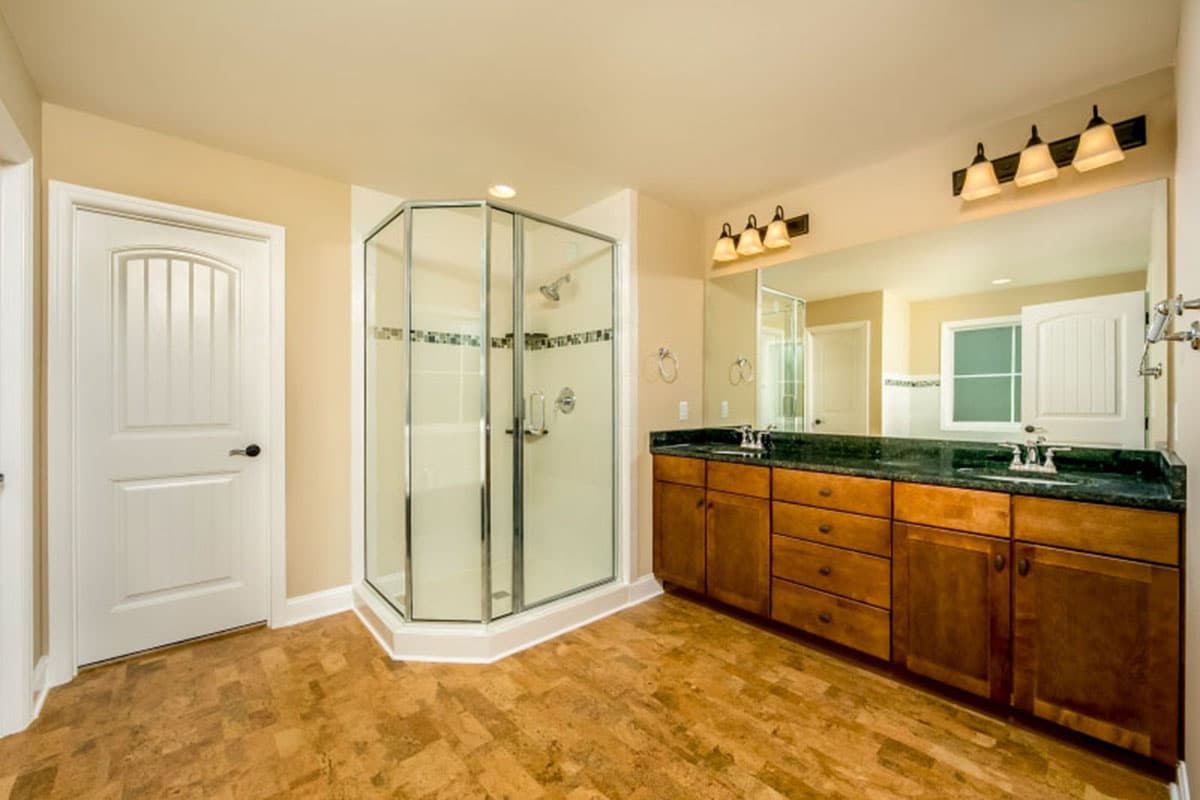

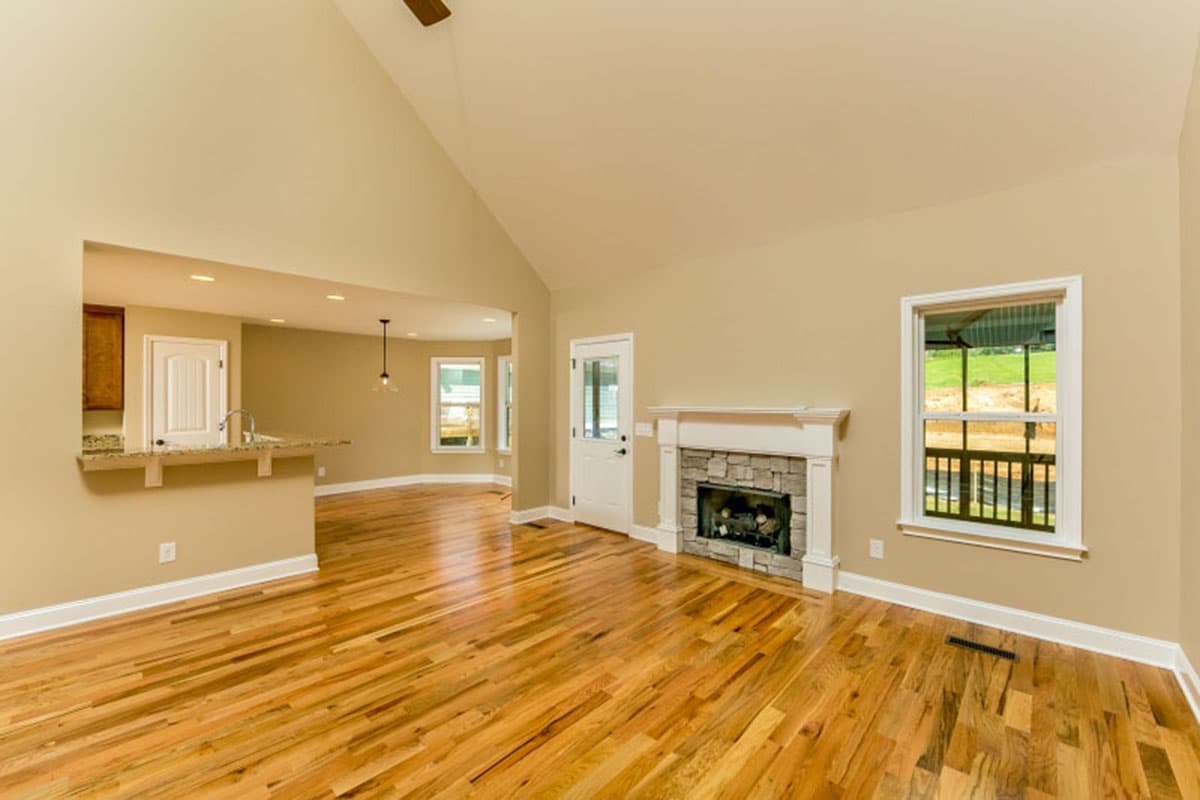

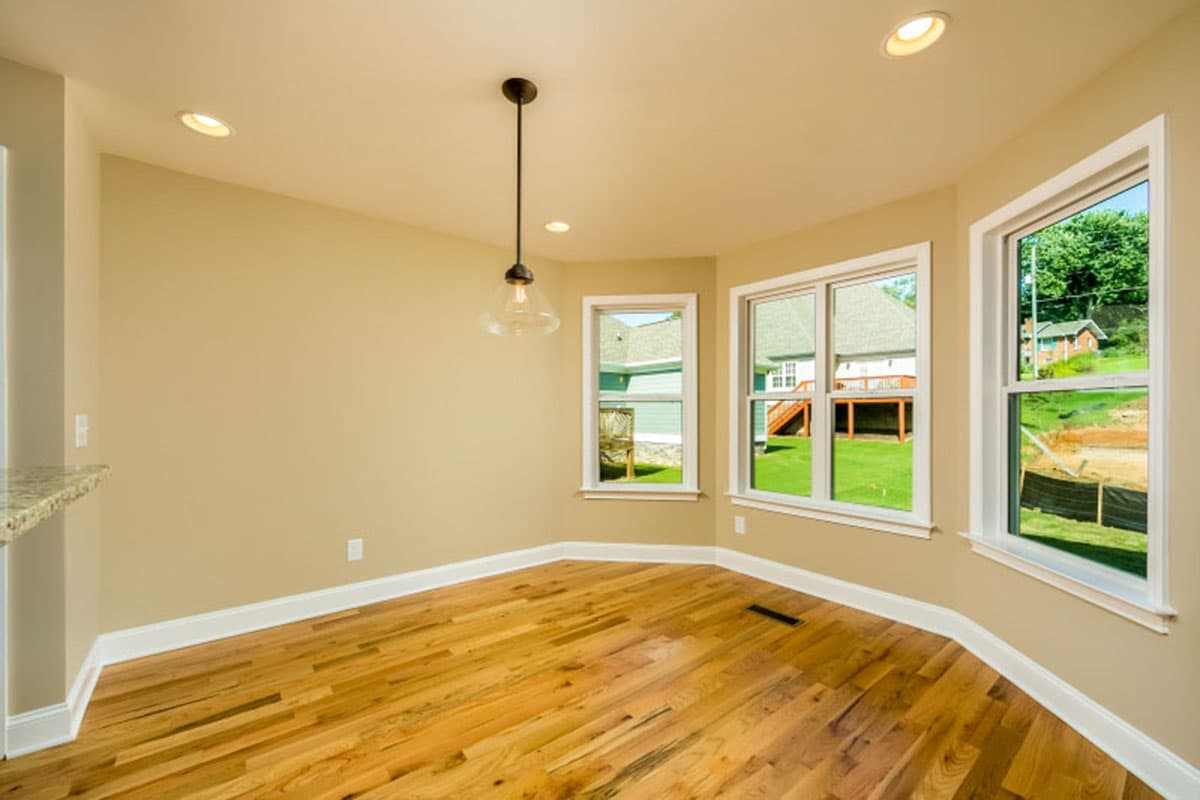

  • Photos courtesy of Dean Custom Homes.
  • Related Plans: Get alternate exteriors with house plans 710209BTZ, 710211BTZ and 710207BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

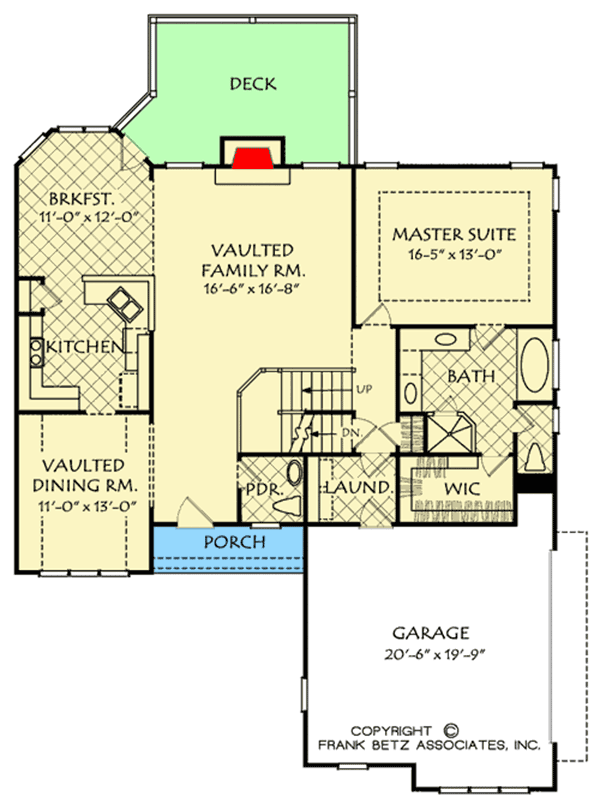

Modest New American House Plan with Bonus Room - 710210BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

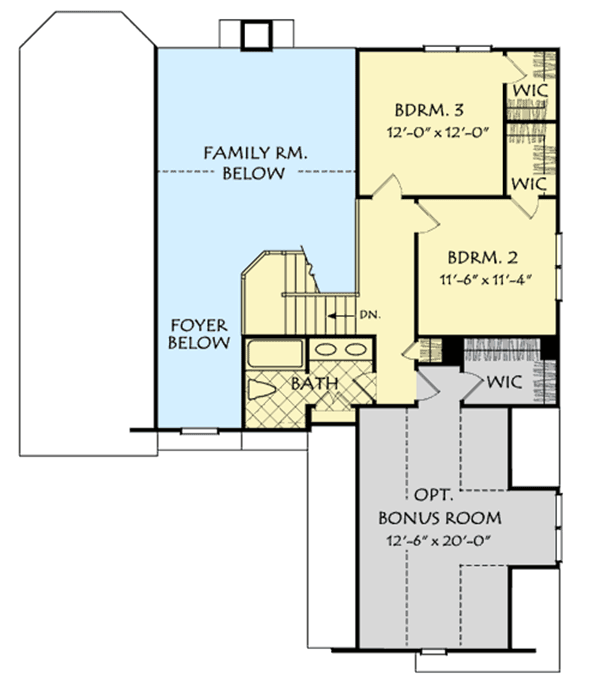

Modest New American House Plan with Bonus Room - 710210BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,934 sq. ft.
  • 1st Floor: 1,408 sq. ft.
  • 2nd Floor: 526 sq. ft.
  • Bonus: 351 sq. ft.
  • Basement Unfinished: 1,408 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 55' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 453 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Modest New American House Plan with Bonus Room

  • 1,934

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,235
  • 8 Sets $1,290
  • PDF - Unlimited Build $1,380
  • CAD - Unlimited Build $2,630
  • View all purchase option online

About This Plan

  • The classic combination of brick, stonework and vertical siding creates the perfect façade for just about any location. Steep gables, multi-paned windows with paneled shutters complete the exterior design.
  • The first floor is full of exciting features for a modest home. Volume ceilings make this house plan live larger than the actual square footage.
  • The first level is anchored by the family room and open kitchen. The master suite is also on the first floor for convenience and privacy.
  • There are two secondary bedrooms and a large bonus room (this could be used as a fourth bedroom if needed) each with their own walk-in-closet rounding out the second floor.
  • Photos courtesy of Dean Custom Homes.
  • Related Plans: Get alternate exteriors with house plans 710209BTZ, 710211BTZ and 710207BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,934 sq. ft.
  • 1st Floor: 1,408 sq. ft.
  • 2nd Floor: 526 sq. ft.
  • Bonus: 351 sq. ft.
  • Basement Unfinished: 1,408 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 55' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 453 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Plan 710210BTZ
