Plan 444110GDN

Modest One-story Home Design with Study and Bonus Options

Name: Plan 444110GDN: Modest One-story Home Design with Study and Bonus Options
Brand: Architectural Designs
SKU: 444110GDN
Price: 1625.0 USD
Availability: InStock

Heated S.F.

1,720

Beds

2 - 4

Baths

Stories

1-2

Cars

Floor Plan

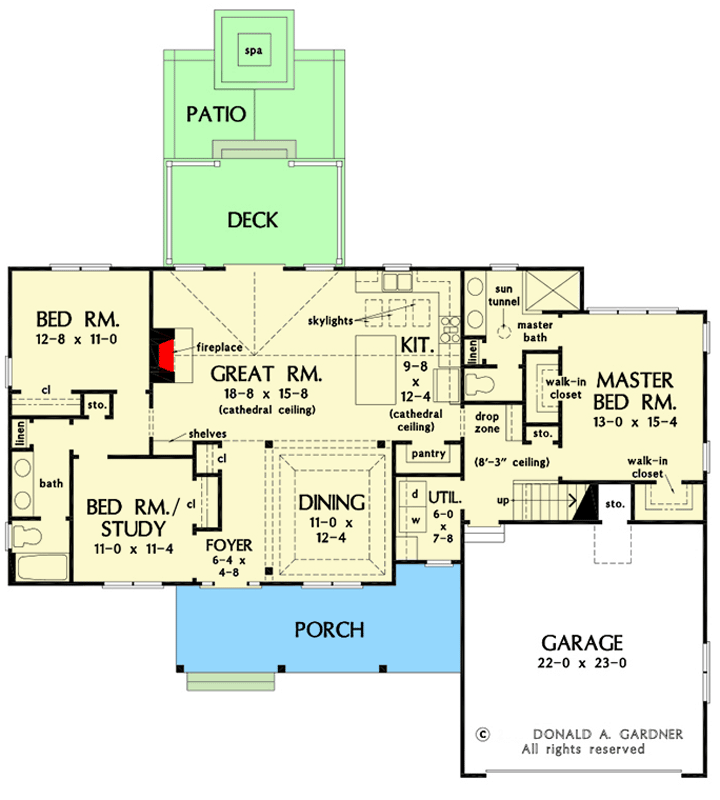

Main Level

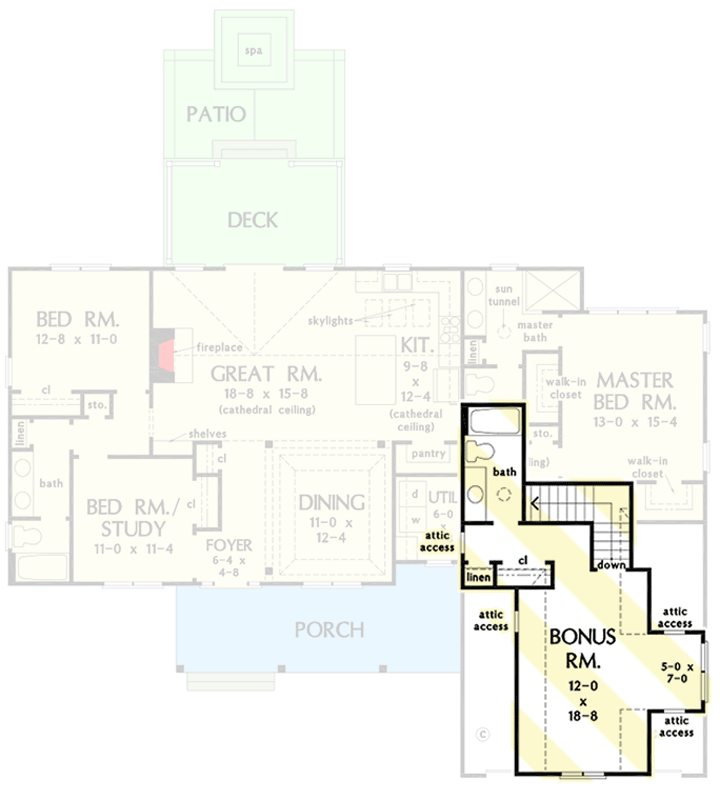

Bonus Room

Plan Details

This modest one-story design has a siding and cedar shake exterior and a welcoming 8'-deep front porch.
The island kitchen enjoys a trio of skylights and a 16'2" cathedral ceiling that runs into the great room.
Double doors open to a rear deck - 16'8" by 10' - and a single dining room is available for casual or formal meals.
A closet and built-in storage are just inside the garage entry, along with the utility room and pantry.
The master suite is private with two walk-in closets and a thoughtful bathroom. Two additional bedrooms - one can be used as a study or home office - share a bathroom on the first floor and an optional bonus room and bathroom are upstairs giving you a fourth bedroom option.
Please allow 8 weeks for delivery if it includes 2x6 upgrade.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
