Plan 62438DJ

Modest-Yet-Refined Ranch Home Plan

Pageloader

Modest-Yet-Refined Ranch Home Plan

Plan 62438DJ

  • 2,164

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This a modest-yet-refined ranch home plan with curbside appeal and open living spaces. The impressive great room features a cathedral ceiling and direct views to the deck you will love to spend your evenings.
  • The large master suite offers plenty of space to stretch out and live in comfort. The master closet even has direct access to the laundry area, making this routine less of a chore!
  • Includes a 649 sq. ft. 2-car garage and an optional basement.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on most but not all plans. If cabinets are a must please call to confirm they will be included in your set.

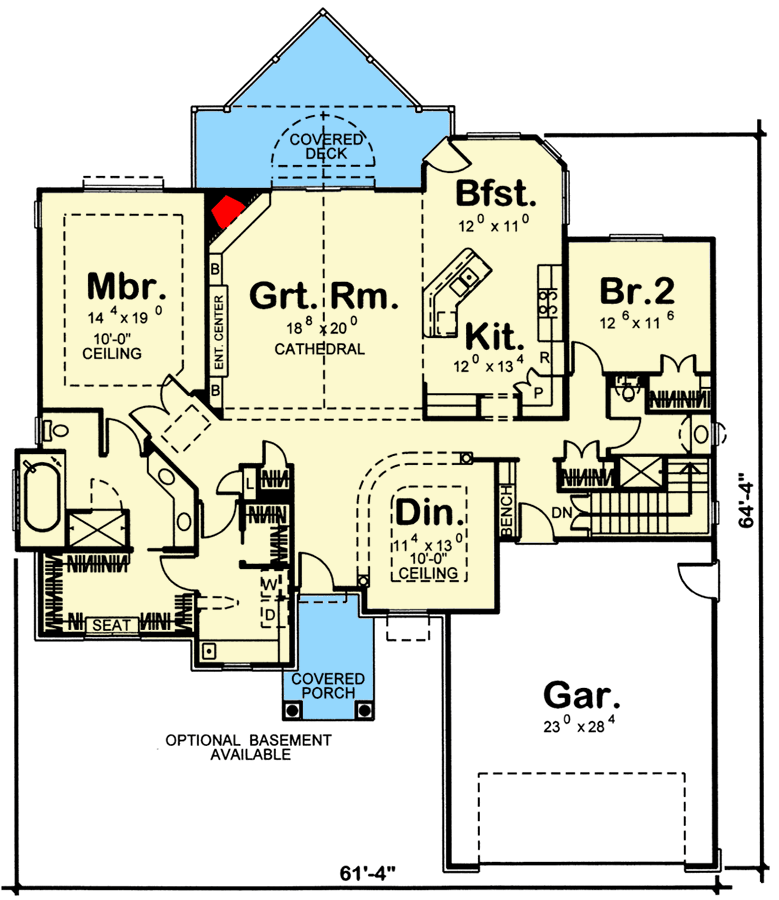

Floor Plan

Plan details

Architectural Style



Modest-Yet-Refined Ranch Home Plan

  • 2,164

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,000
  • Reproducible Set $1,000
  • 5 Sets $1,200
  • 8 Sets $1,290
  • PDF - multi-use $1,500
  • CAD $1,500
  • CAD - multi-use $2,000
  • View all purchase option online

About This Plan

  • This a modest-yet-refined ranch home plan with curbside appeal and open living spaces. The impressive great room features a cathedral ceiling and direct views to the deck you will love to spend your evenings.
  • The large master suite offers plenty of space to stretch out and live in comfort. The master closet even has direct access to the laundry area, making this routine less of a chore!
  • Includes a 649 sq. ft. 2-car garage and an optional basement.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,164 sq. ft.
  • 1st Floor: 2,164 sq. ft.
  • Deck: 232 sq. ft.
  • Porch, Front: 82 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 4"
  • Depth: 64' 4"
  • Max ridge height: 21' 3"

Garage

  • Type: Attached
  • Area: 649 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
