Plan 66165WE

More Than A Cottage

2,557 3 3.5 2
Pageloader

More Than A Cottage

Plan 66165WE

  • 2,557

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • Southern hospitality reaches out inviting relaxation in the shade and comfort of the expansive wrap-around porch.
  • Rich wood beams of the great room vaulted ceiling greet you, while the large sliding glass doors open to the covered lanai with outdoor fireplace, creating the heart of this home.
  • The large informal dining room and kitchen melt together in cozy reflection of days gone by, while the master bedroom and bathroom create a classic retreat.
  • Upstairs the loft and wet bar overlook the great room below, surrounded by two secluded bedroom suites. Enjoy a slower and more simplistic pace of life in the warmth and charm of this cottage.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



More Than A Cottage

  • 2,557

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $1,080
  • 8 Sets $1,140
  • Reproducible Set $1,200
  • PDF - single-use $1,200
  • CAD $1,200
  • View all purchase option online

About This Plan

  • Southern hospitality reaches out inviting relaxation in the shade and comfort of the expansive wrap-around porch.
  • Rich wood beams of the great room vaulted ceiling greet you, while the large sliding glass doors open to the covered lanai with outdoor fireplace, creating the heart of this home.
  • The large informal dining room and kitchen melt together in cozy reflection of days gone by, while the master bedroom and bathroom create a classic retreat.
  • Upstairs the loft and wet bar overlook the great room below, surrounded by two secluded bedroom suites. Enjoy a slower and more simplistic pace of life in the warmth and charm of this cottage.

Floor Plans

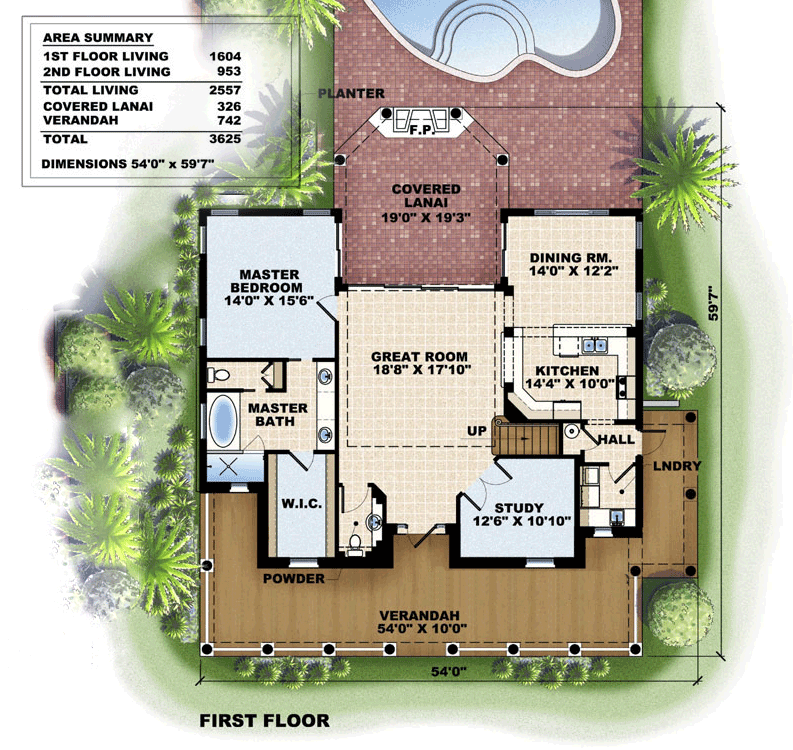

  • Main Level

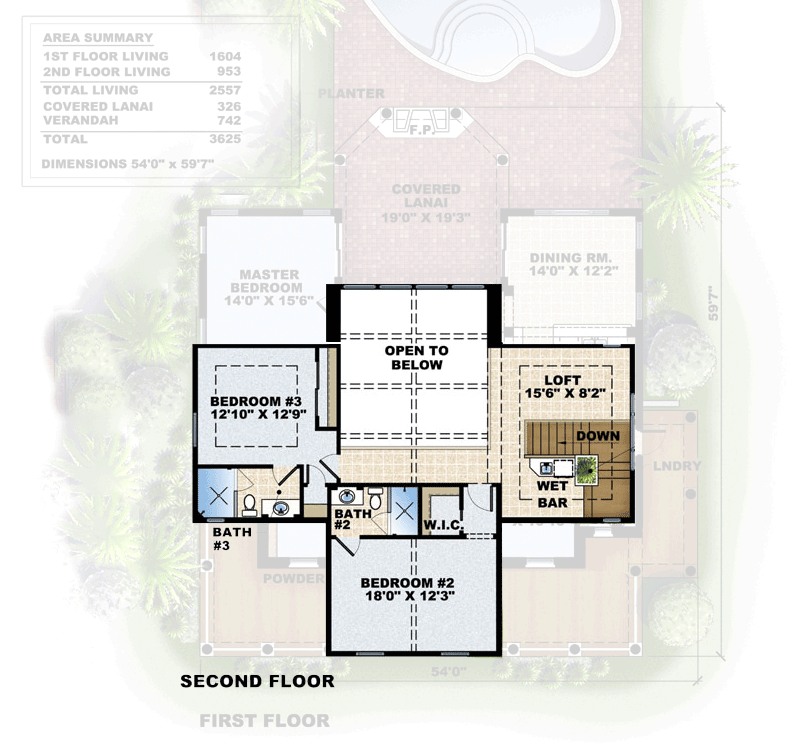

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,557 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • 2nd Floor: 953 sq. ft.
  • Lanai: 326 sq. ft.
  • Entry: 742 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 59' 7"
  • Max ridge height: 28' 4"

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
