Mountain Beauty

Plan 9524RW

This plan plants 10 trees

4,656
Heated s.f.
5
Beds
4.5
Baths
1
Stories
3
Cars

This mountain beauty gives you expansive living on the main floor as well as a feature-filled finished lower level fully taking advantage of your sloping lot.
The master suite is on the main floor for convenience. It has covered deck access and an attractive tray ceiling.
From the foyer you have dramatic front-to-back views through the vaulted great room. It shares a 2-sided fireplace with the breakfast area and has built-ins for your flat panel TV and more.
The kitchen has a large island and you can enjoy views to the back. The breakfast area enjoys deck access and peninsula seating. Formal meals are served steps away in the tray ceilinged dining room.
A bedroom off the garage is great for extended guests and has its own deck and outdoor access.
The library is secluded behind french doors.
On the lower level enjoy your home theater, rec room with fireplace and three bedrooms. Plus there is ample storage for your gear and outdoor access if your lot permits.

The following details are included with this house plan:

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

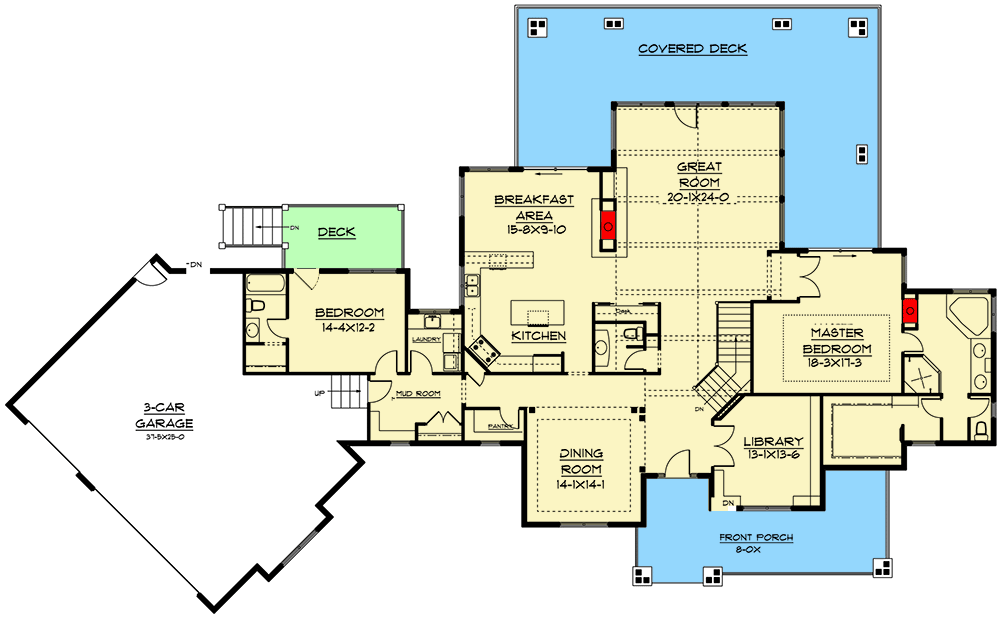

Mountain Beauty - 9524RW floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

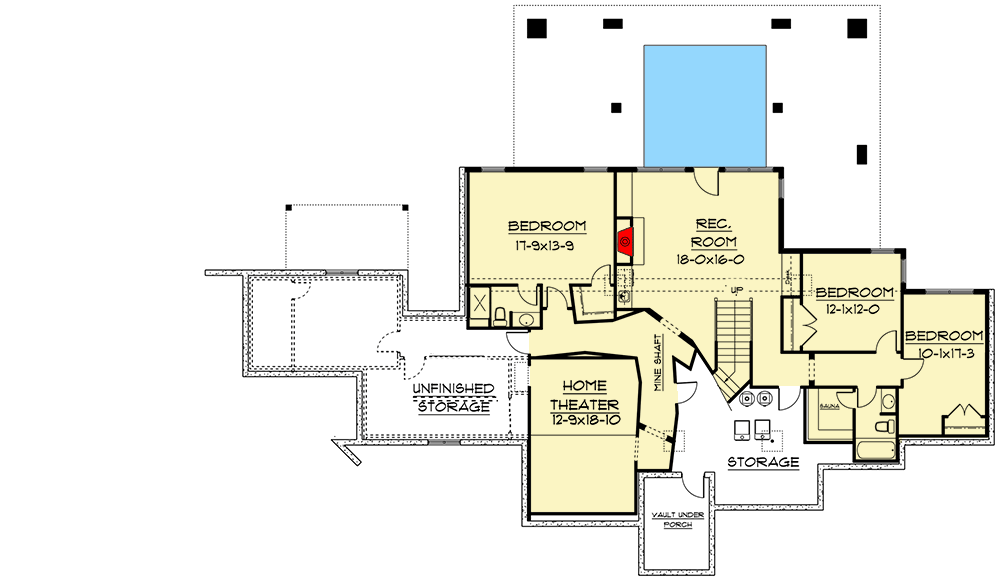

Mountain Beauty - 9524RW floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 4,656 sq. ft.
Lower Level: 1,801 sq. ft.
1st Floor: 2,855 sq. ft.

Deck: 1,554 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 121' 6"
Depth: 74' 4"
Max ridge height: 27' 9"

Garage

Type: Attached
Area: 1066 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

Primary Pitch: 8 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
