Plan 11528KN

Mountain Cabin Plan

Heated S.F.
1,255
Beds
2
Baths
2
Stories
2

Floor Plan

Plan 11528KN

Main Level
Main Level
2nd Floor
2nd Floor

Plan 11528KN

M-F 9am-5pm EST |

1-203-761-8500

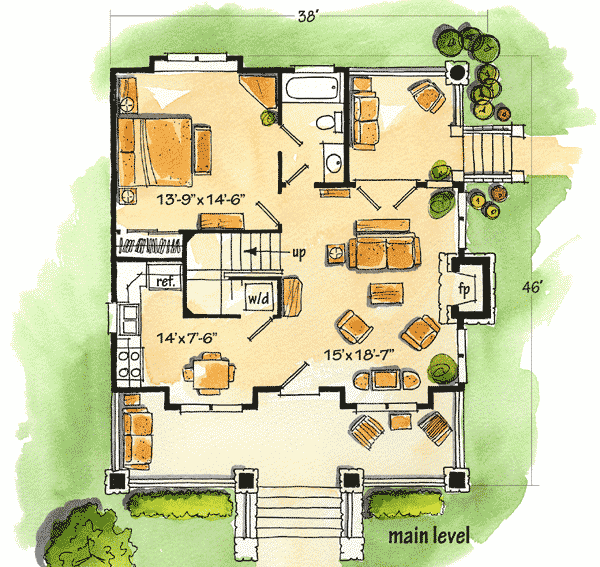

Main Level

Plan 11528KN: Mountain Cabin Plan - Floor Plan - Main Level - Cabin, Cottage, Country, Mountain, Rustic

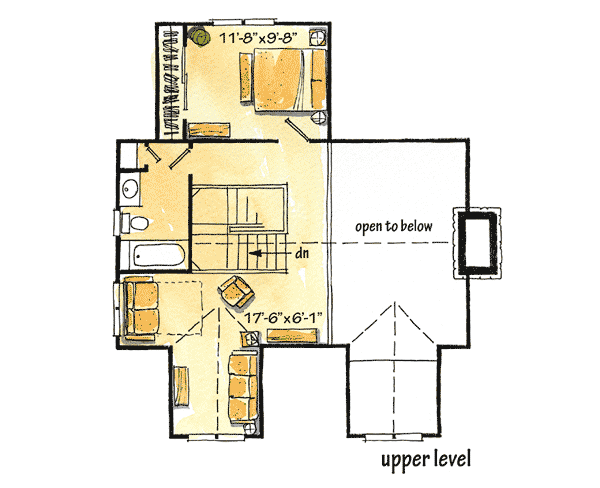

2nd Floor

Plan 11528KN: Mountain Cabin Plan - Floor Plan - 2nd Floor - Cabin, Cottage, Country, Mountain, Rustic

Plan Details

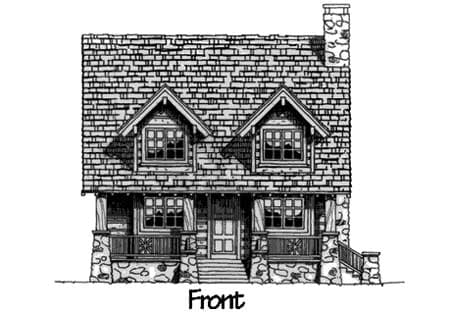

  • Two dormers and a wide front porch add charm to this mountain cabin plan, perfect for getaway weekends.
  • Warmed by a fireplace, the two-story living room opens to a private study with a separate entrance.
  • The efficient kitchen includes a washer/dryer closet and a dining area set in a boxed bay.
  • The master suite is downstairs while two more bedrooms and a hall bath lie on the second floor that overlooks the living room below.

What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,255 sq. ft.

1st Floor

775 sq. ft.

2nd Floor

480 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

46' 0"

Max Ridge Height

31' 2"

Ceiling Heights

First Floor

9'

Second Floor

6' 11"

Architectural Style

Cabin

Cottage

Country

Mountain

Rustic

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Two Story Great Room
