Plan 92378MX
EXCLUSIVE
Mountain Cottage with Vaulted Interior
Heated S.F.
2,141
Beds
3
Baths
2.5
Stories
2
Cars
1
Flyer
What's Included
Floor Plan
PRINT PLANS

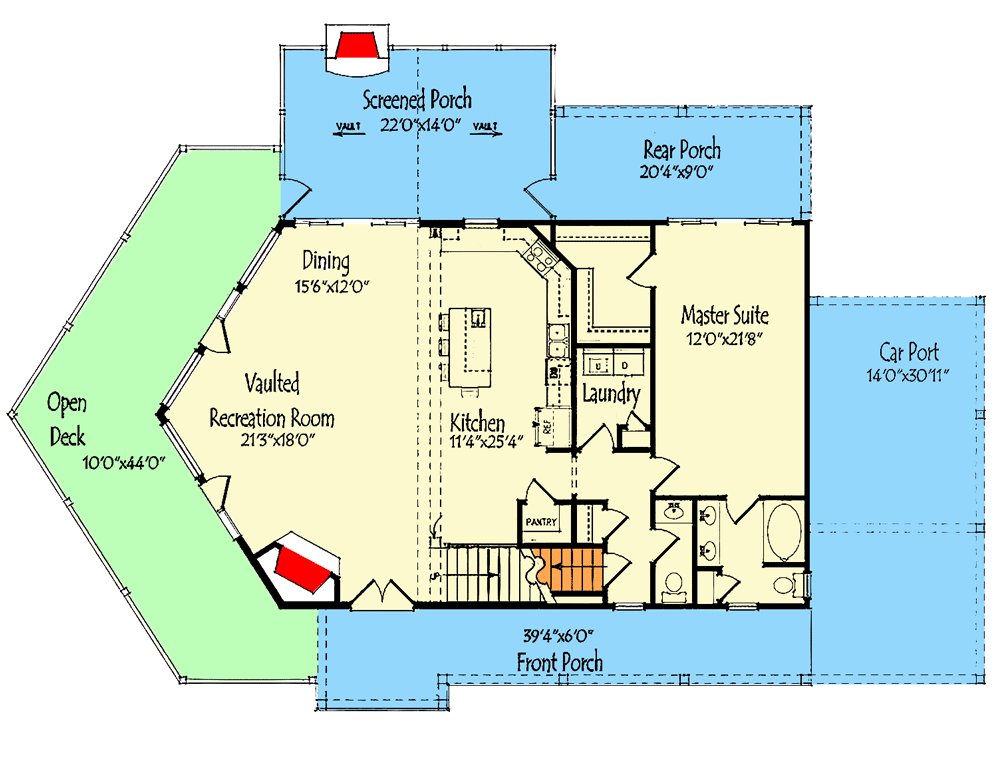

Main Level
Reverse Floor Plan
Mountain Cottage with Vaulted Interior - 92378MX floor plan - Main Level

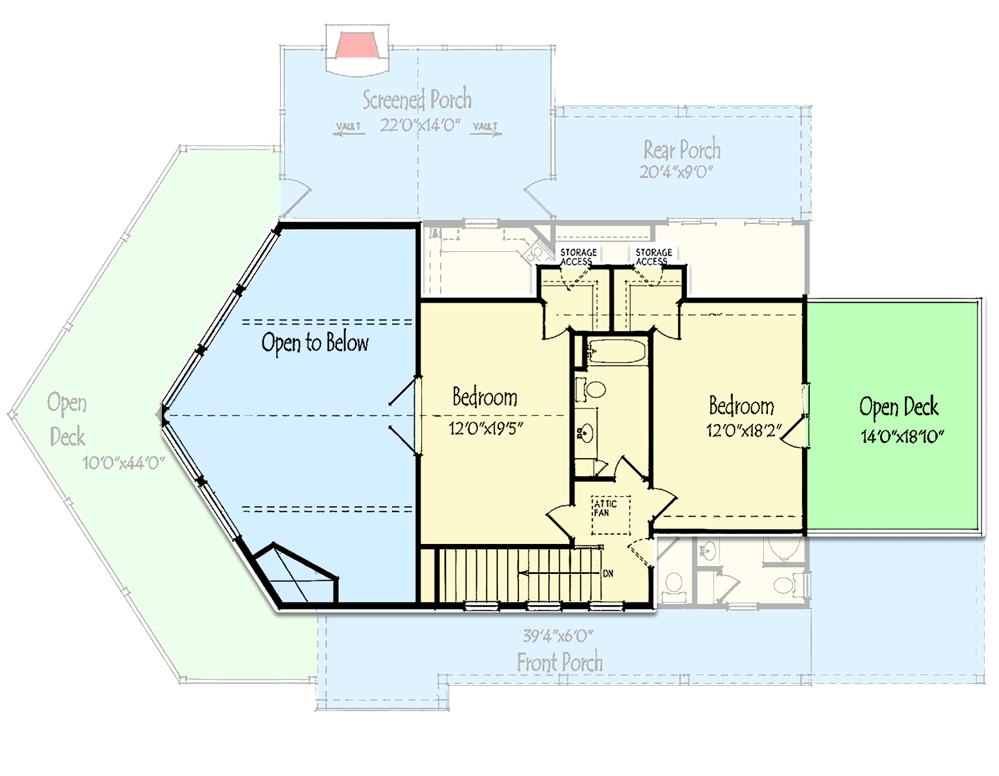

2nd Floor
Reverse Floor Plan
Mountain Cottage with Vaulted Interior - 92378MX floor plan - 2nd Floor

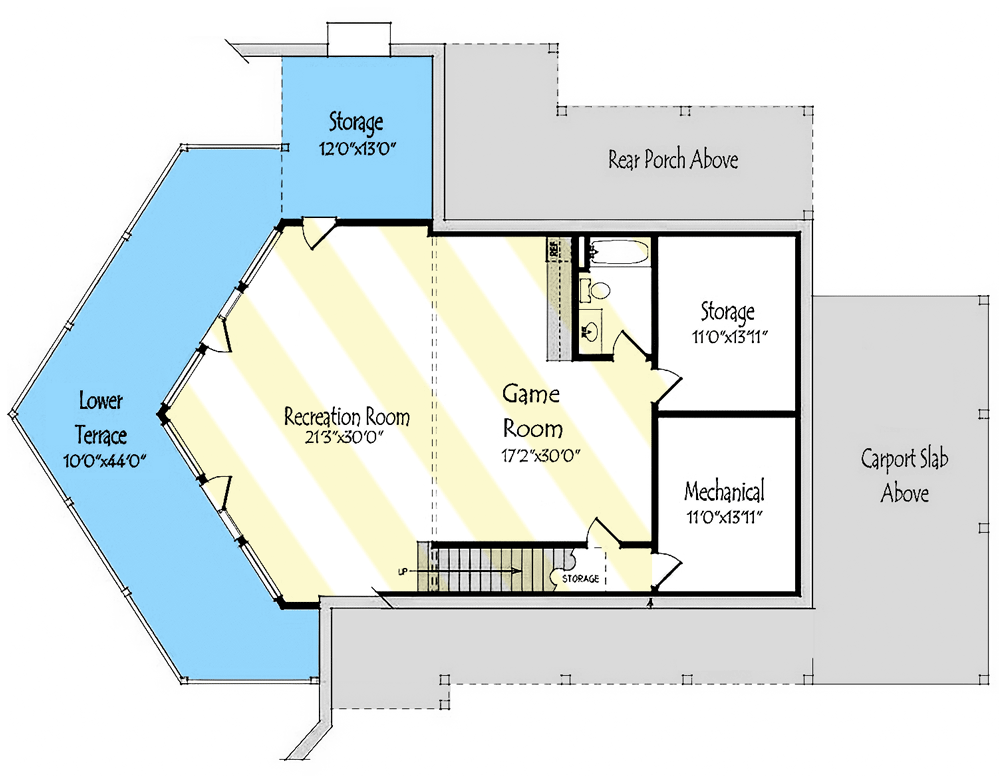

Optional Finished Lower Level
Reverse Floor Plan
Mountain Cottage with Vaulted Interior - 92378MX floor plan - Optional Finished Lower Level
Plan Details
  • A gorgeous huge, open great room and lots of outdoor living spaces create an ideal Mountain retreat.
  • There's even a vaulted screened porch with an outdoor fireplace to ward off the chill.
  • You can seat four people at the large kitchen island that's perfectly positioned to take in the views.
  • The master suite is the only bedroom on this floor and it has sliders to a rear covered porch.
  • Head upstairs for two huge bedrooms, one vaulted and with custom barn doors that open to the great room below.
  • The other bedroom gets a private deck and both have walk-in closets.
  • Finish the optional lower level if you want a massive rec room and game room plus an extra bathroom.
What's Included
This plan set has 7 pages as follows:

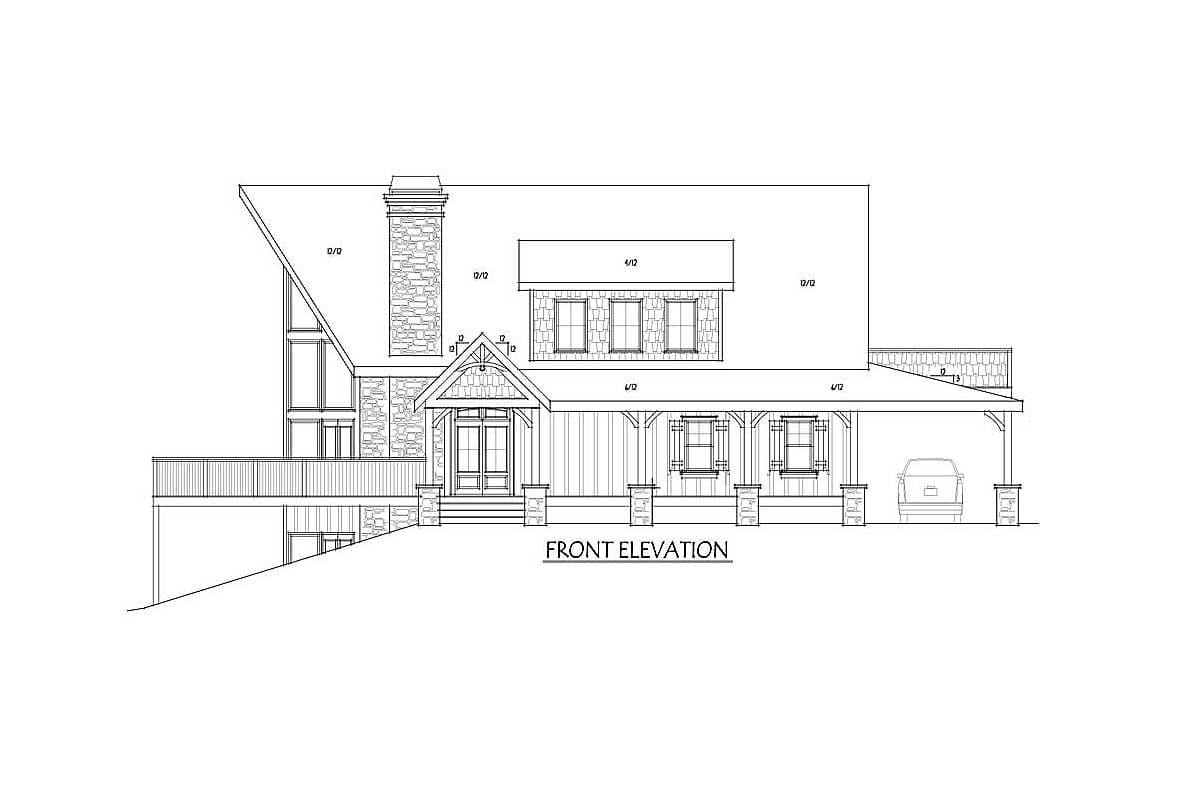

  1. Front and rear elevations
  2. Side elevations
  3. Lower level foundation
  4. Main level floor plan
  5. Upper level floor plan
  6. Roof plan
  7. Typical building section
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work, outlets and fixtures) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.
