Mountain Country House Plan - 2349 Sq Ft - Architectural Designs

Plan 70862MK

  • 2,349

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 3 bed, 2.5 bath mountain country house plan gives you 2349 square feet of heated living and has a 2-car detached garage (484 sq. ft.) and 929 square feet of porches.
  • The 2-story bayed great room has a fireplace and is open to the dining and kitchen with walk-in pantry. Two sinks are set beneath windows on the left and a breakfast nook has access to the 8'-deep porch in back.
  • The maser bedroom has an 11' vaulted ceiling and a private porch. Upstairs, two beds share a bath located off the loft overlooking the great room below.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

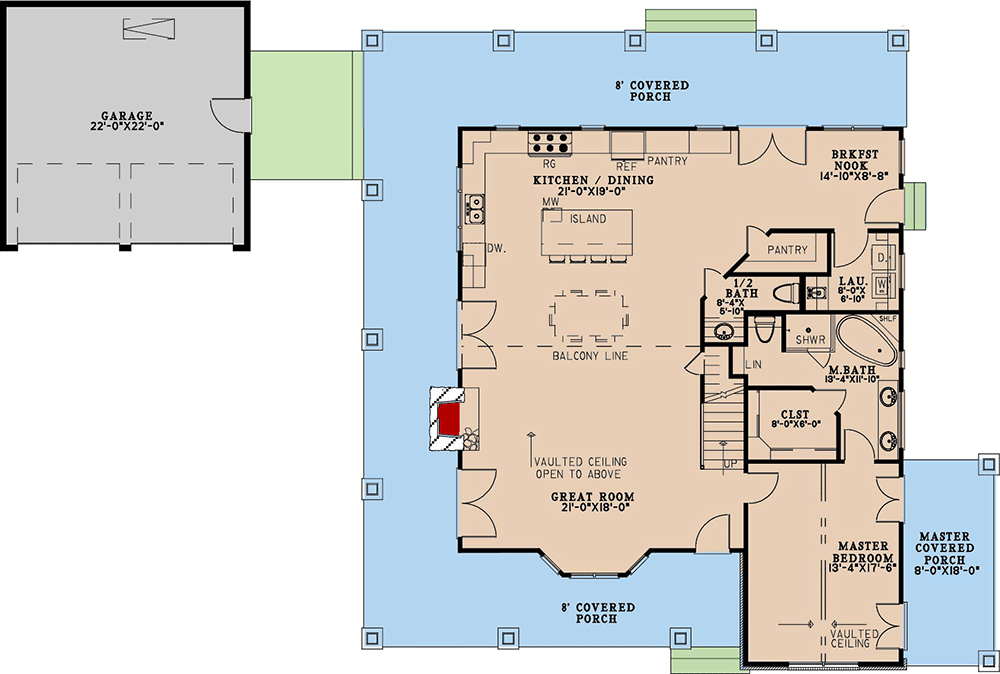

Mountain Country House Plan - 2349 Sq Ft - Architectural Designs - 70862MK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

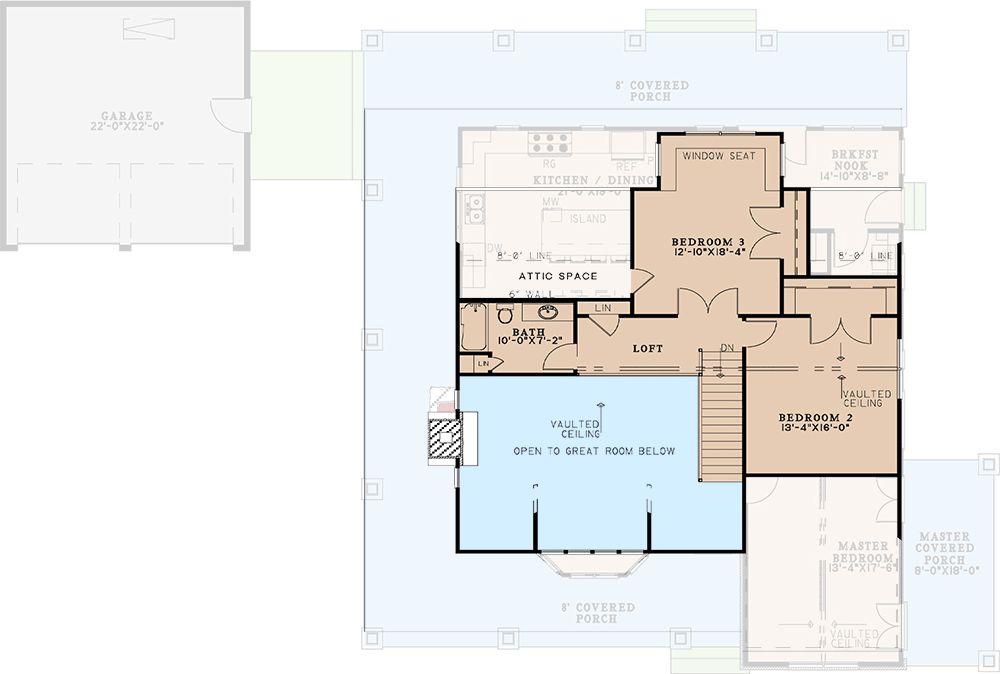

Mountain Country House Plan - 2349 Sq Ft - Architectural Designs - 70862MK floor plan - 2nd Floor

Mountain Country House Plan - 2349 Sq Ft - Architectural Designs

  • 2,349

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,349 sq. ft.
  • 1st Floor: 1,623 sq. ft.
  • 2nd Floor: 726 sq. ft.

Dimensions

  • Width: 79' 6"
  • Depth: 55' 10"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
