Plan 23701JD

Mountain Craftsman Home Plan with 2 Upstairs Bedrooms

Pageloader

Mountain Craftsman Home Plan with 2 Upstairs Bedrooms

Plan 23701JD

  • 3,055

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

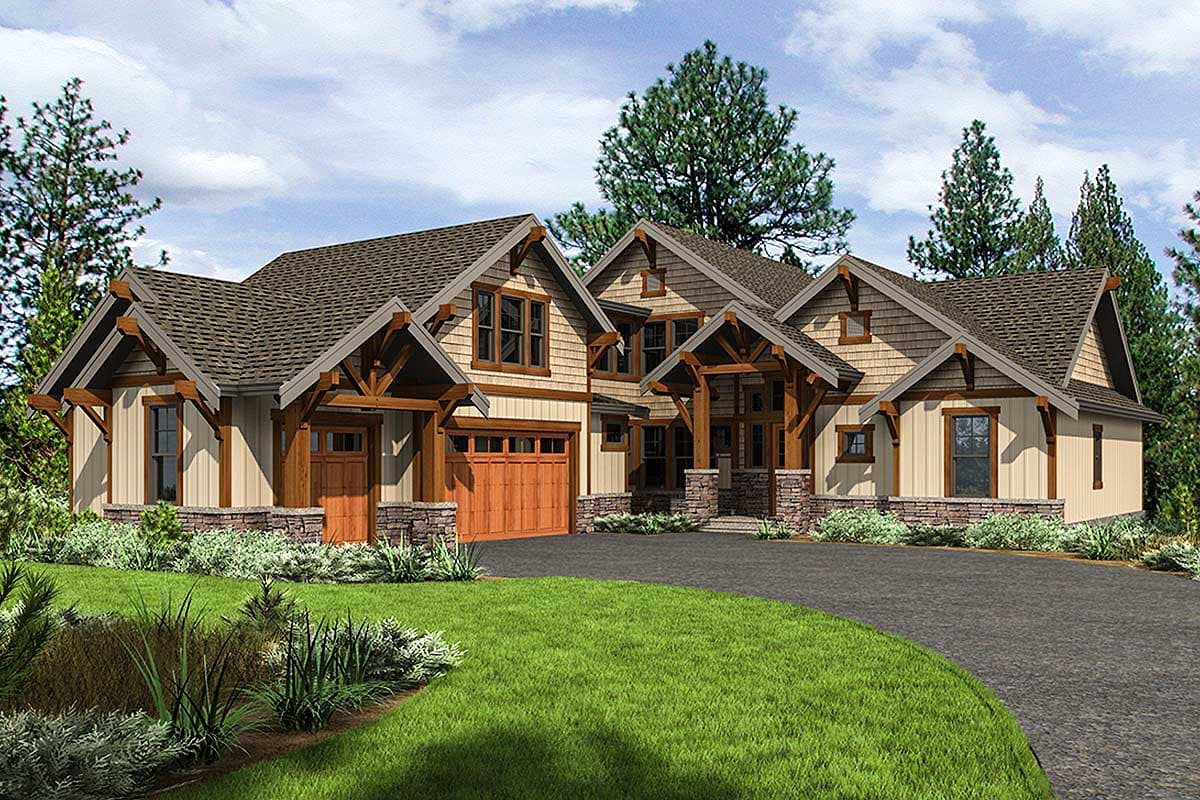

  • Multiple gables with beefy timber brackets and a courtyard entry garage give greet you to this mountain Craftsman house plan with two upstairs bedrooms.
  • The foyer and great room are vaulted and you get dramatic views through to the back of the home the second you step inside.
  • The floor plan is open left-to-right giving the cook views of the fireplace across the great room.
  • The master bedrooms is vaulted and privately located on the main floor. The den, across the home, can be used as a bedroom if needed.
  • Upstairs, there are two bedrooms and a large bonus room over the garage (this is factored into the total living area).
  • Related Plan: Gain an extra bedroom upstairs with house plan 23702JD. And eliminate the upstairs entirely with house plan 23705JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

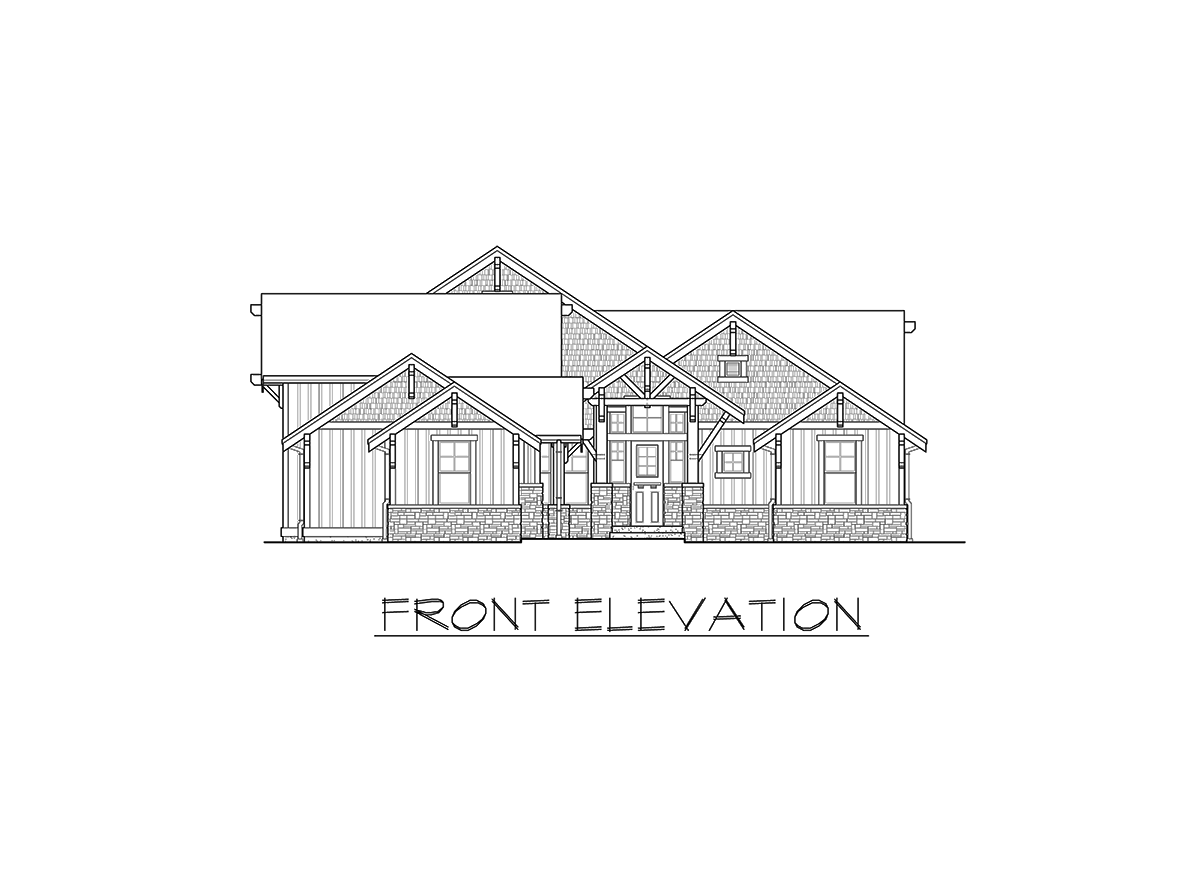

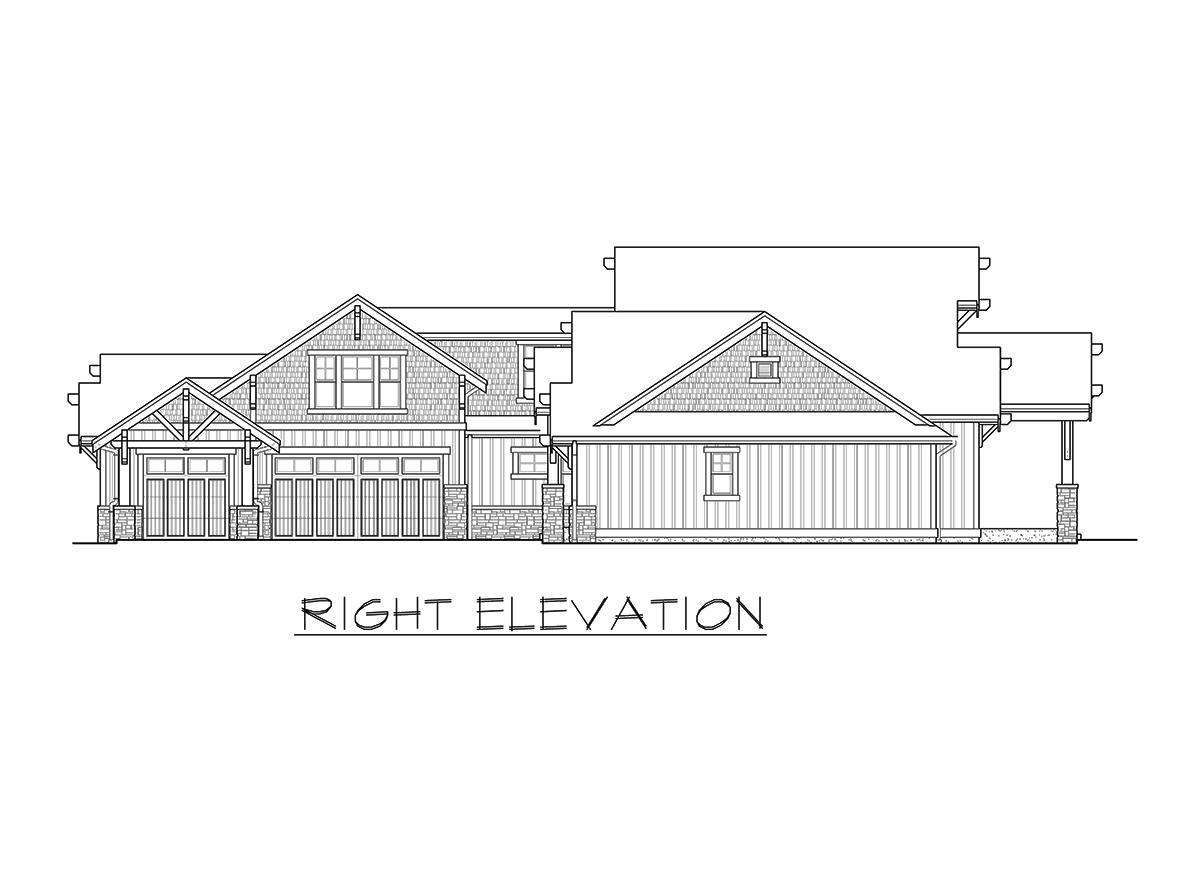

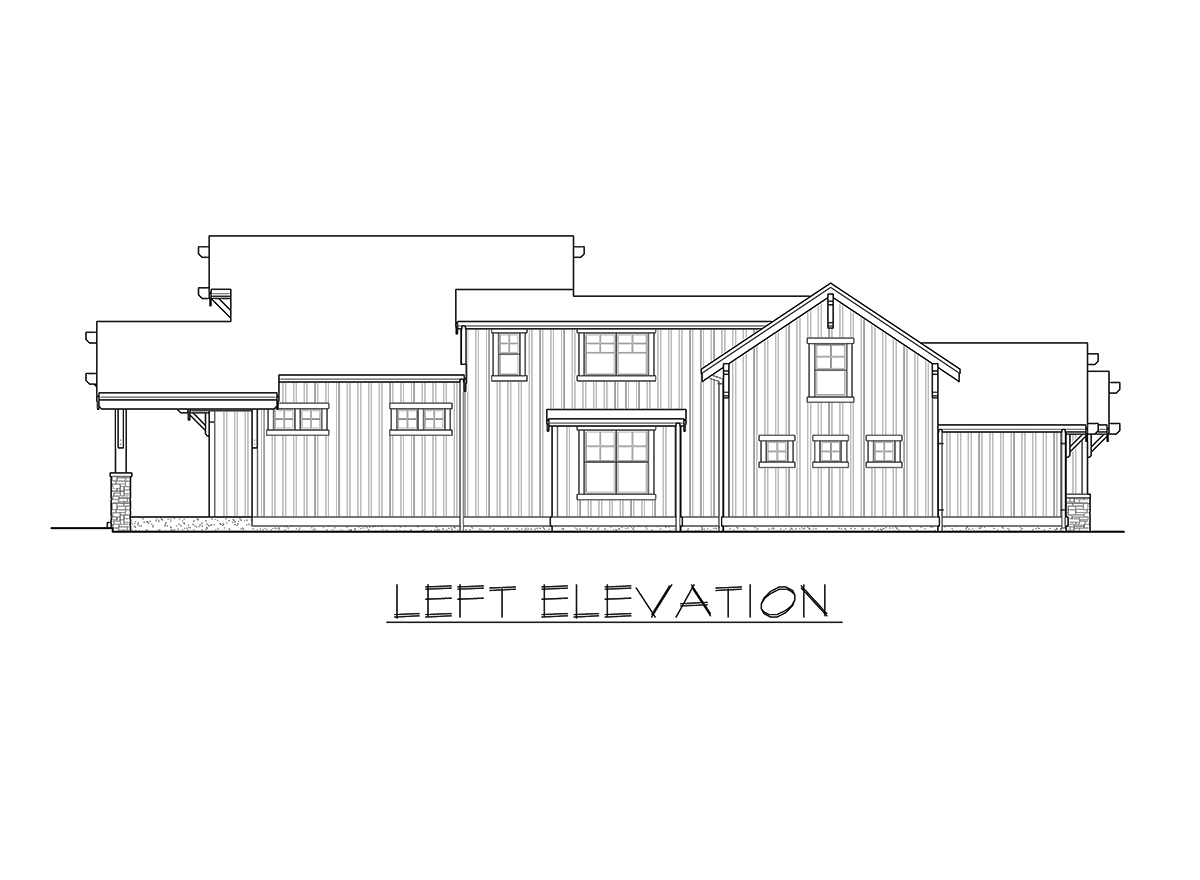

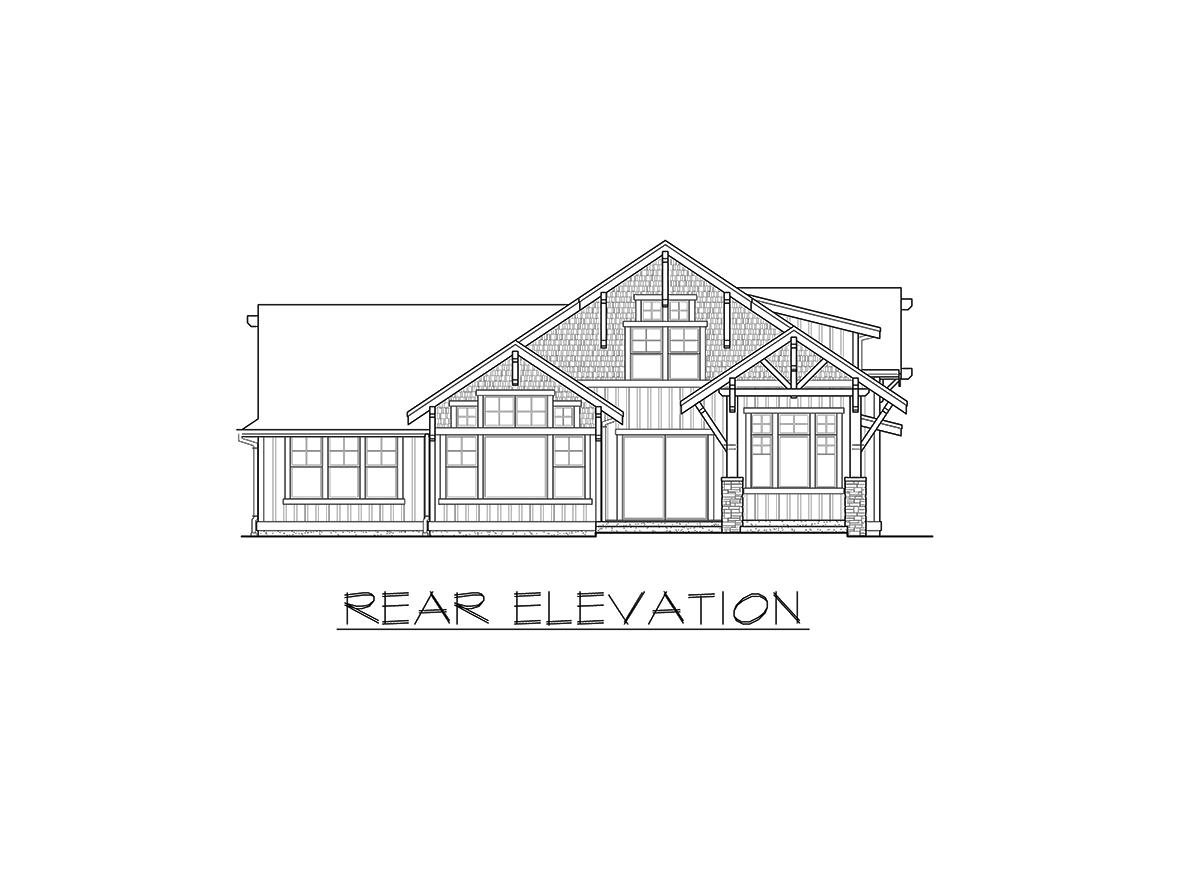

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Mountain Craftsman Home Plan with 2 Upstairs Bedrooms

  • 3,055

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,500
  • 5 Sets PLUS $1,600
  • CAD - multi-use $2,500
  • View all purchase option online

About This Plan

  • Multiple gables with beefy timber brackets and a courtyard entry garage give greet you to this mountain Craftsman house plan with two upstairs bedrooms.
  • The foyer and great room are vaulted and you get dramatic views through to the back of the home the second you step inside.
  • The floor plan is open left-to-right giving the cook views of the fireplace across the great room.
  • The master bedrooms is vaulted and privately located on the main floor. The den, across the home, can be used as a bedroom if needed.
  • Upstairs, there are two bedrooms and a large bonus room over the garage (this is factored into the total living area).
  • Related Plan: Gain an extra bedroom upstairs with house plan 23702JD. And eliminate the upstairs entirely with house plan 23705JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

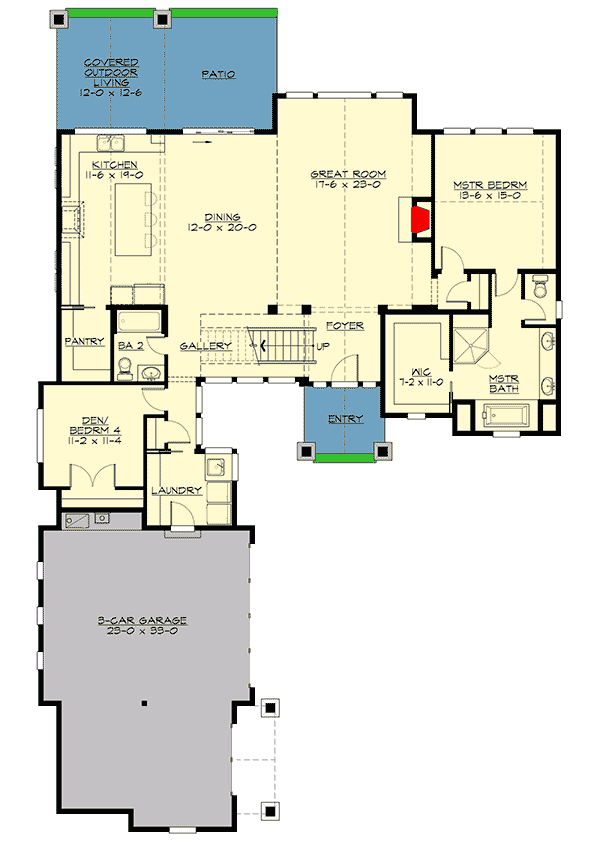

  • Main Level

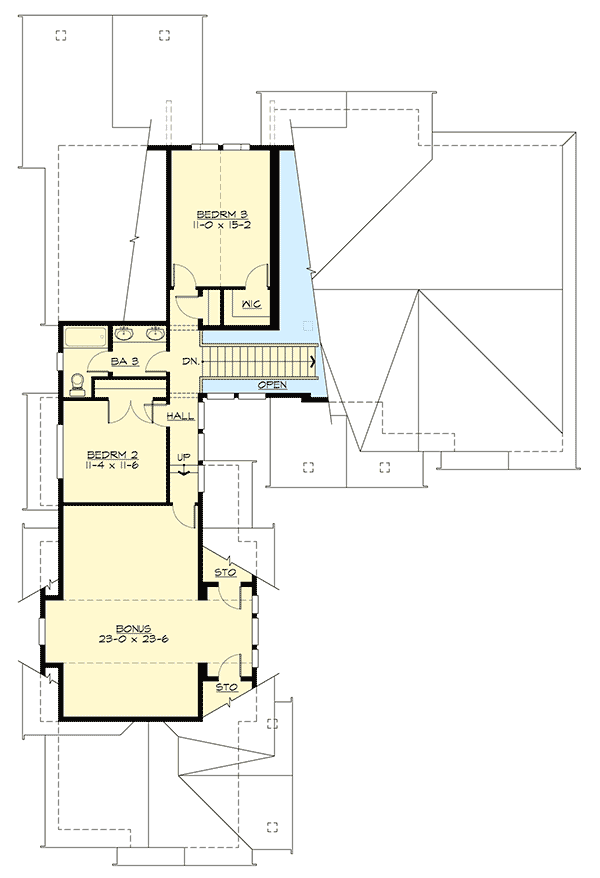

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,055 sq. ft.
  • 1st Floor: 2,015 sq. ft.
  • 2nd Floor: 1,040 sq. ft.
  • Porch, Rear: 150 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 91' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 765 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
