Plan 60716ND

Mountain Craftsman Home Plan with Walk-out Basement - 4469 Sq Ft

Heated S.F.
4,469
Beds
5
Baths
4.5
Stories
1
Cars
2

Floor Plan

Plan 60716ND

Main Level
Main Level
Lower Level
Lower Level

Plan 60716ND

M-F 9am-5pm EST |

1-203-761-8500

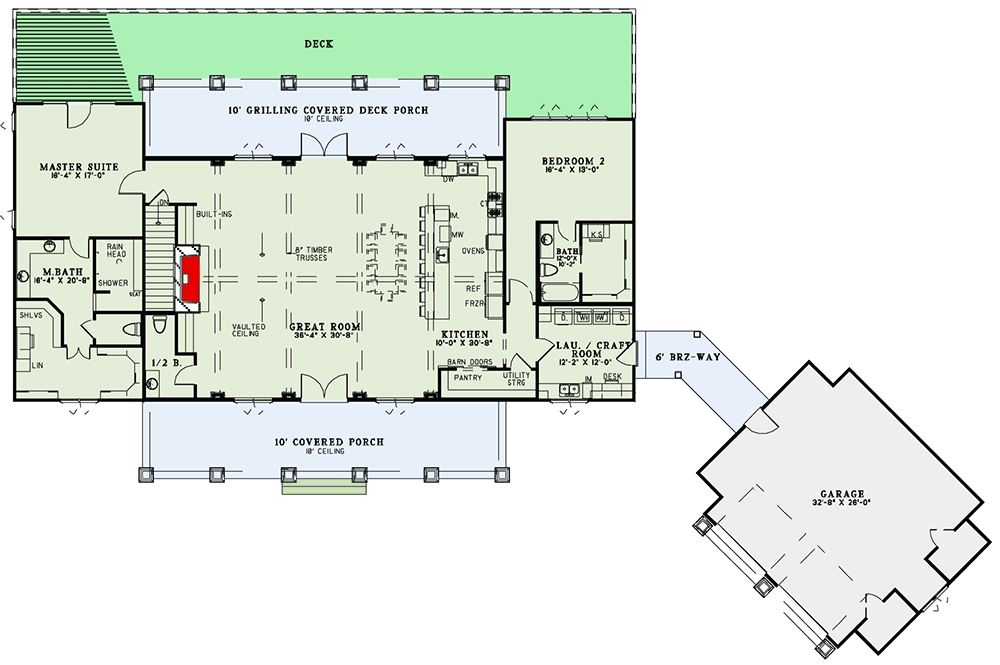

Main Level

Plan 60716ND: Mountain Craftsman Home Plan with Walk-out Basement - 4469 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Mountain

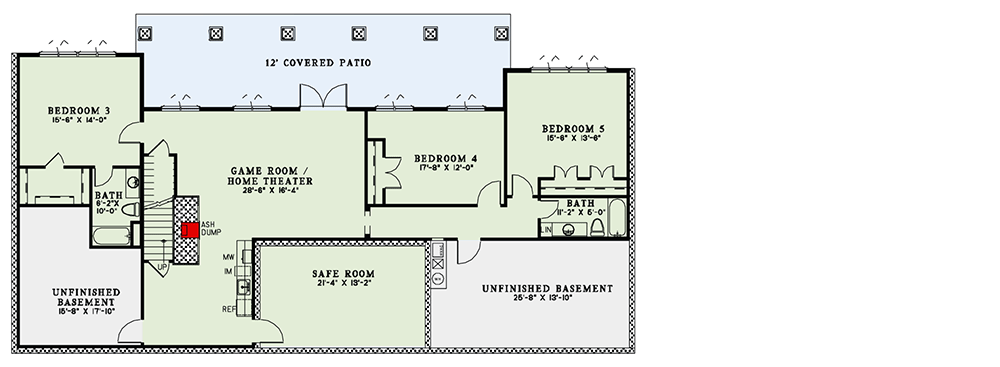

Lower Level

Plan 60716ND: Mountain Craftsman Home Plan with Walk-out Basement - 4469 Sq Ft - Floor Plan - Lower Level - Country, Craftsman, Mountain

Plan Details

  • Shake shingles, tapered columns, and large covered porches define this Mountain Craftsman home plan. The angled double garage is attached to the home by a breezeway and includes two storage rooms.
  • Matching 10'-deep porches on both the front and back elevations lend plenty of outdoor space to relax, grill, or dine, while the center of the main level is completely open and perfect for entertaining.
  • An elongated island anchors the kitchen and provides seating for 8 (yes, 8!) at the eating bar, and nearby barn doors reveal a sizable walk-in pantry.
  • Privately situated on the left side of the main level, discover the master suite, which features access to the back deck, an oversized shower in the ensuite, and a large wardrobe. A second bedroom suite on this level neighbors the large laundry / craft room.
  • Downstairs, three bedrooms surround a game room with a wet bar and access to the covered patio, and a large safe room provides protection from potential weather.
  • Related Plans: Get an alternate version with house plan 60597ND (2,555 sq. ft.) and 70699MK (2,765 sq. ft.; garage straightened).

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,469 sq. ft.

Lower Level

1,721 sq. ft.

1st Floor

2,748 sq. ft.

Porch, Combined

940 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

126' 3"

Depth

74' 6"

Max Ridge Height

28' 4"

Garage

Type

Detached

Area

839 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Craftsman

Mountain

Special Features

Angled Garage

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Safe Room

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Sloping Lot
