Plan 60597ND

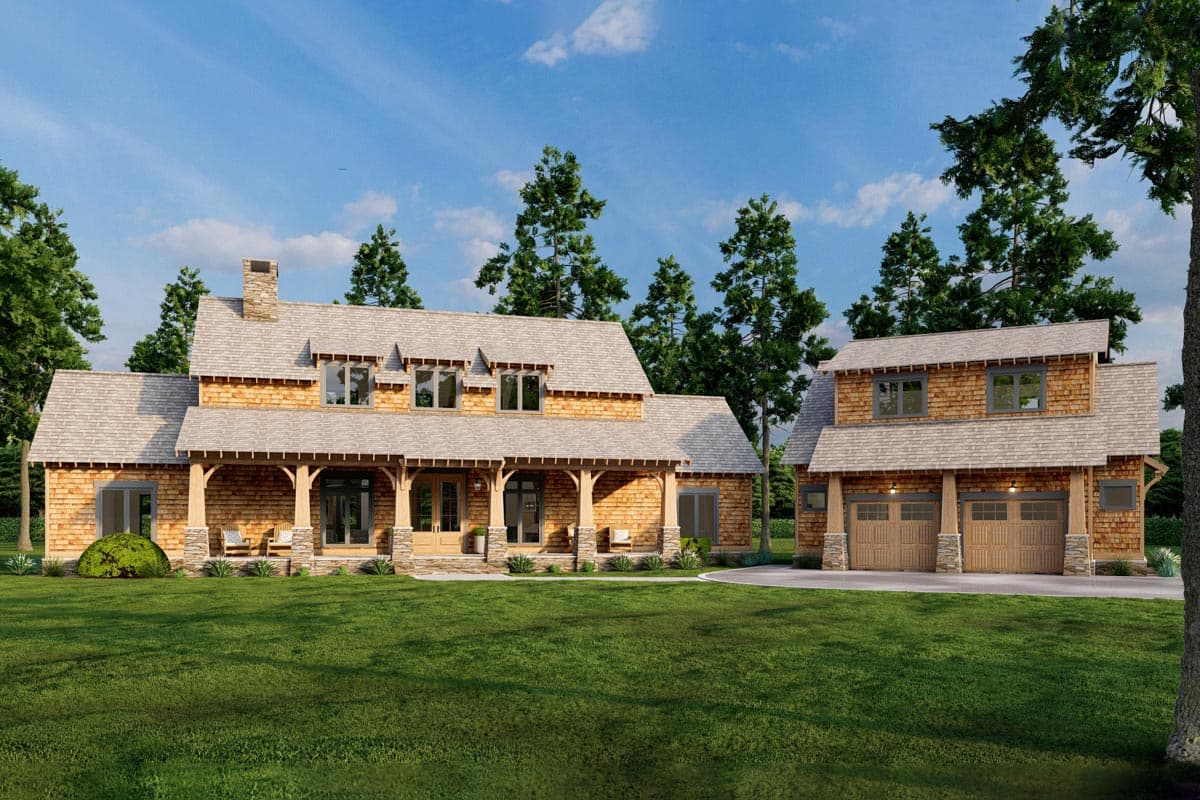

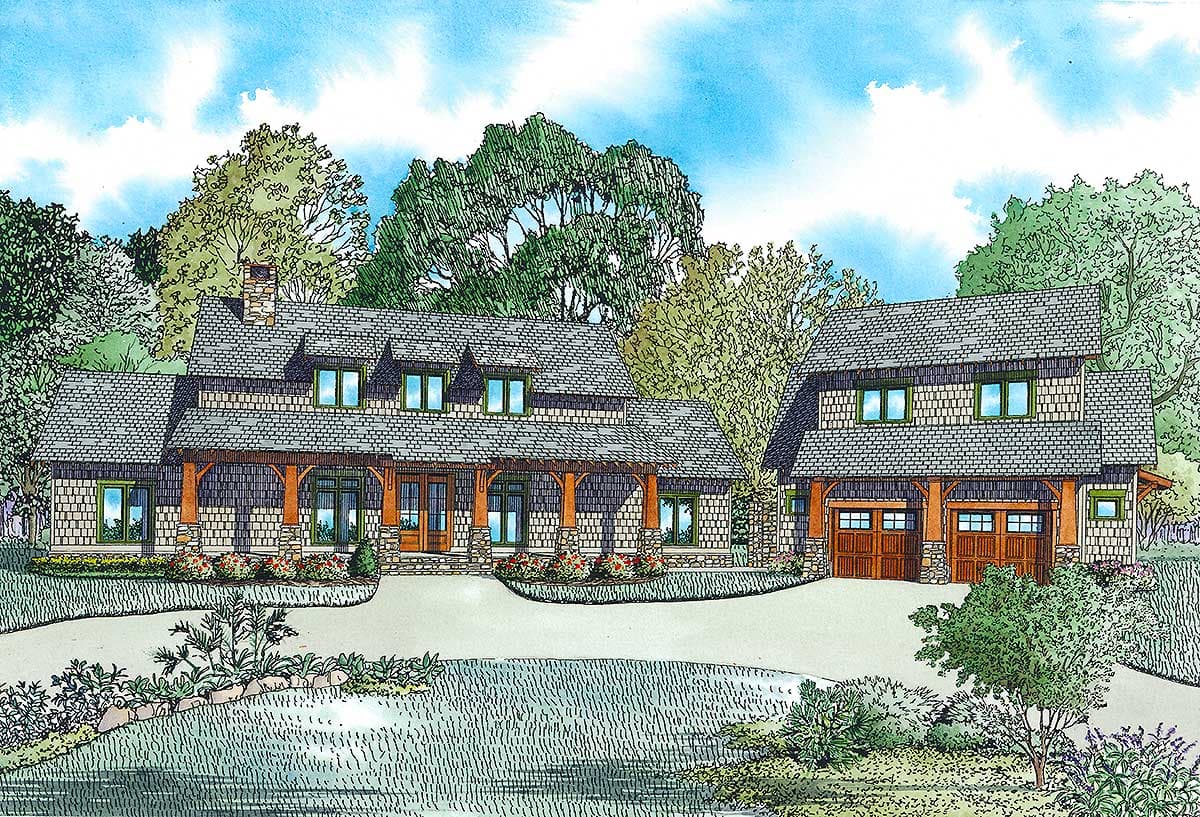

Shingle-style Home Plan With Guest Loft and Angled Garage with

Heated S.F.
2,555
Beds
4 - 5
Baths
4
Stories
2
Cars
2
Client Photos

Floor Plan

Plan 60597ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60597ND

M-F 9am-5pm EST |

1-203-761-8500

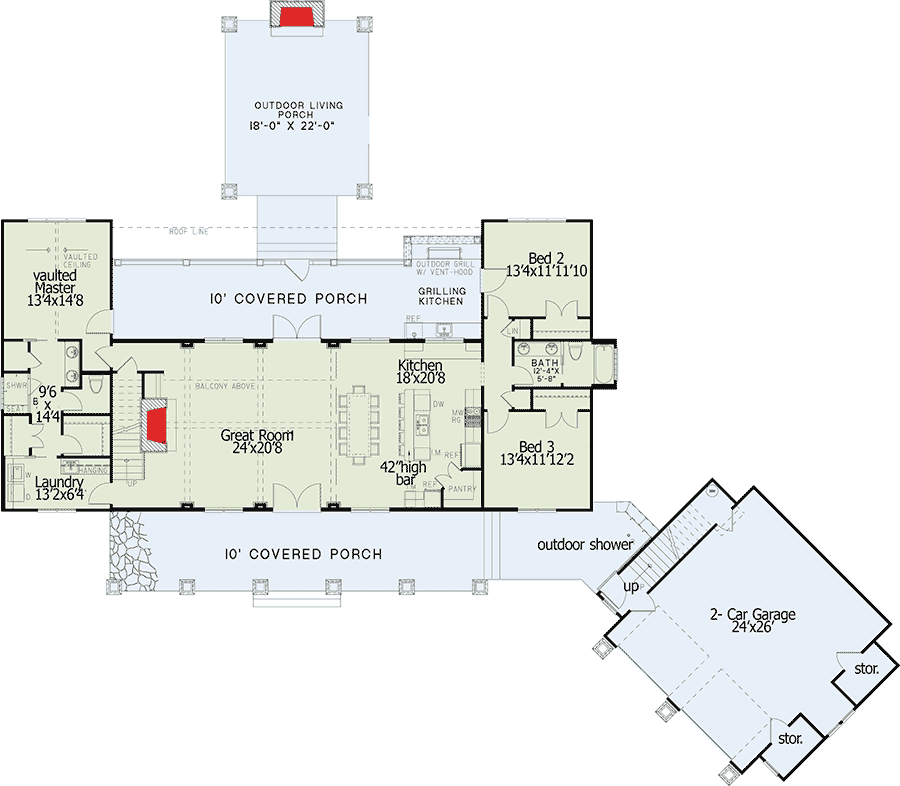

Main Level

Plan 60597ND: Shingle-style Home Plan With Guest Loft and Angled Garage with - Floor Plan - Main Level - Cabin, Country, Craftsman, Farmhouse, Modern Farmhouse, Northwest, Rustic, Shingle

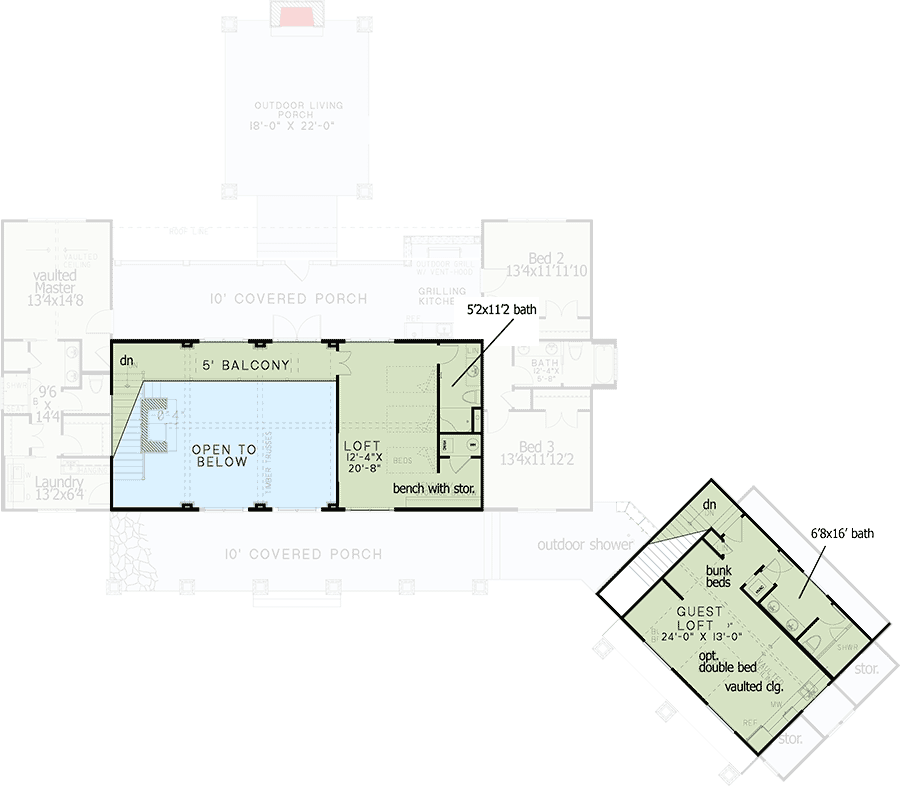

2nd Floor

Plan 60597ND: Shingle-style Home Plan With Guest Loft and Angled Garage with - Floor Plan - 2nd Floor - Cabin, Country, Craftsman, Farmhouse, Modern Farmhouse, Northwest, Rustic, Shingle

Plan Details

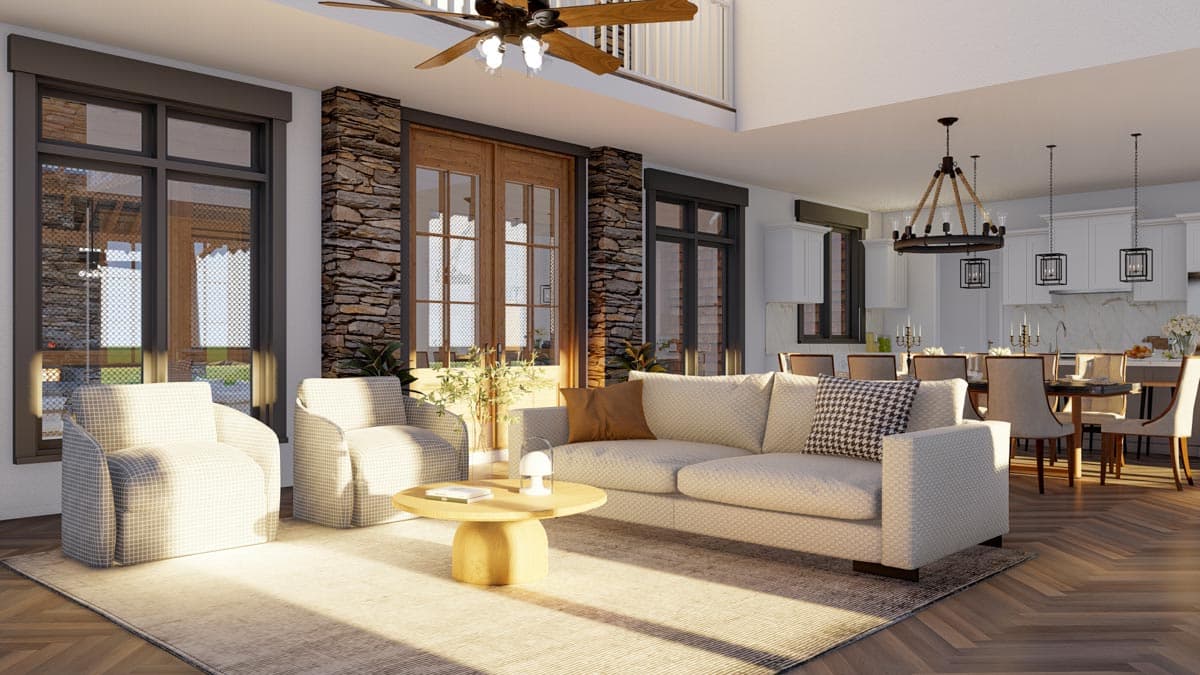

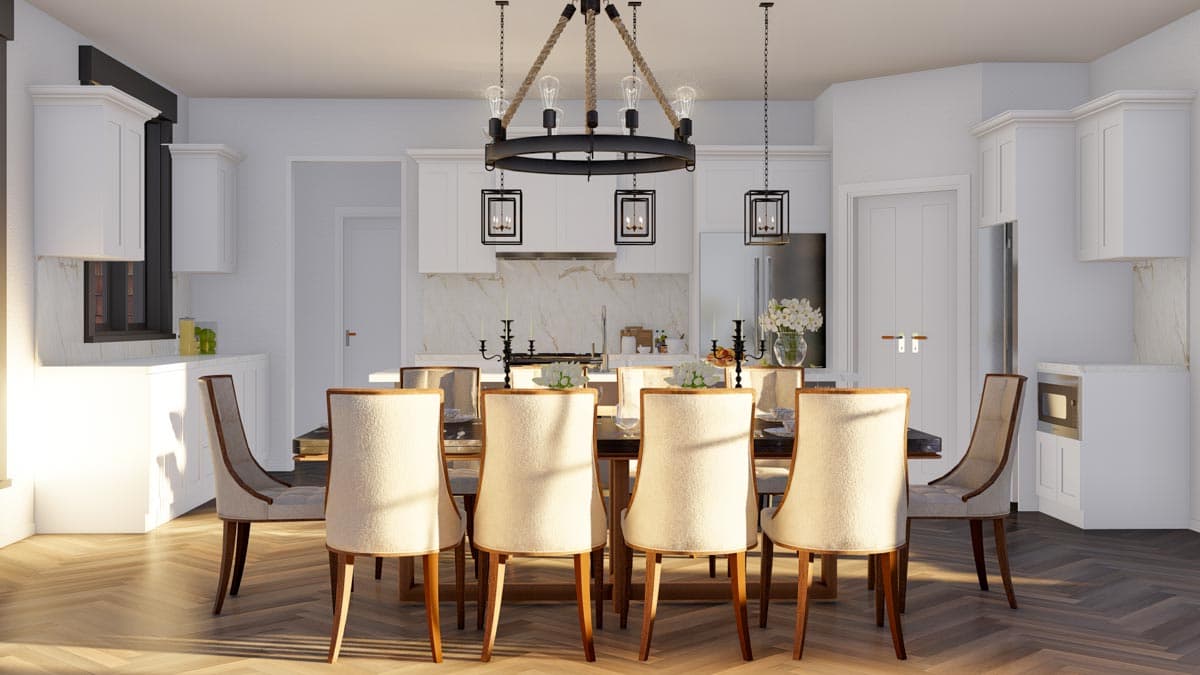

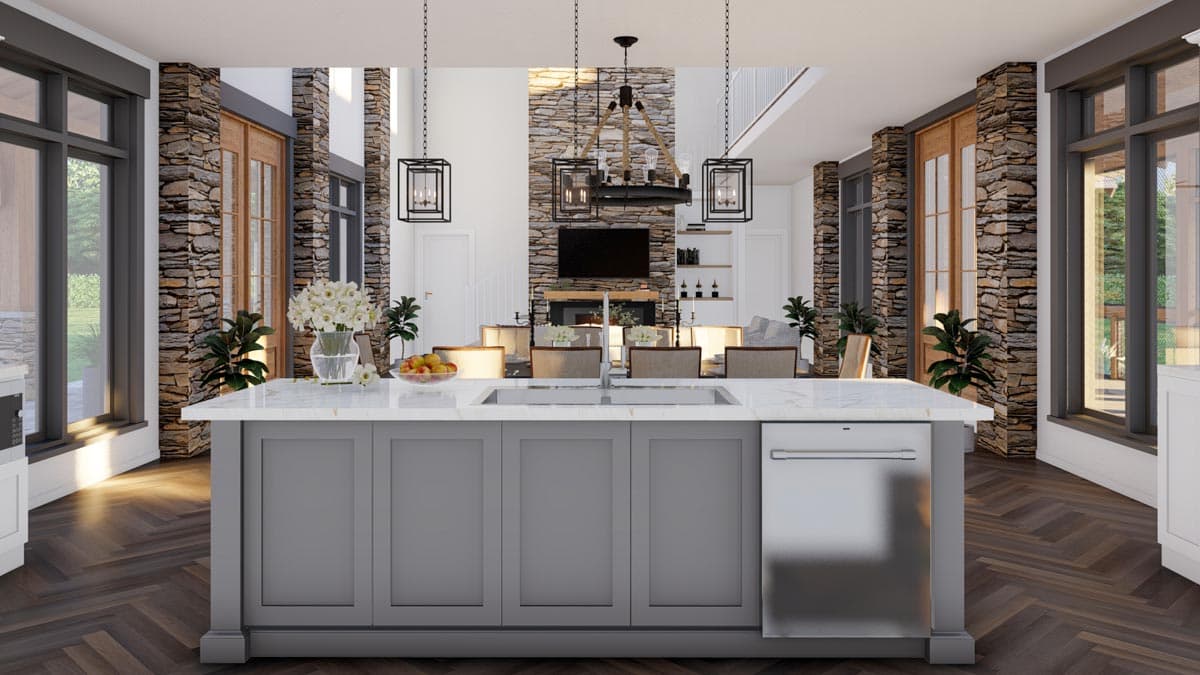

  • One massive great room lets everyone gather together for cooking, eating and socializing in this shingled home plan with split bedroom layout and guest suite.
  • The bedrooms are split to allow the master suite its privacy.
  • Pocket doors open the master bath to the laundry room.
  • The second floor houses a spacious loft with bathroom and the balcony rail overlooks the great room below.
  • More guest space can be found in the optional bunk room with full bath over the garage.
  • Related Plans: Get alternate versions with house plans 70811MK (2,191 sq. ft.), 70833MK (2,761 sq. ft.), 70674MK (2,050 sq. ft.) and 70699MK (2,765 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 60597ND built with modifications

House Plan 60597ND built with modifications

30

Photos

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,555 sq. ft.

1st Floor

2,049 sq. ft.

2nd Floor

506 sq. ft.

Porch, Combined

1,408 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

113' 0"

Depth

95' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

838 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Country

Craftsman

Farmhouse

Modern Farmhouse

Northwest

Rustic

Shingle

Special Features

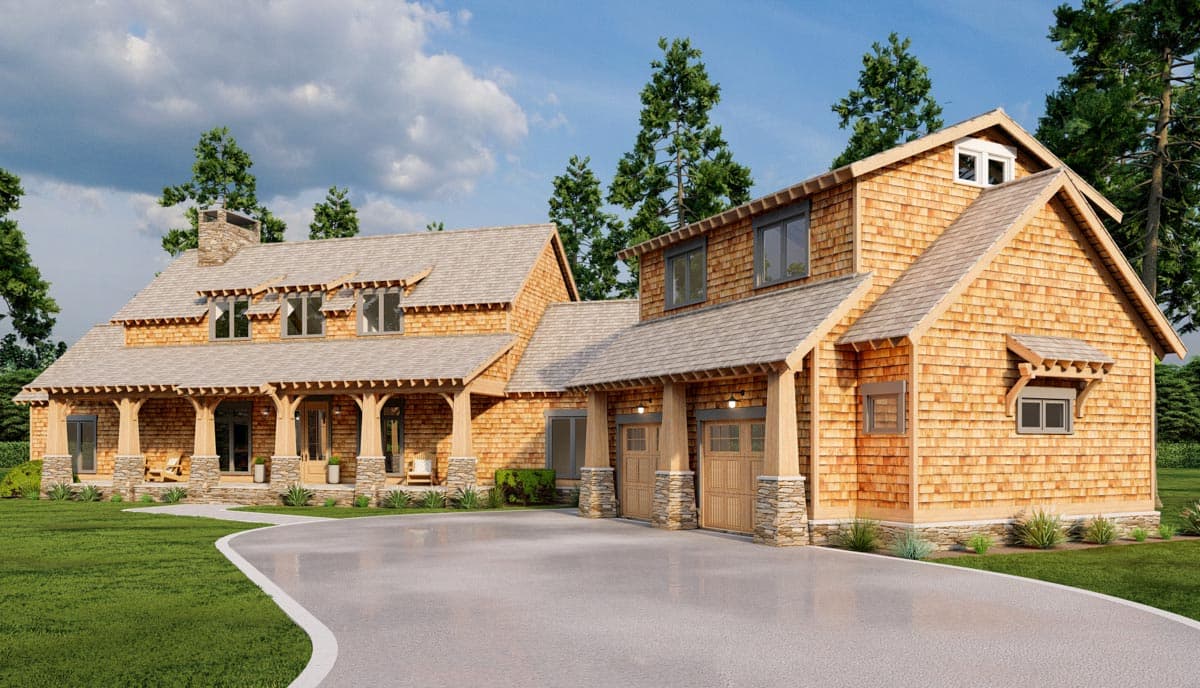

Angled Garage

Bedrooms - Split

Bunk Room

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Story Great Room

Walk-in Pantry

Plan Collections
