Plan 95223RW Mountain Craftsman House Plan Under 4000 Square Feet with Massive 4-Car Garage

3,985 3-6 2.5 - 5.5 1 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman House Plan Under 4000 Square Feet with Massive 4-Car Garage

Plan 95223RW

  • 3,985

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Stacked outdoor spaces in back make this rugged Craftsman house plan right at home in the mountains or on any rear-view lot. The home plan gives you 3,985 square feet and two beds on one living level with an additional 3,621 square feet of living in the optionally finished lower level with 3 more bedrooms and baths.
  • A 4-car garage - a 2-car front-facing bay and a 2-car angled bay, each with  16' by 8' overhead doors - gives you a whopping 1,801 square feet of parking space.
  • Vaulted ceilings are found throughout the home. The home is focused to the back with the covered deck being accessible from the vaulted great room, the dining room and the service kitchen. Entertain outdoors on the deck which has a fireplace and a kitchen.
  • The master suite has a vaulted sitting area and a large walk-in closet with room for two at once. A study is set off at an angle. The vaulted guest bedroom is far away, maximizing your privacy.
  • A massive food pantry and a separate service kitchen ensure that your guests won't be distracted by dirty pots and pans.

The following details are included with this house plan:
  • Cover Page

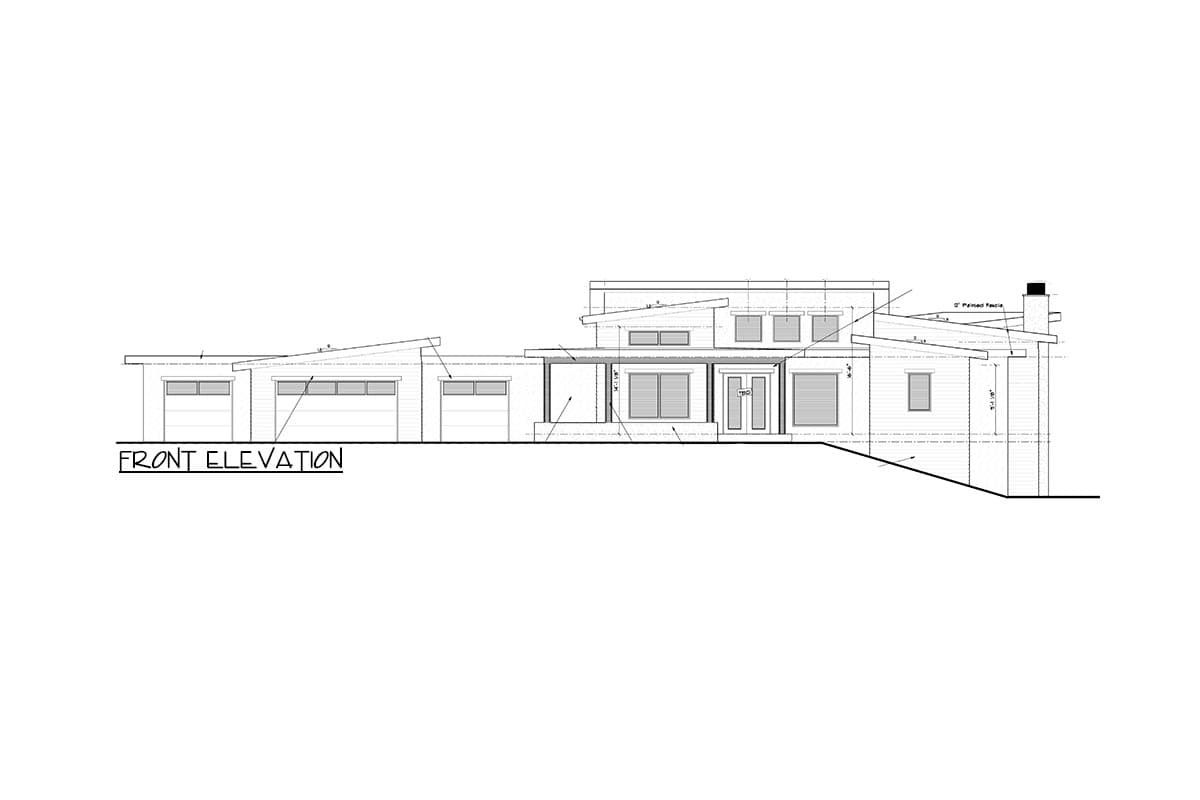

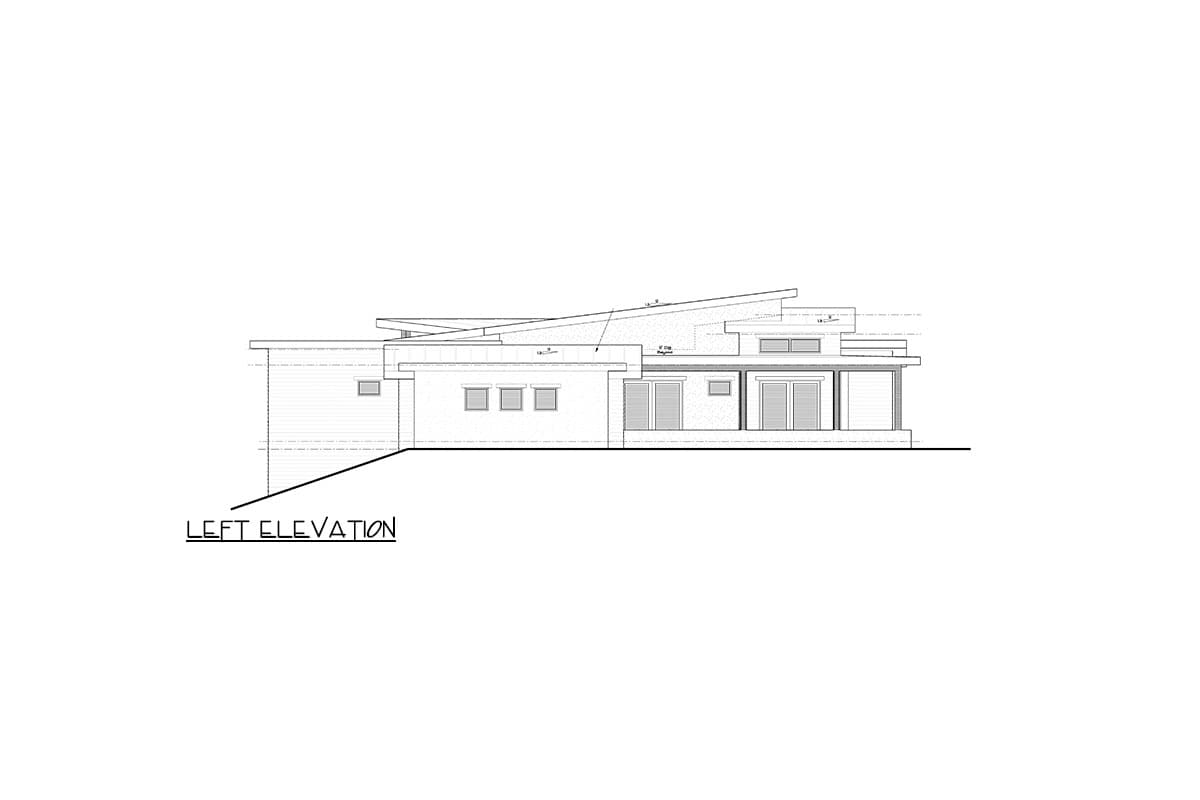

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman House Plan Under 4000 Square Feet with Massive 4-Car Garage - 95223RW floor plan - Main Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman House Plan Under 4000 Square Feet with Massive 4-Car Garage - 95223RW floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,985 sq. ft.
  • 1st Floor: 3,985 sq. ft.
  • Porch, Combined: 1,125 sq. ft.
  • Optional Lower Level: 3,621 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 146' 6"
  • Depth: 87' 9"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 1801 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12

Architectural Style

Special features

Mountain Craftsman House Plan Under 4000 Square Feet with Massive 4-Car Garage

  • 3,985

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,550
  • PDF - Unlimited Build $3,825
  • CAD + PDF - Single Build $4,050
  • CAD - Unlimited Build $6,075
  • View all purchase option online

About This Plan

  • Stacked outdoor spaces in back make this rugged Craftsman house plan right at home in the mountains or on any rear-view lot. The home plan gives you 3,985 square feet and two beds on one living level with an additional 3,621 square feet of living in the optionally finished lower level with 3 more bedrooms and baths.
  • A 4-car garage - a 2-car front-facing bay and a 2-car angled bay, each with  16' by 8' overhead doors - gives you a whopping 1,801 square feet of parking space.
  • Vaulted ceilings are found throughout the home. The home is focused to the back with the covered deck being accessible from the vaulted great room, the dining room and the service kitchen. Entertain outdoors on the deck which has a fireplace and a kitchen.
  • The master suite has a vaulted sitting area and a large walk-in closet with room for two at once. A study is set off at an angle. The vaulted guest bedroom is far away, maximizing your privacy.
  • A massive food pantry and a separate service kitchen ensure that your guests won't be distracted by dirty pots and pans.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,985 sq. ft.
  • 1st Floor: 3,985 sq. ft.
  • Porch, Combined: 1,125 sq. ft.
  • Optional Lower Level: 3,621 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 146' 6"
  • Depth: 87' 9"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 1801 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
Plan 95223RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95223RW
|
Need Help? 800-854-7852
|
