Plan 280032JWD
Mountain Craftsman House Plan with Bonus Room Above Garage
Heated S.F.
3,285
Beds
3
Baths
2.5
Stories
1-2
Cars
3
Photos
What's Included
Plan Details
  • Neutral exterior tones and materials help this craftsman home blend in with its natural surroundings, while timber-frame decorative details beneath gable roofs add character.
  • The 3-car garage proudly pushes out past the primarily rectangular design, and features a bonus room above it for maximum versatility.
  • In the center of this home, discover the great room, dining, kitchen, and hearth room - all open to one another - creating a comfortable space for entertaining.
  • A large walk-in, prep pantry behind the kitchen includes a sink and dishwasher, and neighbors a built-in breakfast nook.
  • The left wing of the home is where the master bedroom resides, featuring a vaulted ceiling and french doors to the back patio. A luxurious ensuite includes a sizable walk-in closet and two sinks.
  • To the right of the home, two secondary bedrooms share a full bathroom.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Craftsman House Plan with Bonus Room Above Garage

  • 3,285

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

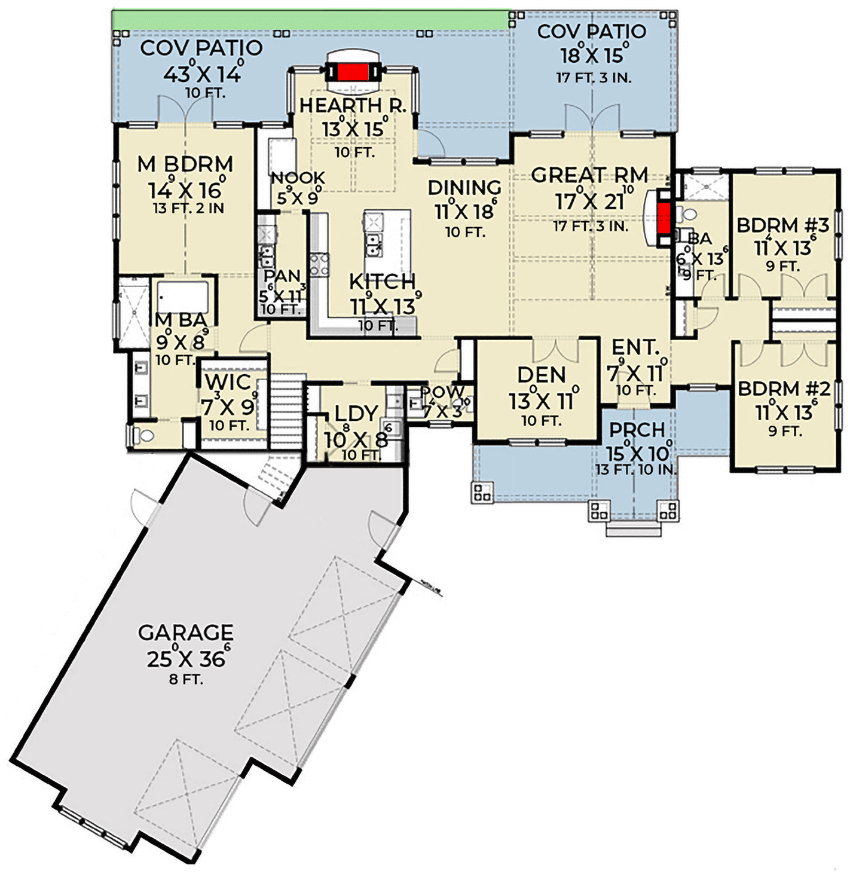

Floor Plan

  • Main Level

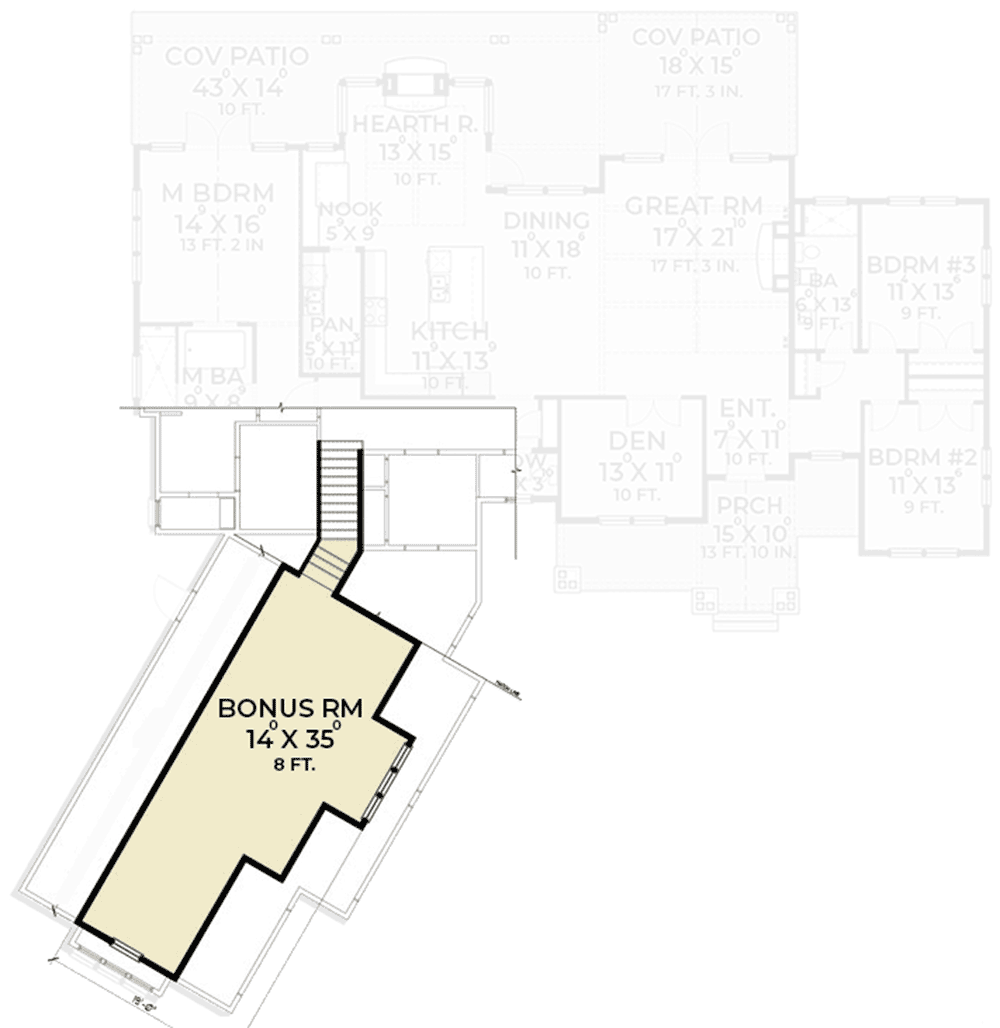

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 3,285 sq. ft.
  • 1st Floor: 2,686 sq. ft.

Dimensions

  • Width: 90' 4"
  • Depth: 86' 11"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1174 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
