Plan 911068JVD

Mountain Craftsman House Plan with Split Bedrooms and 3-Car Garage

Heated S.F.
3,002
Beds
3
Baths
4.5
Stories
1
Cars
3

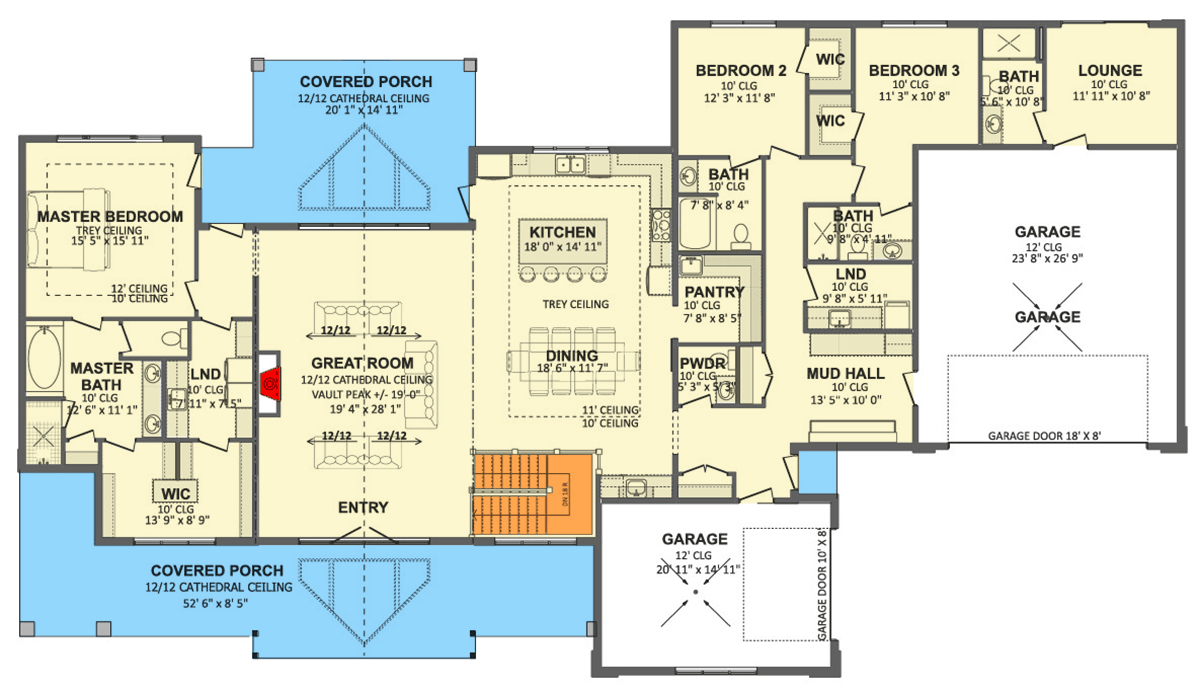

Floor Plan

Plan 911068JVD

Main Level
Main Level

Plan 911068JVD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 911068JVD: Mountain Craftsman House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - Main Level - Craftsman, Mountain

Plan Details

  • Boasting 3,002 finished sq ft, this Mountain Craftsman House Plan offers 3 bedrooms, 4.5 baths, and a 1004 sq ft garage accommodating 3 cars.
  • Step into a grand entry with soaring ceilings, leading into a thoughtfully designed single-level layout perfect for comfortable living.
  • The open-concept design seamlessly connects the main living areas, featuring a spacious great room and an inviting breakfast nook, complemented by a butler's walk-in pantry.
  • The primary bedroom suite offers a private retreat with convenient laundry access, while the split bedroom layout ensures privacy for secondary bedrooms.
  • Enjoy morning coffee or evening breezes on the inviting covered porch, enhancing the home's charming curb appeal.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

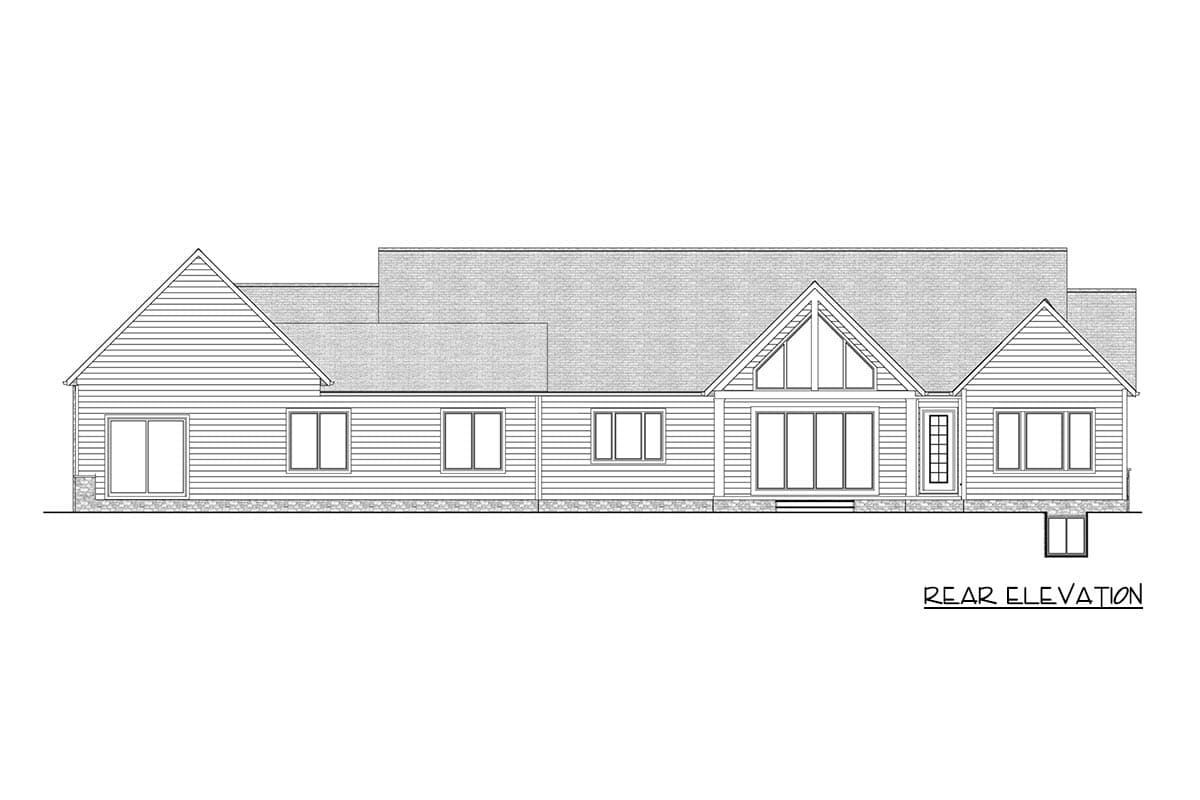

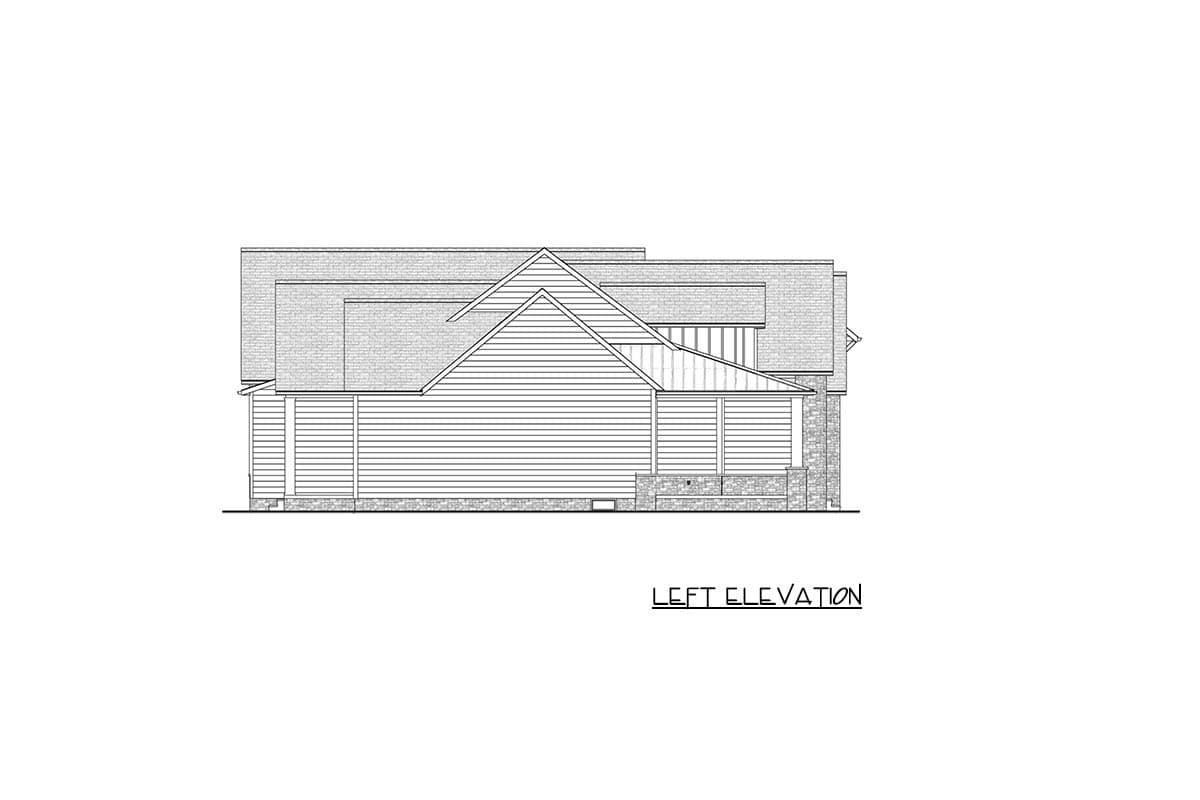

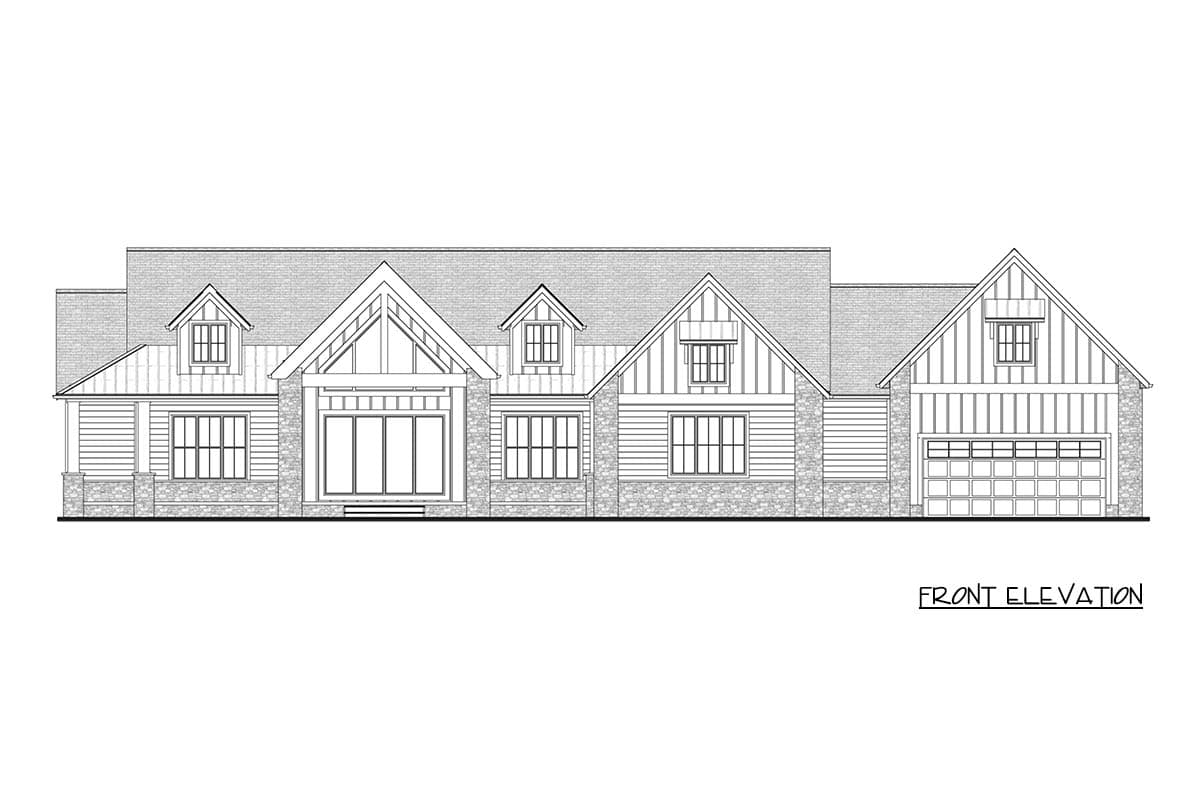

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,002 sq. ft.

1st Floor

3,002 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

106' 4"

Depth

59' 6"

Max Ridge Height

29' 1"

Garage

Type

Standard, Attached

Area

1004 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Architectural Style

Craftsman

Mountain

Special Features

Bedrooms - Split

Breakfast Nook

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,002 sq. ft.

1st Floor

3,002 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

106' 4"

Depth

59' 6"

Max Ridge Height

29' 1"

Garage

Type

Standard, Attached

Area

1004 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Architectural Style

Craftsman

Mountain

Special Features

Bedrooms - Split

Breakfast Nook

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
