Plan 865007SHW

Mountain Craftsman House Plan with Walkout Basement - 3037 Sq Ft

Heated S.F.
3,224
Beds
3
Baths
2.5+
Stories
2

Floor Plan

Plan 865007SHW

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 865007SHW

M-F 9am-5pm EST |

1-203-761-8500

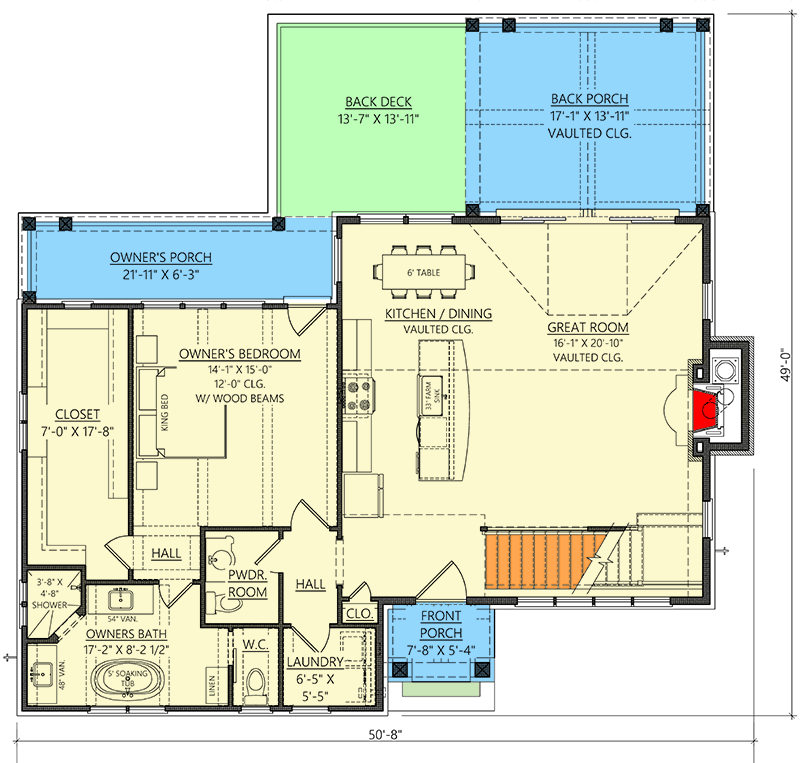

Main Level

Plan 865007SHW: Mountain Craftsman House Plan with Walkout Basement - 3037 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Mountain, New American

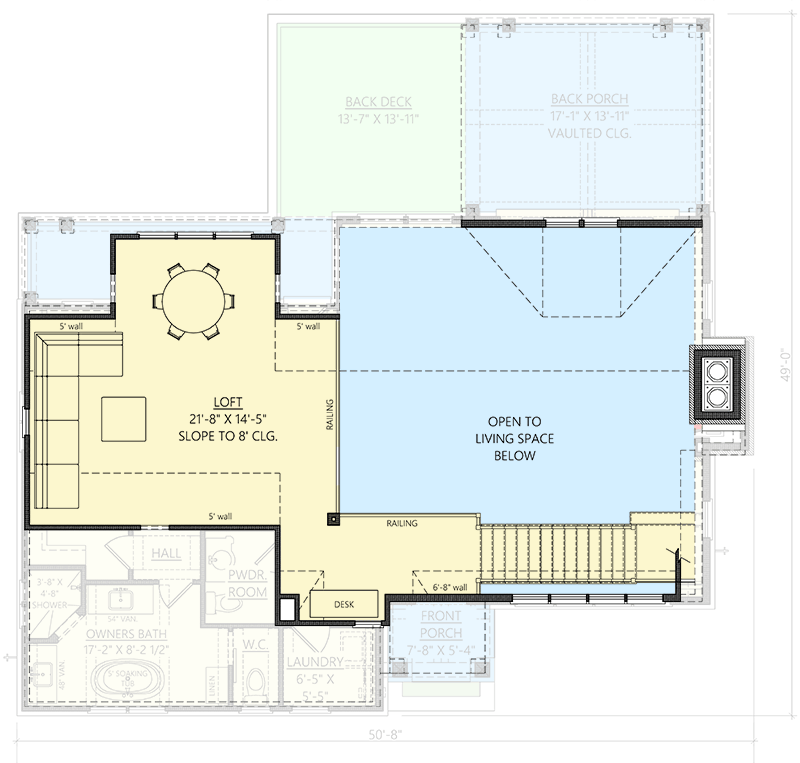

2nd Floor

Plan 865007SHW: Mountain Craftsman House Plan with Walkout Basement - 3037 Sq Ft - Floor Plan - 2nd Floor - Country, Craftsman, Mountain, New American

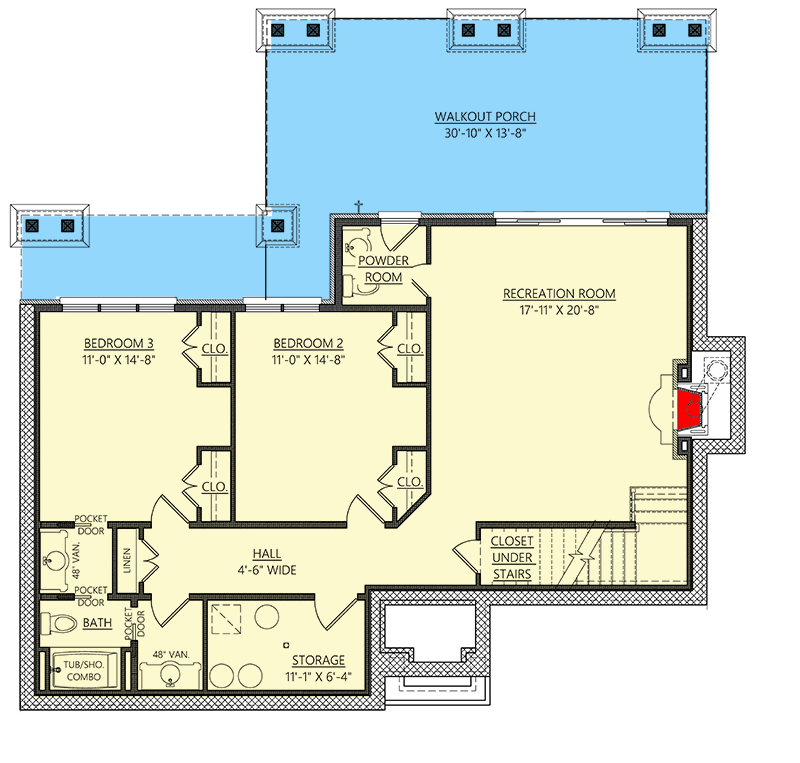

Lower Level

Plan 865007SHW: Mountain Craftsman House Plan with Walkout Basement - 3037 Sq Ft - Floor Plan - Lower Level - Country, Craftsman, Mountain, New American

Plan Details

  • The open living space in this Mountain Craftsman home plan features an eating bar at the kitchen island, fireplace, and easy access to the back porch.
  • The remaining square footage on the main level is reserved for the homeowner with exposed beams above the bedroom, access to a private 130 sq ft porch, and a soaking tub in the 5-fixture bath.
  • Retreat to the loft that overlooks the living space below and enjoy plenty of space for a game / media room.
  • A secondary gathering space is provided downstairs which connects to a spacious porch.
  • Bedrooms 2 and 3 can also be found downstairs, across from a compartmentalized bathroom and dedicated storage space.

What's Included

  • Title sheet
  • Renderings
  • Foundation plan
  • Basement plan
  • Main floor plan
  • Second floor plan
  • Roof plan
  • Front and right elevations
  • Rear and left elevations
  • Cabinet elevations
  • Sections (3 pages)
  • Basement lighting plan
  • Main floor lighting plan
  • Second floor lighting plan
  • Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,224 sq. ft.

Lower Level

1,391 sq. ft.

1st Floor

1,339 sq. ft.

2nd Floor

494 sq. ft.

Porch, Combined

545 sq. ft.

Deck

370 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 8"

Depth

49' 0"

Max Ridge Height

25' 2"

Ceiling Heights

Lower Level

8' 9"

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Gathering Room

Slope

18' 0''

Master Bedroom

Slope

12' 0''

Architectural Style

Country

Craftsman

Mountain

New American

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,224 sq. ft.

Lower Level

1,391 sq. ft.

1st Floor

1,339 sq. ft.

2nd Floor

494 sq. ft.

Porch, Combined

545 sq. ft.

Deck

370 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 8"

Depth

49' 0"

Max Ridge Height

25' 2"

Ceiling Heights

Lower Level

8' 9"

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Gathering Room

Slope

18' 0''

Master Bedroom

Slope

12' 0''

Architectural Style

Country

Craftsman

Mountain

New American

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Two Story Great Room
