Mountain Craftsman Plan with Bonus Room above Garage

Plan 135157GRA

  • 3,349

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A cross-gable roof with steep pitches caps this Mountain Craftsman home plan, complete with stone accents and a timber-framed front porch.
  • A coffered ceiling decorates the great room with a fireplace and surrounding builtins providing a custom touch.
  • The island kitchen opens to the well-lit dining area, and a pass-thru pantry increases storage space while keeping flow a priority.
  • The master bedroom neighbors an exercise room and is accompanied by a deluxe ensuite with a walk-in closet. Three additional bedrooms line the right side of the home, including an in-law suite with access to the back patio.
  • Just inside from the 3-car garage, a staircase guides you up to a versatile bonus room (included in the total square footage) with a full bath and open deck.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

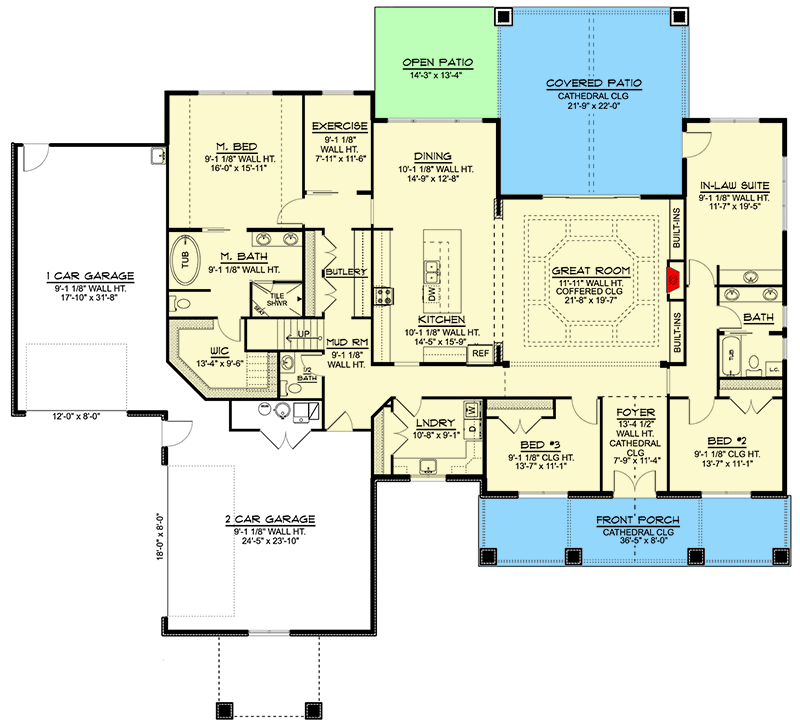

Mountain Craftsman Plan with Bonus Room above Garage - 135157GRA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

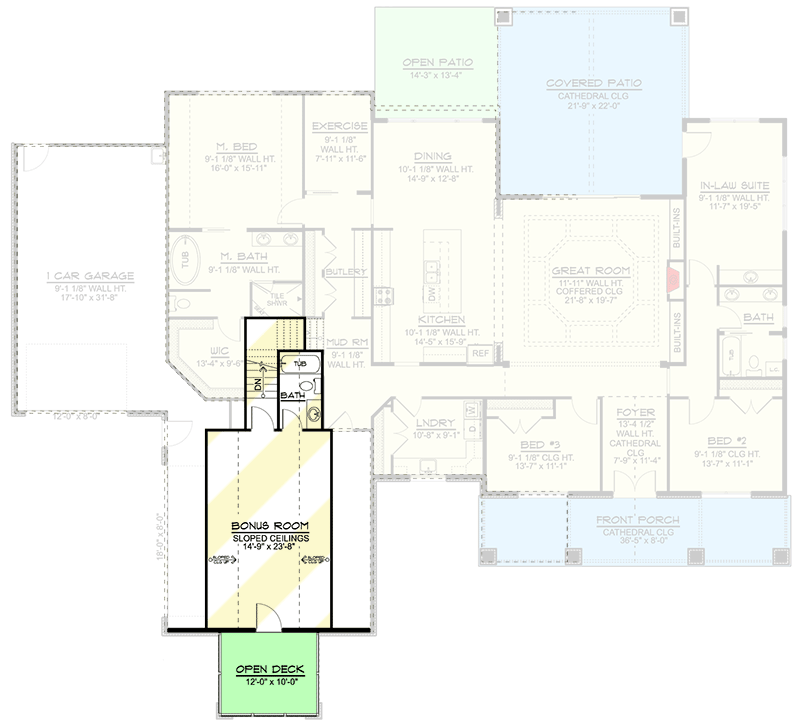

Mountain Craftsman Plan with Bonus Room above Garage - 135157GRA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,349 sq. ft.
  • 1st Floor: 2,924 sq. ft.
  • 2nd Floor: 425 sq. ft.
  • Covered Patio: 688 sq. ft.
  • Deck: 120 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 6"
  • Depth: 84' 4"
  • Max ridge height: 24' 11"

Garage

  • Type: Attached
  • Area: 1273 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features
