Plan 770504JME

Mountain Craftsman Plan with Future Expansion Spaces - 3335 Sq Ft

Heated S.F.
3,335
Beds
4 - 6
Baths
3.5 - 5.5
Stories
2
Cars
3

Floor Plan

Plan 770504JME

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 770504JME

M-F 9am-5pm EST |

1-203-761-8500

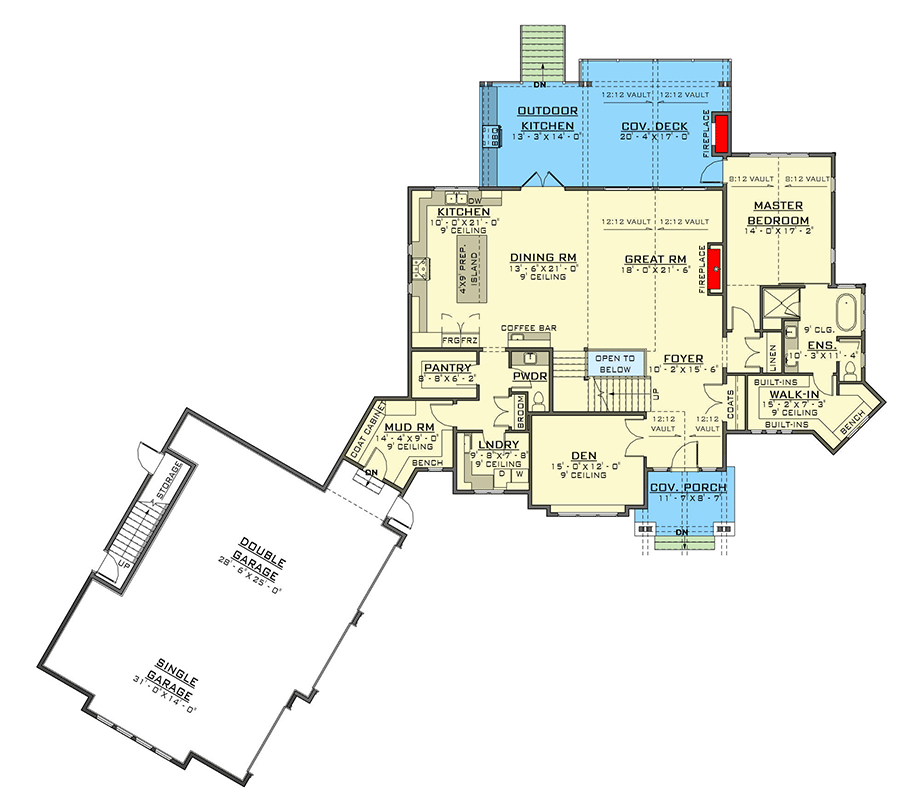

Main Level

Plan 770504JME: Mountain Craftsman Plan with Future Expansion Spaces - 3335 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Mountain, New American, Rustic

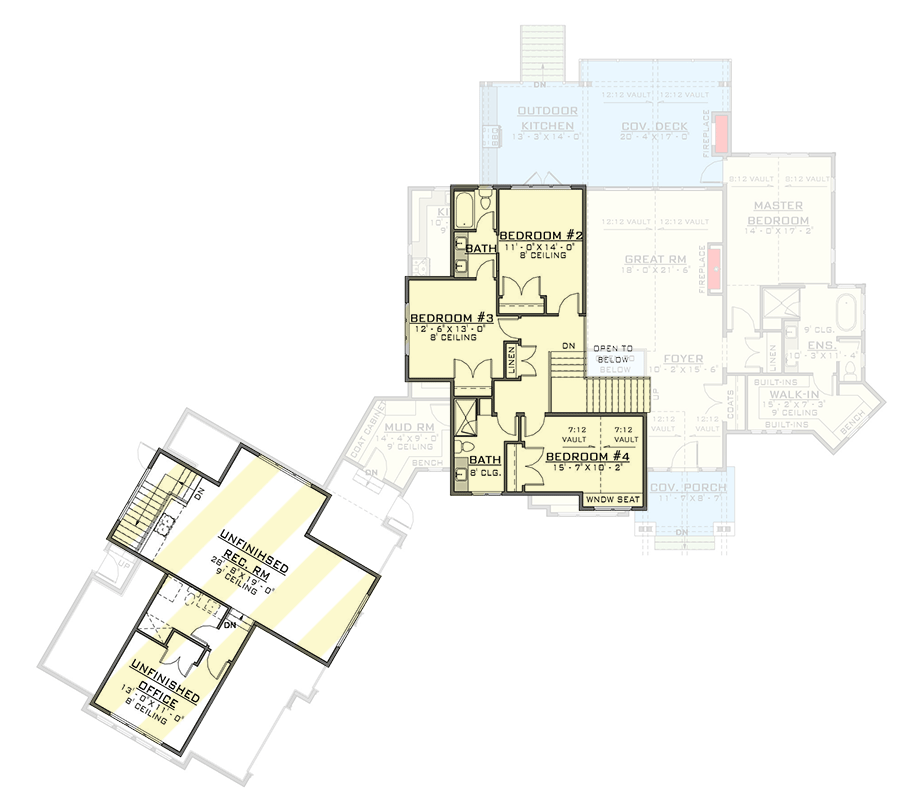

2nd Floor

Plan 770504JME: Mountain Craftsman Plan with Future Expansion Spaces - 3335 Sq Ft - Floor Plan - 2nd Floor - Country, Craftsman, Mountain, New American, Rustic

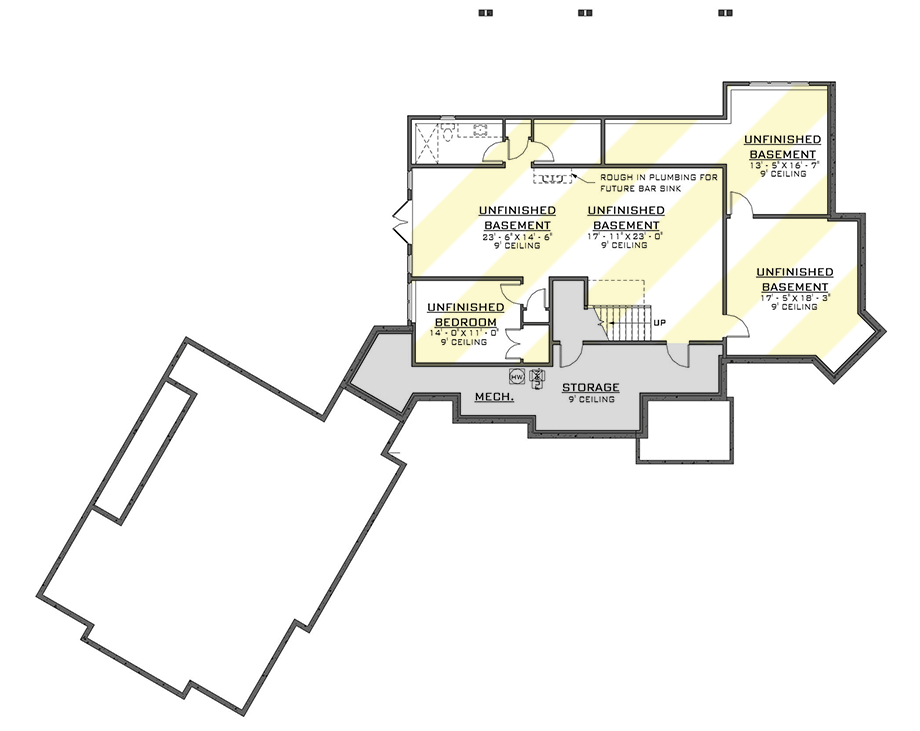

Optionally Finished Lower Level

Plan 770504JME: Mountain Craftsman Plan with Future Expansion Spaces - 3335 Sq Ft - Floor Plan - Optionally Finished Lower Level - Country, Craftsman, Mountain, New American, Rustic

Plan Details

  • This Mountain Craftsman home plan provides a flexible design with future expansion spaces above the garage and in the basement.
  • Discover an open main level that combines the vaulted great room, dining area, and island kitchen. A coffee bar, flush eating bar, and large pantry make this gourmet kitchen a chef's dream.

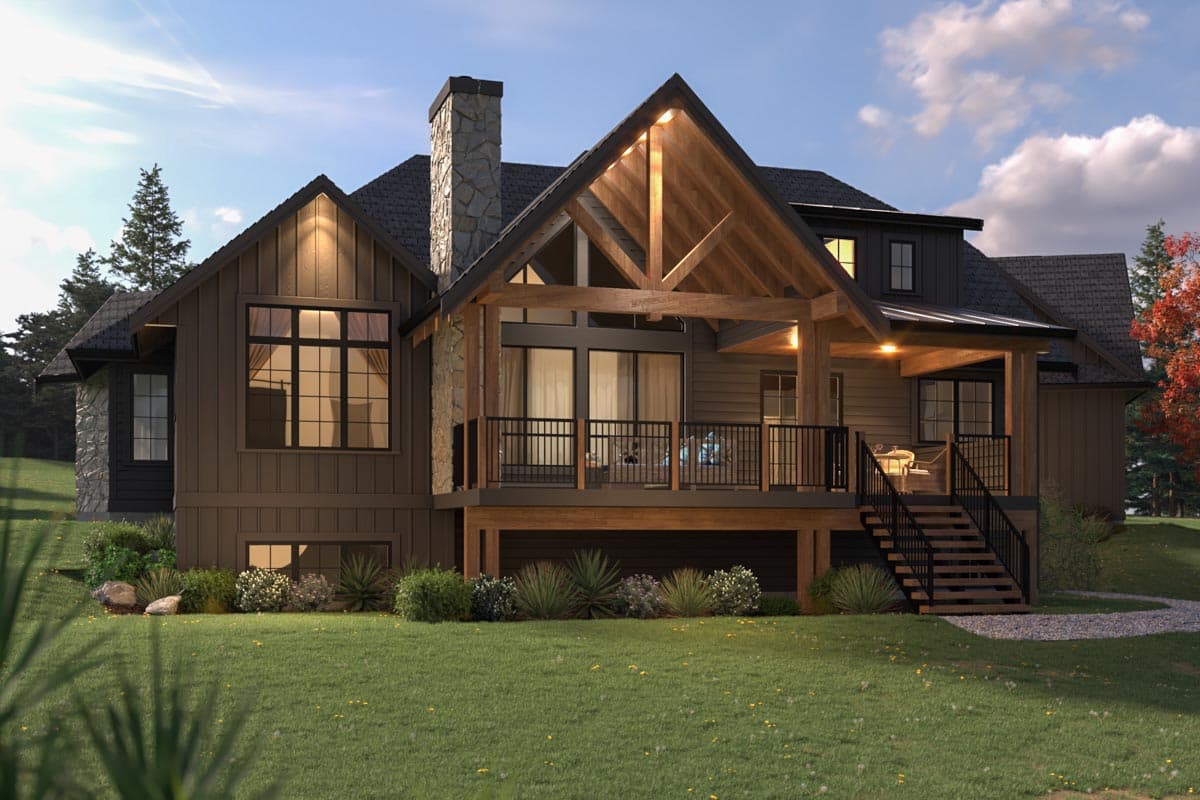

  • The rear covered deck with an outdoor kitchen provides the ideal space to entertain friends and family, or unwind in the secluded den with a charming window seat.
  • A vaulted ceiling crowns the master bedroom that boasts a freestanding tub in the ensuite, along with a roomy closet. The remaining three bedroom are upstairs; two share a Jack-and-Jill bath.
  • The angled 3-car garage offers 765 square feet of living space overhead, and the basement another 2,445 square feet of livable space.

What's Included

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections

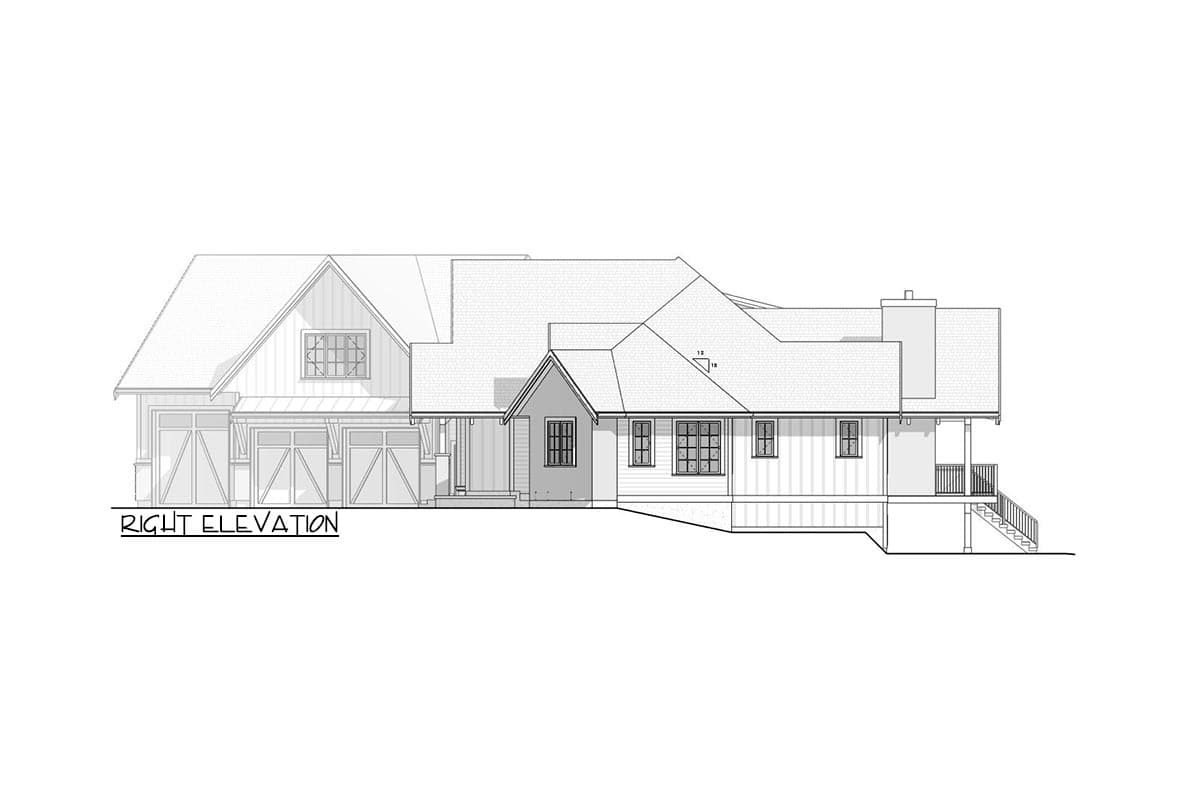

  • Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required.
  • Electrical (lighting) plan
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,335 sq. ft.

1st Floor

2,445 sq. ft.

2nd Floor

890 sq. ft.

Basement Unfinished

2,445 sq. ft.

Bonus

765 sq. ft.

Porch, Front

102 sq. ft.

Deck

526 sq. ft.

Deck & Porch

628 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 6"

Depth

94' 1"

Max Ridge Height

32' 2"

Garage

Type

Attached

Area

1409 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Mountain

New American

Rustic

Special Features

Angled Garage

Den

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Canadian House Plans

Lake House Plans
