Plan 871024JEN Mountain Home Plan with Finished Basement and Wraparound Porch

4,210 4 4.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Home Plan with Finished Basement and Wraparound Porch

Plan 871024JEN

  • 4,210

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Escape the hustle and bustle in this exclusive Mountain home with two in-home offices, one on each floor, that make remote living that much more accessible.
  • Double-decker wrap-around porches provide lots of outdoor living space, while the heart of the home is marked with a large see-through fireplace with raised hearth that warms the great room and indoor dining area.
  • A pass-through window provides ease of access between the main kitchen and the summer kitchen with grill and plenty of outdoor dining on the covered deck.
  • The master bedroom suite enjoys wide sweeping views seen though floor to ceiling glass sliders. A sitting area, walk-in closet, master bath with soaking tub and curbless shower, and direct access to the laundry room complete the master suite.
  • A large mud room, complete with coat closet and dog washing station, assures easy cleanup after a day outside. A large bunk room downstairs provides plenty of space for overnights.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

This house plan set has the following details:


Foundation plan
Detailed floor plans
Roof plan
Elevations (all four sides)
Sections
3D model views
Electrical plans
Framing details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

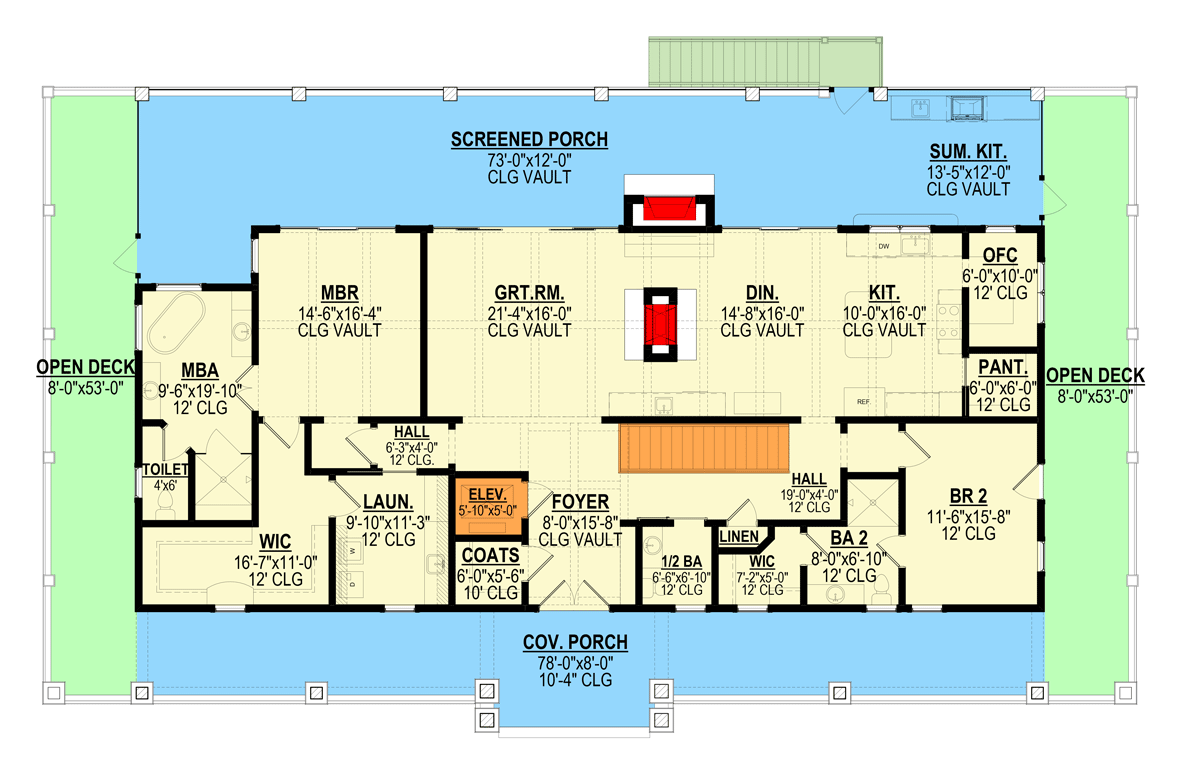

Mountain Home Plan with Finished Basement and Wraparound Porch - 871024JEN floor plan - Main Level

Lower Level Walkout

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

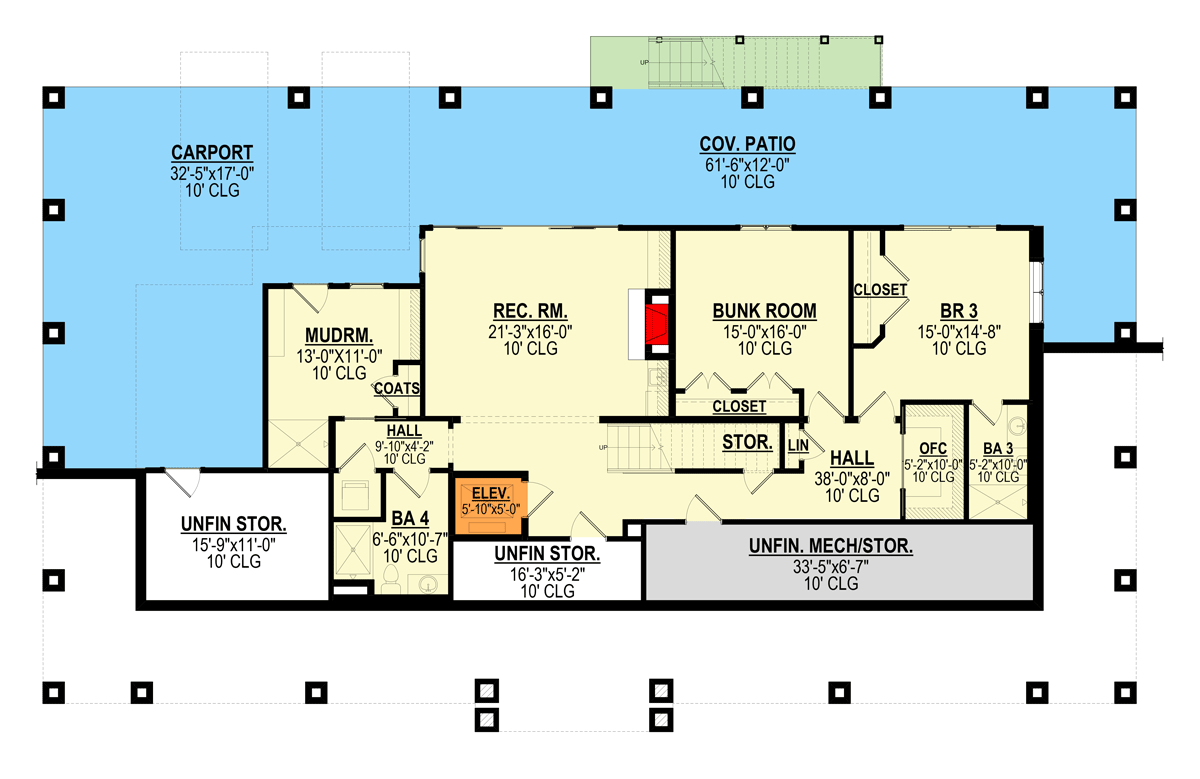

Mountain Home Plan with Finished Basement and Wraparound Porch - 871024JEN floor plan - Lower Level Walkout

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,210 sq. ft.
  • Lower Level: 1,668 sq. ft.
  • 1st Floor: 2,542 sq. ft.
  • Covered Patio: 828 sq. ft.
  • Deck: 848 sq. ft.
  • Screened Porch: 968 sq. ft.
  • Porch, Front: 658 sq. ft.
  • Carport: 851 sq. ft.
  • Basement Unfinished: 518 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 53' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Carport
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom Vaulted 14' 6" 16' 4"
Great Room Vaulted 21' 4" 16' 0"
Dining Room Vaulted 14' 8" 16' 0"
Kitchen Vaulted 10' 0" 16' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Mountain Home Plan with Finished Basement and Wraparound Porch

  • 4,210

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,395
  • 5 Sets + PDF $2,695
  • PDF - Unlimited Build $3,195
  • CAD - Single-Build $3,395
  • View all purchase option online

About This Plan

  • Escape the hustle and bustle in this exclusive Mountain home with two in-home offices, one on each floor, that make remote living that much more accessible.
  • Double-decker wrap-around porches provide lots of outdoor living space, while the heart of the home is marked with a large see-through fireplace with raised hearth that warms the great room and indoor dining area.
  • A pass-through window provides ease of access between the main kitchen and the summer kitchen with grill and plenty of outdoor dining on the covered deck.
  • The master bedroom suite enjoys wide sweeping views seen though floor to ceiling glass sliders. A sitting area, walk-in closet, master bath with soaking tub and curbless shower, and direct access to the laundry room complete the master suite.
  • A large mud room, complete with coat closet and dog washing station, assures easy cleanup after a day outside. A large bunk room downstairs provides plenty of space for overnights.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

Floor Plans

  • Main Level

  • Lower Level Walkout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,210 sq. ft.
  • Lower Level: 1,668 sq. ft.
  • 1st Floor: 2,542 sq. ft.
  • Covered Patio: 828 sq. ft.
  • Deck: 848 sq. ft.
  • Screened Porch: 968 sq. ft.
  • Porch, Front: 658 sq. ft.
  • Carport: 851 sq. ft.
  • Basement Unfinished: 518 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 53' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Carport
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
