Mountain Home Plan with Vaulted Lodge Room - 2561 Sq Ft

Name: Plan 15703GE: Mountain Home Plan with Vaulted Lodge Room - 2561 Sq Ft
Brand: Architectural Designs
SKU: 15703GE
Price: 2195.0 USD
Availability: InStock

Heated S.F.

2,561

Beds

Baths

3.5

Stories

Cars

Floor Plan

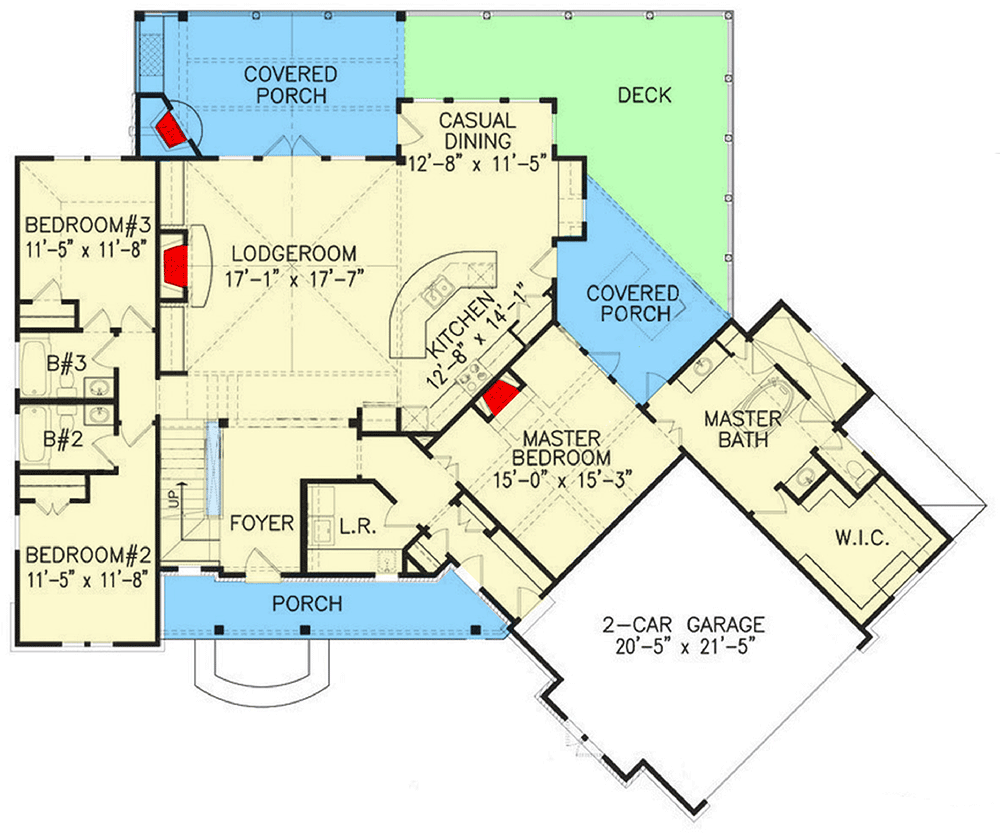

Main Level

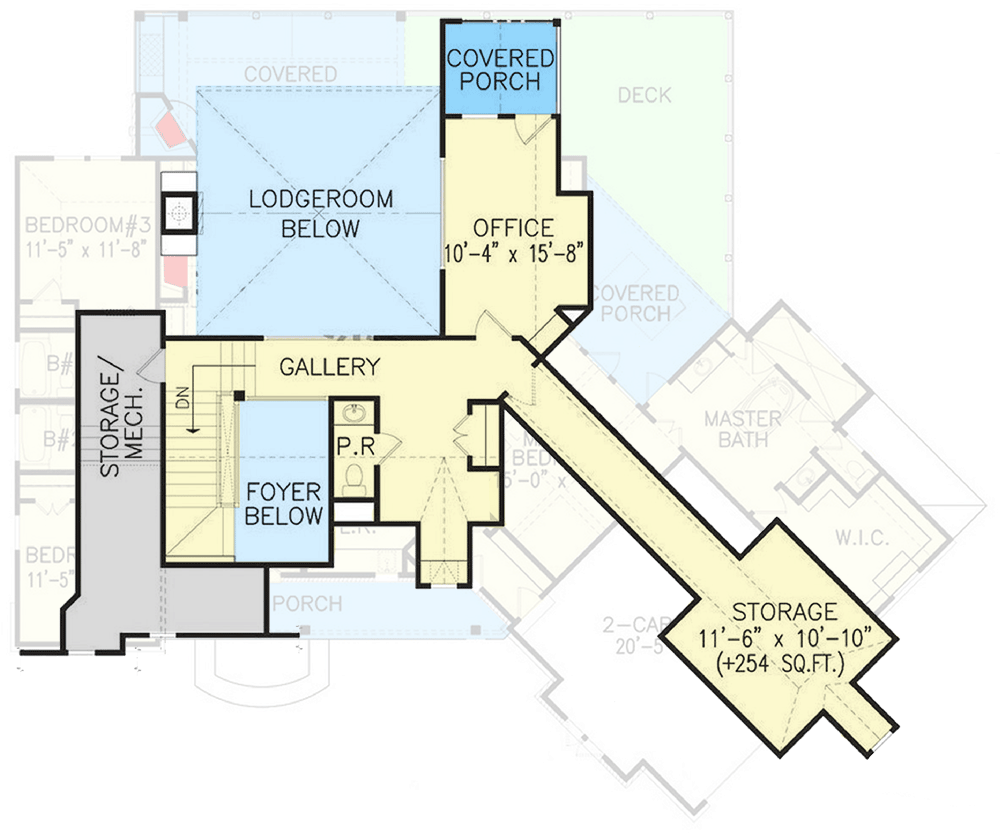

2nd Floor

Plan Details

This mountain home plan gives you 2561 square feet of heated living space with an angled 2-car garage. Evoking rustic charm, the welcoming facade in stone and rough sawn timbers is accented with arched windows and shutters.
This open flowing floor plan boasts a private master suite with access to a covered porch.
The lodge room can be seen from the 18' two-story foyer and is vaulted. It makes quite a dramatic impression to guests. The kitchen is open to the lodge room and has casual seating at the counter.
The second floor has views to the lodge room below and comes with extra storage plus a great home office with its own covered porch.
Related Plan: Get an alternate upper floor and a lower level with house plan 15650GE (1,949 sq. ft.).

What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
