Mountain Home with Unusual Angles

Plan 95011RW

This plan plants 10 trees

4,190
Heated s.f.
3
Beds
4.5+
Baths
1
Stories
4
Cars

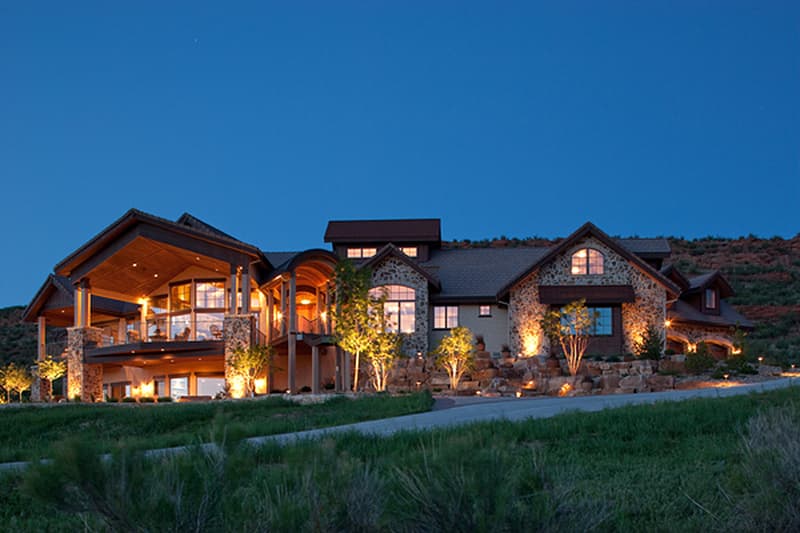

Unusual angles set this Mountain home apart from all others.

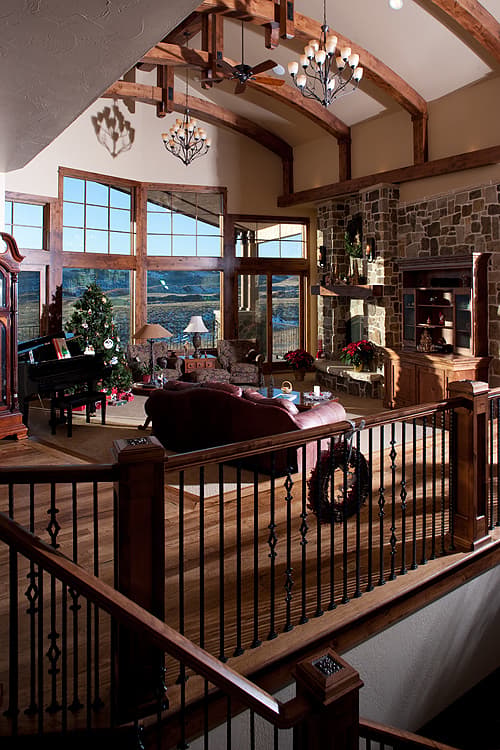

Beautifully detailed inside, you have a sunken, vaulted and beamed great room as the centerpiece.

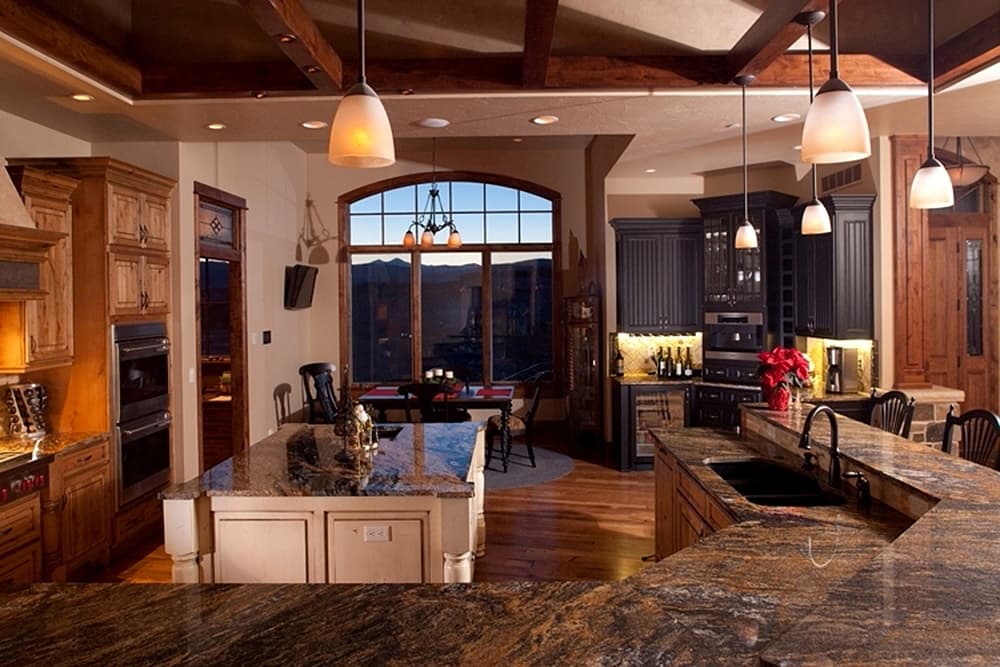

The spacious and luxurious kitchen has two islands and an enormous walk-in pantry.
Sliding glass doors in the master suite open to a private deck where you can relax and enjoy your views.
A large home office lies over the angled four car garage.
The magnificent optional lower level was designed to entertain in a grand style with a large wet bar, wine cellar, theater room with platform seating and a dedicated exercise room.
Take the stairs or use the residential elevator.
Guests will love their private suite on this level with its huge bathroom.

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

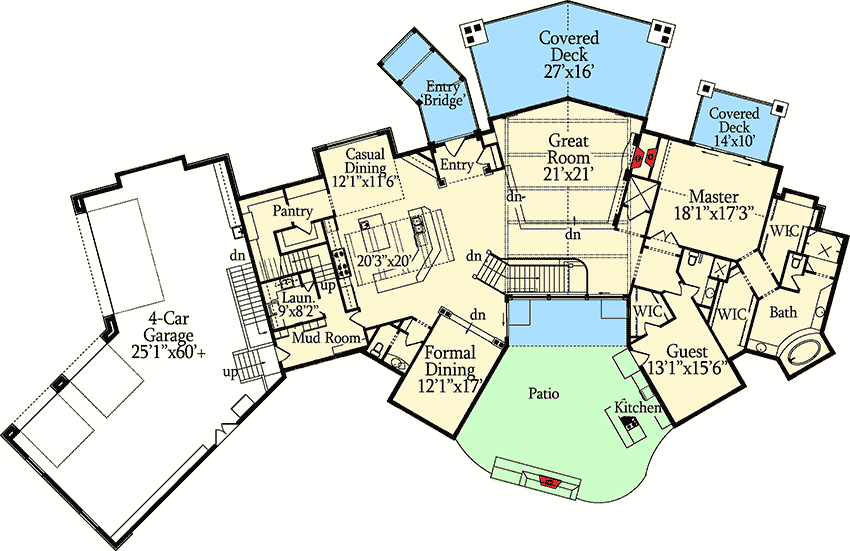

Mountain Home with Unusual Angles - 95011RW floor plan - Main Level

Second Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

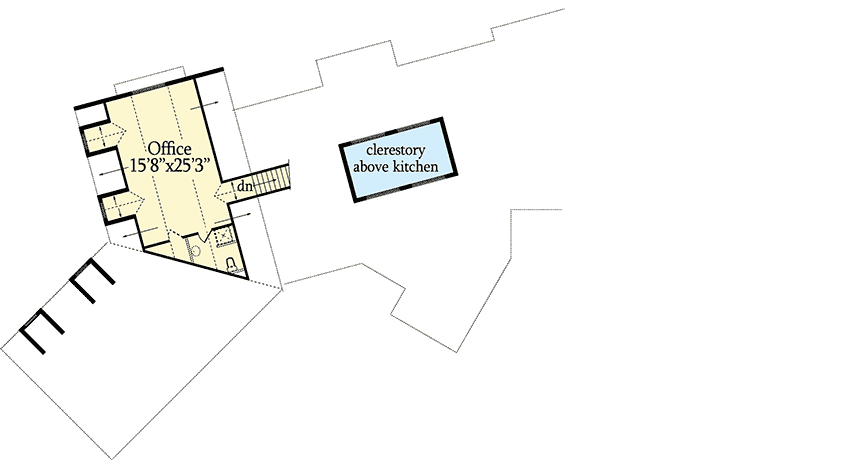

Mountain Home with Unusual Angles - 95011RW floor plan - Second Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

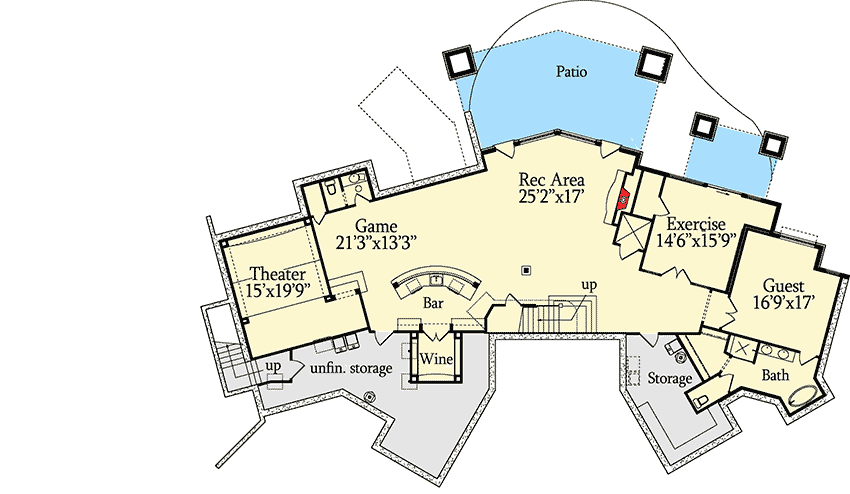

Mountain Home with Unusual Angles - 95011RW floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 4,190 sq. ft.
1st Floor: 3,698 sq. ft.
2nd Floor: 492 sq. ft.

Porch, Combined: 2,453 sq. ft.
Optional Lower Level: 2,717 sq. ft.
Basement Unfinished: 981 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 4
Half bathrooms: 2

Foundation Type

Standard Foundations: Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 144' 4"
Depth: 93' 4"
Max ridge height: 31' 0"

Garage

Type: Attached
Area: 1746 sq. ft.
Count: 4 Cars
Entry Location: Side, Courtyard

Ceiling Heights

Floor / Height: Lower Level / 11' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 9 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
