Plan 35498GH

Mountain House Plan with Octagonal Dining Room

Name: Plan 35498GH: Mountain House Plan with Octagonal Dining Room
Brand: Architectural Designs
SKU: 35498GH
Price: 2525.0 USD
Availability: InStock

Heated S.F.

4,312

Beds

Baths

Stories

Cars

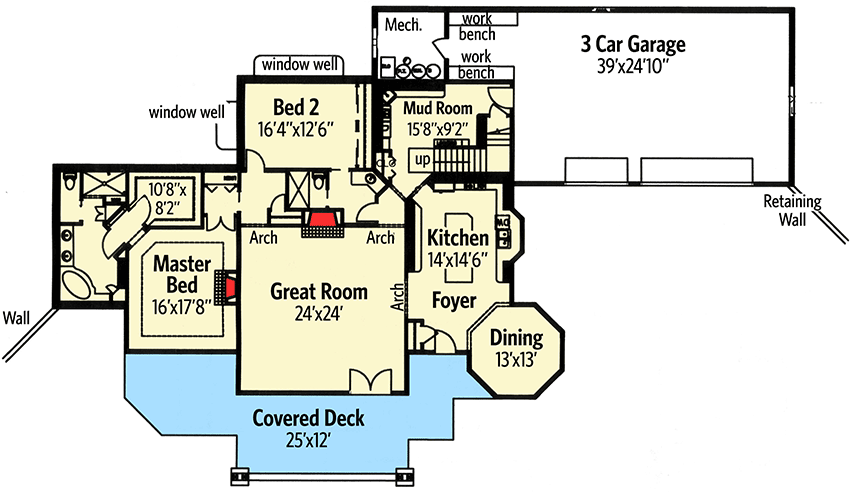

Floor Plan

Main Level

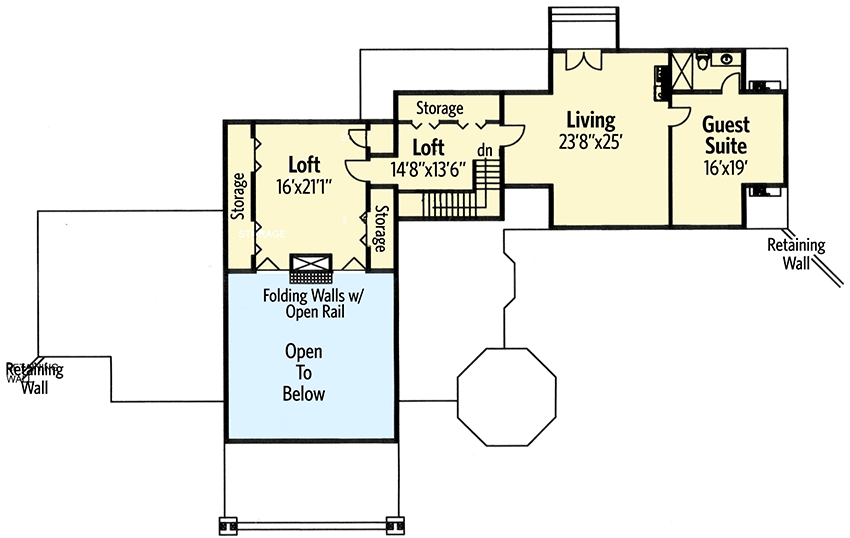

2nd Floor

Plan Details

A stunning octagonal dining room is flooded with light from lots of windows and transoms in this Mountain house plan.
The huge great room has a big fireplace and arches that open into the bedroom area and the large mud room.
In the kitchen, the sink fits into a bay window so you get extra counter space and lovely views.
The ' bedroom suite and a second bedroom are on the main floor.
On the upper floor, there's lots of storage closets and a big loft that has folding walls that let you look down into the great room below.
A private guest suite has its own living room and would make an ideal in-law suite.
The three car garage has a work bench area on two sides.

What's Included

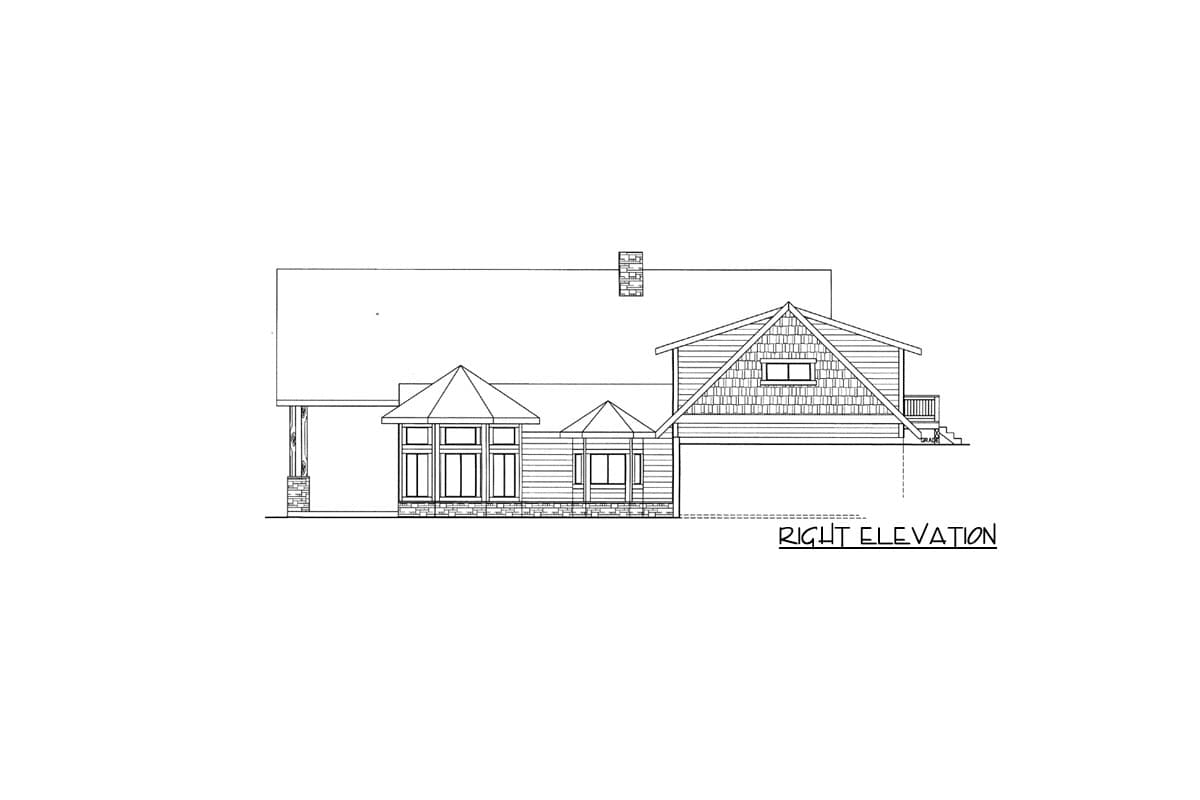

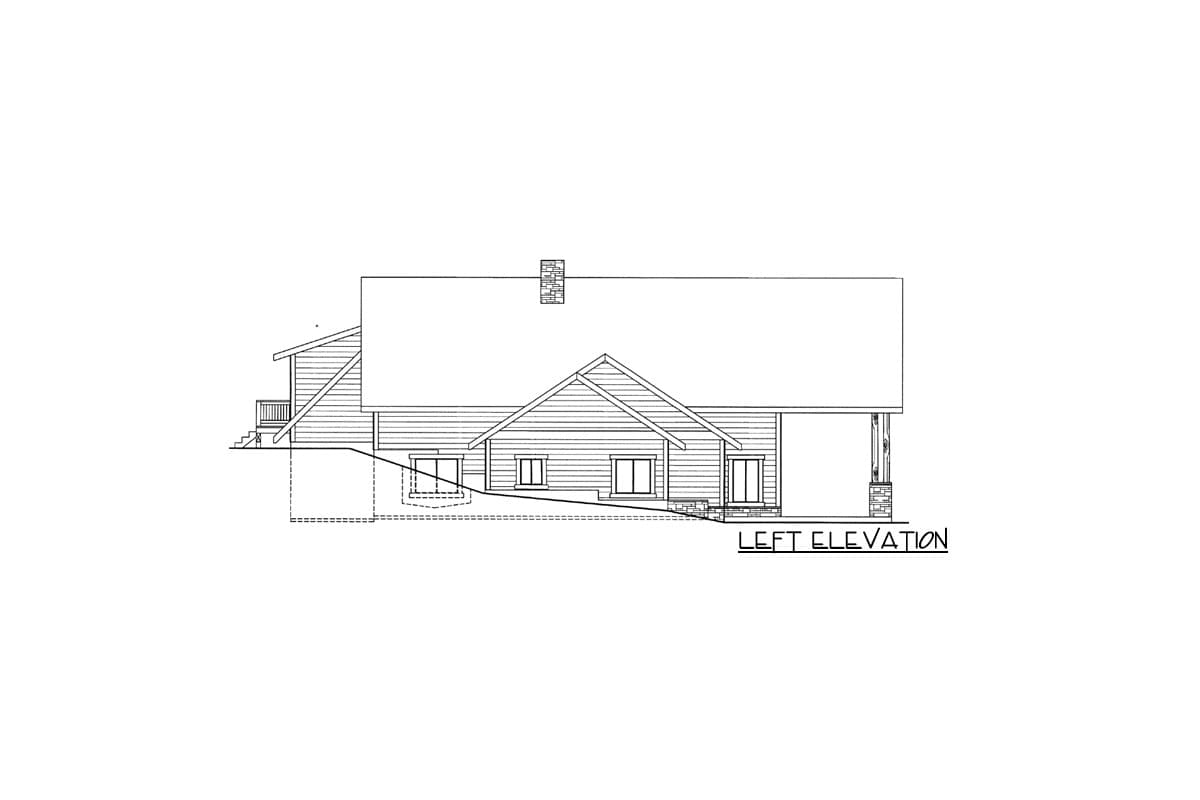

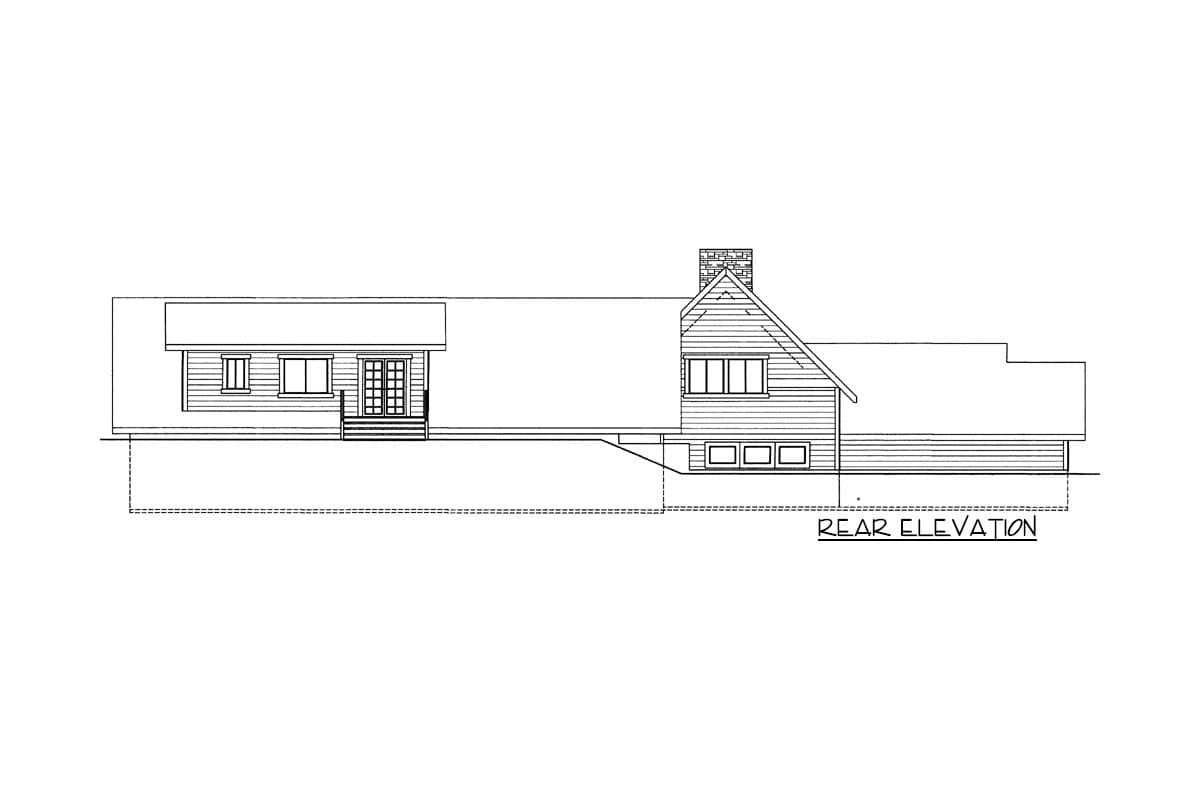

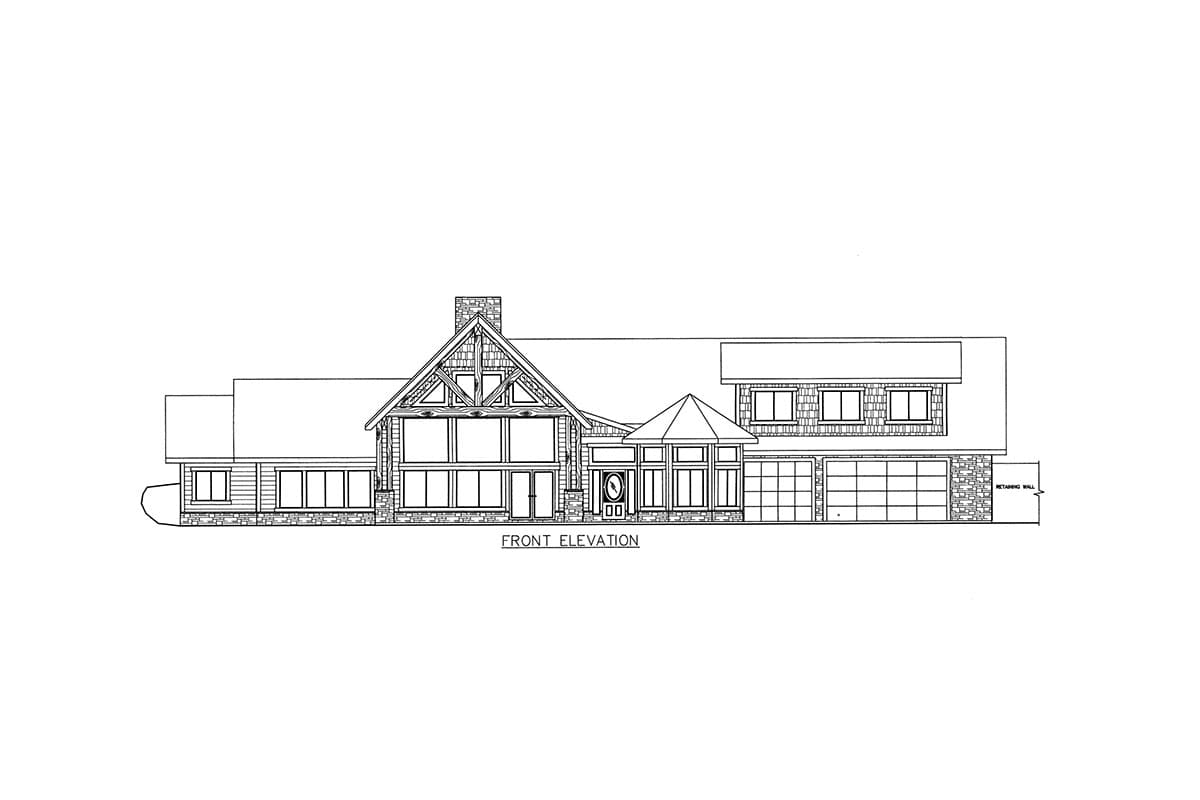

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
