Plan 64413SC
Mountain House Plan with Optional Lower Level
Heated S.F.
3,520
Beds
3 - 4
Baths
4.5 - 5.5
Stories
1
Cars
3
Floor Plan

Plan 64413SC

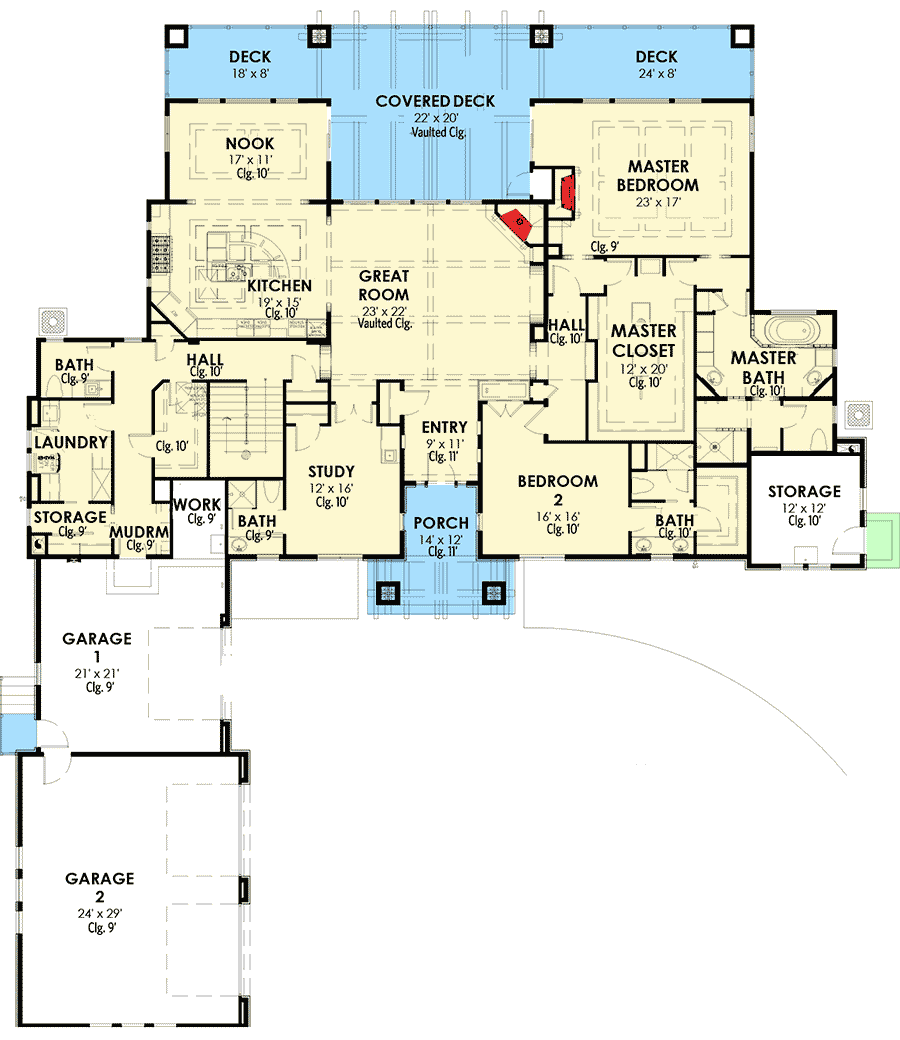

Main Level
slide image 0

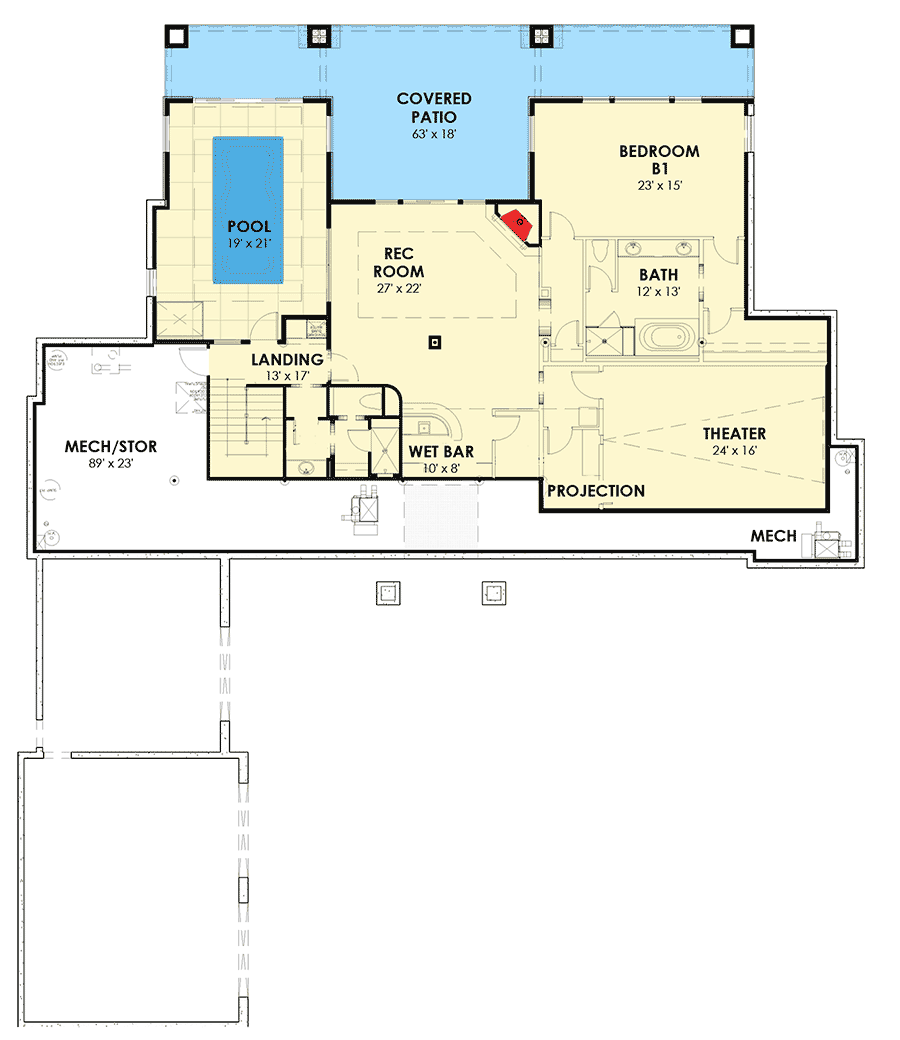

Optional Lower Level
slide image 1

Plan 64413SC

1-800-854-7852

1-262-521-4596

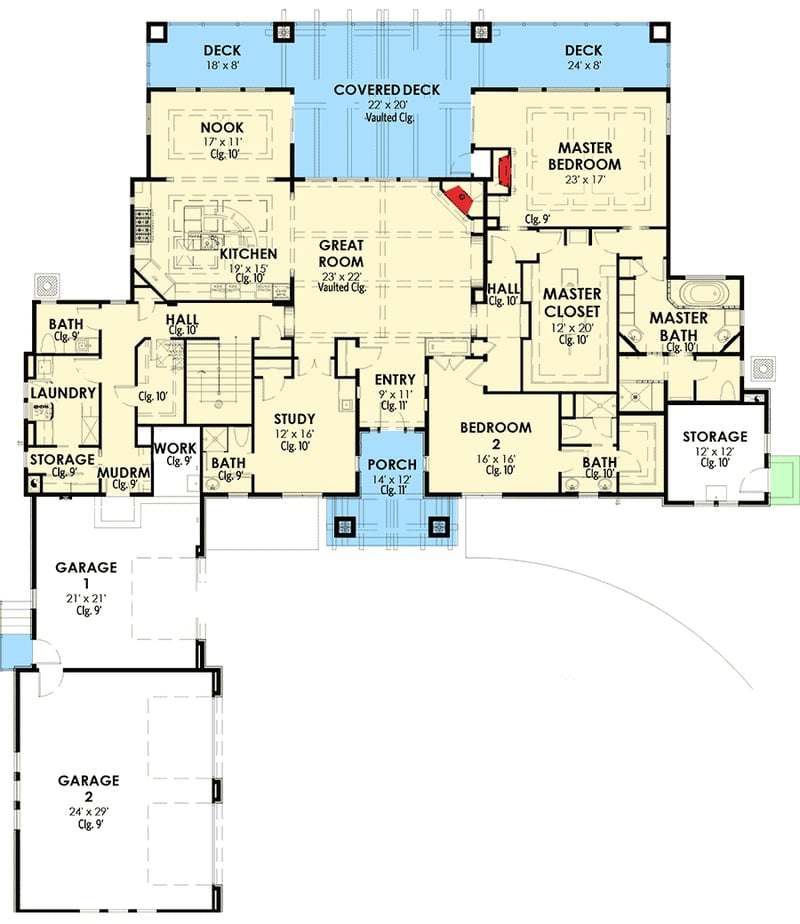

Main Level
floor plan image Main Level

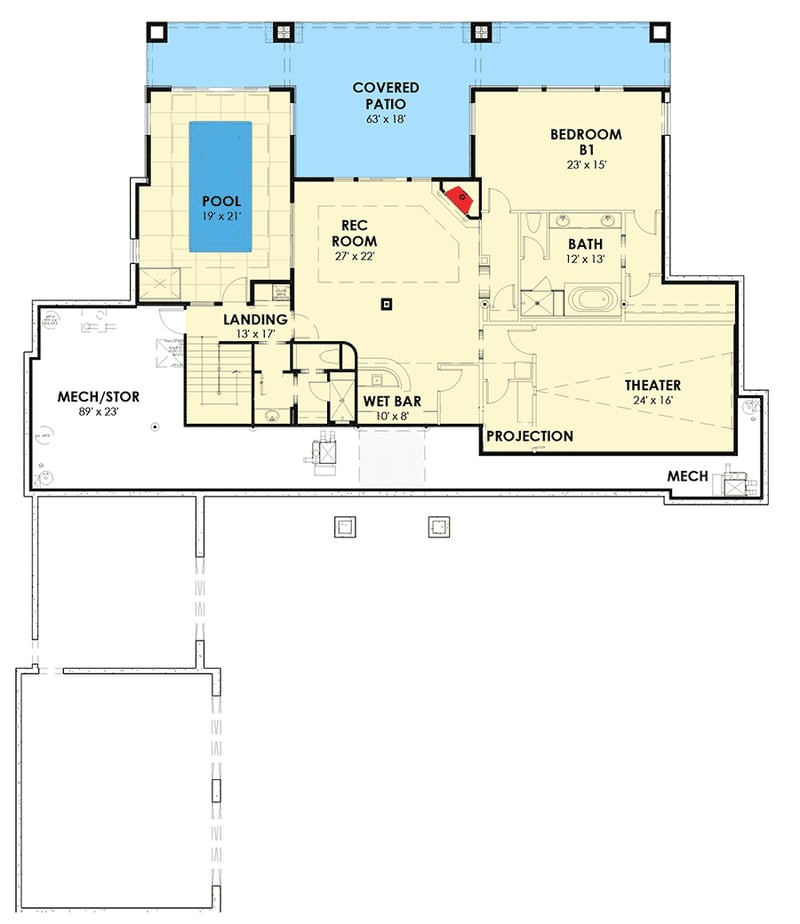

Optional Lower Level
floor plan image Optional Lower Level
Plan Details

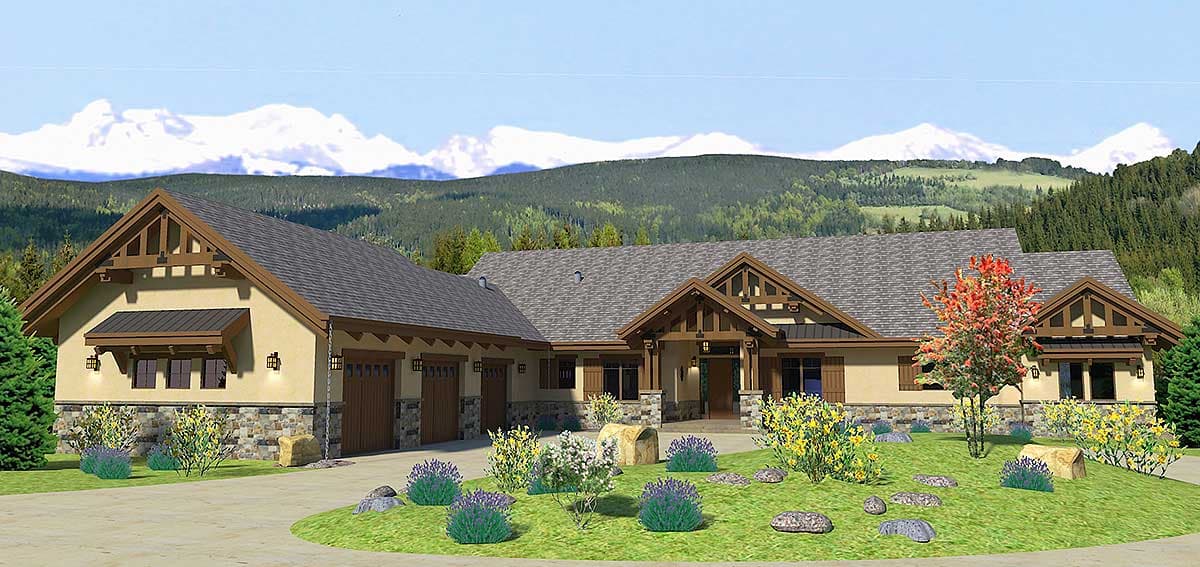

  • From the front, this rugged Mountain house plan looks like it's one story.
  • But the home comes with an optional finished lower level that let's you expand to include even an indoor pool.

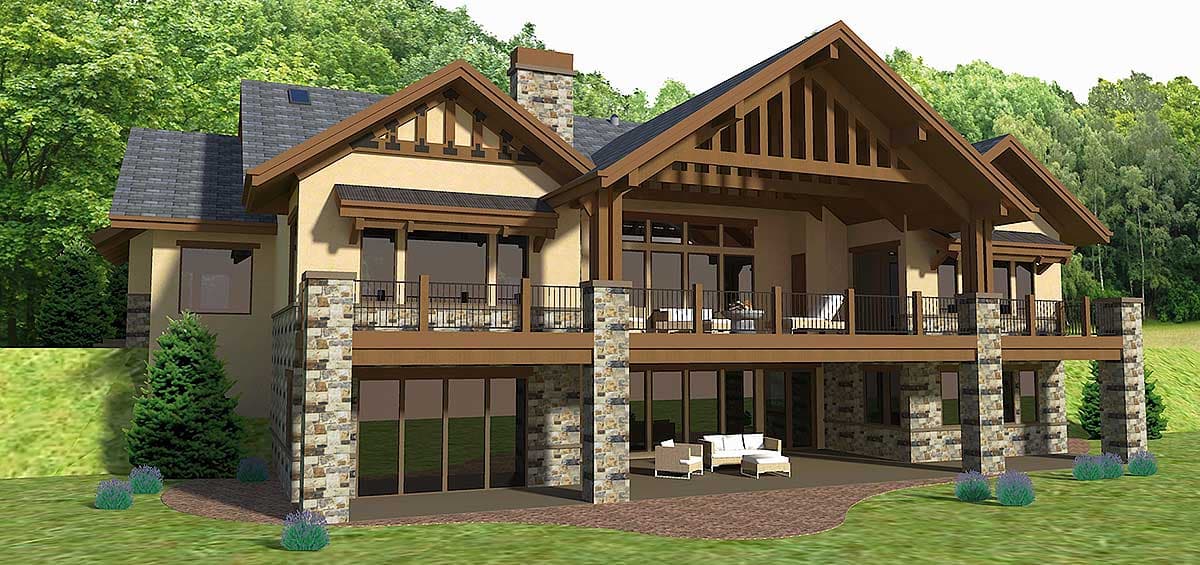

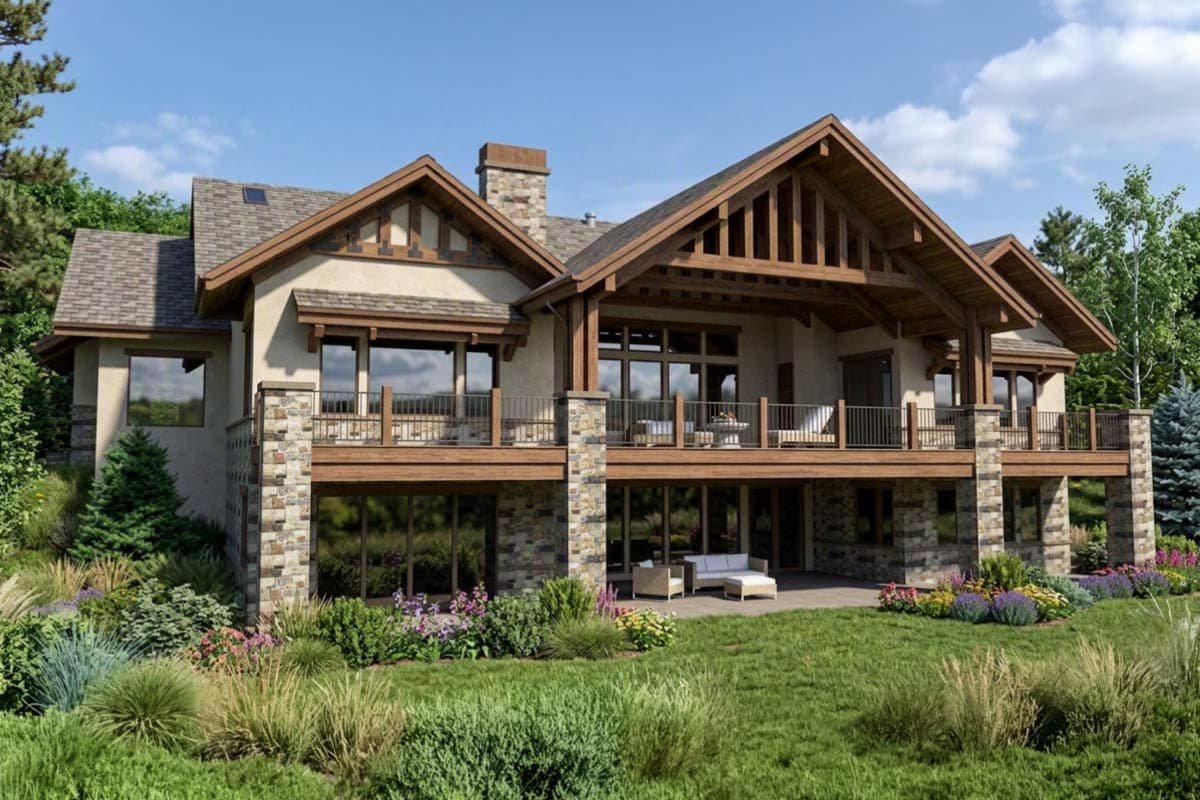

  • A magnificent vaulted and beamed ceiling in the great room extends out all the way to the covered deck in back.
  • There are open decks too in case you want to bask in the sun.
  • The gourmet kitchen is enormous and has a huge island so you have lots of work space.
  • Both bedrooms on this floor are on the right side of the home with the gorgeous master suite in back.
  • A big wall of windows brightens the master bedroom that comes with a tray ceiling and a cozy fireplace.
  • The master walk-in closet is gigantic and has an island in the center for even more storage.
  • Finishing the lower level as shown adds 2,607 square feet - that includes a huge theater room, wet bar and a rec room with corner fireplace.
  • There's even room for an indoor pool!
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,520 sq. ft.

1st Floor

3,520 sq. ft.

Optional Lower Level

2,615 sq. ft.

Porch, Front

150 sq. ft.

Deck

900 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

109' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

1220 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 0''

Great Room

Vaulted

10' 0''

Kitchen

Coffered

9' 0''

Dining Room

10' 0''

Bedroom 2

10' 0''

Bedroom 3

10' 0''

Foyer

11' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar
