Mountain House Plan with Vaulted Owner's Loft

Plan 72962DA

  • 1,509

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Grand views are provided by the two-story great room, which allows floor to ceiling windows on this beautiful, mountain house plan. A large deck offers outdoor living at its finest.
  • The light and airy great room and eat-in kitchen combine to create an open layout, while the two-story ceilings provide a feeling of spaciousness.
  • The angled, cooktop island anchors the living space and provides seating, while a corner pantry lends plenty of storage space.
  • A secondary bedroom and a study also reside on the main level, separated by an office nook.
  • The vaulted owner's loft shares the view provided to the main level, and includes a 4-fixture bath with a walk-in closet.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

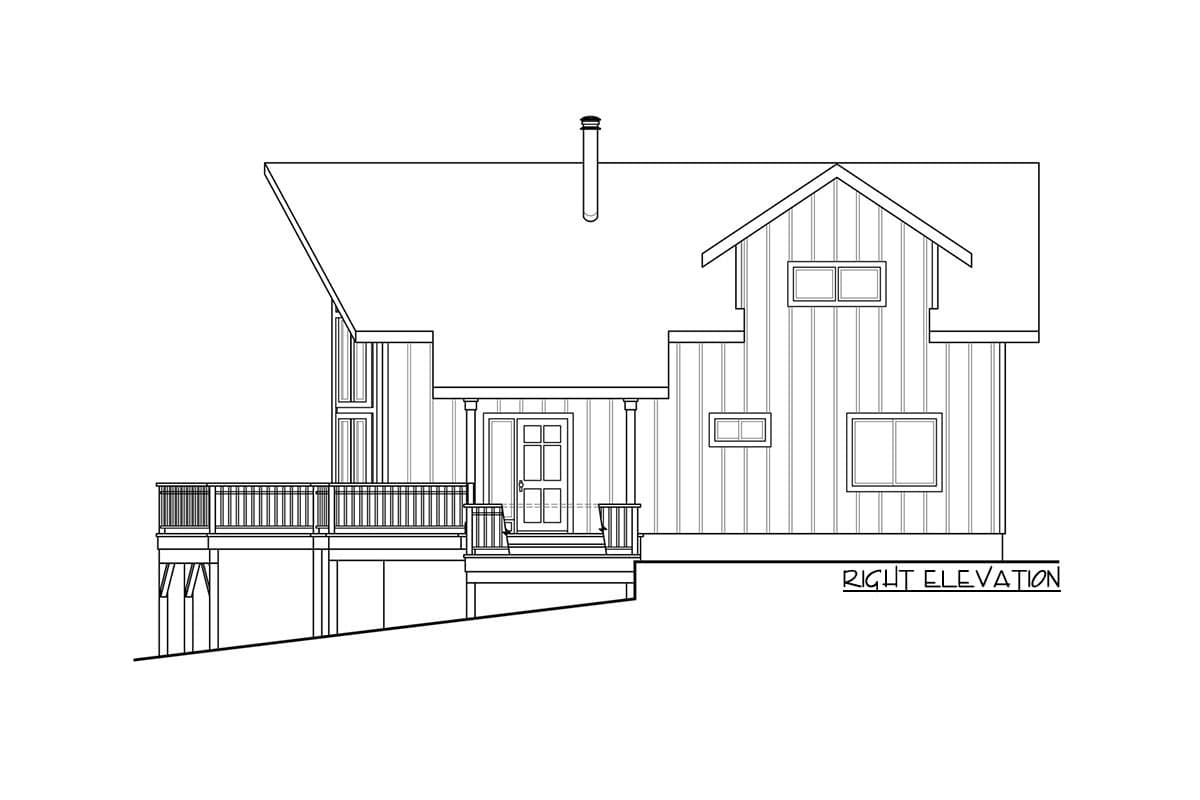

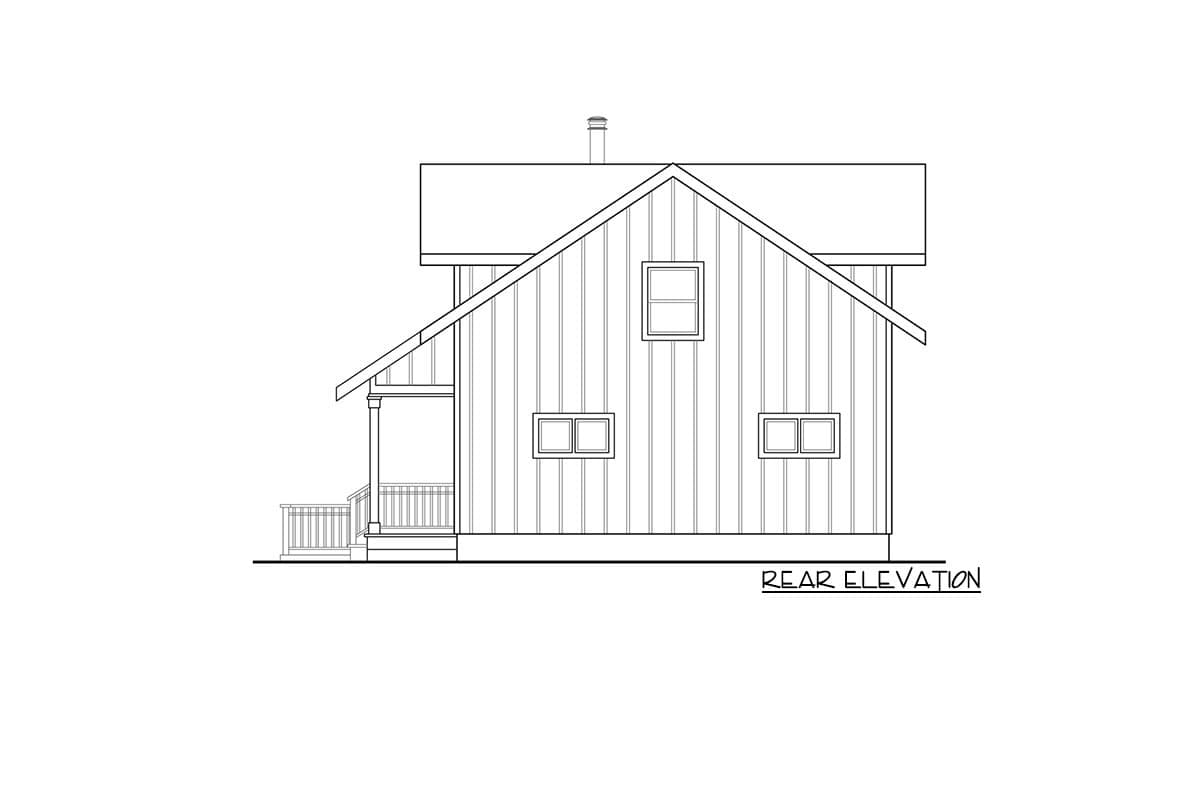

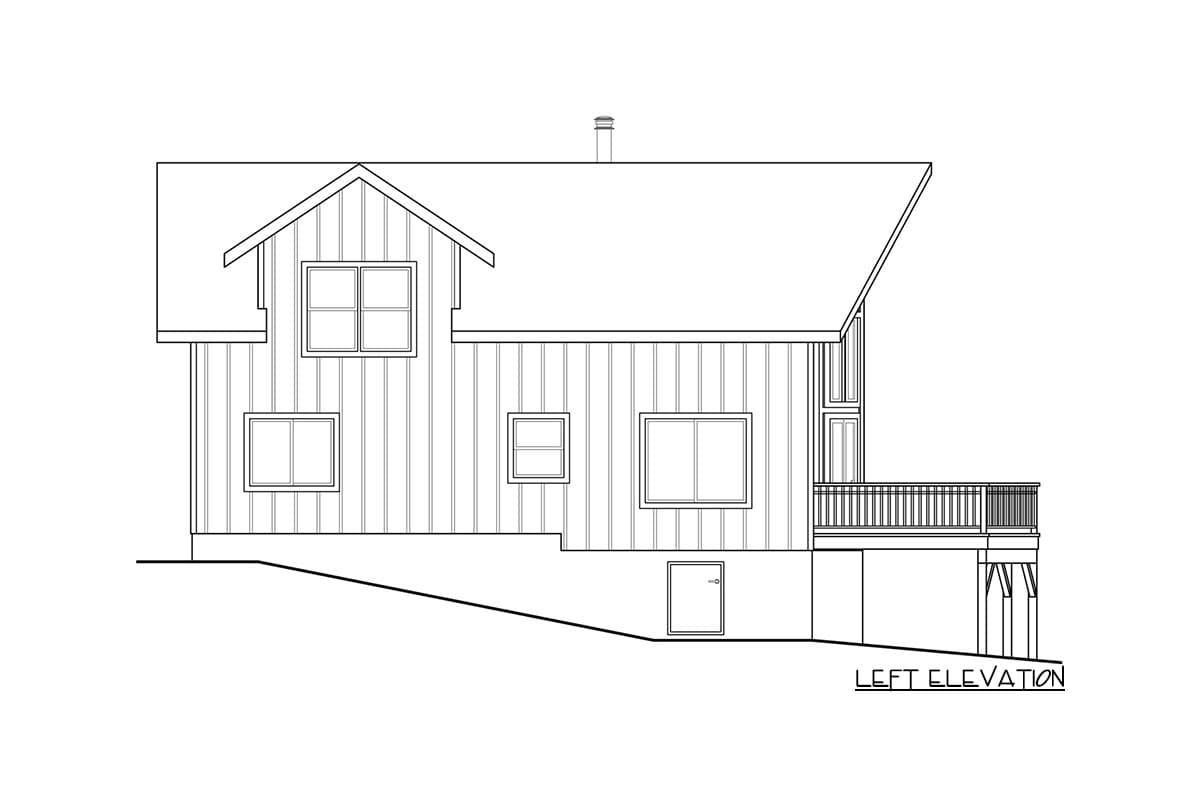

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

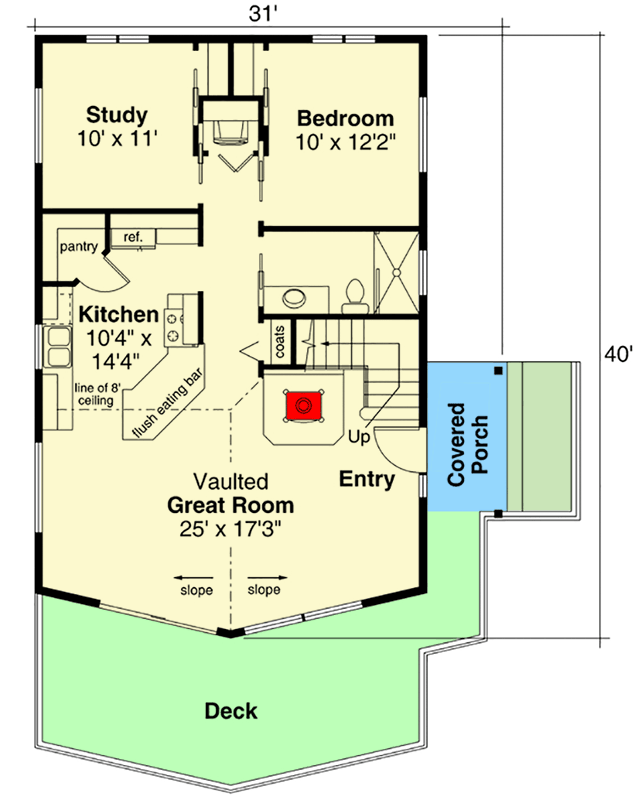

Mountain House Plan with Vaulted Owner's Loft - 72962DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

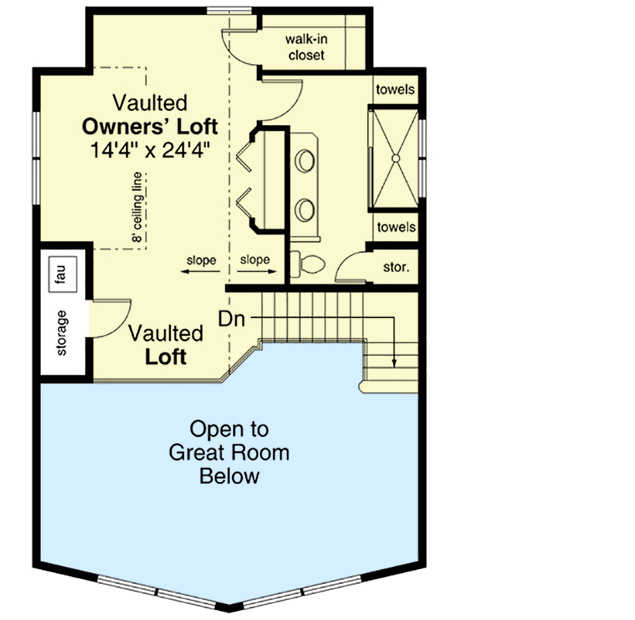

Mountain House Plan with Vaulted Owner's Loft - 72962DA floor plan - 2nd Floor

Main Level - Basement Stairs Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

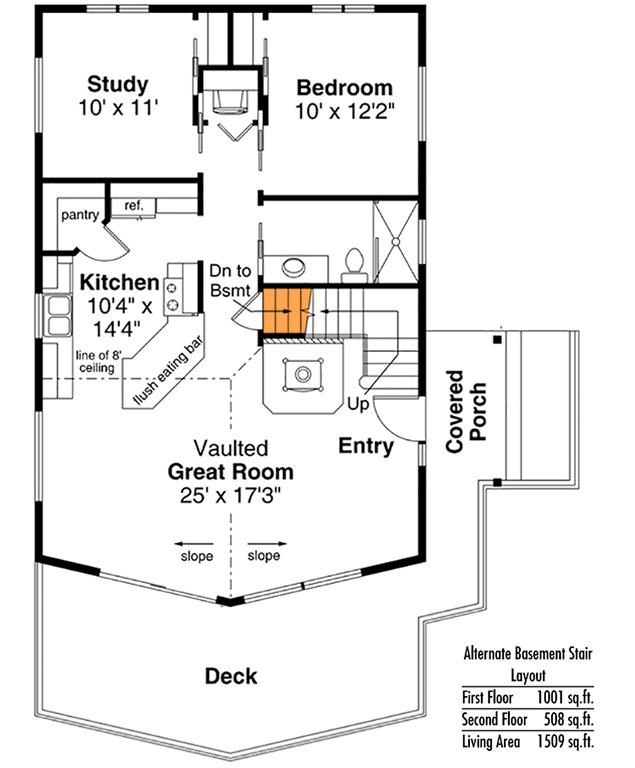

Mountain House Plan with Vaulted Owner's Loft - 72962DA floor plan - Main Level - Basement Stairs Location

Mountain House Plan with Vaulted Owner's Loft

  • 1,509

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 1,509 sq. ft.
  • 1st Floor: 1,001 sq. ft.
  • 2nd Floor: 508 sq. ft.

Dimensions

  • Width: 31' 0"
  • Depth: 40' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
