Plan 69514AM

  • 5,266

    Heated s.f.

  • 2-5

    Beds

  • 4 +

    Baths

  • 1

    Stories

  • 3

    Cars

  • Being influenced by Lodge, Shingle, and Craftsman house plan architectural styles, this home plan beautifully incorporates rustic natural materials with simple and classic design elements. Modest from the outside, this Craftsman style home plan will dazzle you once inside.
  • A welcoming porch serves as your point of entry into the home and inside a lovely vaulted foyer greets you. Just beyond the foyer is the great room which opens into the formal dining room as well.
  • Across from the dining room is the fantastic kitchen with an island and a walk-in pantry.
  • Connected to the dining room is the three season porch equipped with an outdoor kitchen.
  • There is an office with built-ins with direct porch access on the other side of the foyer.
  • Across from the office the first master bedroom not only has a substantial amount of closet space, but is also connected to a rear porch decked out with a hot tub. This bedroom shares a connection to the second master bedroom by way of a lavish bathroom which includes Jack and Jill water closets, twin vanity units and a luxurious double entry shower. The second master also has plenty of closet space and an outside porch of its own. mud room located near the master bedrooms and laundry room round out the main floor.
  • The basement is where you will find the three remaining bedrooms are, all with their own closet space. There is also a game room and da wine cellar.
  • A dual level three car garage with ample storage completes this home plan.
  • BONUS: See more photos in our Facebook photo album.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Mountain Living with Outdoor Spaces

  • 5,266

    Heated s.f.

  • 2 - 5

    Beds

  • 4 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,588
  • PDF - single-use $1,938
  • 5 Sets $2,088
  • 5 Sets PLUS $2,138
  • CAD - multi-use $3,876
  • View all purchase option online

About This Plan

  • Being influenced by Lodge, Shingle, and Craftsman house plan architectural styles, this home plan beautifully incorporates rustic natural materials with simple and classic design elements. Modest from the outside, this Craftsman style home plan will dazzle you once inside.
  • A welcoming porch serves as your point of entry into the home and inside a lovely vaulted foyer greets you. Just beyond the foyer is the great room which opens into the formal dining room as well.
  • Across from the dining room is the fantastic kitchen with an island and a walk-in pantry.
  • Connected to the dining room is the three season porch equipped with an outdoor kitchen.
  • There is an office with built-ins with direct porch access on the other side of the foyer.
  • Across from the office the first master bedroom not only has a substantial amount of closet space, but is also connected to a rear porch decked out with a hot tub. This bedroom shares a connection to the second master bedroom by way of a lavish bathroom which includes Jack and Jill water closets, twin vanity units and a luxurious double entry shower. The second master also has plenty of closet space and an outside porch of its own. mud room located near the master bedrooms and laundry room round out the main floor.
  • The basement is where you will find the three remaining bedrooms are, all with their own closet space. There is also a game room and da wine cellar.
  • A dual level three car garage with ample storage completes this home plan.
  • BONUS: See more photos in our Facebook photo album.

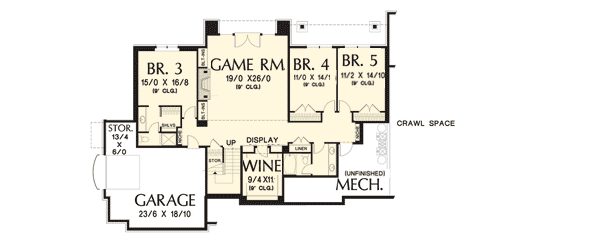

Floor Plans

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,266 sq. ft.
  • Lower Level: 1,760 sq. ft.
  • 1st Floor: 3,506 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, & 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 123' 11"
  • Depth: 78' 8"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 708 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Framing Type: Truss
