Plan 54204HU Mountain Luxury With Bridge Balcony

3,738 4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Luxury With Bridge Balcony

Plan 54204HU

  • 3,738

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

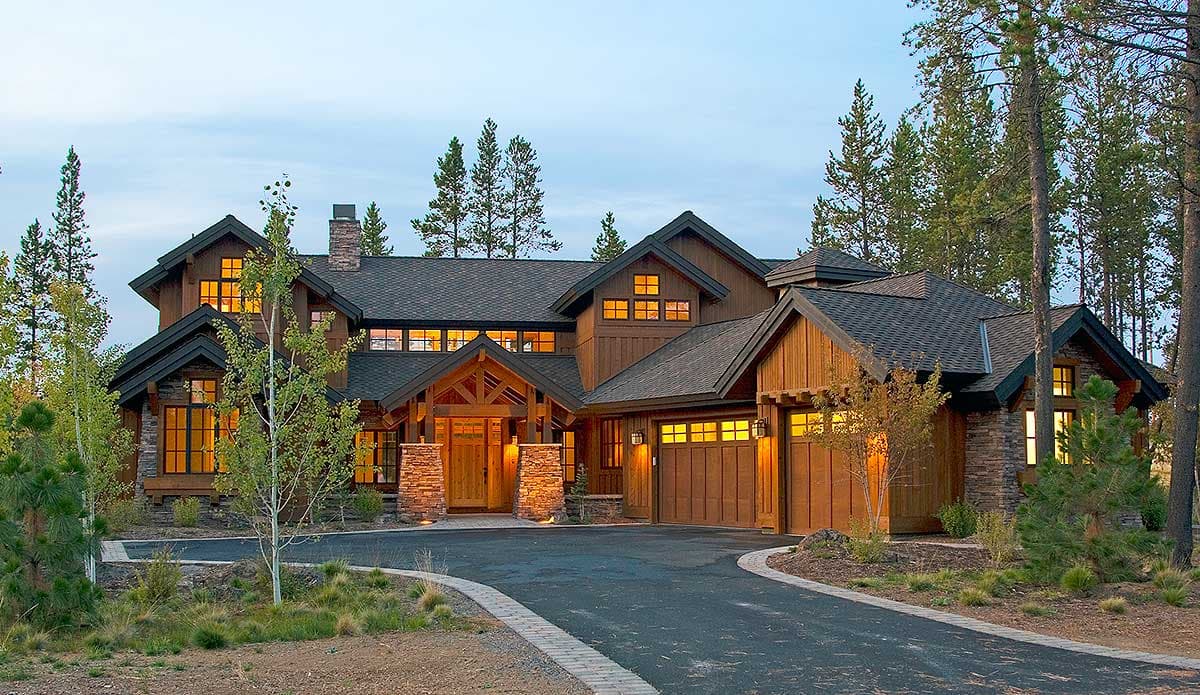

  • Spacious and luxurious, this rugged Mountain home gives you two master suites on the main level and a third on the second floor.

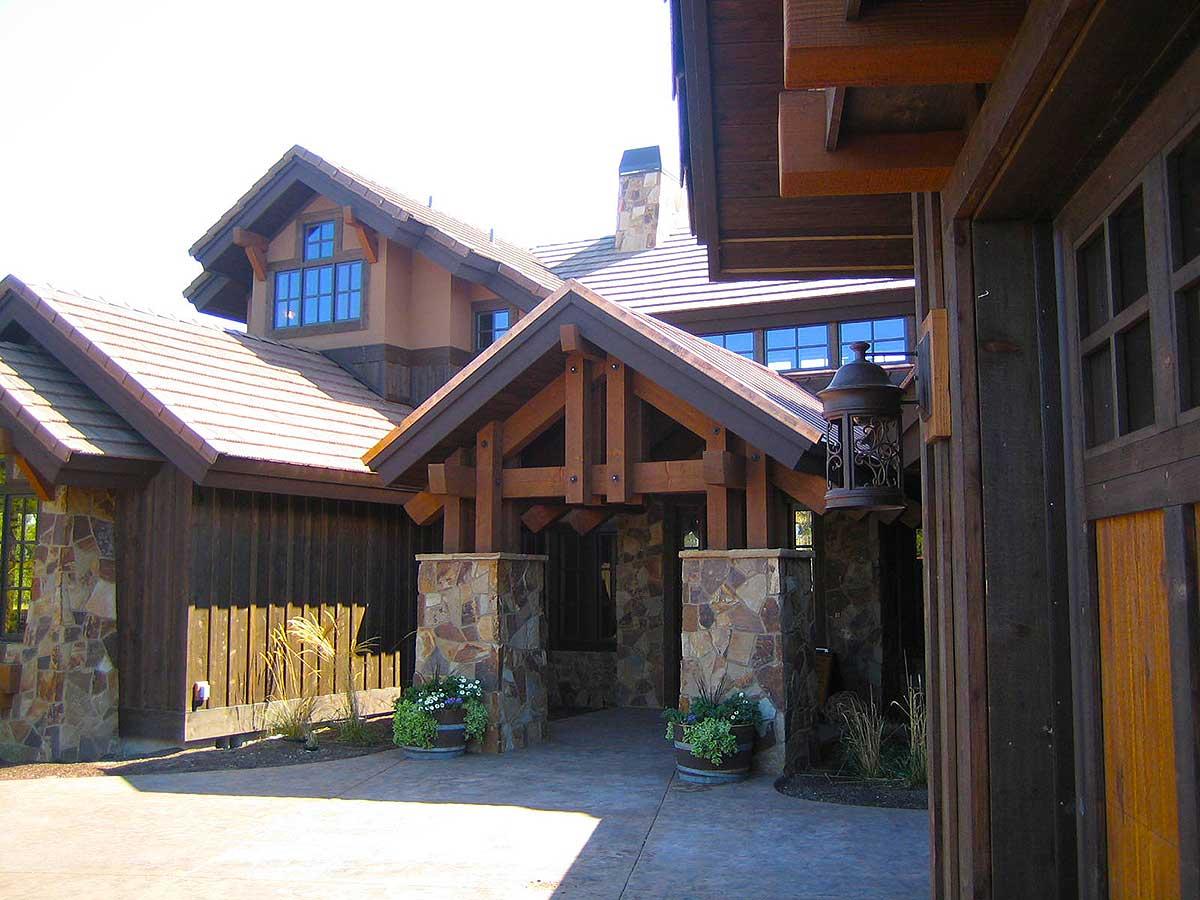

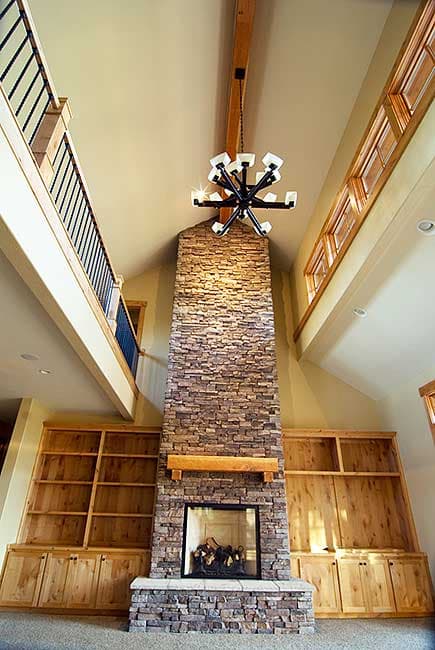

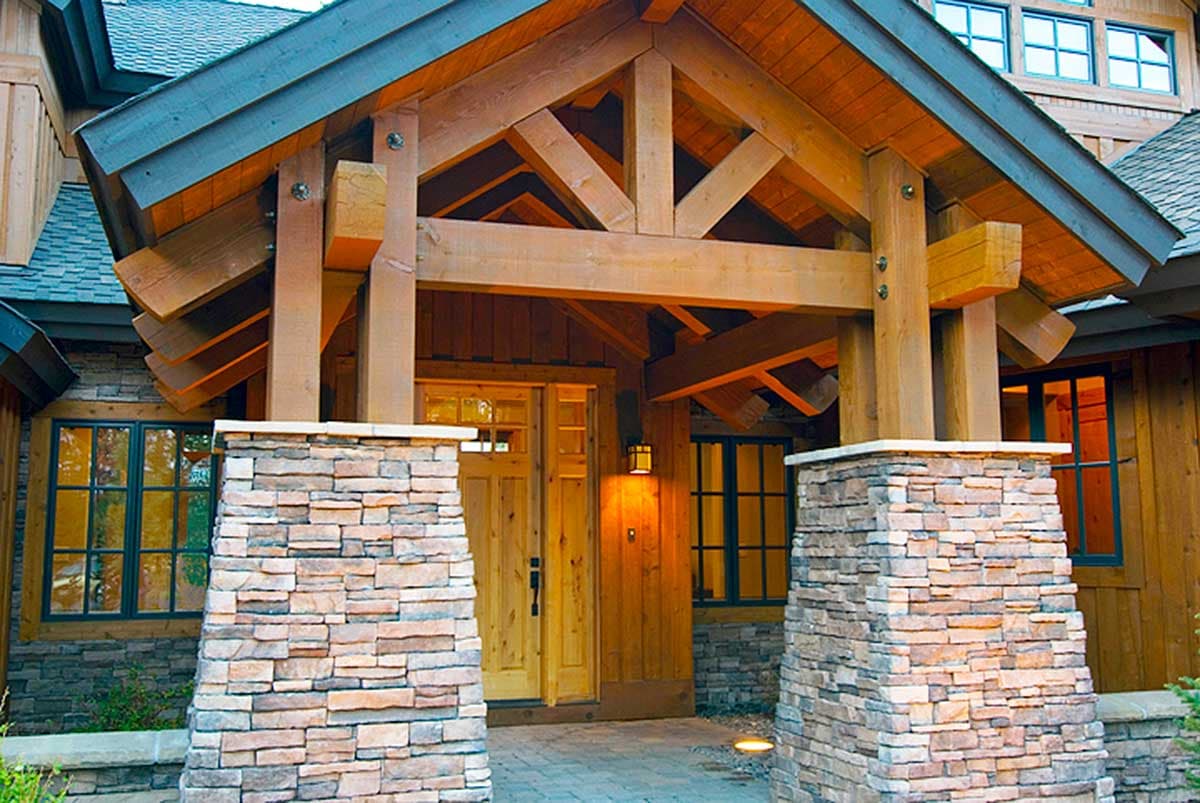

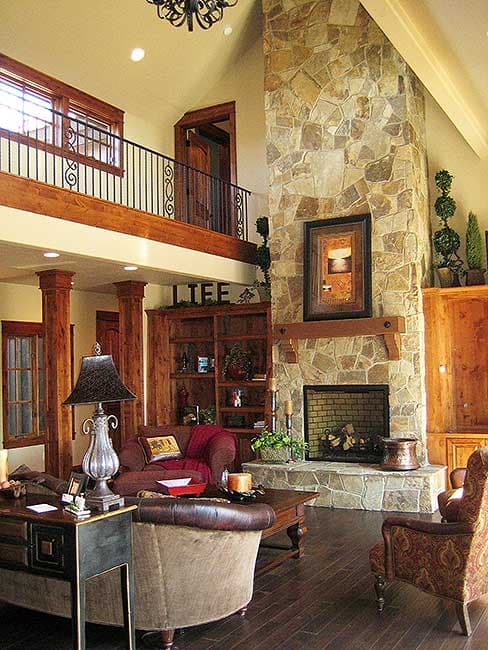

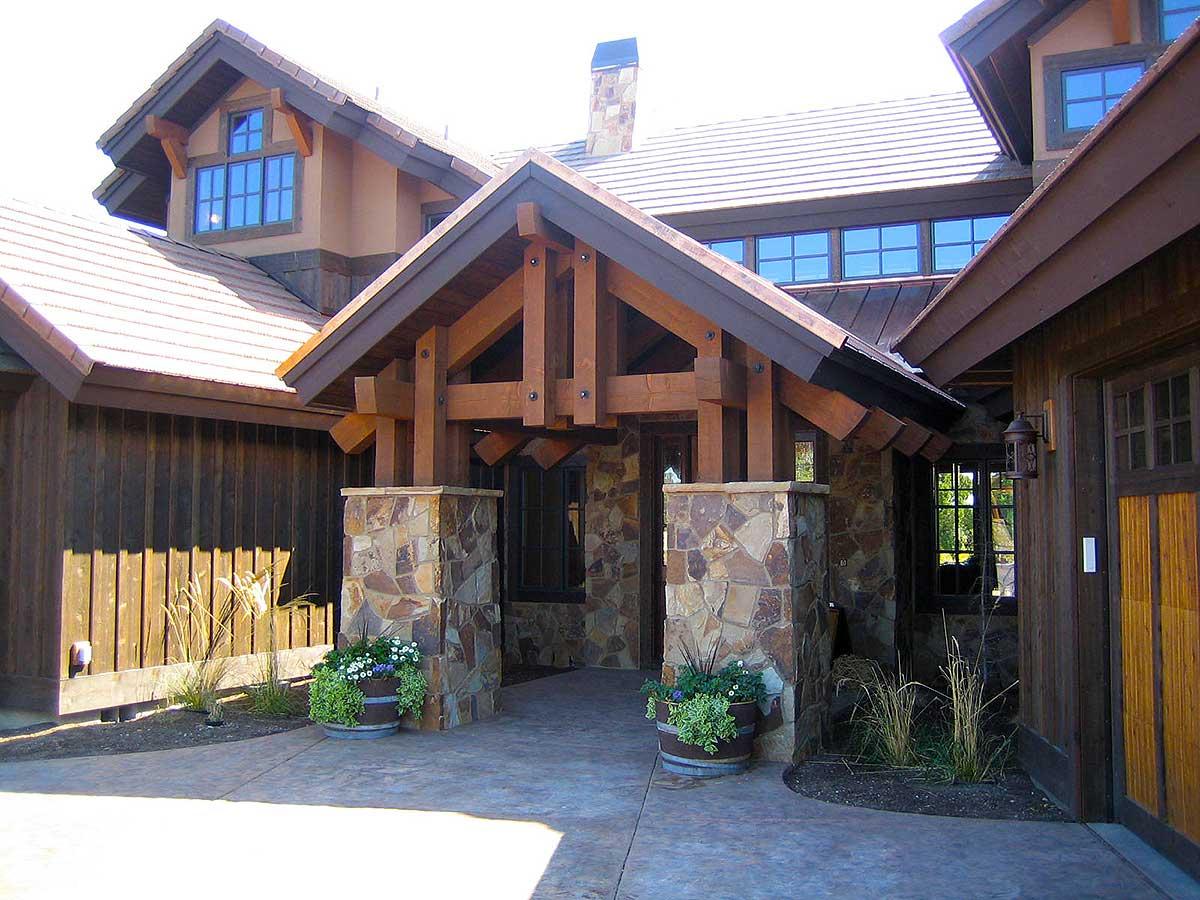

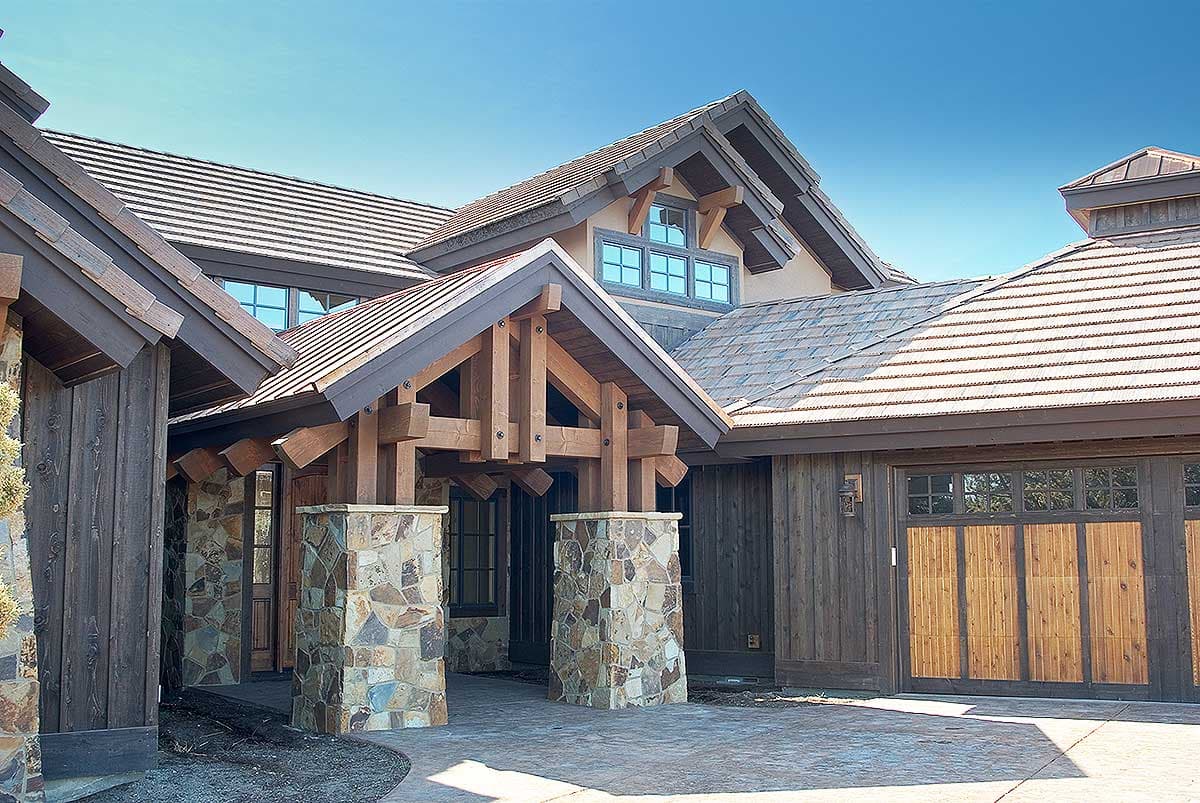

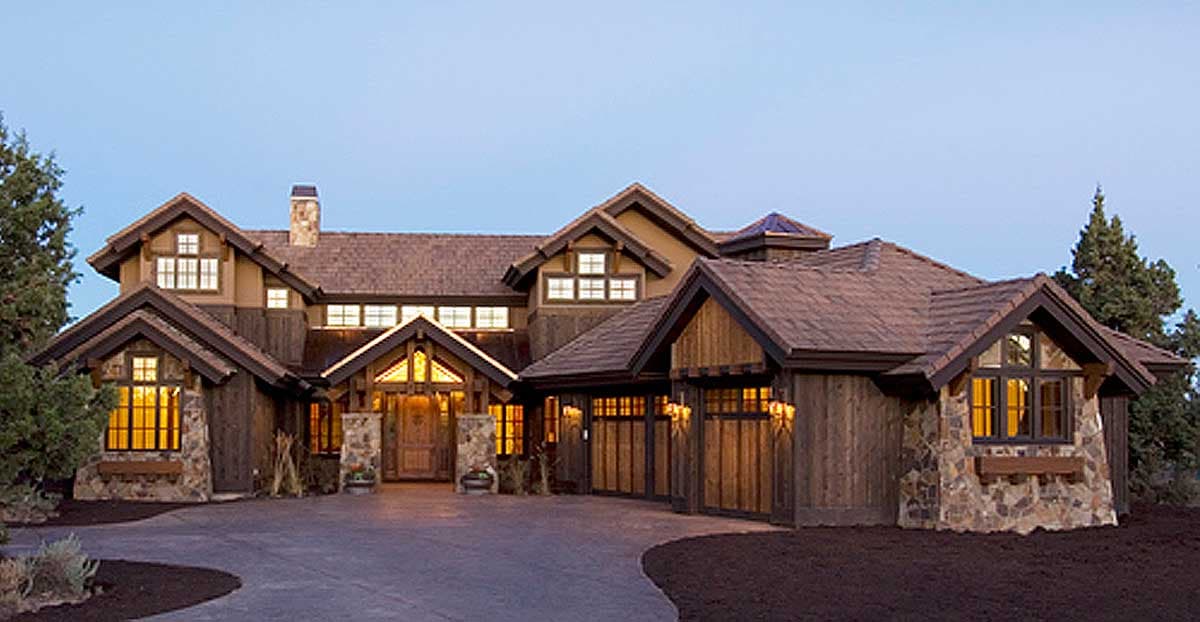

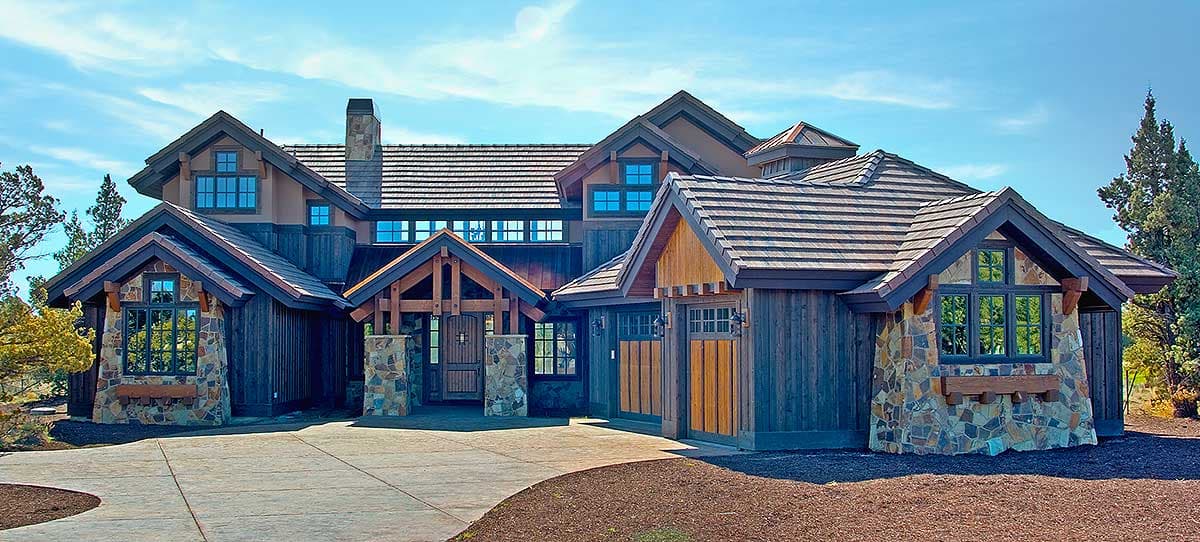

  • A courtyard entry opens to a huge foyer with clear sightlines to the two-story great room with its cozy fireplace.

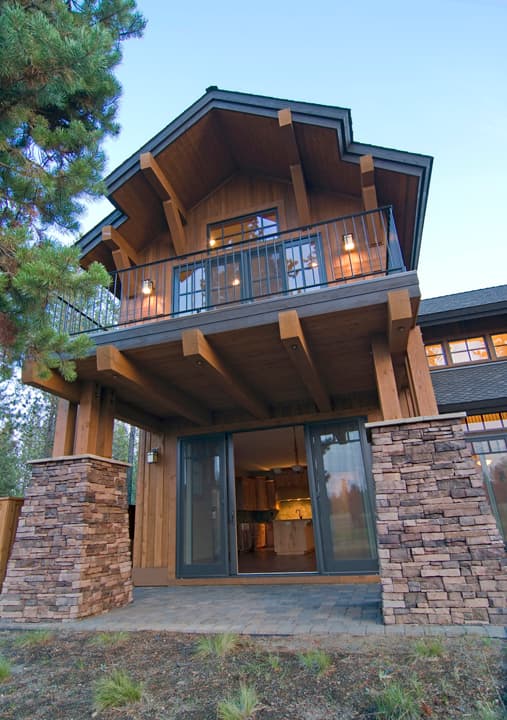

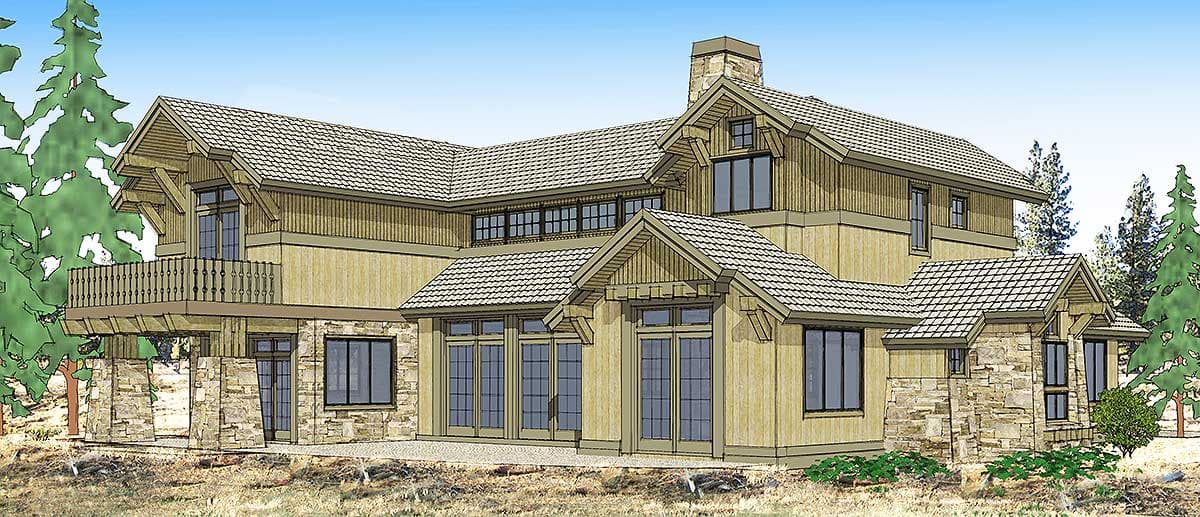

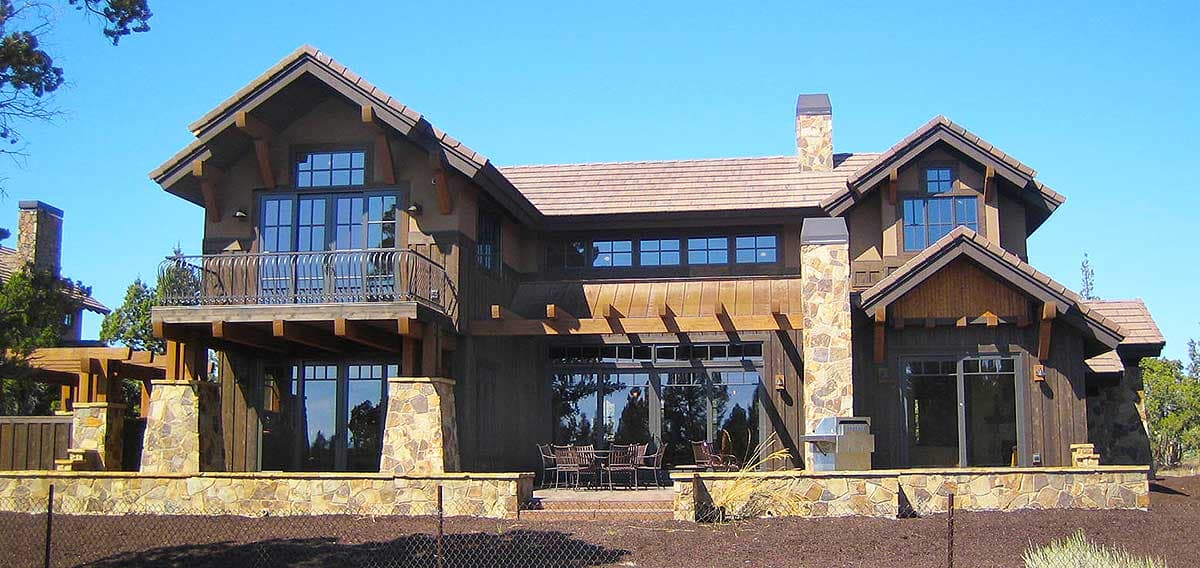

  • Sliding glass doors give you easy access to the rear terrace.

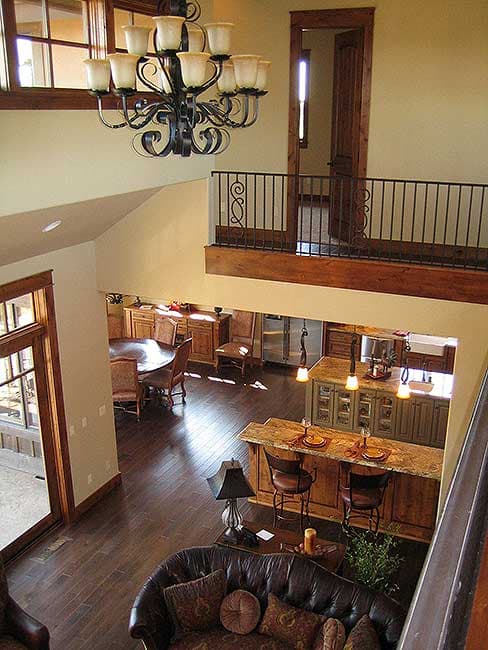

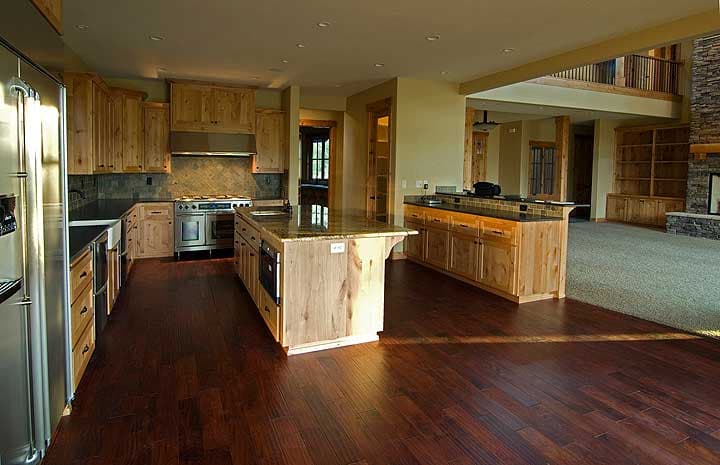

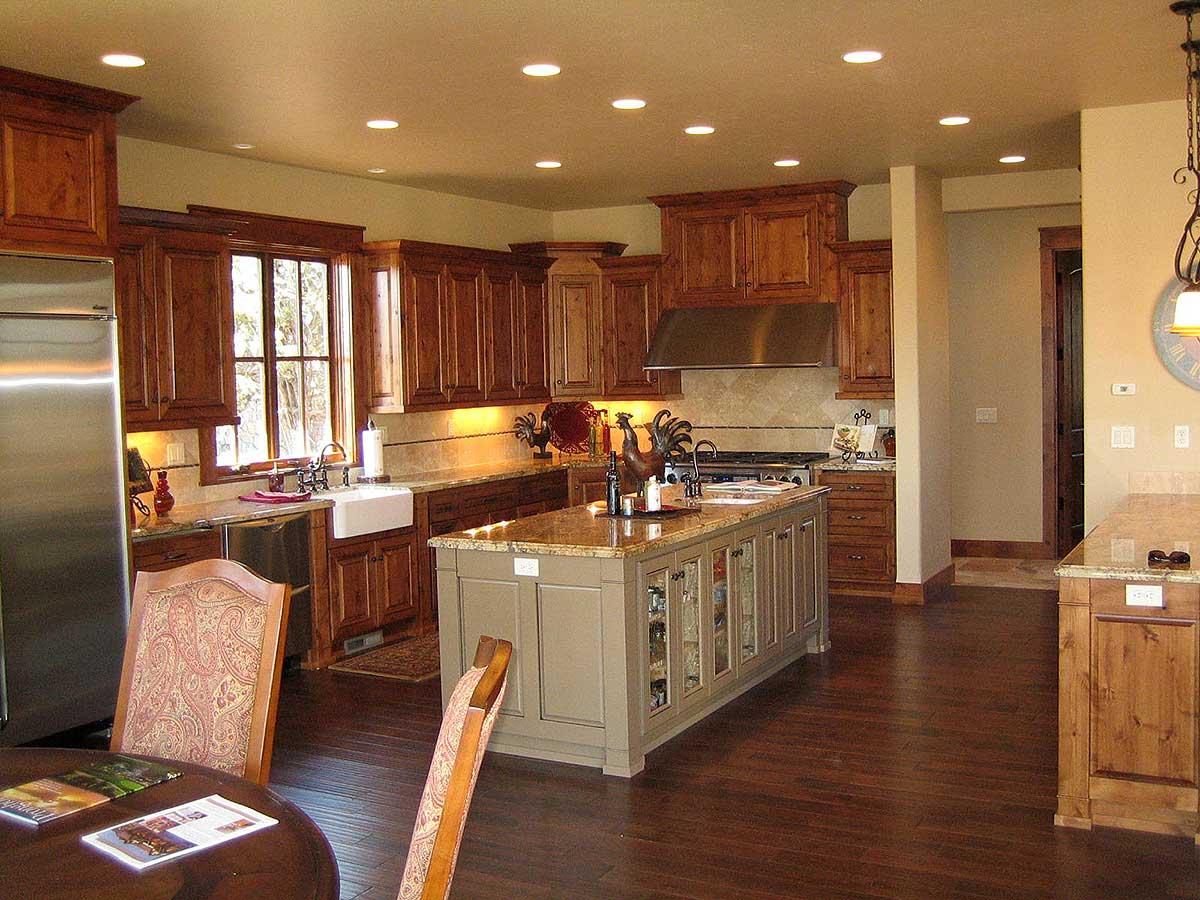

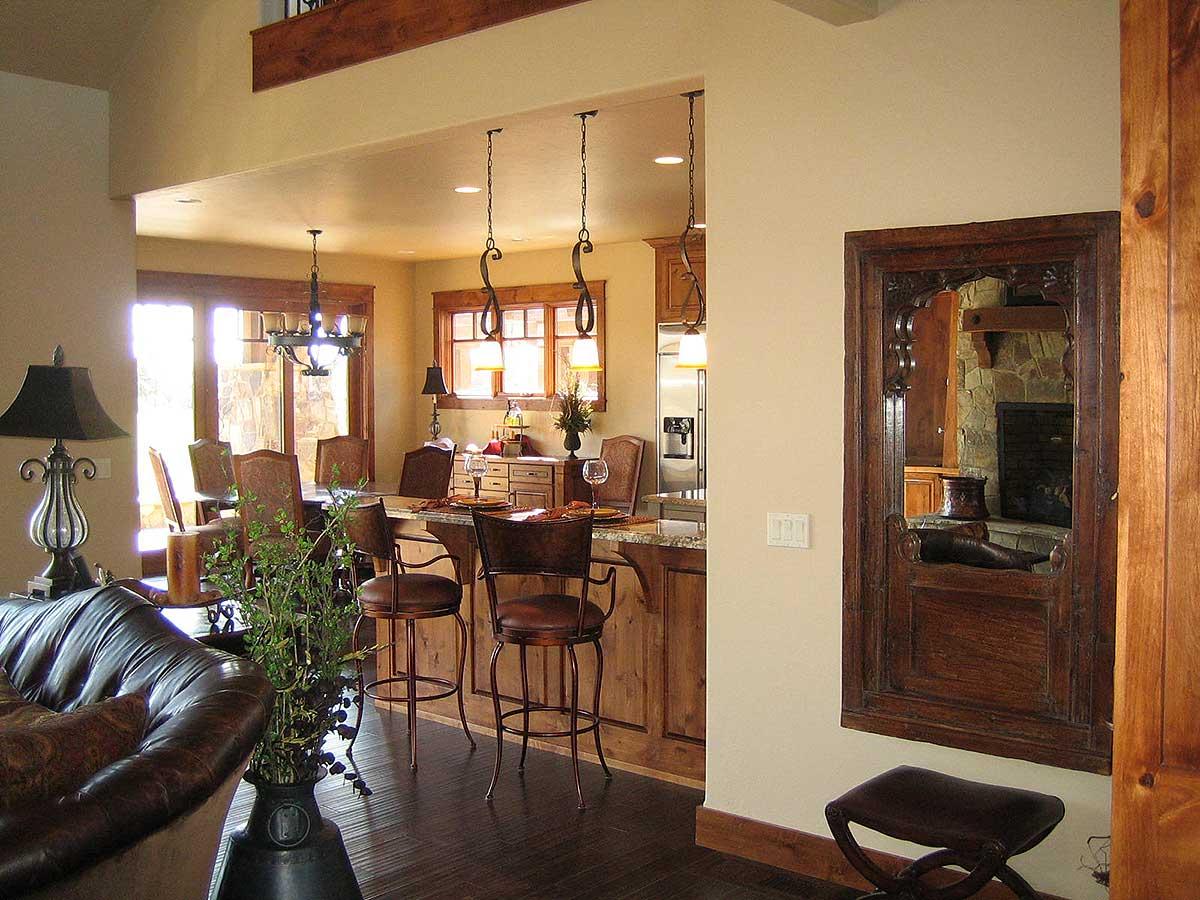

  • Dine informally at the eating bar in the kitchen or at the big dining room table with windows on three sides.

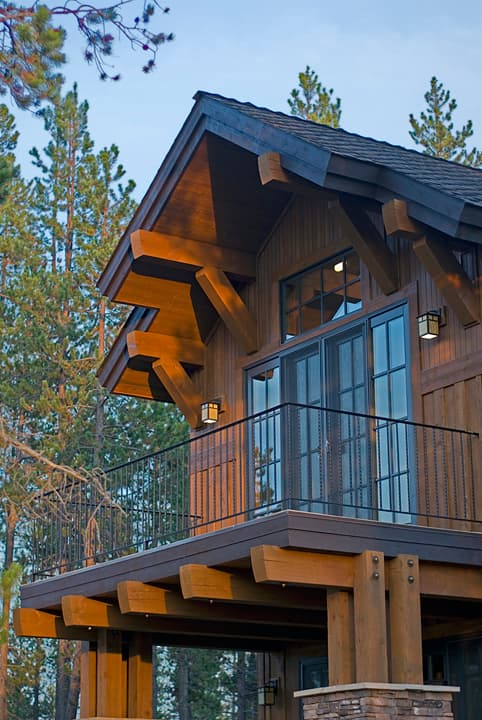

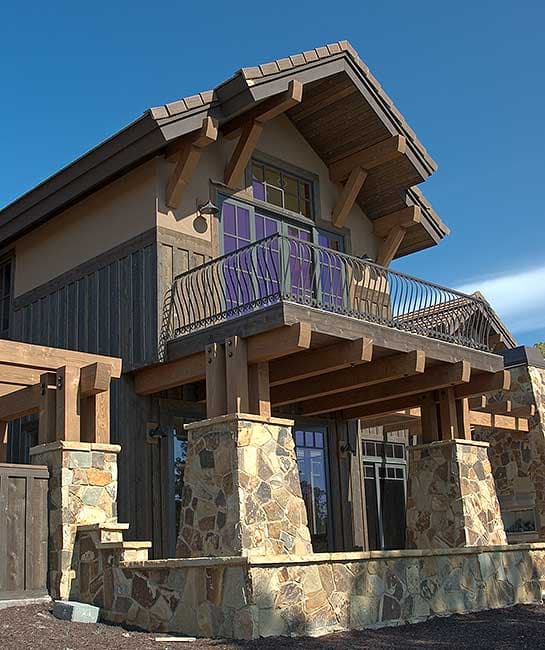

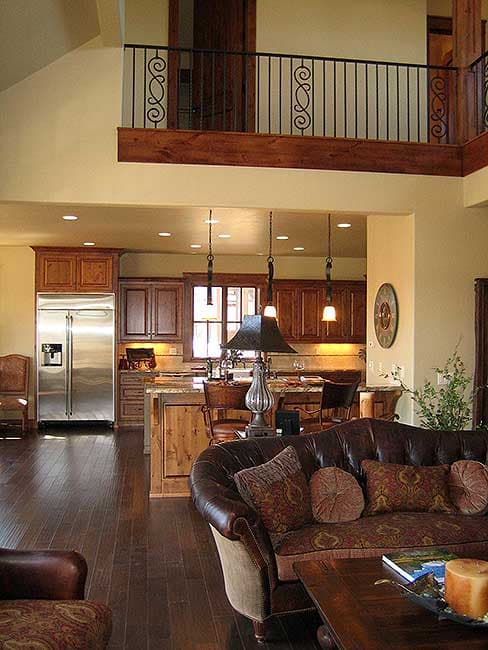

  • Clerestory windows light up the second floor balcony bridge that connects the two bedrooms on this level.
  • A sitting area and bonus room that opens to an outdoor deck give you lots of places to relax.

Each plan set includes the following:

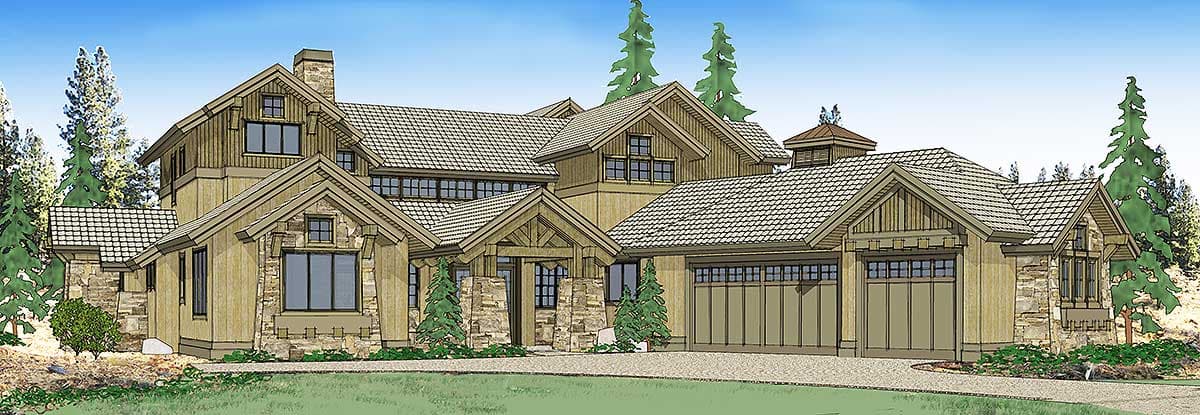

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

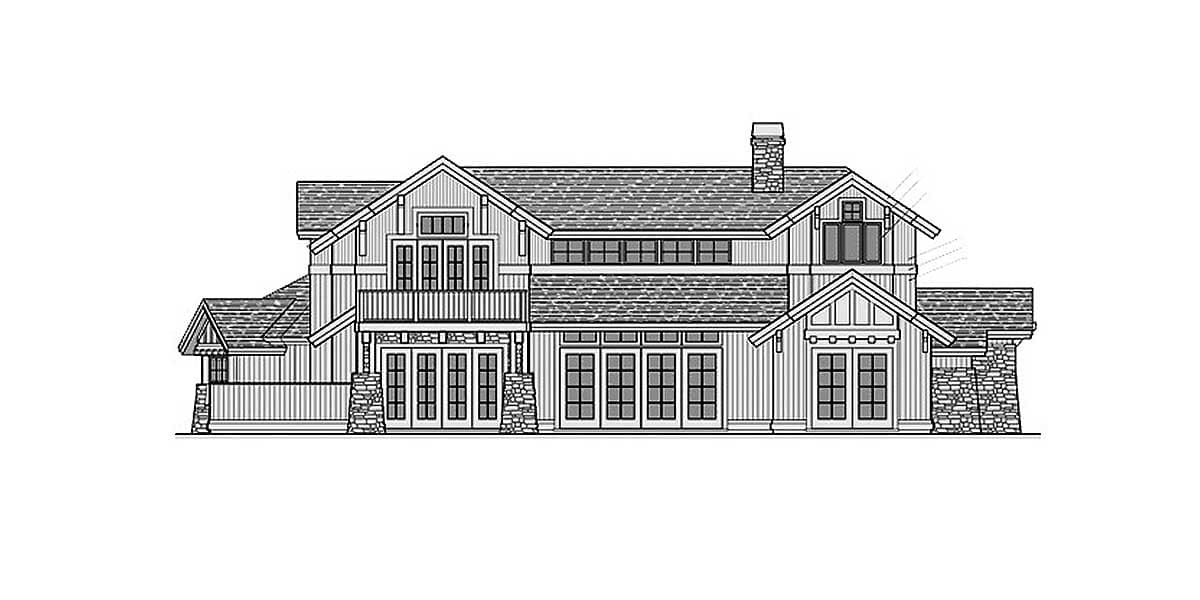

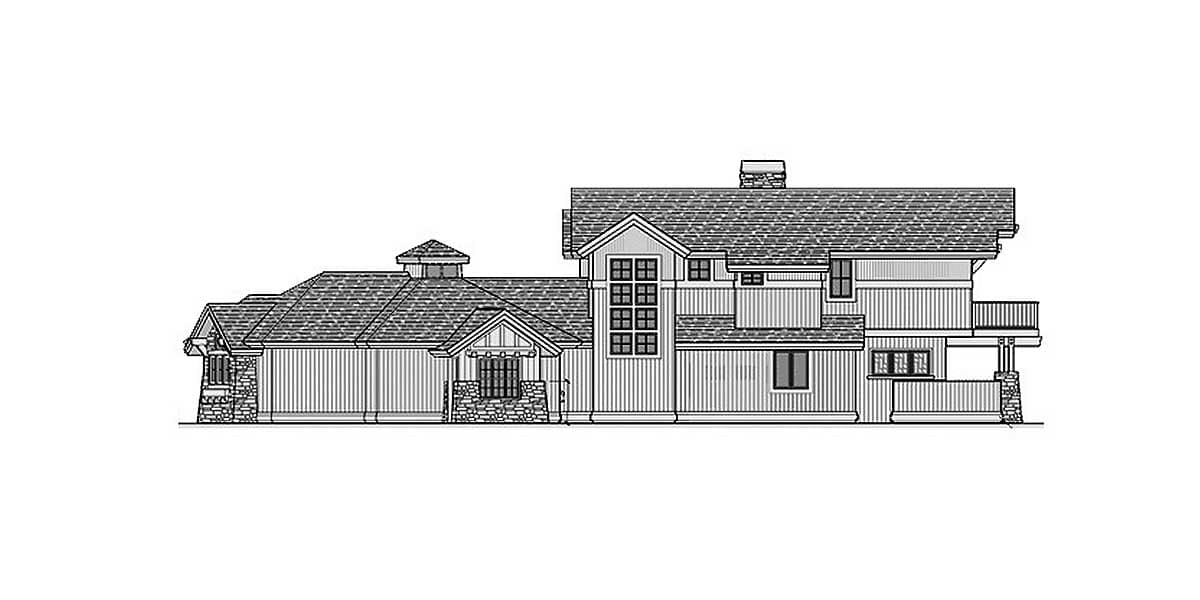

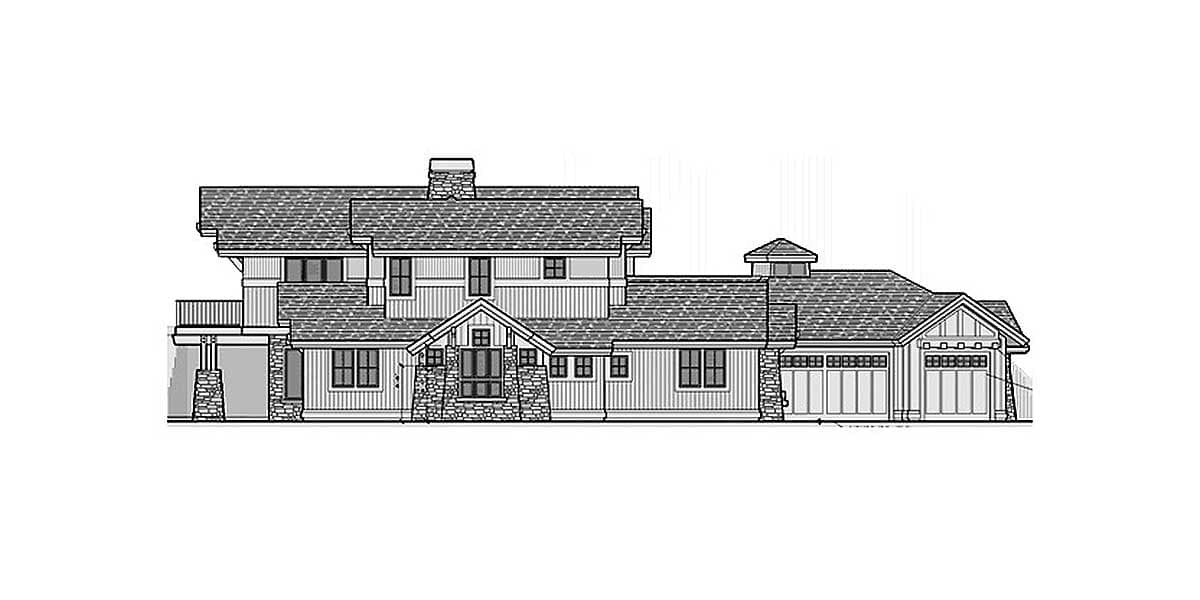

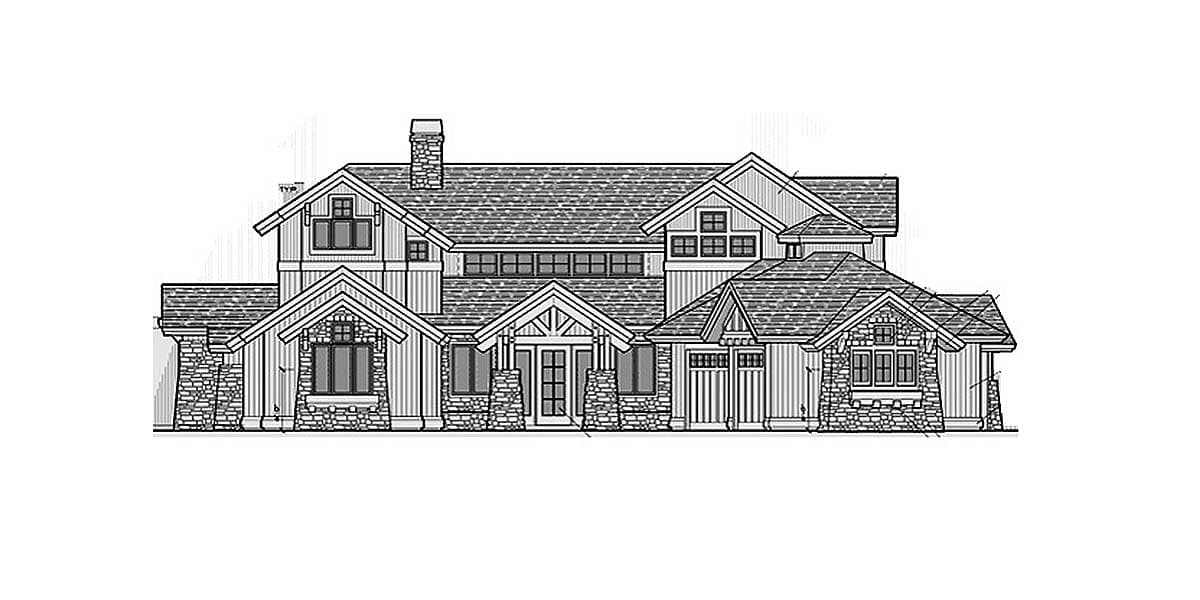

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

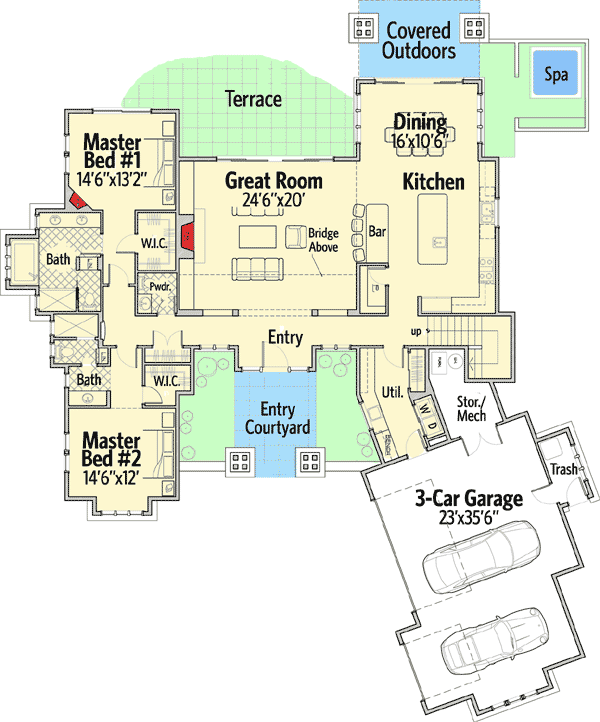

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Luxury With Bridge Balcony - 54204HU floor plan - Main Level

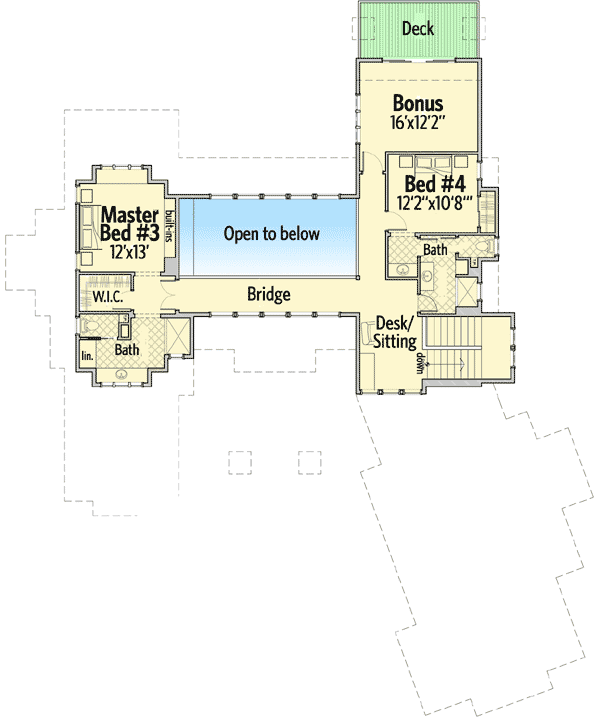

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Luxury With Bridge Balcony - 54204HU floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,738 sq. ft.
  • 1st Floor: 2,500 sq. ft.
  • 2nd Floor: 1,238 sq. ft.
  • Deck: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 88' 0"

Garage

  • Type: Attached
  • Area: 936 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 6"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Luxury With Bridge Balcony

  • 3,738

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,200
  • PDF - Single-Build $1,995
  • 5 Sets $2,095
  • 8 Sets $2,195
  • Reproducible Set $2,195
  • CAD - Single-Build $2,895
  • View all purchase option online

About This Plan

  • Spacious and luxurious, this rugged Mountain home gives you two master suites on the main level and a third on the second floor.
  • A courtyard entry opens to a huge foyer with clear sightlines to the two-story great room with its cozy fireplace.
  • Sliding glass doors give you easy access to the rear terrace.
  • Dine informally at the eating bar in the kitchen or at the big dining room table with windows on three sides.
  • Clerestory windows light up the second floor balcony bridge that connects the two bedrooms on this level.
  • A sitting area and bonus room that opens to an outdoor deck give you lots of places to relax.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,738 sq. ft.
  • 1st Floor: 2,500 sq. ft.
  • 2nd Floor: 1,238 sq. ft.
  • Deck: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 88' 0"

Garage

  • Type: Attached
  • Area: 936 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 6"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
