Mountain Modern Home Plan Just Over 2500 Square Feet with Lower Level Expansion

Plan 490070NAH

  • 2,538

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This mountain modern plan offers a covered porch in the front and a covered deck in the rear. Angled and flat roofs with timber work help this house stand out from the crowd.
  • With the open concept design, the kitchen is centered across from the great room's windows with the dining room in between. This open floor plan is a perfect place for large gatherings, with deck to expand on.
  • Off the entry, you'll find the master bedroom with access to the covered deck, and accompanying bathroom with a standing shower, full-size tub, double vanities, and walk-in closet.
  • Upstairs you'll find another bedroom with walk-in closet and loft to host bunk beds for family visits.
  • This home plan offers basement expansion (1,078 square feet when finished as shown) with a recreation room, two more bedrooms, and plenty of storage.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

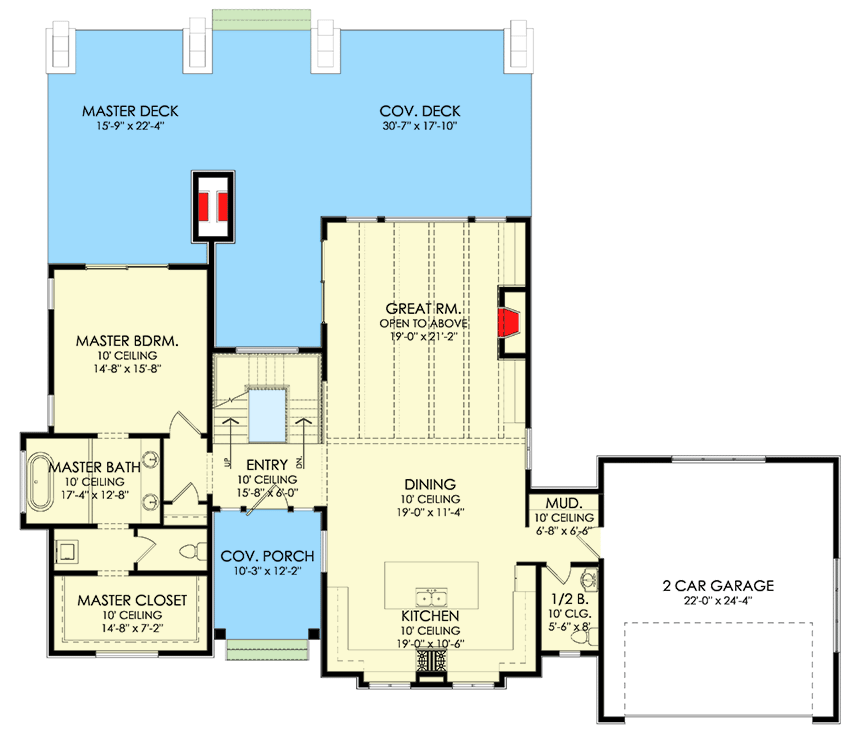

Mountain Modern Home Plan Just Over 2500 Square Feet with Lower Level Expansion - 490070NAH floor plan - Main Level

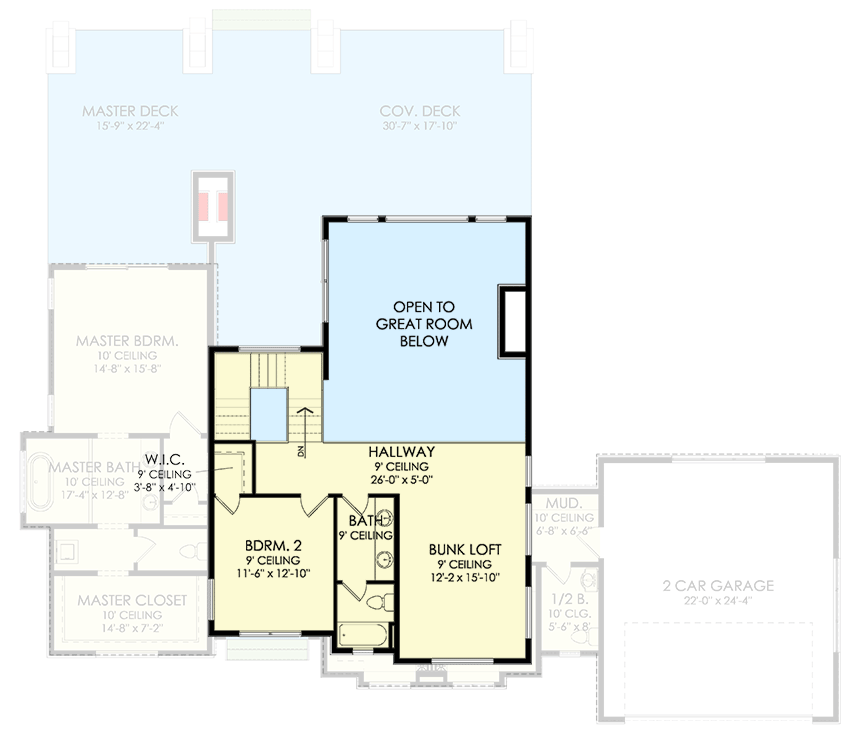

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Modern Home Plan Just Over 2500 Square Feet with Lower Level Expansion - 490070NAH floor plan - 2nd Floor

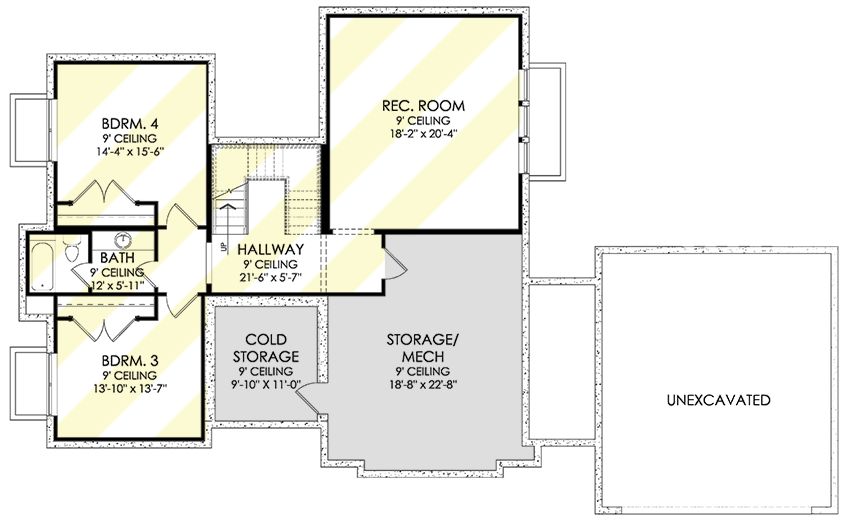

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Modern Home Plan Just Over 2500 Square Feet with Lower Level Expansion - 490070NAH floor plan - Optional Lower Level

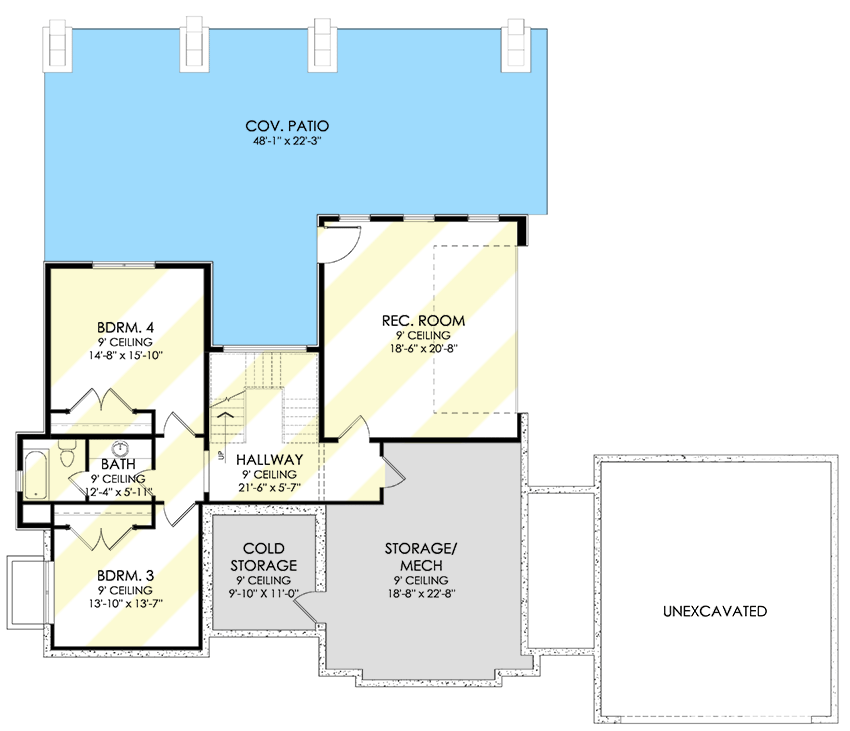

Optional Walkout Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Modern Home Plan Just Over 2500 Square Feet with Lower Level Expansion - 490070NAH floor plan - Optional Walkout Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,538 sq. ft.
  • 1st Floor: 1,814 sq. ft.
  • 2nd Floor: 726 sq. ft.
  • Deck: 1,004 sq. ft.
  • Porch, Front: 129 sq. ft.
  • Loft: 193 sq. ft.
  • Optional Lower Level: 1,078 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 8"
  • Depth: 48' 8"

Garage

  • Type: Attached
  • Area: 535 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style
