Mountain or Lake House Plan with Vaulted Interior and Large Deck - 1842 Sq Ft
Heated S.F.
1,842
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • This mountain or lake house plan gives you 3 beds, 2.5 baths and 1,842 square feet of heated living space. A large deck - 10' wide and 46' deep - runs along the entire left side and partly wraps around the back, giving you a great space to enjoy the views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor (and has a 4-fixture bathroom and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a walkout basement with house plan 68747VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain or Lake House Plan with Vaulted Interior and Large Deck - 1842 Sq Ft

  • 1,842

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

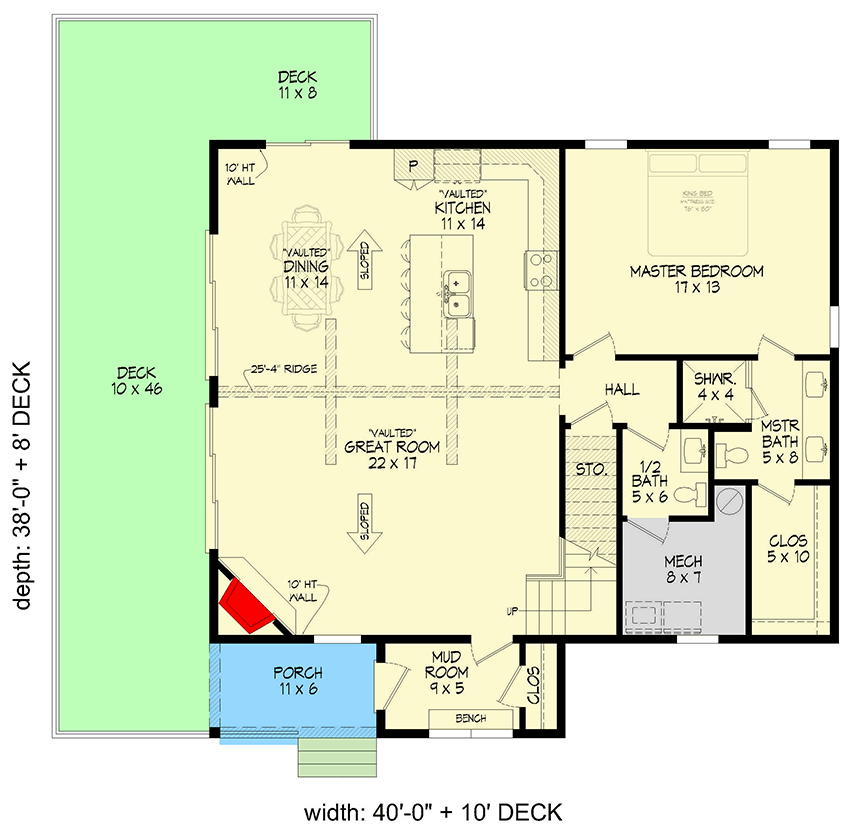

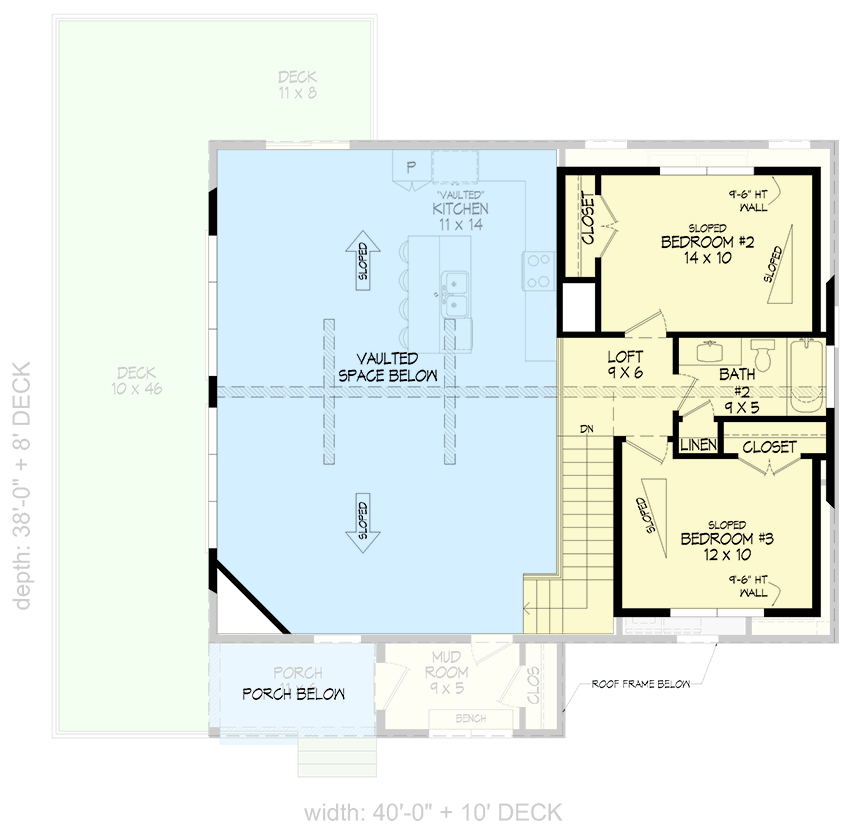

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,842 sq. ft.
  • 1st Floor: 1,352 sq. ft.
  • 2nd Floor: 490 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 6"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
