Plan 69515AM

Mountain Ranch Beauty

Pageloader

Mountain Ranch Beauty

Plan 69515AM

  • 6,228

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

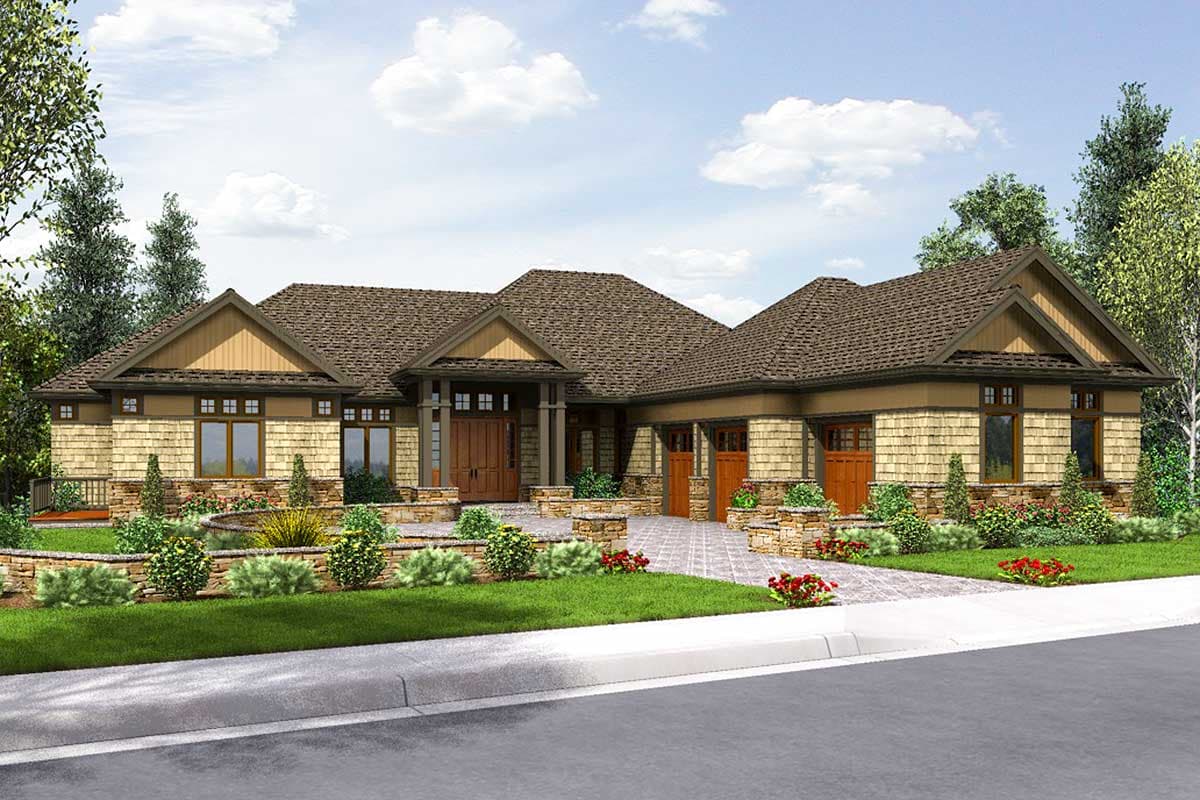

  • This mountain ranch home plan features many design elements that most people can only dream about.
  • A large, inviting foyer welcomes residents and guests alike and gives you expansive views in three directions. You'll be drawn into the great room ahead with a 14'-high paneled ceiling and access to the deck.
  • A large gourmet kitchen will surely please with its attached dining and breakfast areas, walk-in pantry, kitchen management suite and easy garage access for unloading groceries.
  • Dine formally in the laqrge dining room with built-ins and bumpout or al fresco on the porch with outdoor kitchen.
  • The master suite is expansive and a home office with corner fireplace complete the main floor.
  • Two stairs - one on each wing - take you to your finished lower level. There, you'll find the huge game/media room, bar, bedrooms (3 or 4 depending on your needs) plus room for storage, mechanicals, and outdoor living space.
  • A large over-sized 3-car garage with shop and external trash storage area and a mudroom providing separation between home and living area complete the design.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Mountain Ranch Beauty

  • 6,228

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,873
  • PDF - single-use $2,223
  • 5 Sets $2,373
  • 5 Sets PLUS $2,423
  • CAD - multi-use $4,446
  • View all purchase option online

About This Plan

  • This mountain ranch home plan features many design elements that most people can only dream about.
  • A large, inviting foyer welcomes residents and guests alike and gives you expansive views in three directions. You'll be drawn into the great room ahead with a 14'-high paneled ceiling and access to the deck.
  • A large gourmet kitchen will surely please with its attached dining and breakfast areas, walk-in pantry, kitchen management suite and easy garage access for unloading groceries.
  • Dine formally in the laqrge dining room with built-ins and bumpout or al fresco on the porch with outdoor kitchen.
  • The master suite is expansive and a home office with corner fireplace complete the main floor.
  • Two stairs - one on each wing - take you to your finished lower level. There, you'll find the huge game/media room, bar, bedrooms (3 or 4 depending on your needs) plus room for storage, mechanicals, and outdoor living space.
  • A large over-sized 3-car garage with shop and external trash storage area and a mudroom providing separation between home and living area complete the design.

Floor Plans

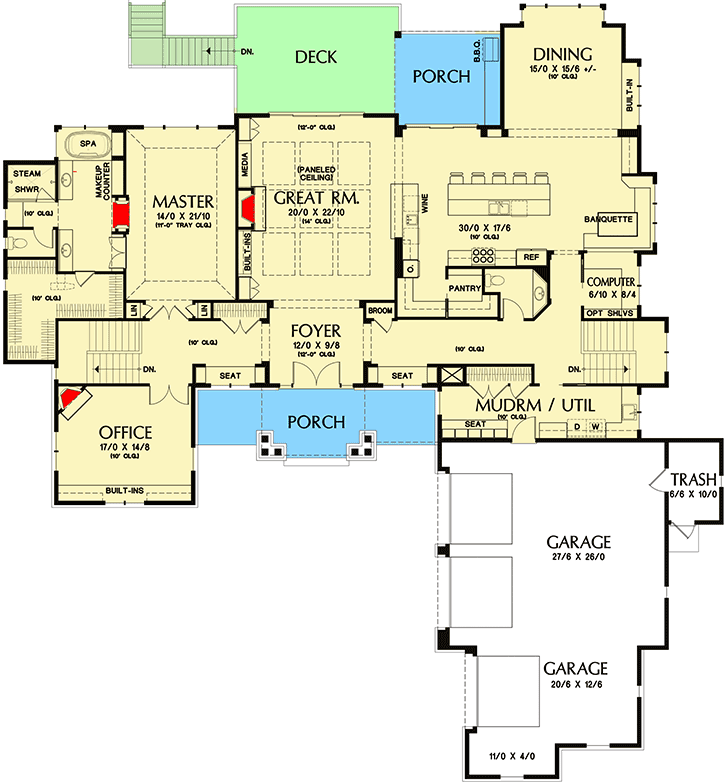

  • Main Level

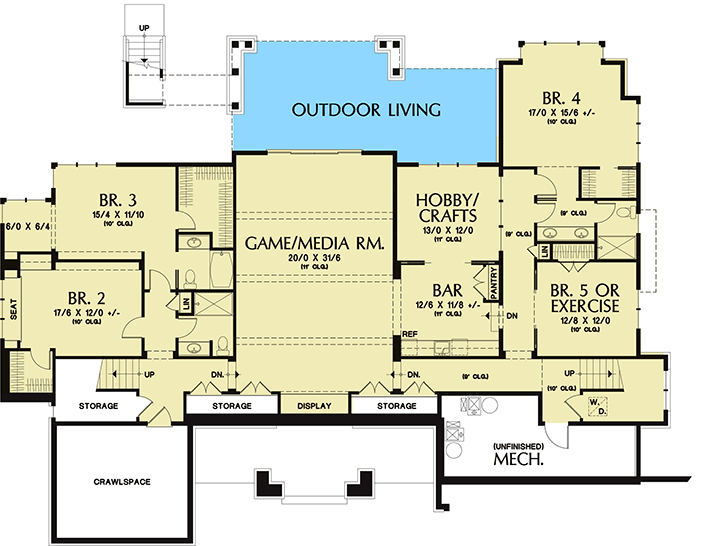

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,228 sq. ft.
  • Lower Level: 2,932 sq. ft.
  • 1st Floor: 3,296 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 0"
  • Depth: 99' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 1157 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Framing Type: Truss
