Plan 350008GH Mountain Ranch Home Plan Under 3400 Square Feet with Angled Garage and a Home Office

3,362 4 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Ranch Home Plan Under 3400 Square Feet with Angled Garage and a Home Office

Plan 350008GH

  • 3,362

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This rustic mountain ranch home plan has rugged timbers in the covered entry and front porch. Designed with a rear-sloping lot in mind, it gives you 3,362 square feet of heated living area and a 2-car angled garage.
  • French doors off the foyer open to reveal a home office with a powder room conveniently located across the foyer.
  • The great room has a vaulted ceiling and tremendous views - and access - to the back where a covered deck is flanked by open decks on either side (one is accessible from the main floor master and the other from the dining room.
  • Two bedrooms share a Jack and Jill bathroom downstairs. Across the family room with fireplace and wet bar, you'll find a home gym. Bed 2, the family room and the gym all have outdoor access.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

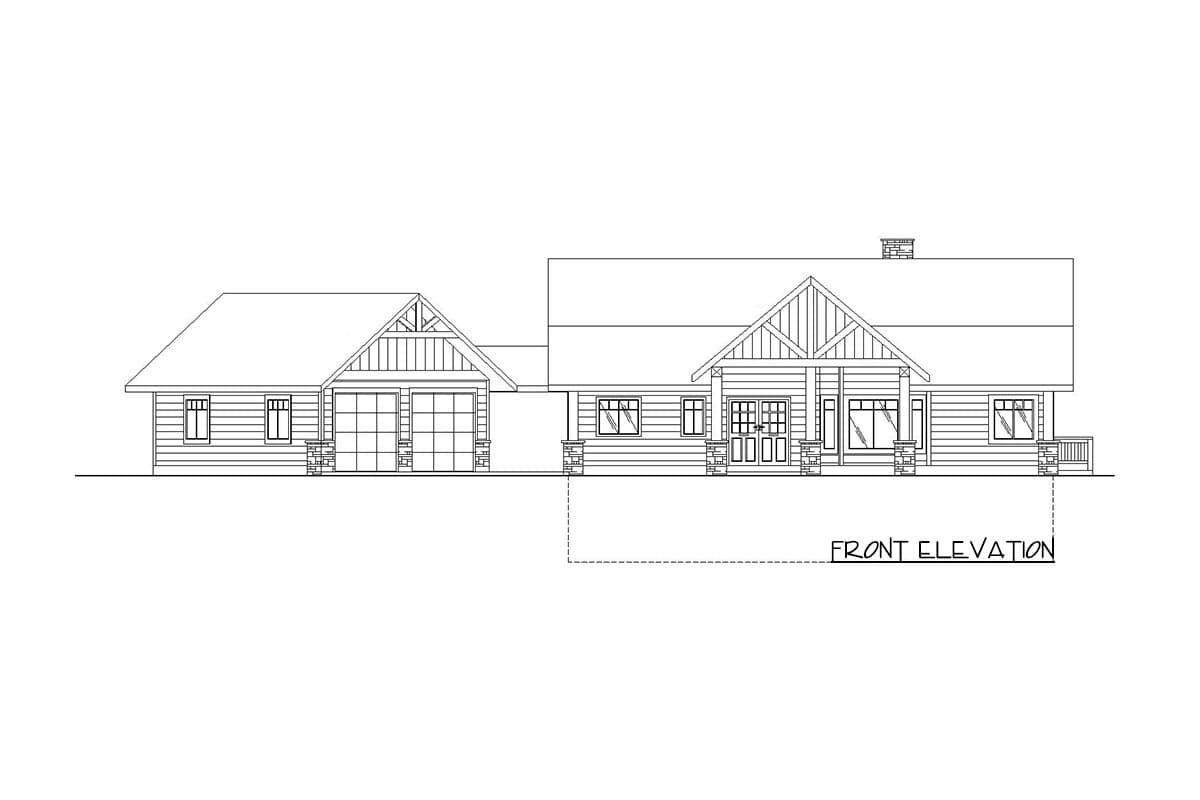

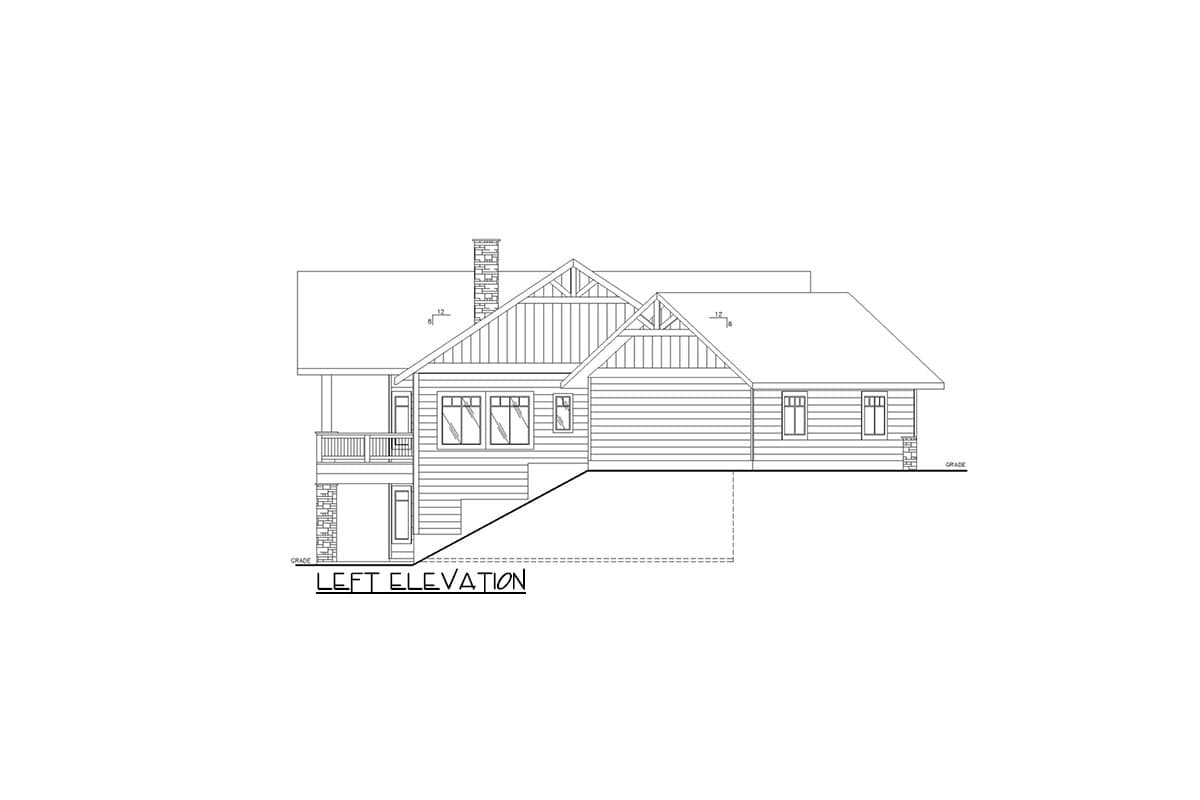

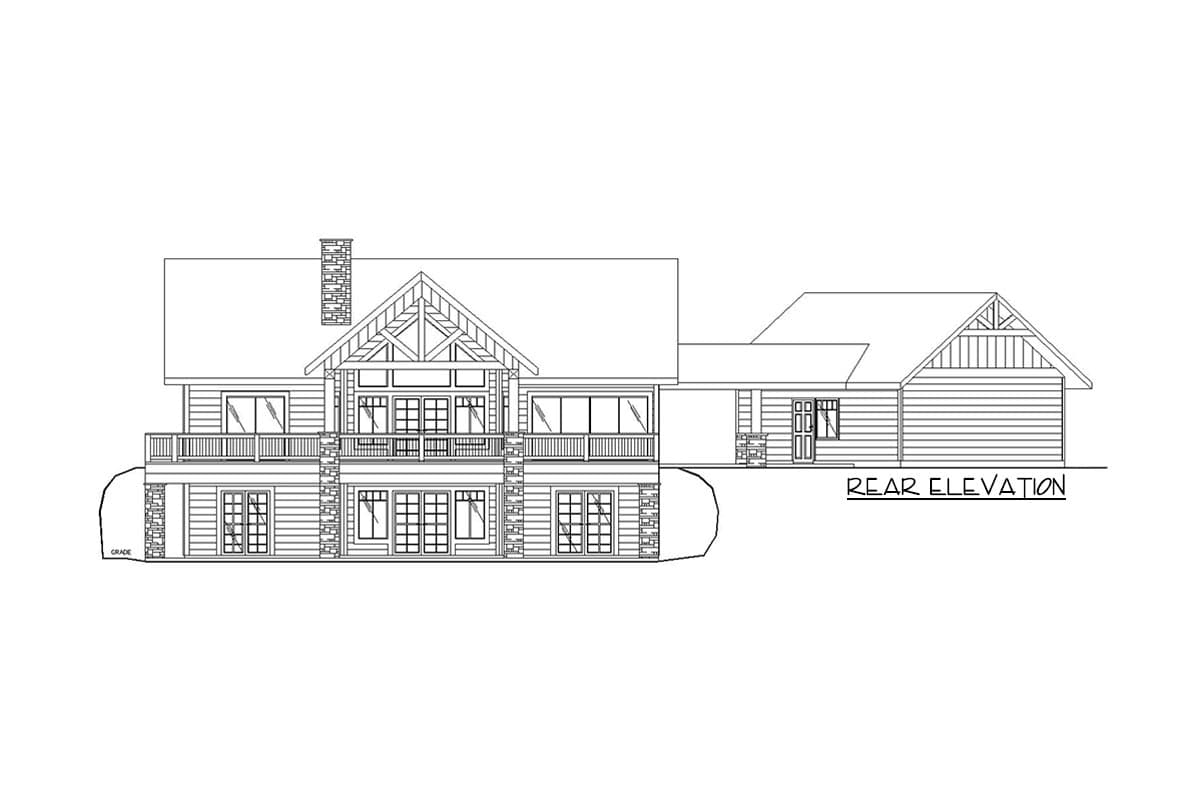

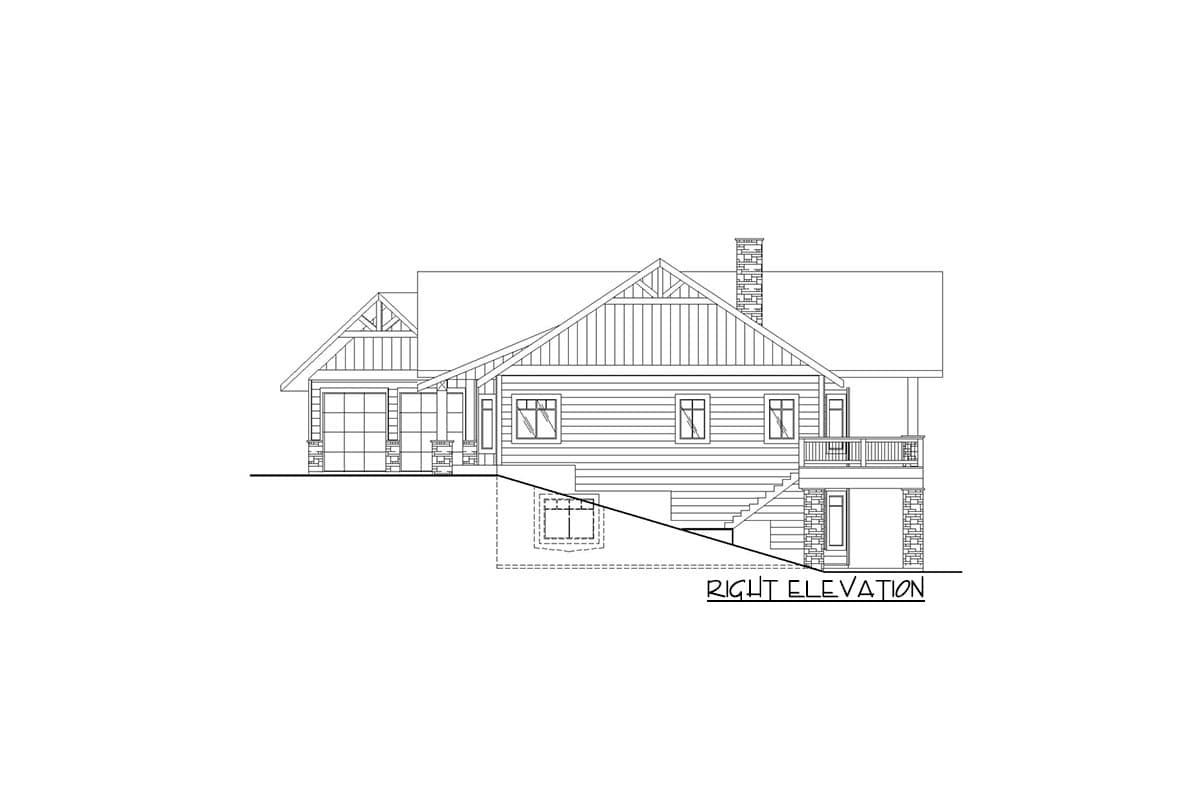

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

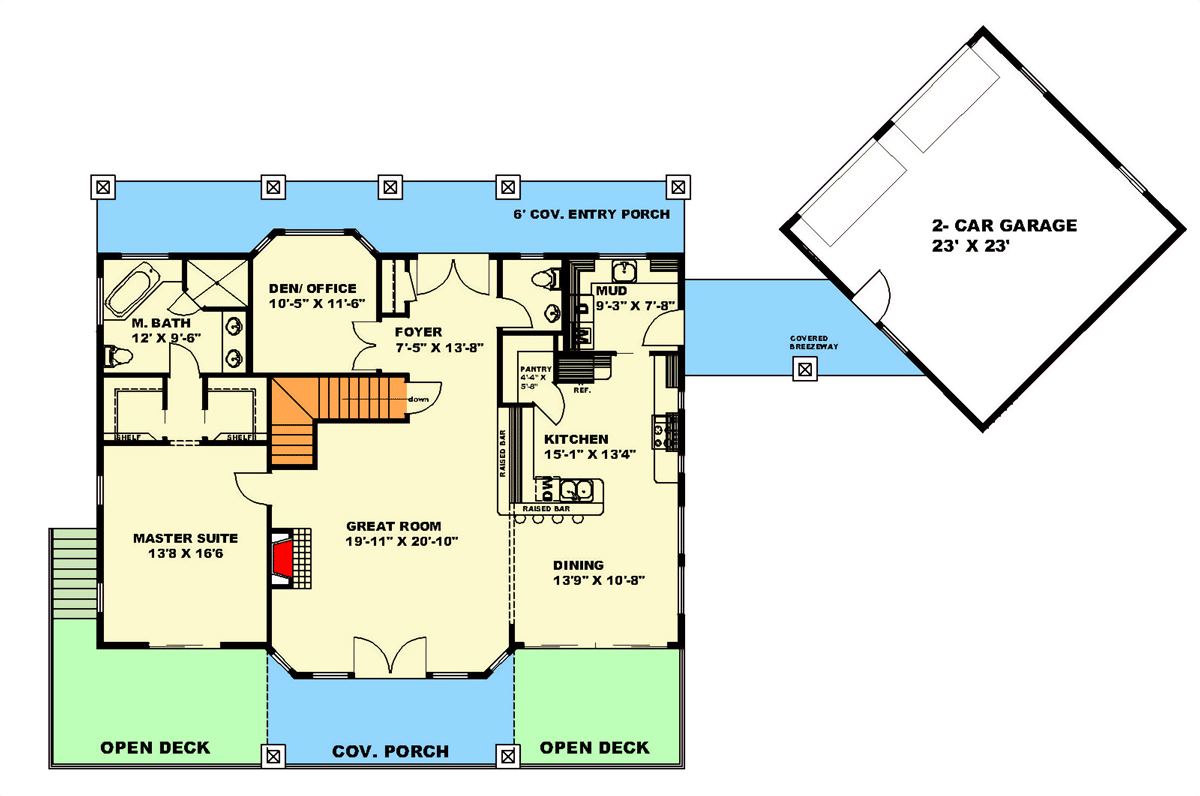

Mountain Ranch Home Plan Under 3400 Square Feet with Angled Garage and a Home Office - 350008GH floor plan - Main Level

Walkout Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

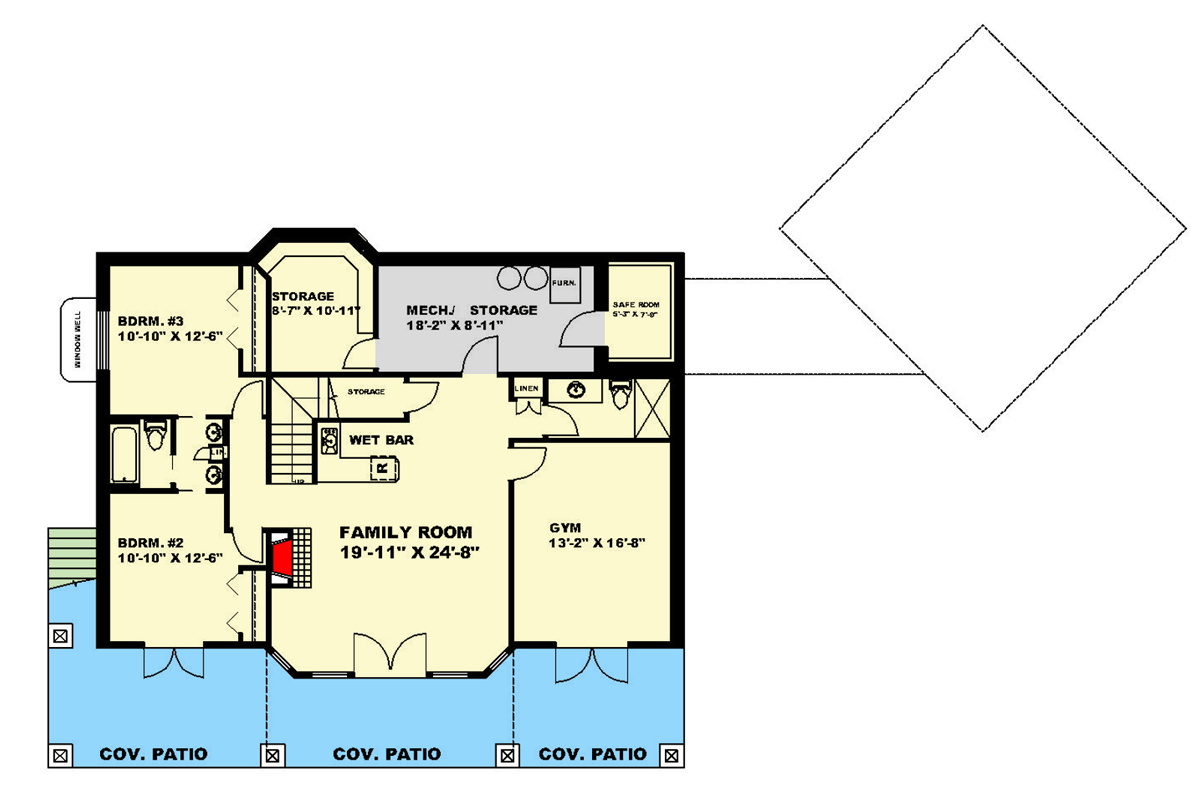

Mountain Ranch Home Plan Under 3400 Square Feet with Angled Garage and a Home Office - 350008GH floor plan - Walkout Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,362 sq. ft.
  • Lower Level: 1,781 sq. ft.
  • 1st Floor: 1,781 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 62' 0"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Ranch Home Plan Under 3400 Square Feet with Angled Garage and a Home Office

  • 3,362

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • CAD + PDF - Single Build $1,495
  • PDF - Single-Build $1,495
  • 5 Sets + PDF $1,645
  • CAD + PDF - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • This rustic mountain ranch home plan has rugged timbers in the covered entry and front porch. Designed with a rear-sloping lot in mind, it gives you 3,362 square feet of heated living area and a 2-car angled garage.
  • French doors off the foyer open to reveal a home office with a powder room conveniently located across the foyer.
  • The great room has a vaulted ceiling and tremendous views - and access - to the back where a covered deck is flanked by open decks on either side (one is accessible from the main floor master and the other from the dining room.
  • Two bedrooms share a Jack and Jill bathroom downstairs. Across the family room with fireplace and wet bar, you'll find a home gym. Bed 2, the family room and the gym all have outdoor access.

Floor Plans

  • Main Level

  • Walkout Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,362 sq. ft.
  • Lower Level: 1,781 sq. ft.
  • 1st Floor: 1,781 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 62' 0"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 350008GH
View this and more for this plan by visiting www.architechtecturaldesigns.com/350008GH
|
Need Help? 800-854-7852
|
Plan 350008GH
