Plan 95177RW
Mountain Ranch Home Plan with Theater in Optional Lower Level
Heated S.F.
3,224
Beds
3-5
Baths
2.5 - 4.5
Stories
1
Cars
4
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

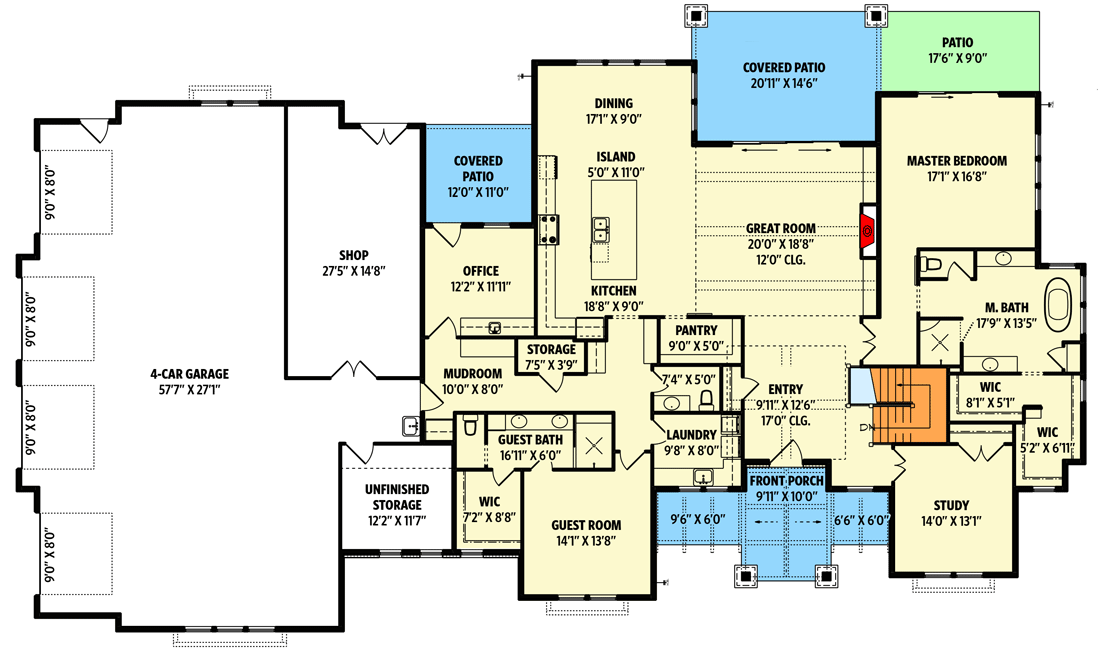

Mountain Ranch Home Plan with Theater in Optional Lower Level - 95177RW floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

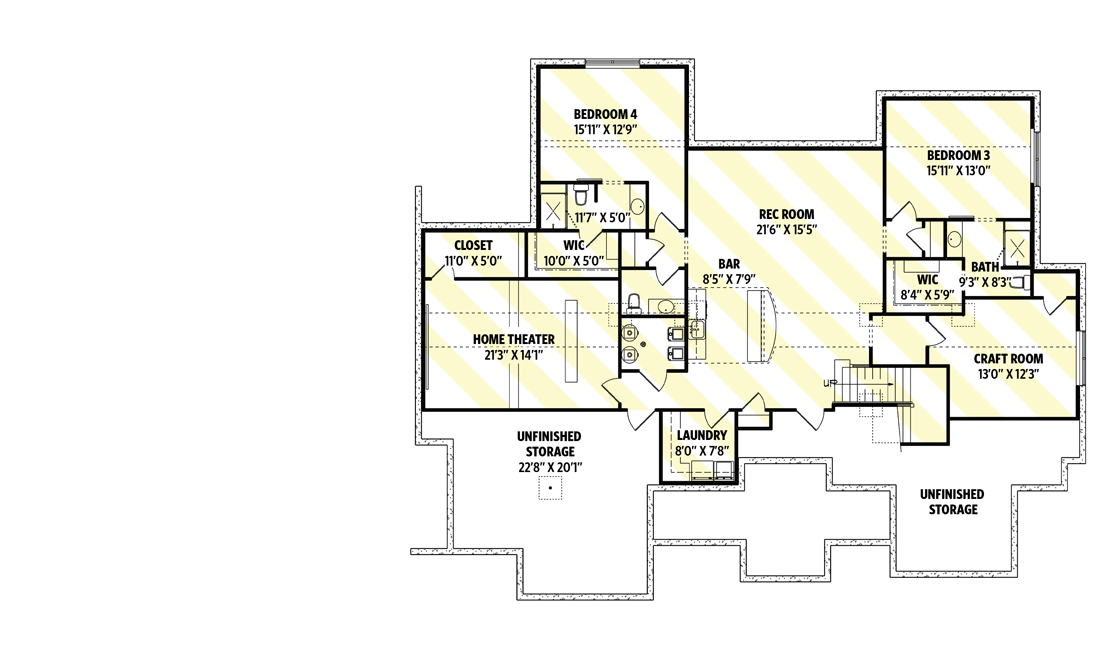

Mountain Ranch Home Plan with Theater in Optional Lower Level - 95177RW floor plan - Optional Lower Level
Plan Details
  • This Mountain Ranch home plan delivers over 3,200 sq ft of living space on the main level with the option of adding 2,324 sq ft when you finish the lower level.
  • The open-concept living space consists of a spacious great room with a fireplace and seamless flow into the eat-in kitchen. A large covered patio is available for outdoor enjoyment when entertaining.
  • The 4-car garage attaches to the left side of the home and features a workshop and storage space. Just inside, a mudroom serves as a drop zone for bags, shoes, and outerwear.
  • The master bedroom is conveniently located on the first floor and includes a deluxe ensuite. A study, guest suite, and home office round out the main level.
  • Finish the lower level and enjoy a sizable rec room with a wet bar, craft room, two bedroom suites, and a home theater.
What's Included

  • Cover Page

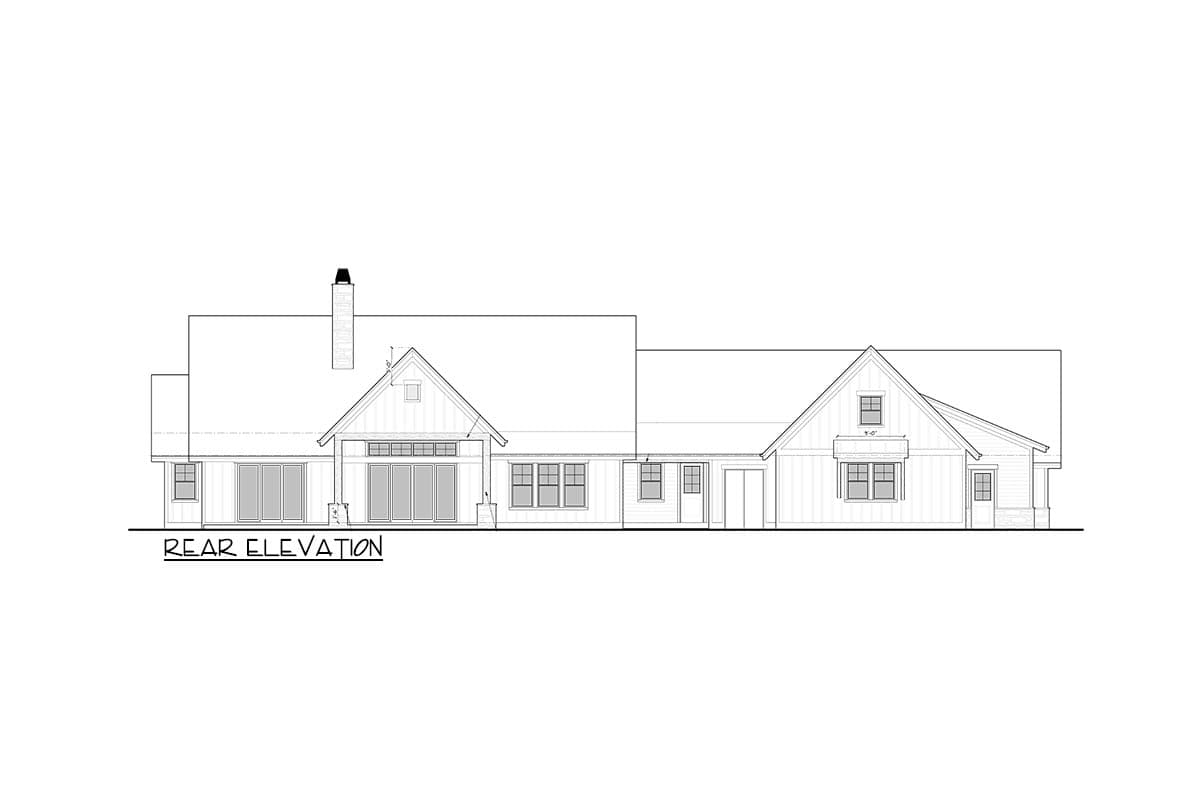

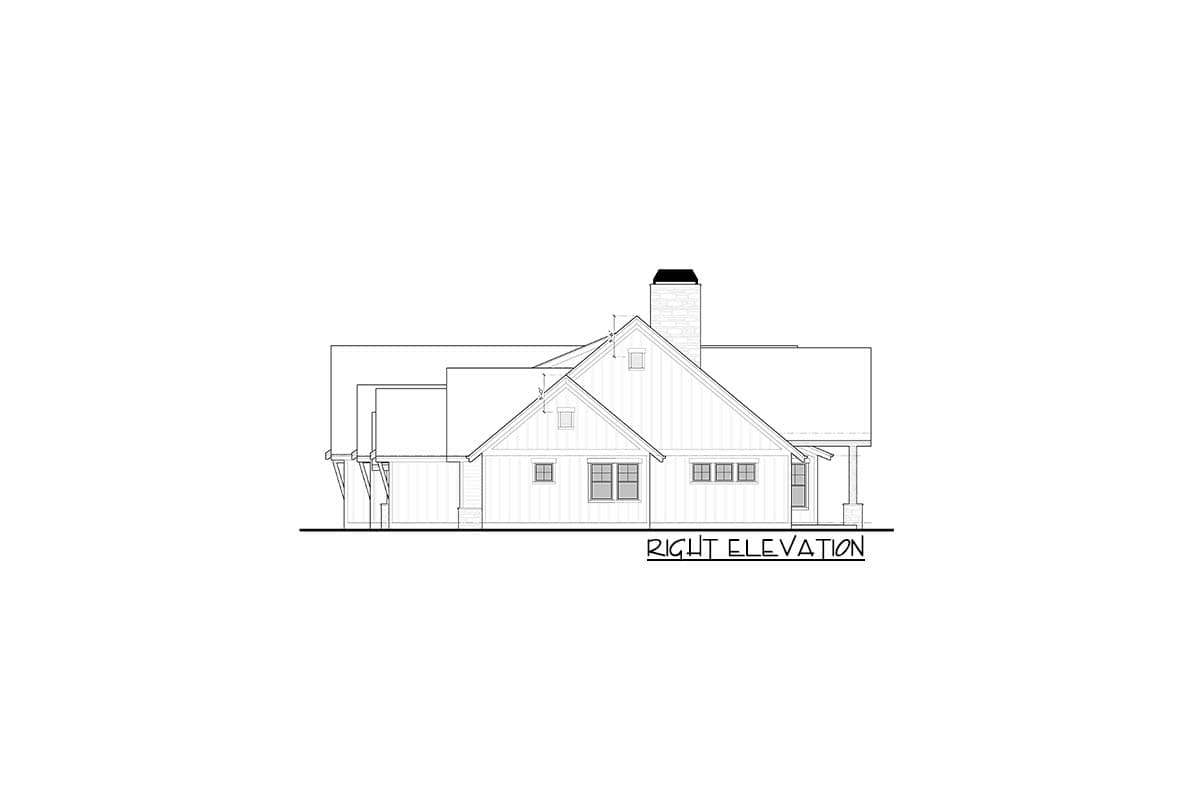

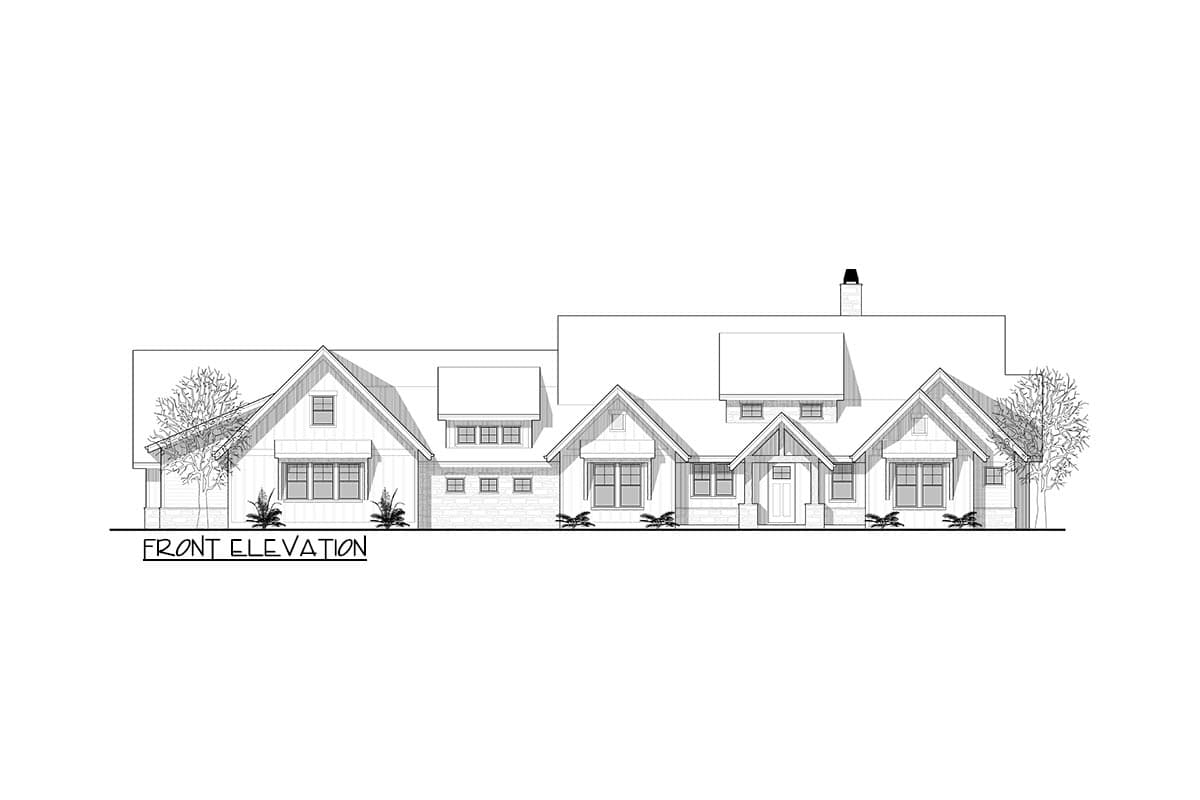

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Ranch Home Plan with Theater in Optional Lower Level

  • 3,224

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,224 sq. ft.
  • 1st Floor: 3,224 sq. ft.

Dimensions

  • Width: 118' 0"
  • Depth: 63' 0"
  • Max ridge height: 27' 9"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 2462 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
