Mountain Ranch Home Plan with Vaulted Entry Porch and Side-entry Garage

Plan 68829VR

  • 1,650

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This versatile mountain ranch home plan welcomes you with its dramatic vaulted front porch. In back, the covered deck gives you another place to enjoy your views.
  • Through the vaulted front entry, discover a spacious open floor plan with your vaulted kitchen and great combined into one entertaining space. French doors in the breakfast area open to the rear covered deck.
  • Your master suite takes up the entire left side of the home and includes a sun room with covered rear porch access.
  • Across the home, a second bedroom has its own bathroom with direct access to the mud room.
  • Related Plan: Build in reverse and change up the mud room with house plan 68464VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

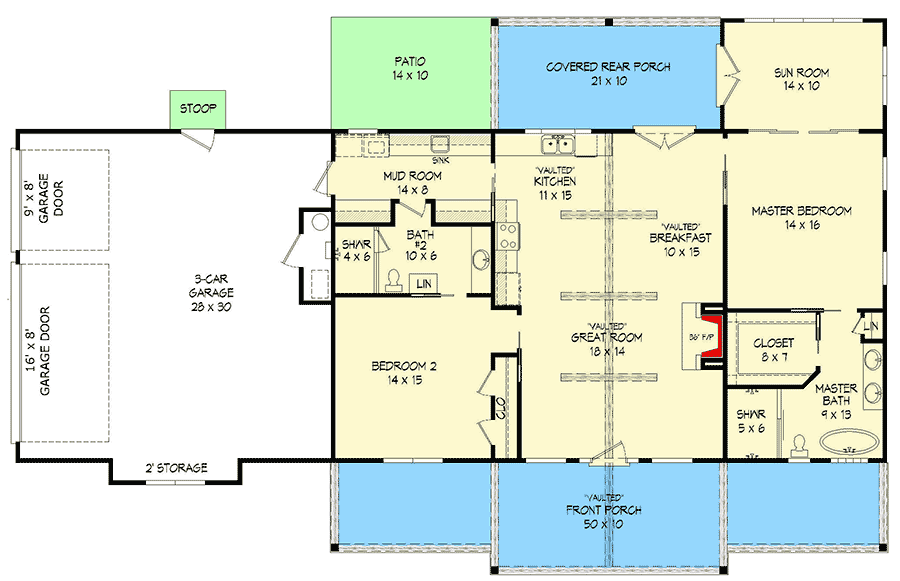

Mountain Ranch Home Plan with Vaulted Entry Porch and Side-entry Garage - 68829VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,650 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • Porch, Rear: 206 sq. ft.
  • Porch, Front: 442 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 4"
  • Depth: 50' 0"
  • Max ridge height: 20' 5"

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Mountain Ranch Home Plan with Vaulted Entry Porch and Side-entry Garage

  • 1,650

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,160
  • 5 Sets + PDF $1,287
  • CAD + PDF - Single-Build $1,575
  • View all purchase option online

About This Plan

  • This versatile mountain ranch home plan welcomes you with its dramatic vaulted front porch. In back, the covered deck gives you another place to enjoy your views.
  • Through the vaulted front entry, discover a spacious open floor plan with your vaulted kitchen and great combined into one entertaining space. French doors in the breakfast area open to the rear covered deck.
  • Your master suite takes up the entire left side of the home and includes a sun room with covered rear porch access.
  • Across the home, a second bedroom has its own bathroom with direct access to the mud room.
  • Related Plan: Build in reverse and change up the mud room with house plan 68464VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,650 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • Porch, Rear: 206 sq. ft.
  • Porch, Front: 442 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 4"
  • Depth: 50' 0"
  • Max ridge height: 20' 5"

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 68829VR
