Plan 12971KN
Mountain Ranch Plan with Wraparound Porch and Carport
Heated S.F.
1,734
Beds
2
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This Mountain Ranch home plan presents a wraparound porch that connects the front entrance with the side carport.
  • Double doors lead into a spacious living room with a fireplace and exposed beams accentuating the vaulted ceiling.
  • The adjacent kitchen features an eating bar, double ovens, and a corner pantry.
  • Natural lighting consumes the home office that protrudes from the left side of the design, while two bedroom suites line the rear elevation.
  • A spacious laundry / mudroom combo provides builtin cubbies and access to the carport, where you'll find a storage room for lawn supplies or equipment.
What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Ranch Plan with Wraparound Porch and Carport

  • 1,734

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

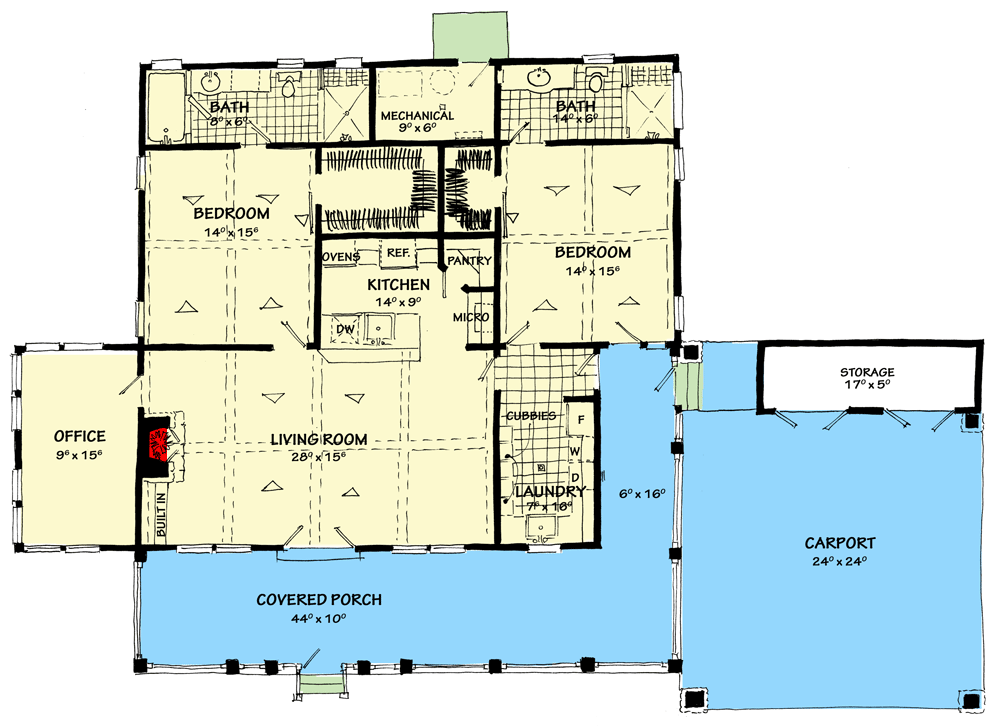

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,734 sq. ft.
  • 1st Floor: 1,734 sq. ft.

Dimensions

  • Width: 77' 3"
  • Depth: 52' 3"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Carport, Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
