Plan 777013MTL

Mountain Ranch with 3 Bedrooms in a Split Layout

Heated S.F.
1,550
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 777013MTL

Main Level
Main Level
Wall Framing Section
Wall Framing Section

Plan 777013MTL

M-F 9am-5pm EST |

1-203-761-8500

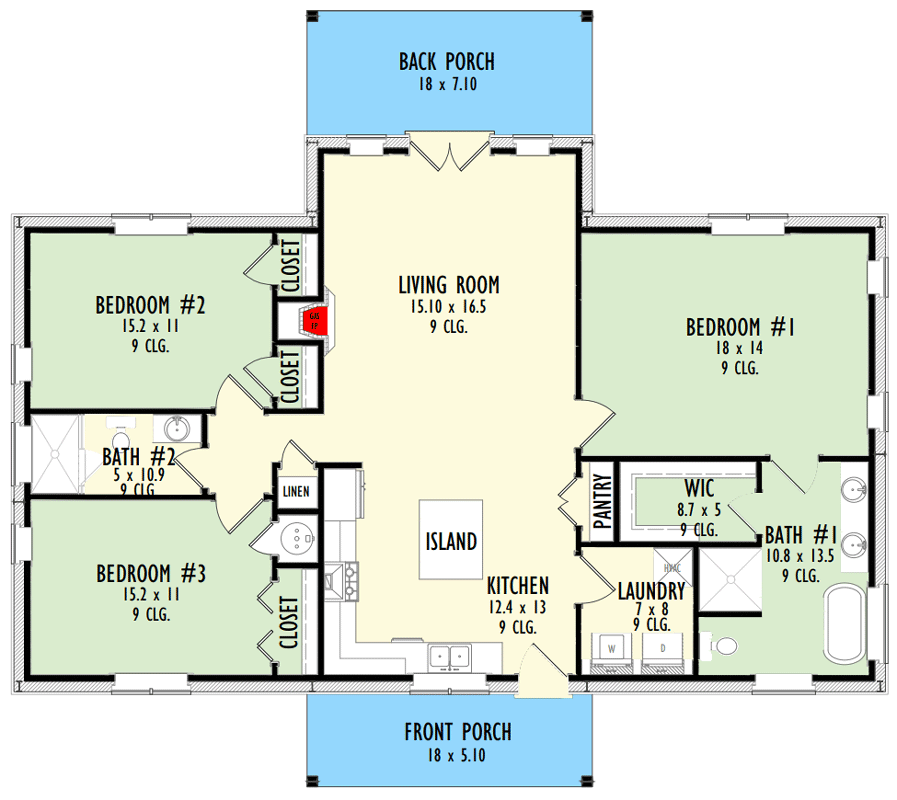

Main Level

Plan 777013MTL: Mountain Ranch with 3 Bedrooms in a Split Layout - Floor Plan - Main Level - Country, Mountain, Ranch, Rustic, Traditional

Wall Framing Section

Plan 777013MTL: Mountain Ranch with 3 Bedrooms in a Split Layout - Floor Plan - Wall Framing Section - Country, Mountain, Ranch, Rustic, Traditional

Plan Details

  • This 3-bed mountain ranch home plan has vaulted porches front and rear with attractive timber trusses.
  • Inside, you'll find a completely open floor plan front to back with the kitchen seamlessly flowing to the living room with fireplace.
  • A pair of doors on the back wall takes you to the vaulted rear porch which can serve as an outdoor living room.
  • Bedrooms are designed in a split layout with the master on the right with a five-fixture bath and a walk-in closet. Across the home, the bedrooms share a bath.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,550 sq. ft.

1st Floor

1,550 sq. ft.

Porch, Front

105 sq. ft.

Porch, Rear

141 sq. ft.

Porch, Combined

246 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

49' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Mountain

Ranch

Rustic

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,550 sq. ft.

1st Floor

1,550 sq. ft.

Porch, Front

105 sq. ft.

Porch, Rear

141 sq. ft.

Porch, Combined

246 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

49' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Mountain

Ranch

Rustic

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
