Mountain Ranch with Vaulted Porches and Vaulted Interior

Plan 68911VR

  • 1,571

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • A timber-supported vaulted covered porch welcomes you to this 2-bed mountain ranch house plan. In back, a matching vaulted porch awaits and is flanked by decks and porches.
  • Step inside and you are greeted with an open floor plan vaulted front to back. The great room has a fireplace and is open to the kitchen. Sliding doors on the back take you the vaulted back porch.
  • The master bedroom has a deep walk-in closet and a private bath. On the other side of the home, you'll find a second bedroom and bath and laundry.
  • A screened porch is tucked in back and has access to the rear deck.
  • Related Plan: Get an alternate version with house plan 68791VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

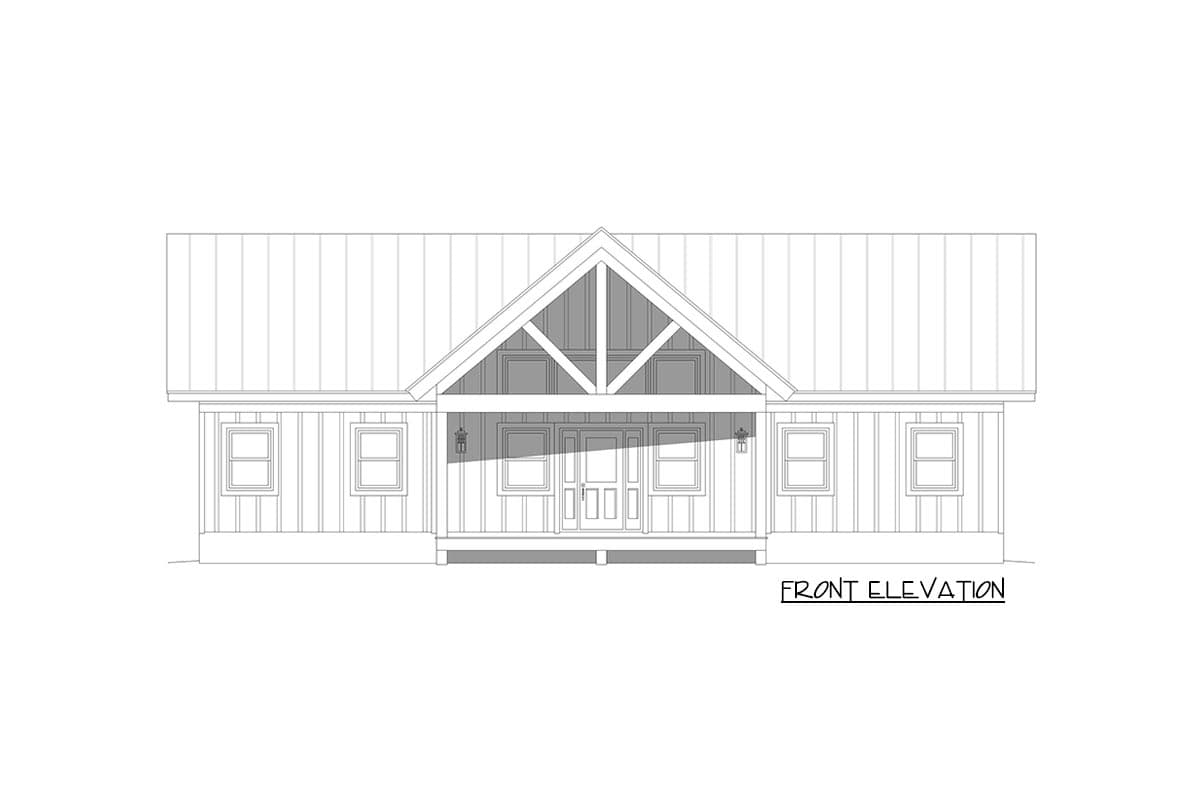

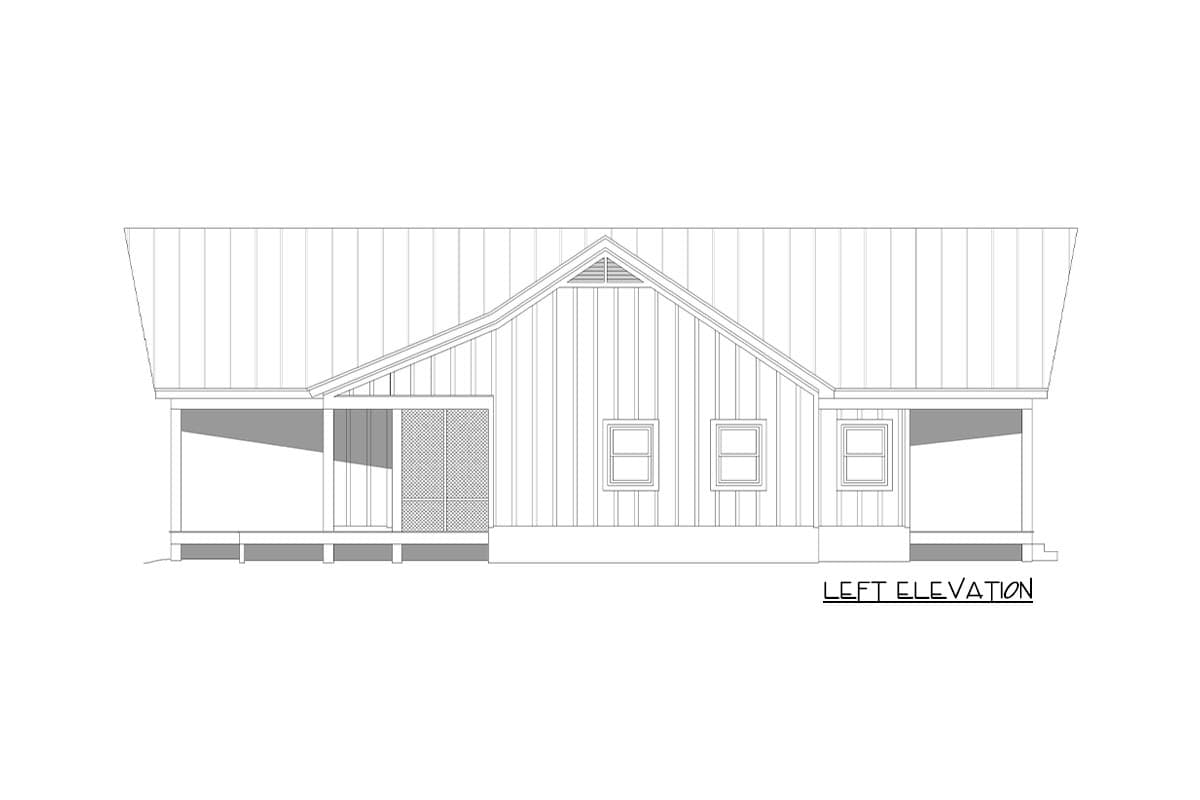

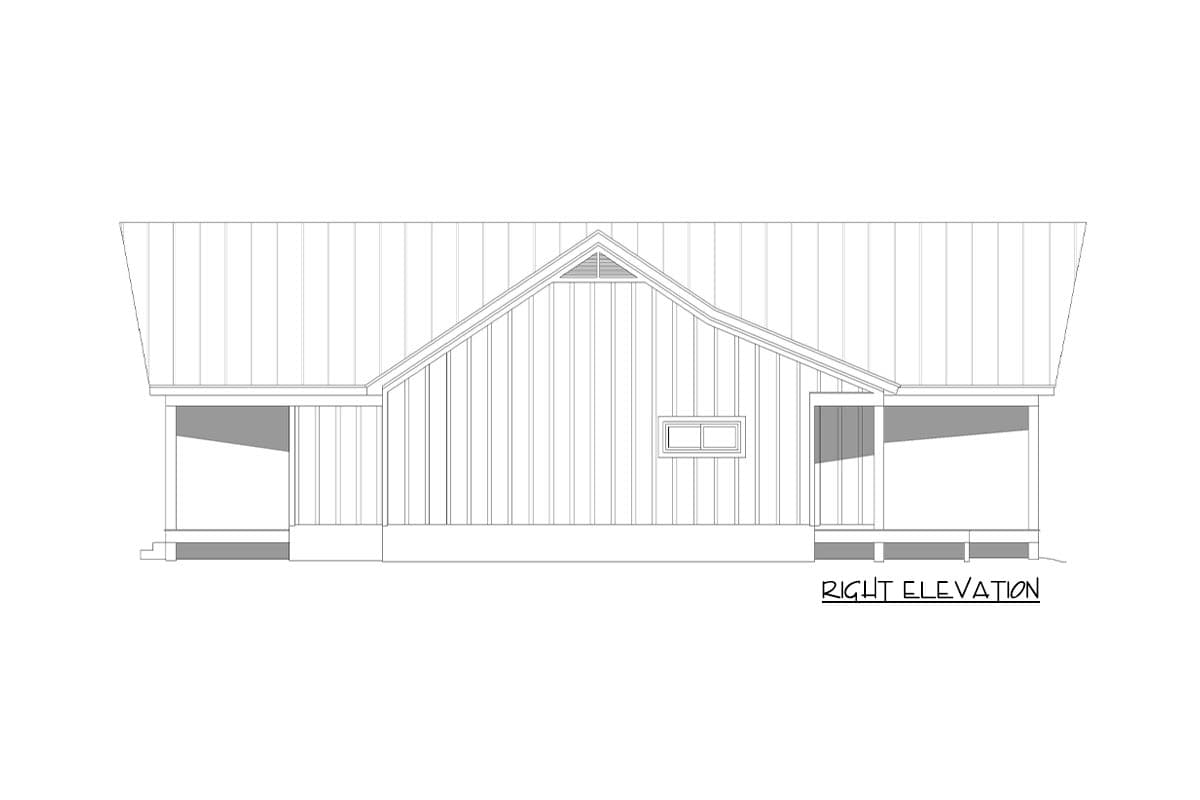

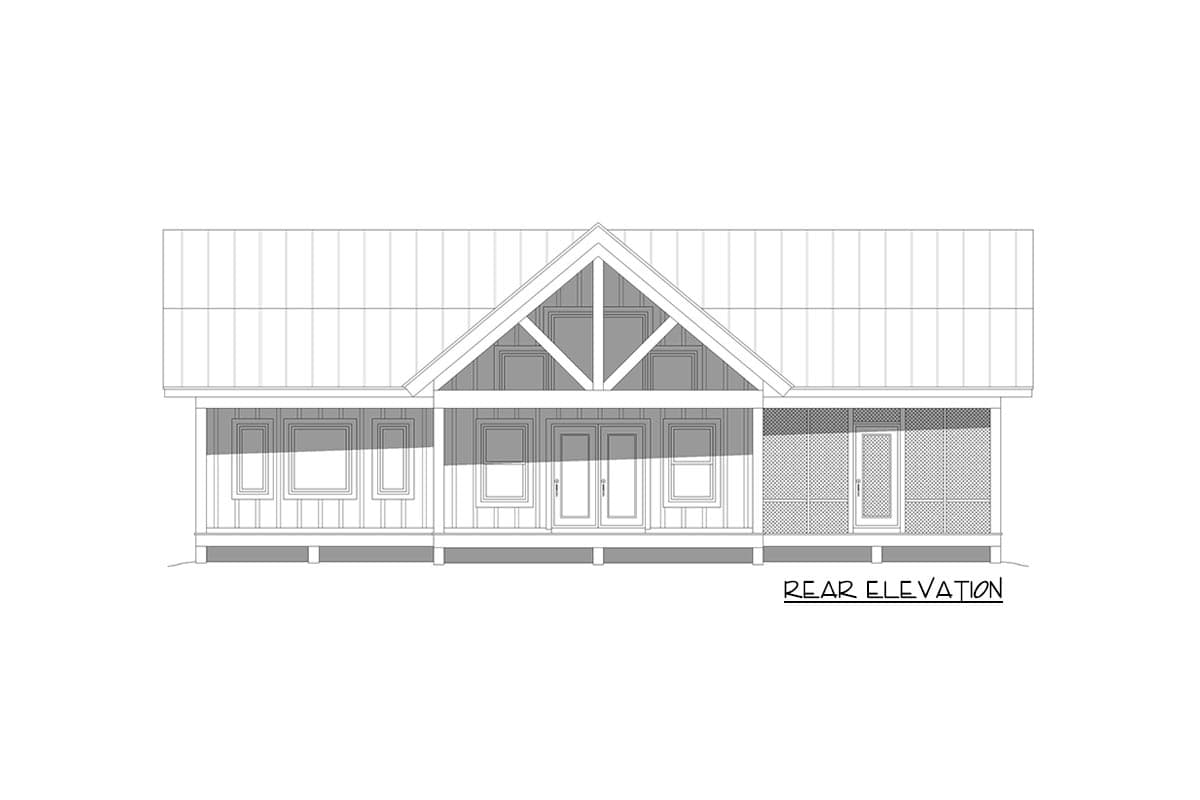

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

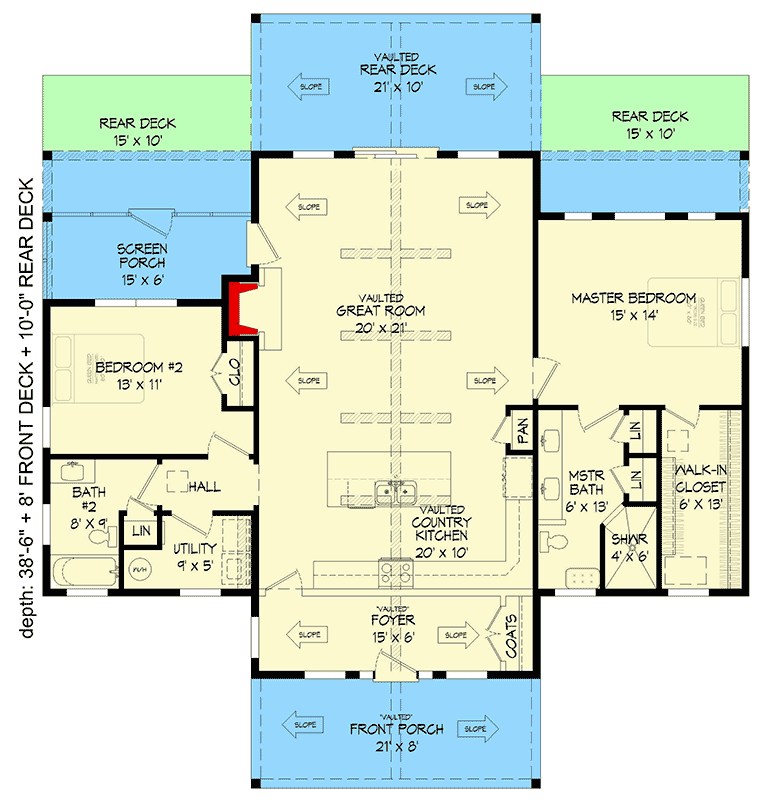

Mountain Ranch with Vaulted Porches and Vaulted Interior - 68911VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,571 sq. ft.
  • 1st Floor: 1,571 sq. ft.
  • Deck: 515 sq. ft.
  • Screened Porch: 92 sq. ft.
  • Porch, Front: 169 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 6"
  • Depth: 56' 6"
  • Max ridge height: 19' 7"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Mountain Ranch with Vaulted Porches and Vaulted Interior

  • 1,571

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,160
  • 5 Sets + PDF $1,204
  • CAD + PDF - Single-Build $1,495
  • View all purchase option online

About This Plan

  • A timber-supported vaulted covered porch welcomes you to this 2-bed mountain ranch house plan. In back, a matching vaulted porch awaits and is flanked by decks and porches.
  • Step inside and you are greeted with an open floor plan vaulted front to back. The great room has a fireplace and is open to the kitchen. Sliding doors on the back take you the vaulted back porch.
  • The master bedroom has a deep walk-in closet and a private bath. On the other side of the home, you'll find a second bedroom and bath and laundry.
  • A screened porch is tucked in back and has access to the rear deck.
  • Related Plan: Get an alternate version with house plan 68791VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,571 sq. ft.
  • 1st Floor: 1,571 sq. ft.
  • Deck: 515 sq. ft.
  • Screened Porch: 92 sq. ft.
  • Porch, Front: 169 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 6"
  • Depth: 56' 6"
  • Max ridge height: 19' 7"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
Plan 68911VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68911VR
|
Need Help? 800-854-7852
|
