Plan 135117GRA

Multi-family House Plan with 3 Bedrooms in Each Unit

Heated S.F.
3,230
Units
2
Width
Depth

Floor Plan

Plan 135117GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135117GRA

M-F 9am-5pm EST |

1-203-761-8500

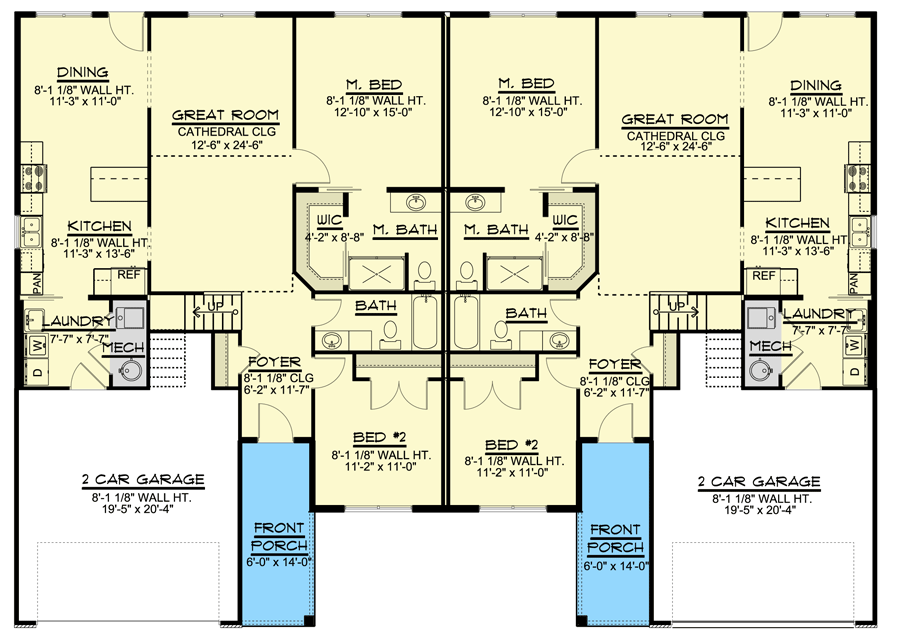

Main Level

Plan 135117GRA: Multi-family House Plan with 3 Bedrooms in Each Unit - Floor Plan - Main Level - Ranch, Traditional

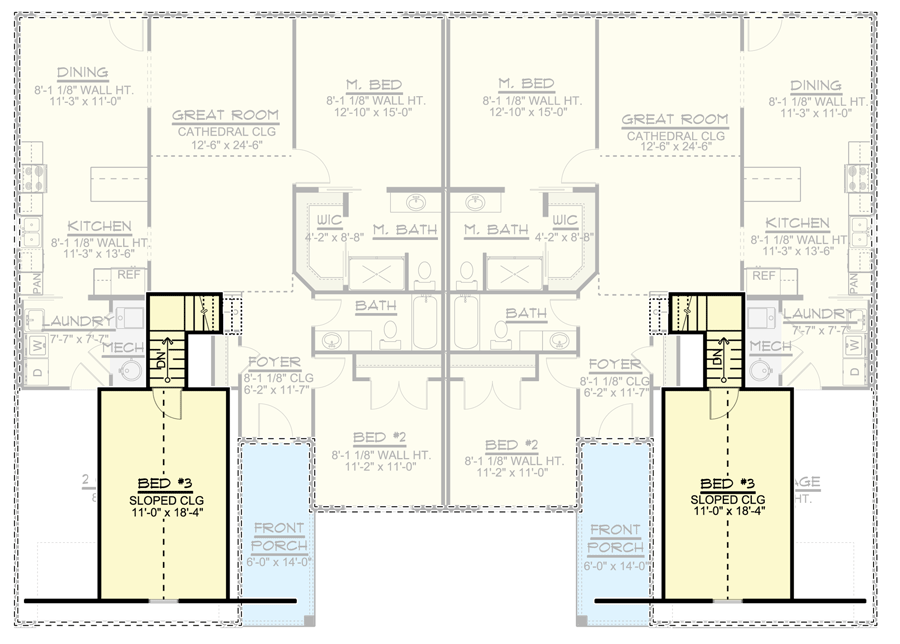

2nd Floor

Plan 135117GRA: Multi-family House Plan with 3 Bedrooms in Each Unit - Floor Plan - 2nd Floor - Ranch, Traditional

Plan Details

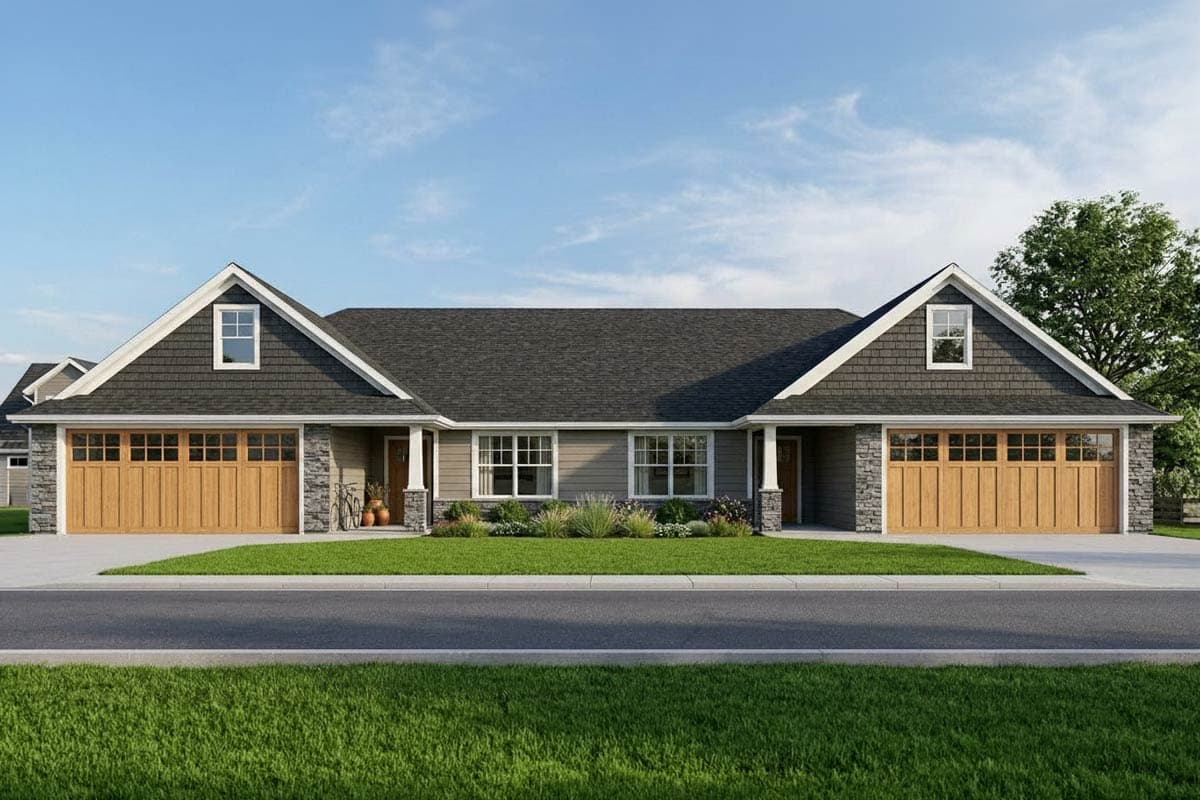

  • This multi-family Ranch plan delivers a traditional exterior with gabled rooflines above the double garages and front entries.
  • The mirror-image floor plans provide3  bedrooms and two full bathrooms.
  • A cathedral ceiling soars above each great room, which is located adjacent the eat-in kitchen. A door in the dining area provides easy access to the backyard.
  • Pocket doors off the kitchen reveal the laundry room with a utility sink and access to the 2-car garage.
  • The 12' by 15' master bedrooms offer rearward views, along with an attached bath and walk-in closet.
  • Related Plan: Find a similar floor plan with 2 bedrooms with plan 135116GRA.
Unit A
Heated Area
1,595Sq. Ft.
1395 Sq. Ft. 1st
200 Sq. Ft. 2nd
Beds
2 or 3Beds
Baths
2Full Baths
Cars
Attached
439 Sq. Ft.
Dimensions
38'width
54'depth
19'height
Unfinished Areas
439 Sq. Ft. Garage
Unit B
Heated Area
1,595Sq. Ft.
2790 Sq. Ft. 1st
440 Sq. Ft. 2nd
Beds
2 or 3Beds
Baths
2Full Baths
Cars
Attached
439 Sq. Ft.
Dimensions
38'width
54'depth
19'height
Unfinished Areas
439 Sq. Ft. Garage

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,230 sq. ft.

1st Floor

2,790 sq. ft.

2nd Floor

440 sq. ft.

Porch, Front

200 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

54' 0"

Max Ridge Height

19' 7"

Garage

Type

Attached

Area

878 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,230 sq. ft.

1st Floor

2,790 sq. ft.

2nd Floor

440 sq. ft.

Porch, Front

200 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

54' 0"

Max Ridge Height

19' 7"

Garage

Type

Attached

Area

878 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
