Multi-Family House Plan With Outdoor Living Room

Plan 22476DR

  • 3,112

    Heated s.f.

  • 2

    Units

  • 48' 0"

    Width

  • 35' 0"

    Depth

  • Each unit of the two-family house plan gives you 3 beds, 1 full and 1 half bath and 1,556 square feet of heated living space (778 square feet on the main and lower levels).
  • The covered porch gives serves as an outdoor living room.
  • The lower level is dedicated to the bedrooms and there is laundry conveniently located there as well.
  • The main level has an open concept layout and is great for entertaining.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

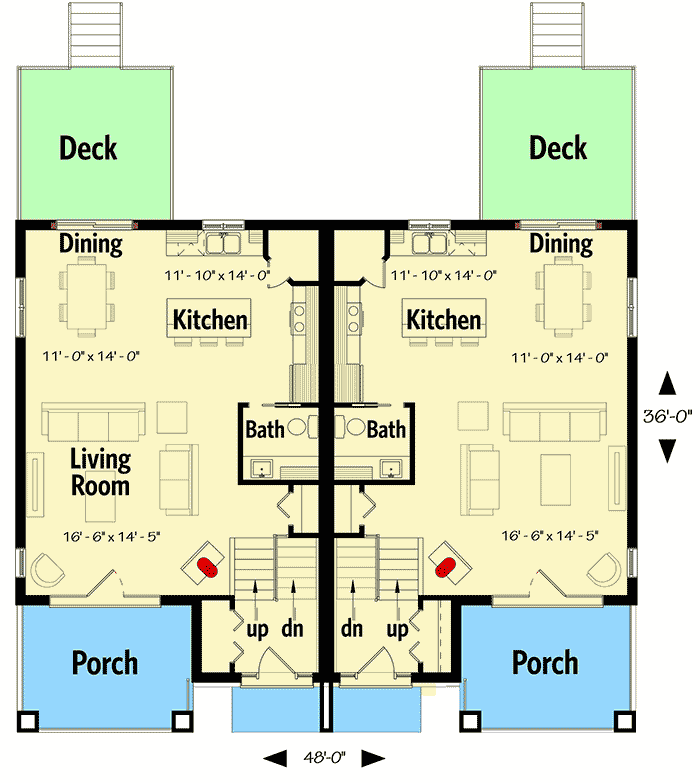

Multi-Family House Plan With Outdoor Living Room - 22476DR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

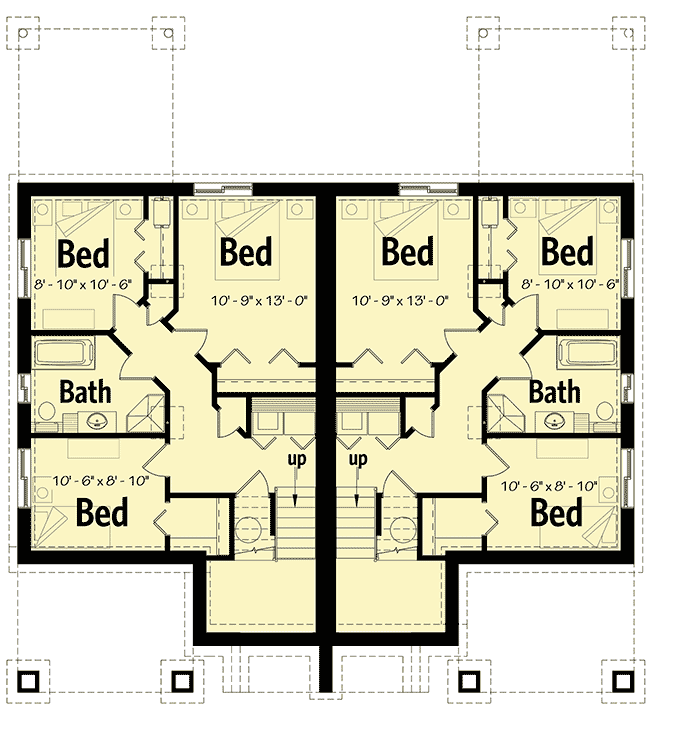

Multi-Family House Plan With Outdoor Living Room - 22476DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,112 sq. ft.
  • Lower Level: 1,556 sq. ft.
  • 1st Floor: 1,556 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 35' 0"
  • Max ridge height: 24' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Special features

Plan Collections

Multi-Family House Plan With Outdoor Living Room

  • 3,112

    Heated s.f.

  • 2

    Units

  • 48' 0"

    Width

  • 35' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,810
  • 5 Sets + PDF $1,935
  • CAD + PDF - Single-Build $2,410
  • View all purchase option online

About This Plan

  • Each unit of the two-family house plan gives you 3 beds, 1 full and 1 half bath and 1,556 square feet of heated living space (778 square feet on the main and lower levels).
  • The covered porch gives serves as an outdoor living room.
  • The lower level is dedicated to the bedrooms and there is laundry conveniently located there as well.
  • The main level has an open concept layout and is great for entertaining.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,112 sq. ft.
  • Lower Level: 1,556 sq. ft.
  • 1st Floor: 1,556 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 35' 0"
  • Max ridge height: 24' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
Plan 22476DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22476DR
|
Need Help? 800-854-7852
|
Plan 22476DR
