Plan 90026PD
Multi-Family Living
Heated S.F.
3,212
Units
2
Width
Depth
Floor Plan

Plan 90026PD

Main Level
slide image 0
2nd Floor
slide image 1
Optional
slide image 2

Plan 90026PD

1-800-854-7852

1-262-521-4596

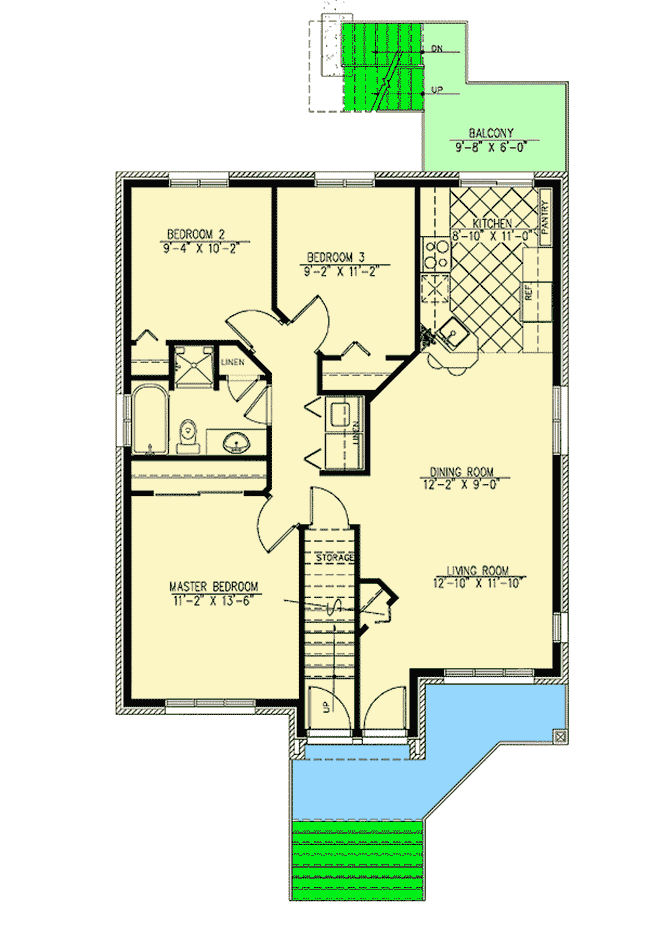

Main Level
floor plan image Main Level

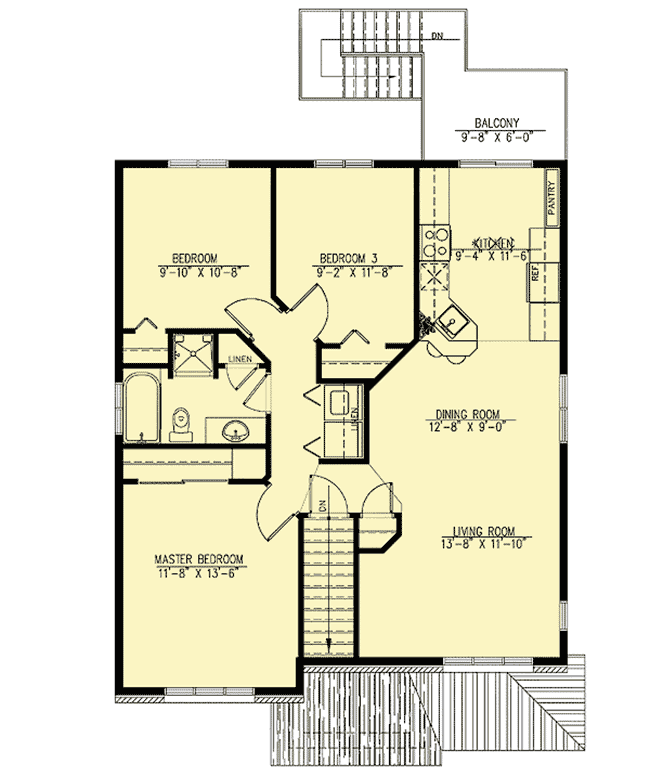

2nd Floor
floor plan image 2nd Floor

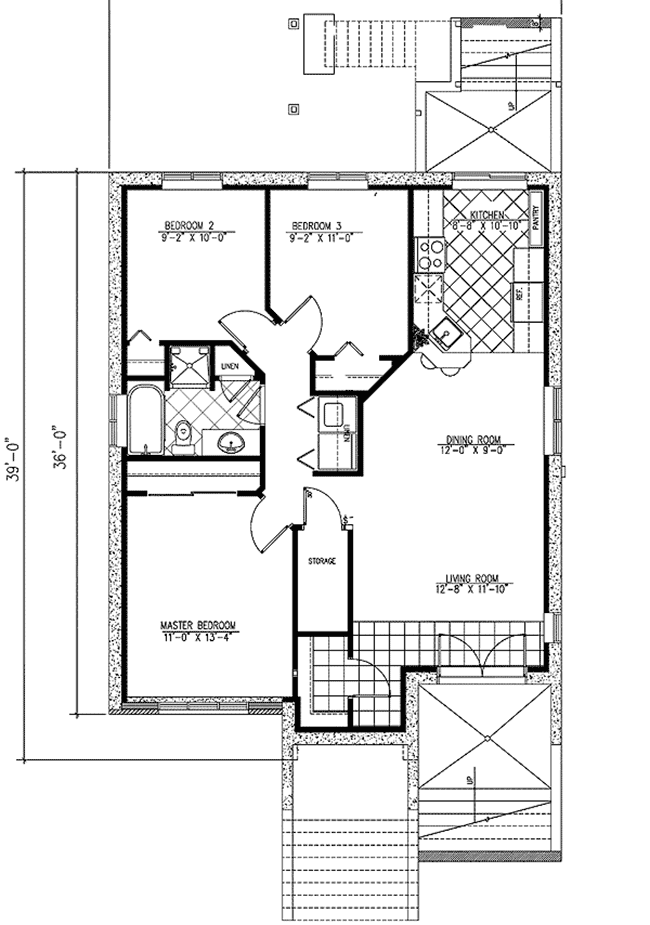

Optional
floor plan image Optional
Plan Details

This multi-family home plan gives you 1,088 sq. ft. in the main floor unit and 1,045 sq. ft. in the upper floor unit.

Unit A
1,088Sq. Ft.
1088 Sq. Ft.
1st Floor
3Beds
1Full Bath
30'width
39'depth
39' 2"height
Unit B
1,145Sq. Ft.
1145 Sq. Ft.
1st Floor
3Beds
1Full Bath
30'width
39'depth
39' 2"height
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,212 sq. ft.

Lower Level

1,079 sq. ft.

1st Floor

1,088 sq. ft.

2nd Floor

1,145 sq. ft.

Basement Unfinished

1,088 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

39' 0"

Max Ridge Height

39' 2"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,212 sq. ft.

Lower Level

1,079 sq. ft.

1st Floor

1,088 sq. ft.

2nd Floor

1,145 sq. ft.

Basement Unfinished

1,088 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

39' 0"

Max Ridge Height

39' 2"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
