Multi-Gabled 2-Story House Plan with Flexible Floor Plan

Pageloader

Multi-Gabled 2-Story House Plan with Flexible Floor Plan

Plan 710003BTZ

  • 2,796

    Heated s.f.

  • 3-5

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Multi-gables with a mixture of materials - wood, brick and stone - give this 2-story house plan great curb appeal. Available in two alternate exteriors and with a floor plan that gives you 3, 4 or 5 bedrooms, this home checks off lots of boxes.
  • The two-story foyer leads to the vaulted family room with large windows that bring in natural light. To the left is the breakfast area and open-concept kitchen.
  • Through the breakfast area is the vaulted keeping room, and just off the kitchen is the conveniently located laundry room.
  • A covered porch and sundeck are reached through both the keeping room and main-level master suite.
  • The master suite includes an oversized bathroom with his-and-her sinks and large walk-in closet. A second bedroom is found just off the foyer with a full guest bathroom nearby.
  • Upstairs, you’ll find two bedrooms with attached bathrooms. A bonus room with a full bathroom and walk-in closet is just across the hall, ideal for a guest suite or game room for the kids.
  • Related Plans: Get alternate exteriors with house plans 710002BTZ and 710004BTZ.

The plans include the following:

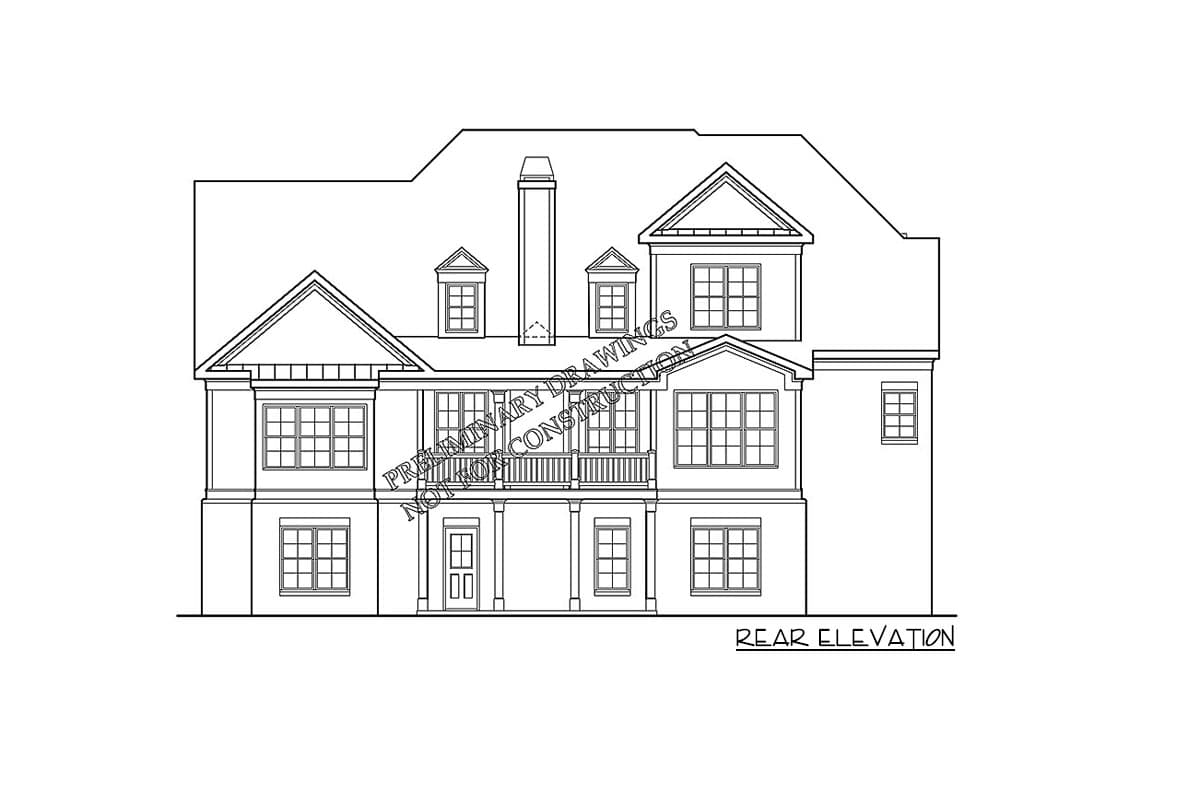

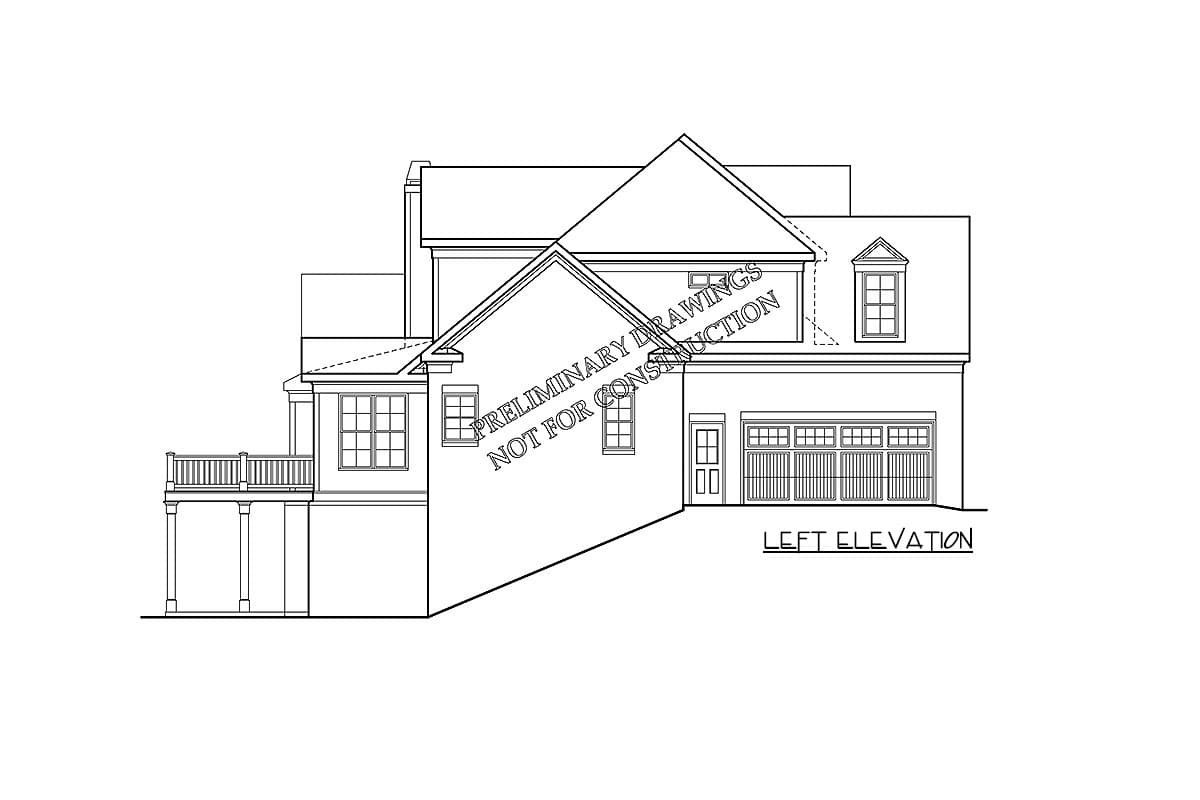

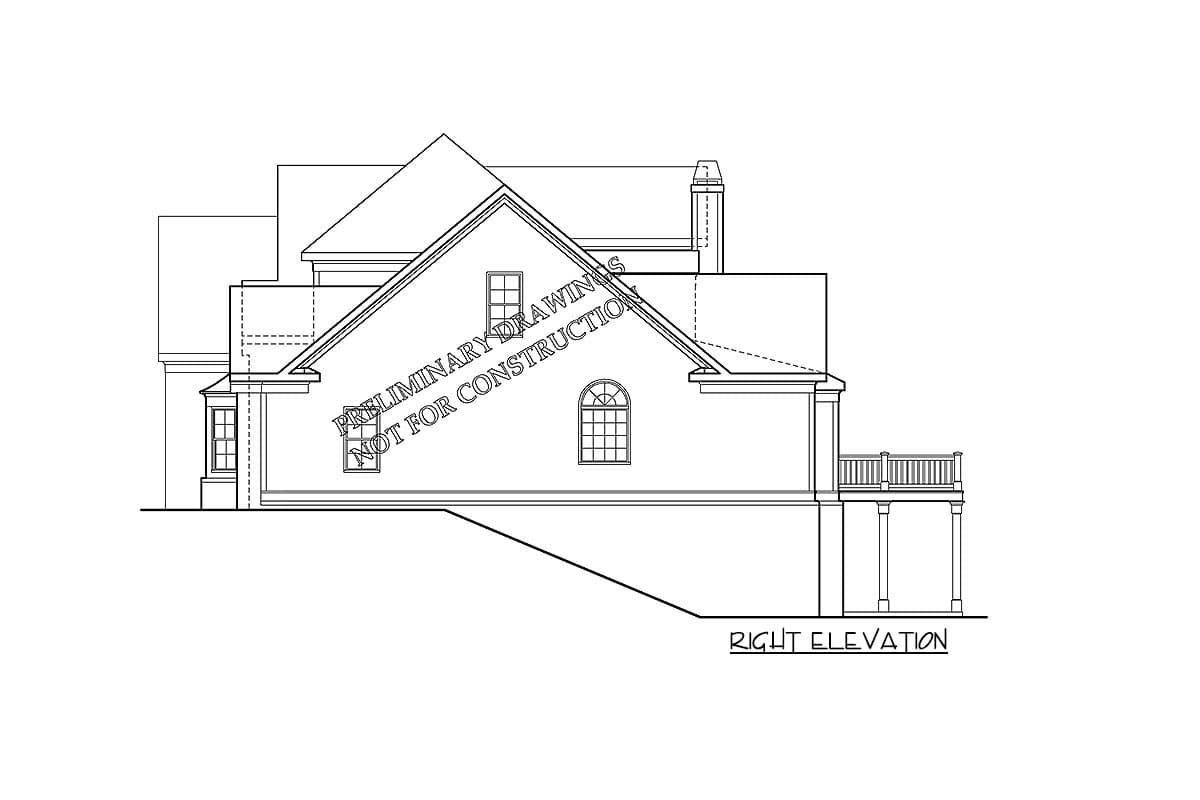

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Multi-Gabled 2-Story House Plan with Flexible Floor Plan

  • 2,796

    Heated s.f.

  • 3 - 5

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • Multi-gables with a mixture of materials - wood, brick and stone - give this 2-story house plan great curb appeal. Available in two alternate exteriors and with a floor plan that gives you 3, 4 or 5 bedrooms, this home checks off lots of boxes.
  • The two-story foyer leads to the vaulted family room with large windows that bring in natural light. To the left is the breakfast area and open-concept kitchen.
  • Through the breakfast area is the vaulted keeping room, and just off the kitchen is the conveniently located laundry room.
  • A covered porch and sundeck are reached through both the keeping room and main-level master suite.
  • The master suite includes an oversized bathroom with his-and-her sinks and large walk-in closet. A second bedroom is found just off the foyer with a full guest bathroom nearby.
  • Upstairs, you’ll find two bedrooms with attached bathrooms. A bonus room with a full bathroom and walk-in closet is just across the hall, ideal for a guest suite or game room for the kids.
  • Related Plans: Get alternate exteriors with house plans 710002BTZ and 710004BTZ.

Floor Plans

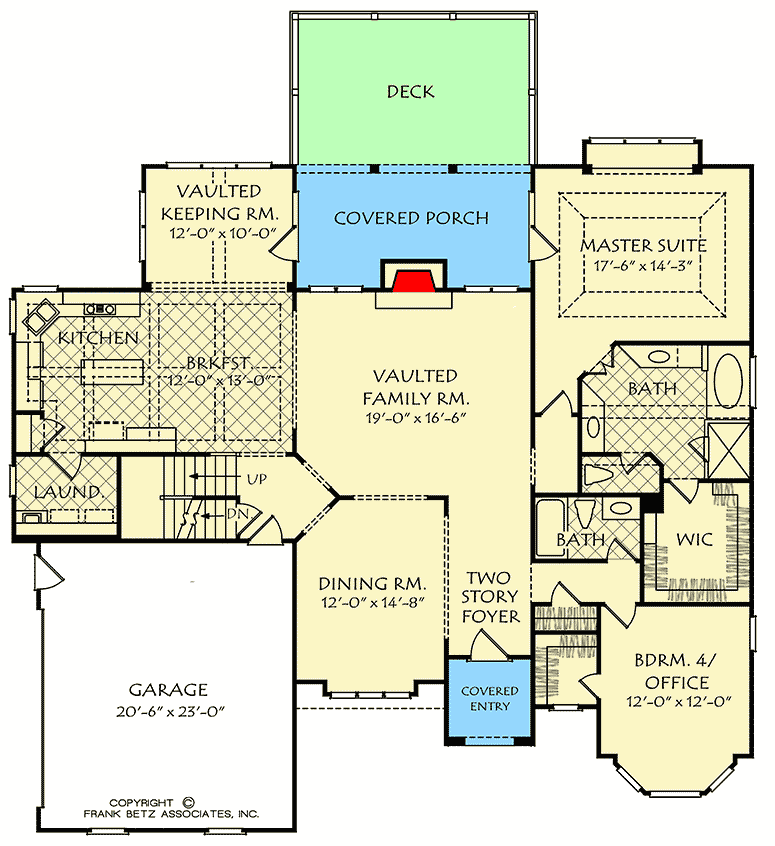

  • Main Level

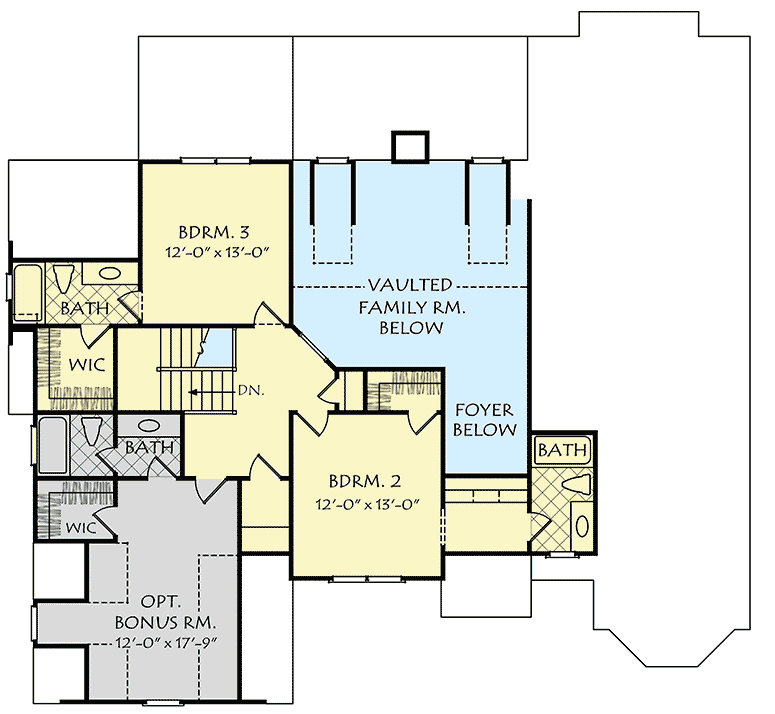

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,796 sq. ft.
  • 1st Floor: 2,090 sq. ft.
  • 2nd Floor: 706 sq. ft.
  • Bonus: 330 sq. ft.
  • Basement Unfinished: 2,090 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 4 or 5

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 56' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 488 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
