Plan 25684GE
Multi-Gabled Craftsman Home Plan with Elevator-Accessible Guest Studio Suite - 3572 Sq Ft
Heated S.F.
3,572
Beds
3-5
Baths
2.5 - 3.5
Stories
1
Cars
2
Plan Details
  • Intricate woodwork adorns the interior and exterior of this stunning, 3-bedroom house plan, along with ornate ceilings, built-in cabinetry, and a plethora of luxurious details.

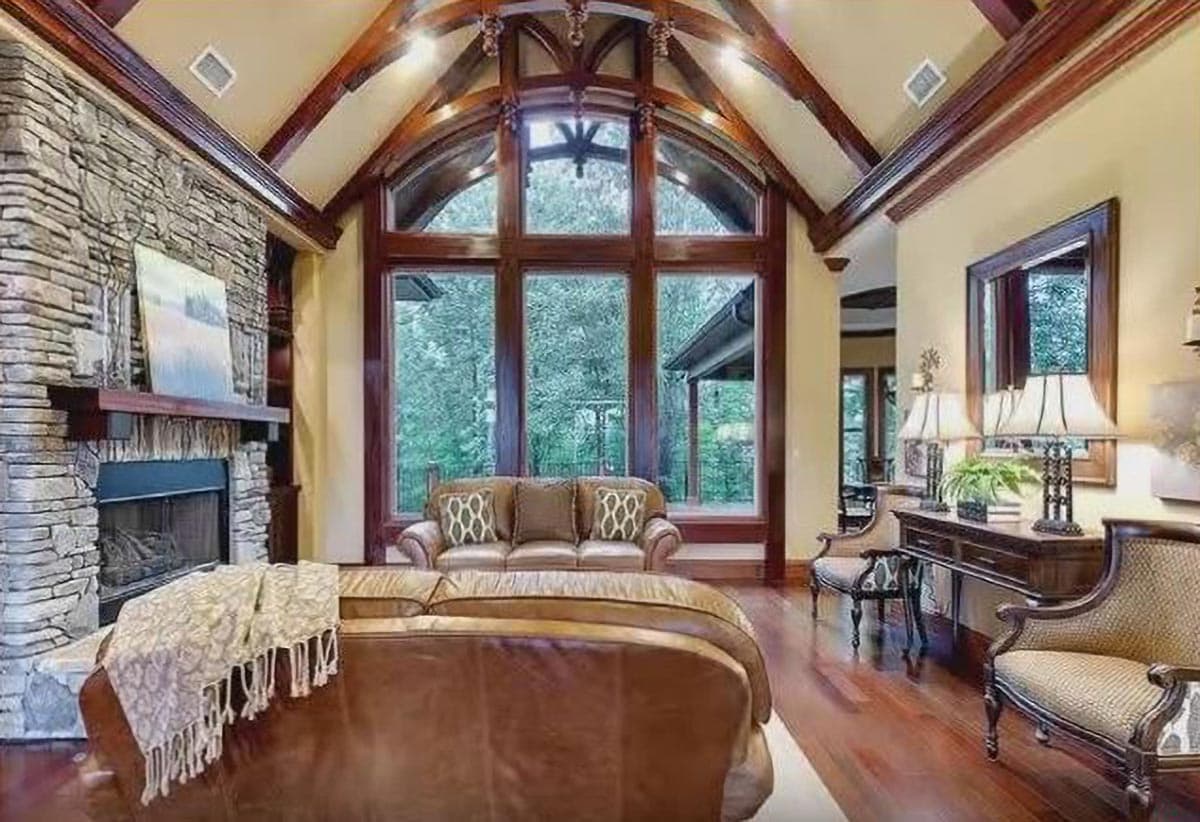

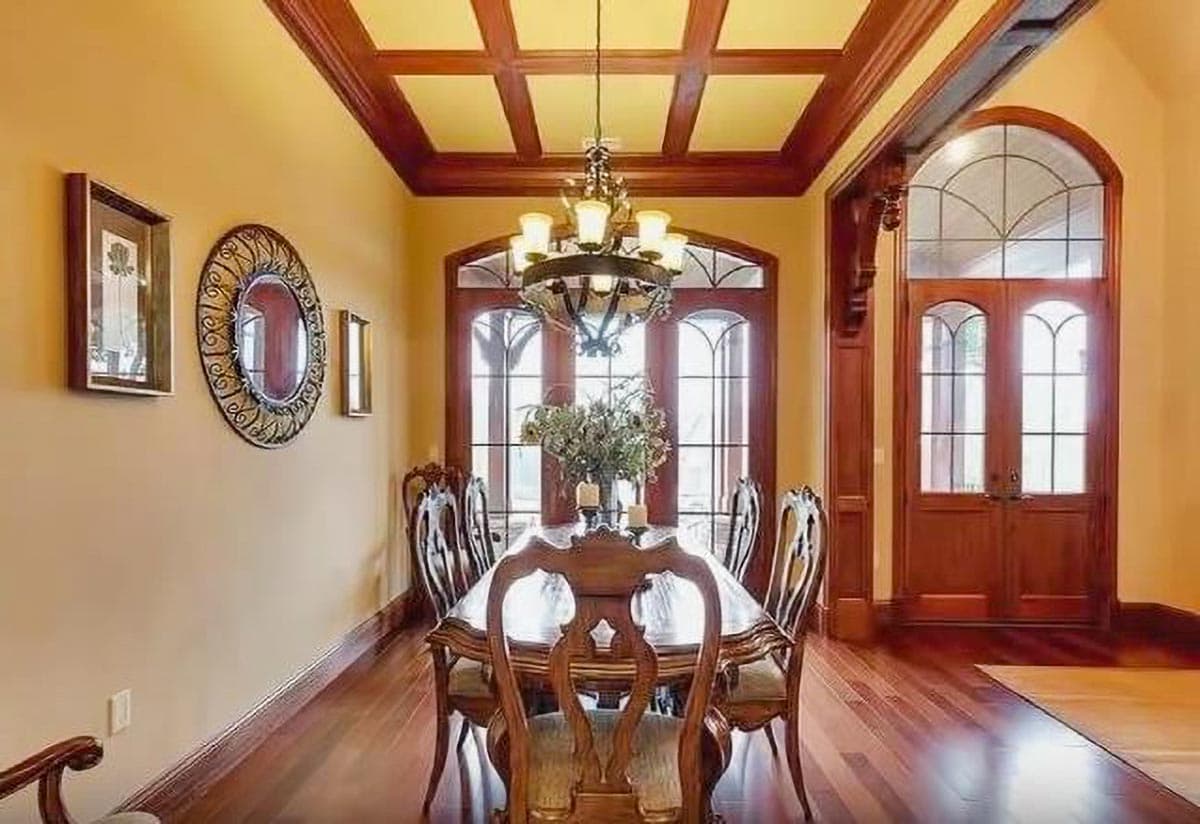

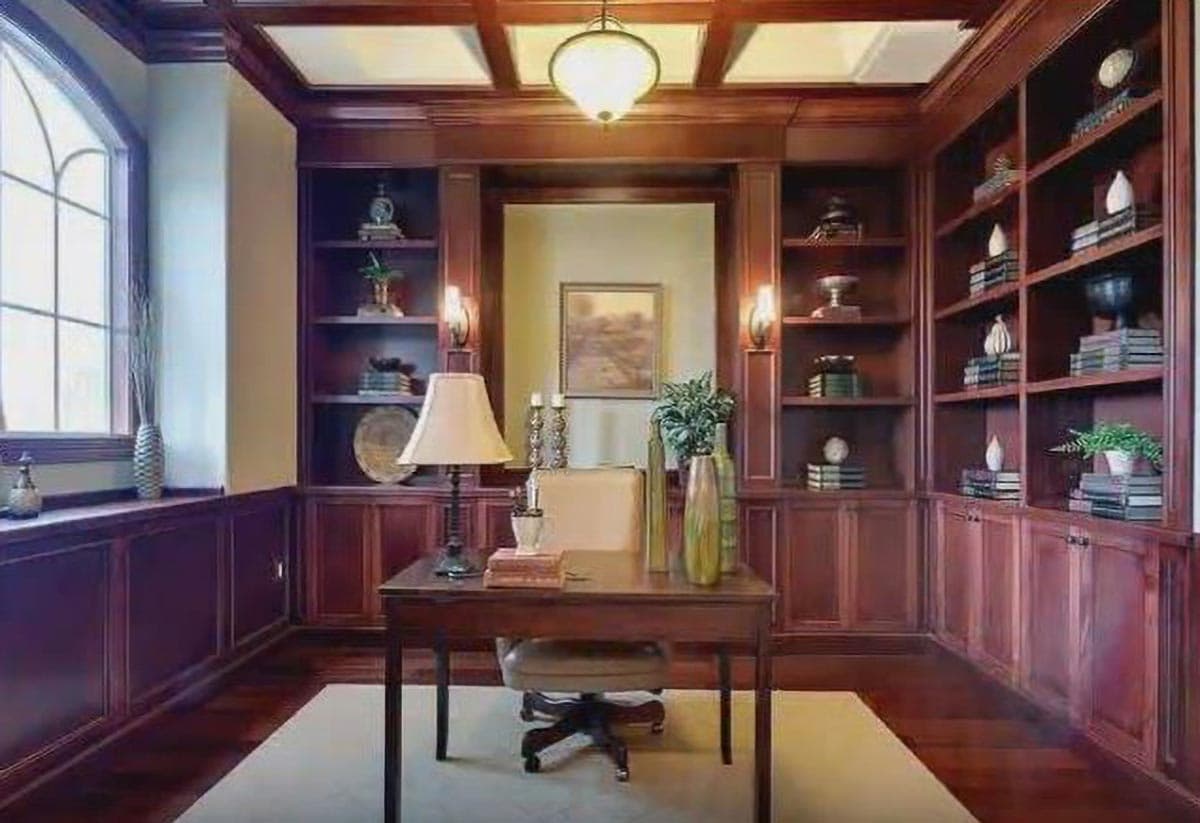

  • A secluded study and formal dining room border the foyer. Light and airy living spaces in both the lodge room and keeping room provide ample space to congregate, each with a cozy fireplace for added ambience.

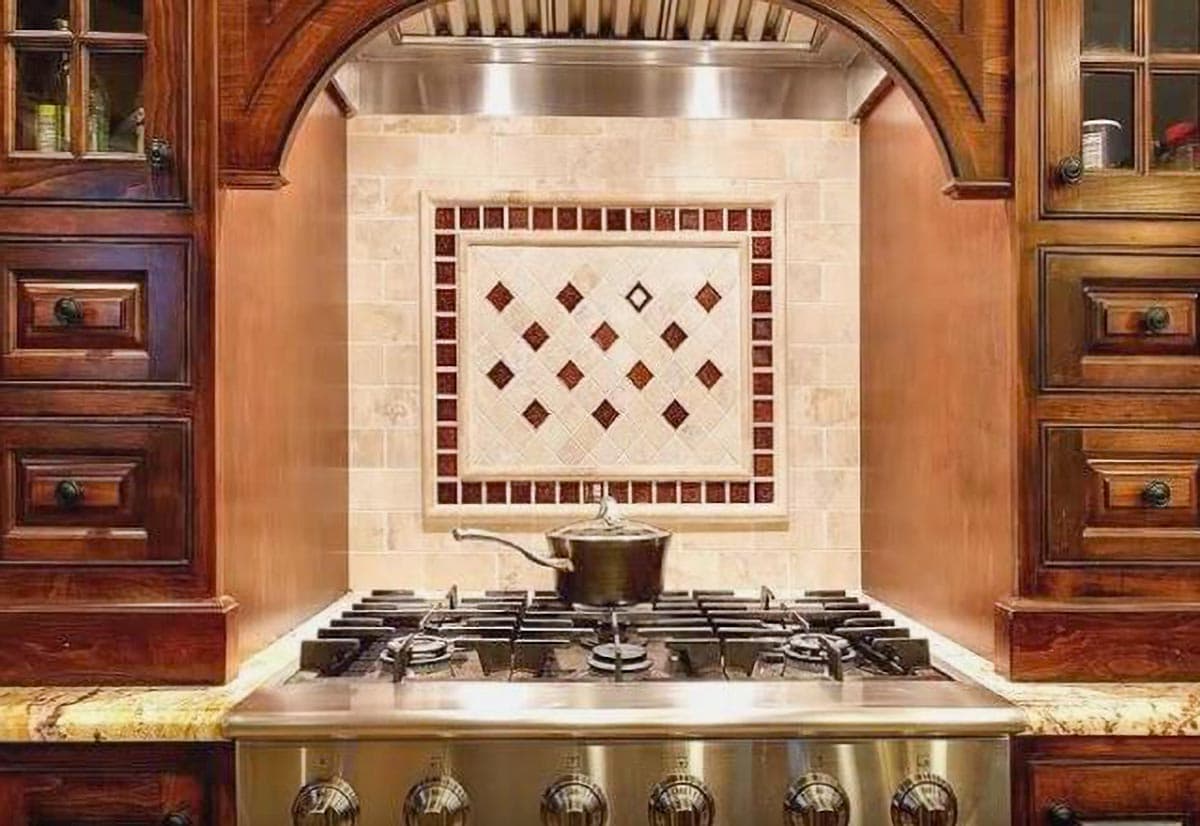

  • The homeowner will delight in the enormous kitchen with never-ending counter space, and a rounded, covered porch encases the circular, breakfast nook for added intrigue.
  • The left wing of the home of this Craftsman house plan is occupied by the master suite, which boasts a sprawling en suite with an oversized shower and dual vanities.

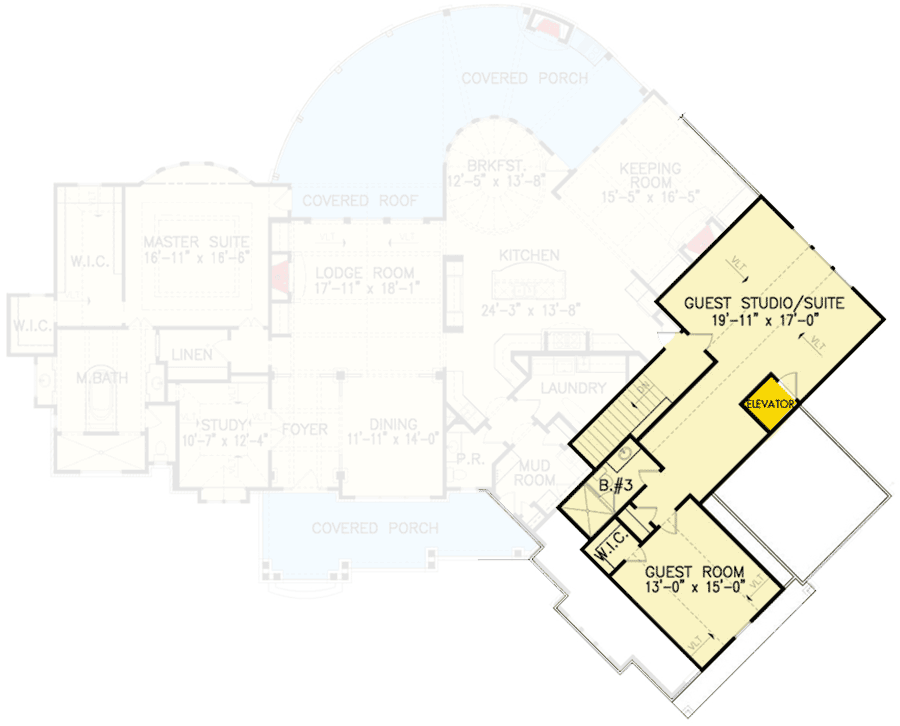

  • Upstairs, a guest suite presents itself, complete with a living area, elevator access, a bedroom, and full bath.
  • Inside from the 2-car garage, a spacious mudroom, laundry room, and powder bath takes care of your initial needs upon entering.
  • Related Plan: Get a 3- car garage with house plan 25618GE (4,440 sq. ft.) and an alternate version with house plans 15623GE (3,126 sq. ft.) and 15662GE (3,202 sq. ft.).
What's Included

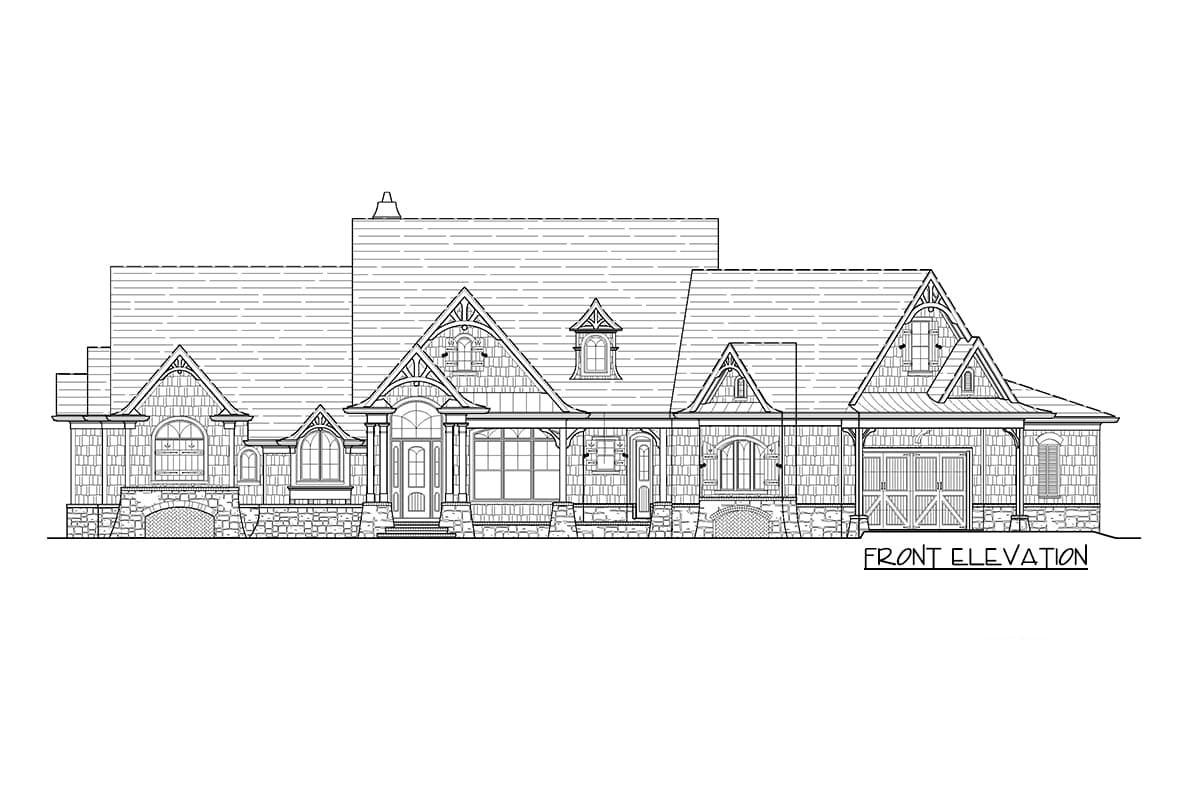

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Gabled Craftsman Home Plan with Elevator-Accessible Guest Studio Suite - 3572 Sq Ft

  • 3,572

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

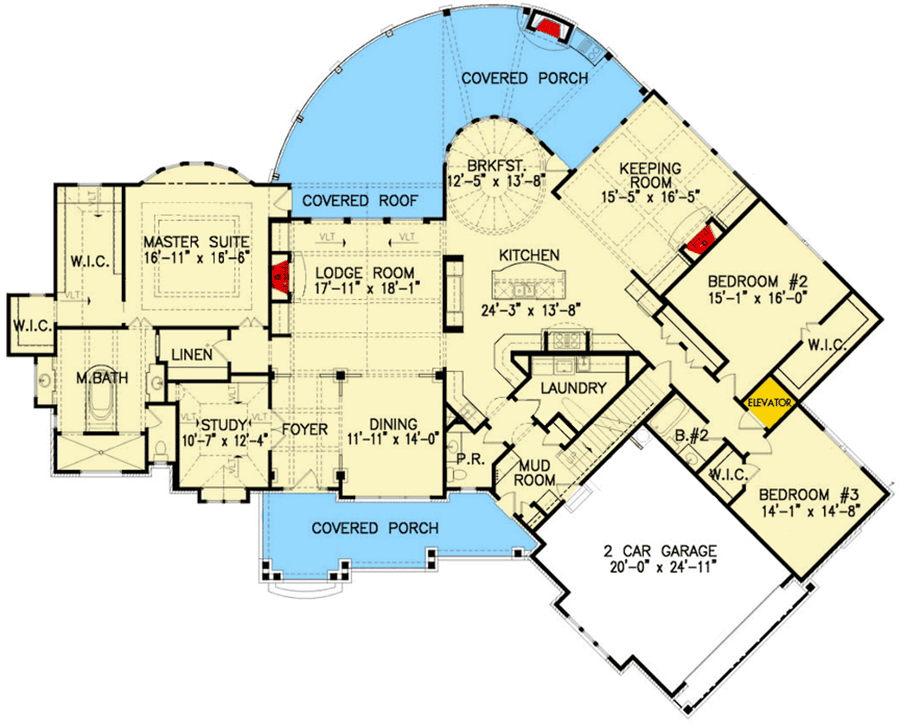

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,572 sq. ft.
  • 1st Floor: 3,572 sq. ft.

Dimensions

  • Width: 104' 6"
  • Depth: 84' 2"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"
