Plan 42413DB Multi-Generation House Plan with Separate In-Law Casita

Multi-Generation House Plan with Separate In-Law Casita

Plan 42413DB

  • 2,506

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This attractive multi-generation house plan offers a well-organized floor plan with lots of built-ins that add charm and storage.
  • An arched entryway divides the dining area from the big family room.
  • The eating area flows into the compact kitchen that has a large island to add counter space. The walk-in pantry lies near the drop zone off the garage.
  • Upstairs, the master suite has a tray ceiling, private bathroom and a walk-in closet.
  • A separate outdoor entrance in back of the home leads up to the in-law casita that could also be used for rental income if desired.
  • Related Plans: Get alternate exteriors with house plan 42553DB and 42554DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

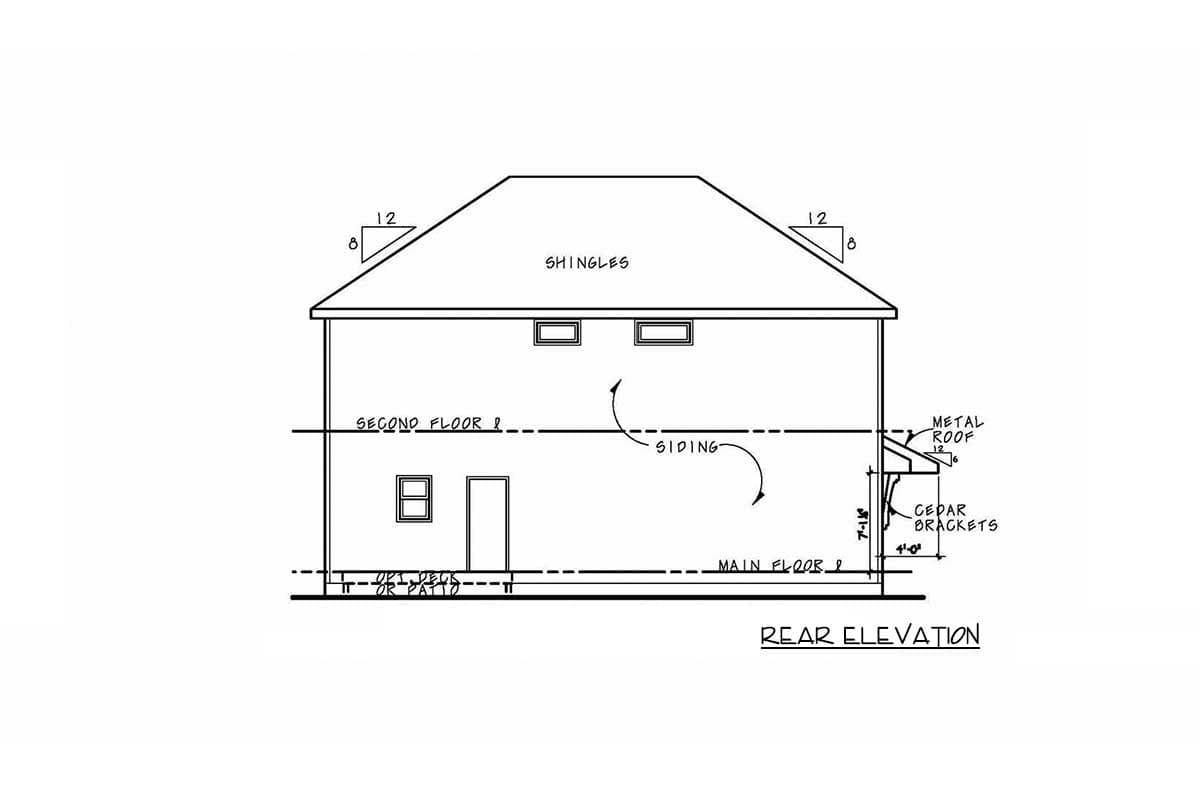

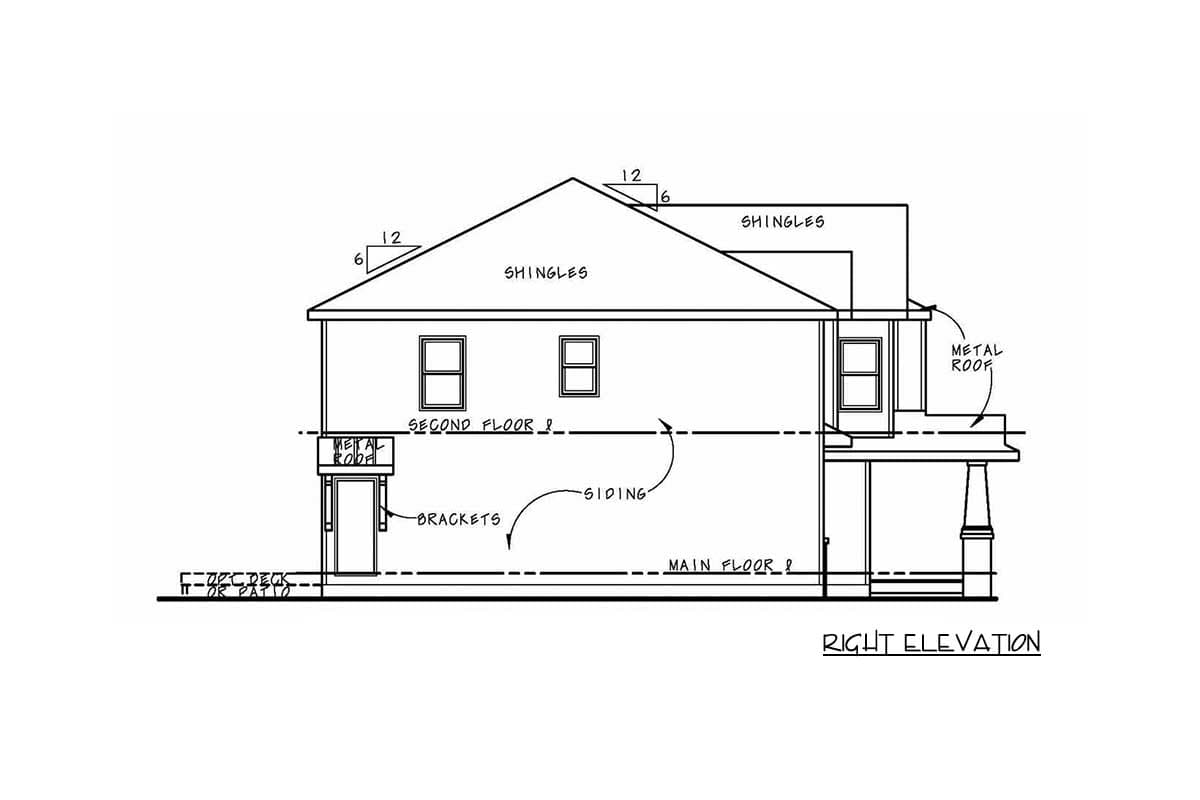

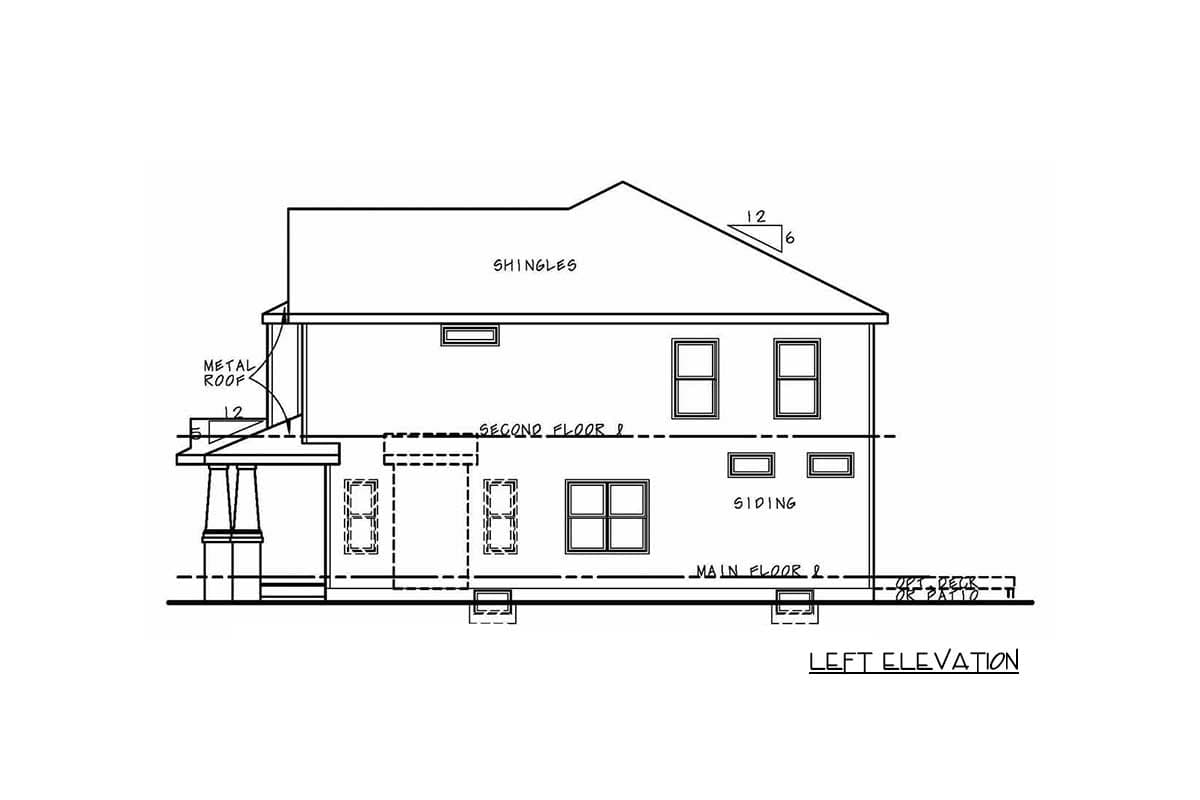

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

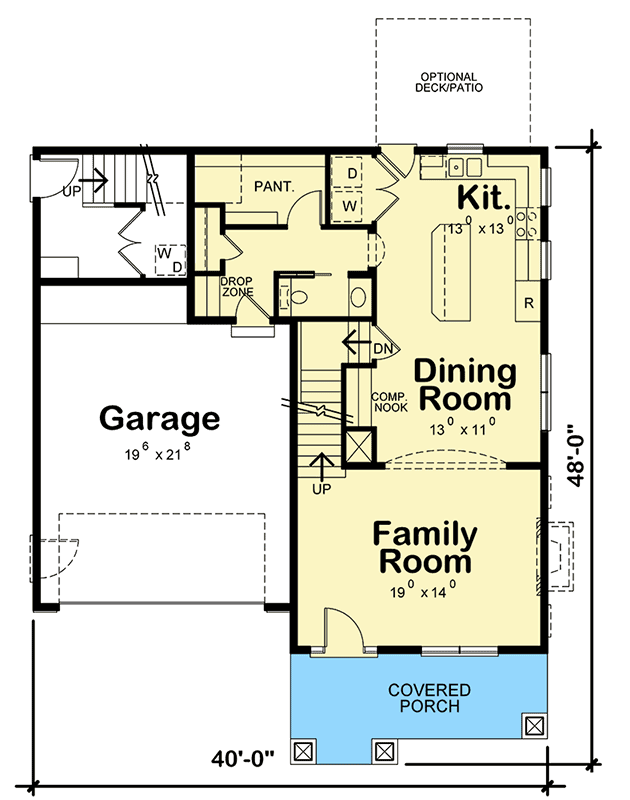

Multi-Generation House Plan with Separate In-Law Casita - 42413DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

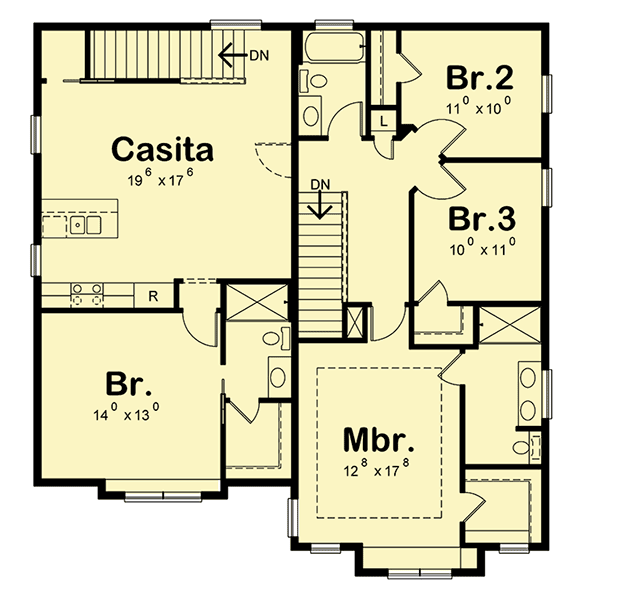

Multi-Generation House Plan with Separate In-Law Casita - 42413DB floor plan - 2nd Floor

Plan details

Multi-Generation House Plan with Separate In-Law Casita

  • 2,506

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $715
  • PDF - Single-Build $1,105
  • PDF - Unlimited Build $1,605
  • CAD - Single-Build $1,920
  • CAD - Unlimited Build $2,420
  • View all purchase option online

About This Plan

  • This attractive multi-generation house plan offers a well-organized floor plan with lots of built-ins that add charm and storage.
  • An arched entryway divides the dining area from the big family room.
  • The eating area flows into the compact kitchen that has a large island to add counter space. The walk-in pantry lies near the drop zone off the garage.
  • Upstairs, the master suite has a tray ceiling, private bathroom and a walk-in closet.
  • A separate outdoor entrance in back of the home leads up to the in-law casita that could also be used for rental income if desired.
  • Related Plans: Get alternate exteriors with house plan 42553DB and 42554DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,506 sq. ft.
  • 1st Floor: 1,025 sq. ft.
  • 2nd Floor: 1,481 sq. ft.
  • Porch, Front: 150 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 482 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
